Diagnostic Tests: Notes
WARNING: This page is about a different car, the 2003 Toyota Tundra, 2002 Toyota Tundra, and 2001 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

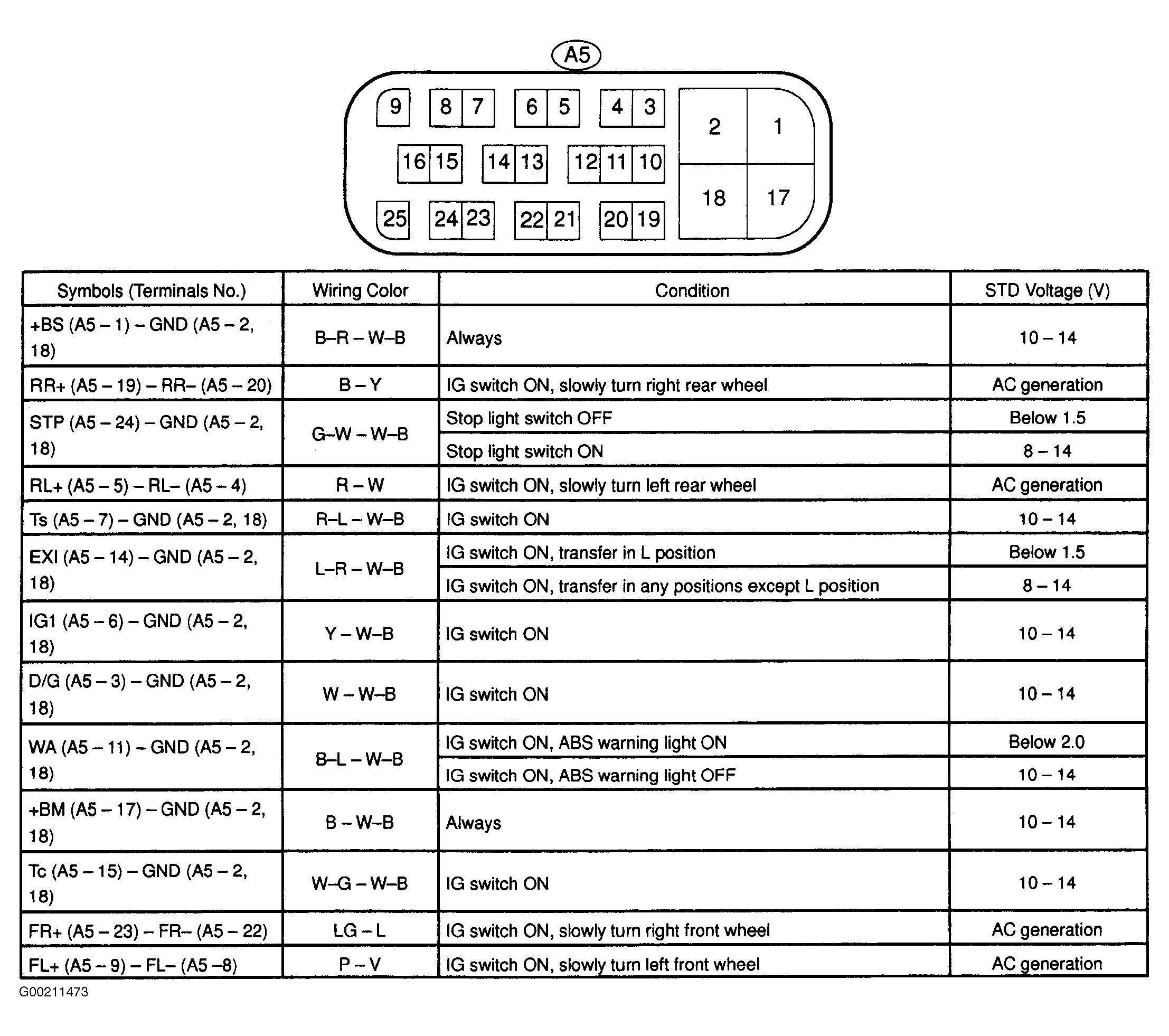

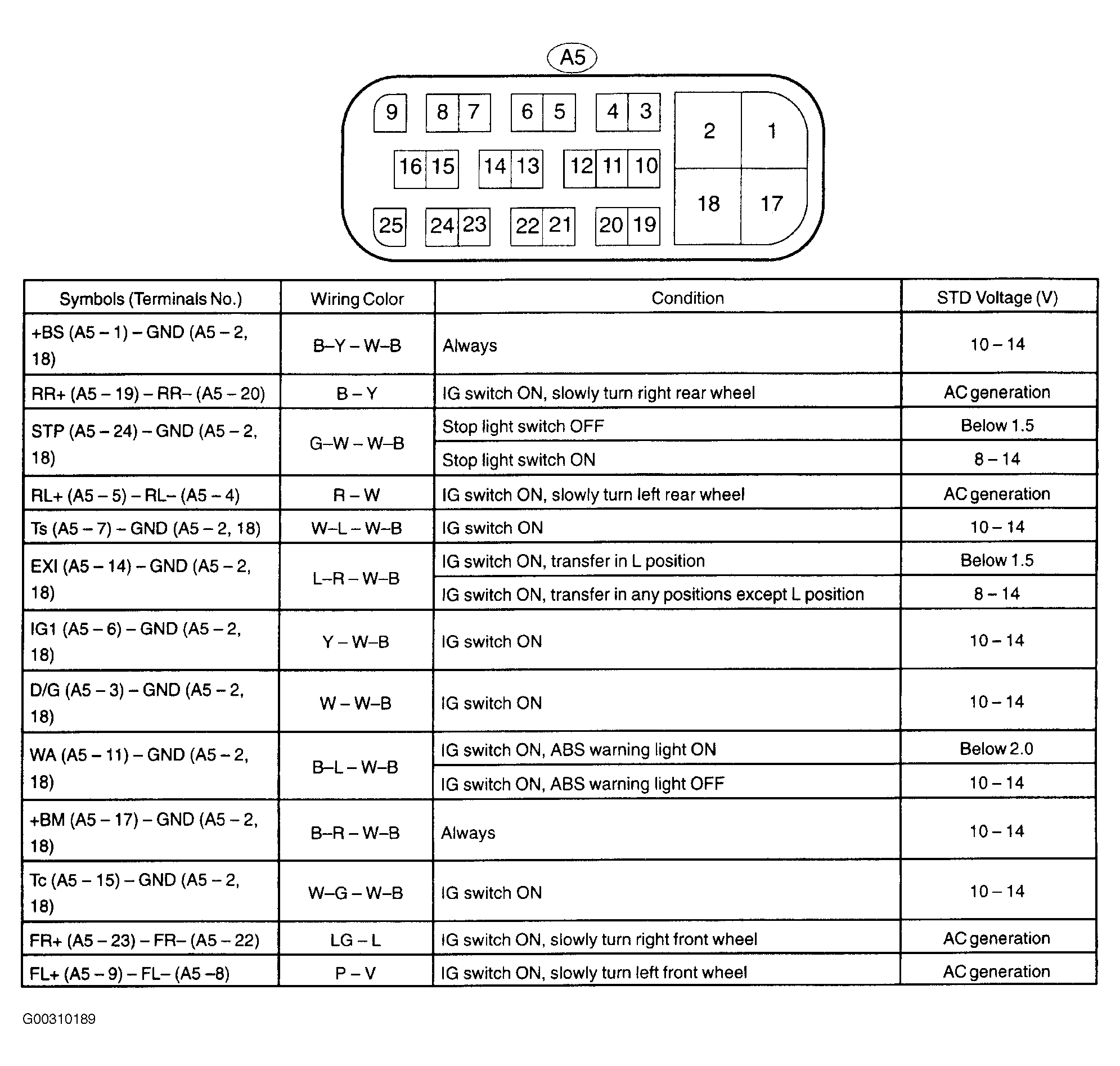

For identification of ABS ECU terminals and circuits, see Figure-Figure
. Also see WIRING DIAGRAMS .
NOTE:
There are no procedures for deceleration sensor diagnosis available from manufacturer.
