Field Coil
WARNING: This page is about a different car, the 2004 Toyota 4Runner and 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

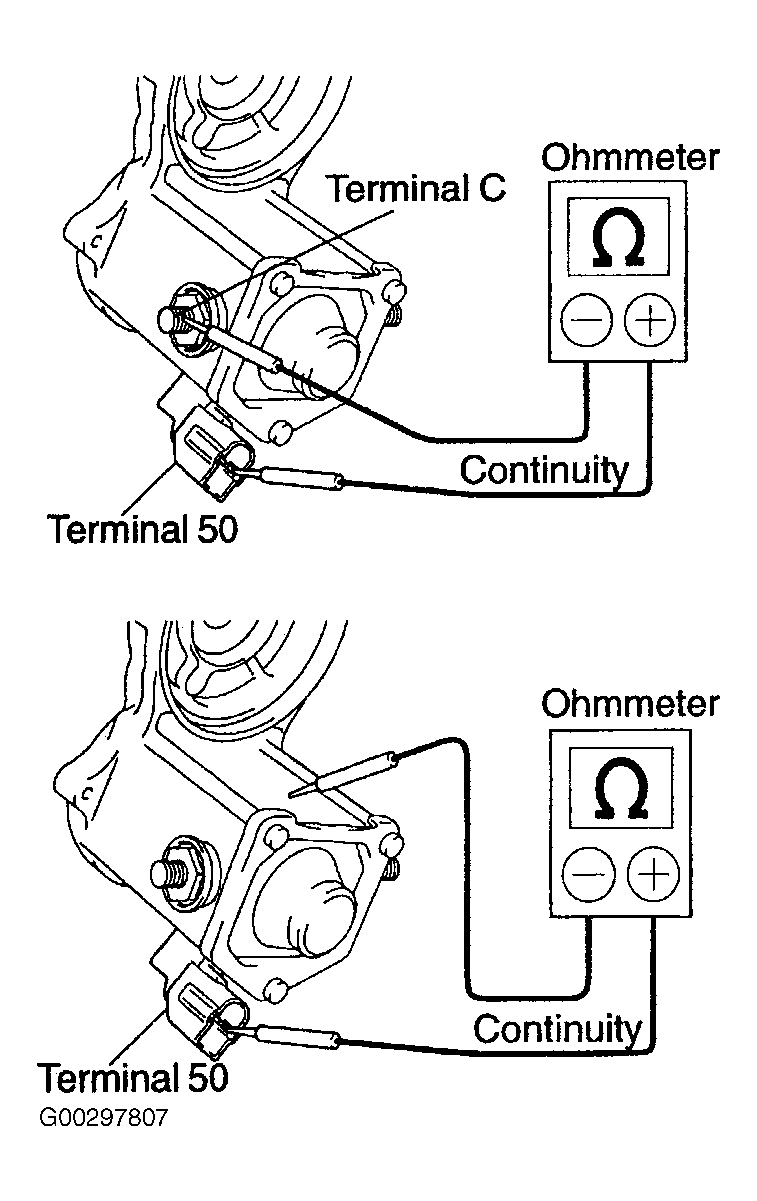

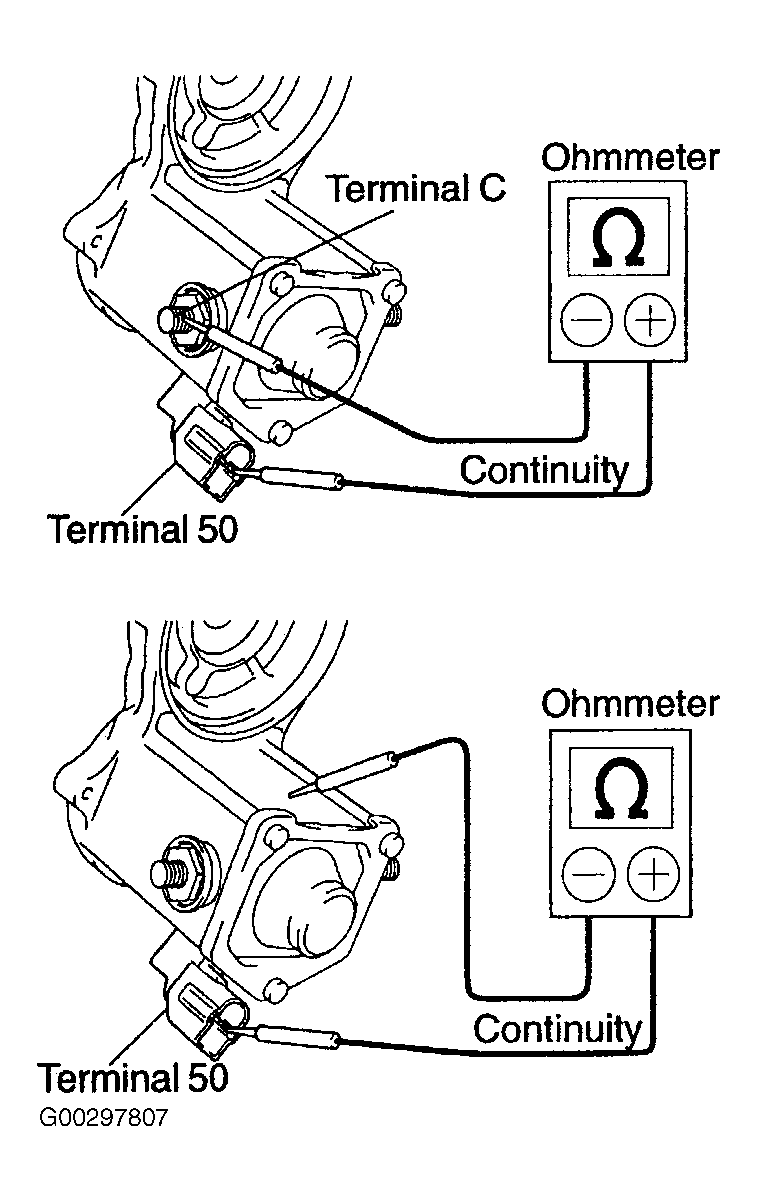

- Check whether the pull-in coil has an open circuit. Using an ohmmeter, check that there is continuity between terminal No. 50 and terminal "C". See Fig 1. If there is no continuity, check and replace the magnetic switch.
- Check whether the pull-in coil has an open circuit. Using an ohmmeter, check that there is continuity between terminals No. 50 and the switch body. See Fig 1. If there is no continuity, check and replace the magnetic switch.
