Section 256 (Starting System): Overhaul

WARNING: This page is about a different car, the 2004 Toyota 4Runner and 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

For 4.0L with 1.6 kilowatt permanent magnet starter, see Fig 1 for exploded view.
For 4.0L with 2 kilowatt starter, see Fig 2 for exploded view.
For 4.7L, see Fig 3 for exploded view.

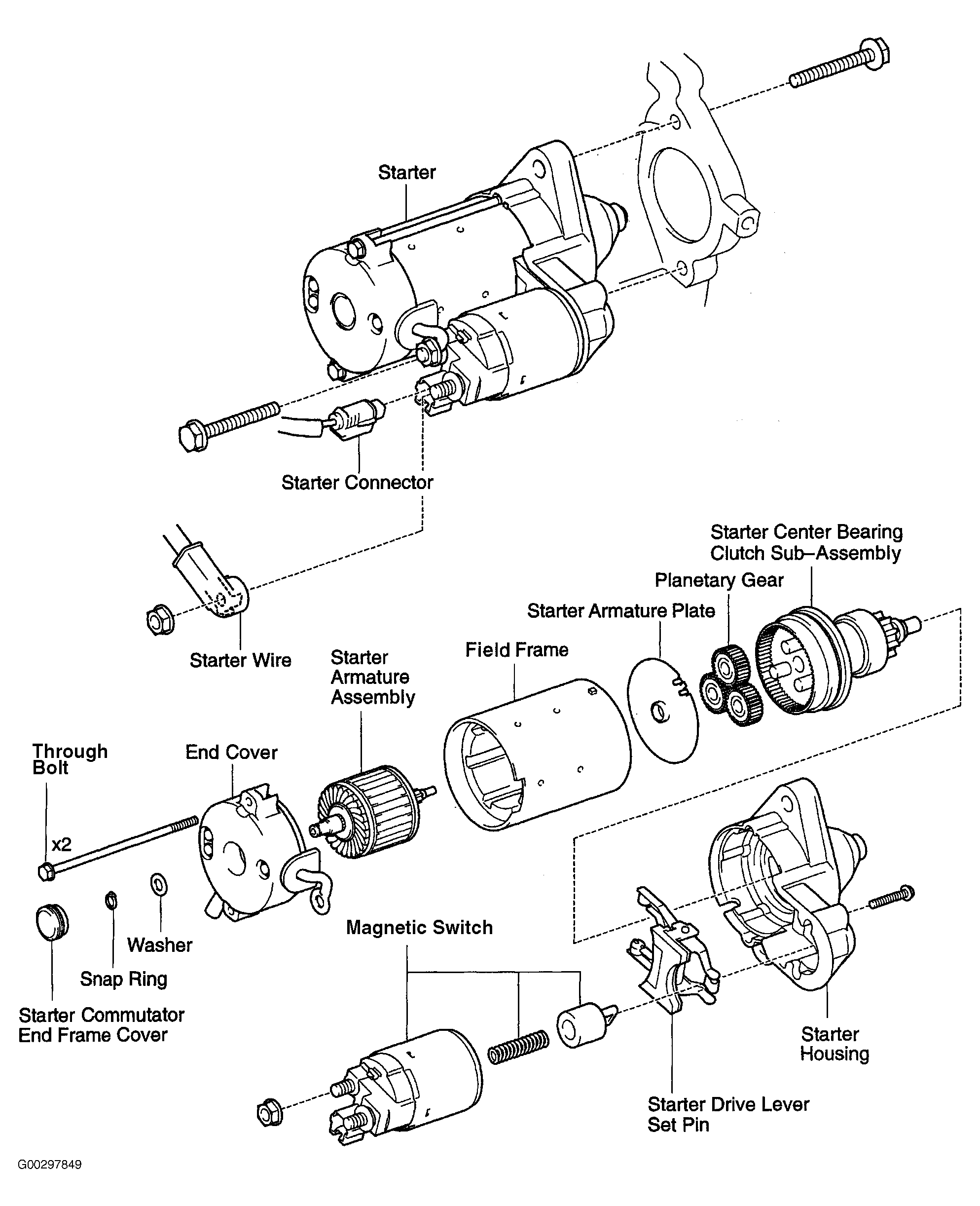

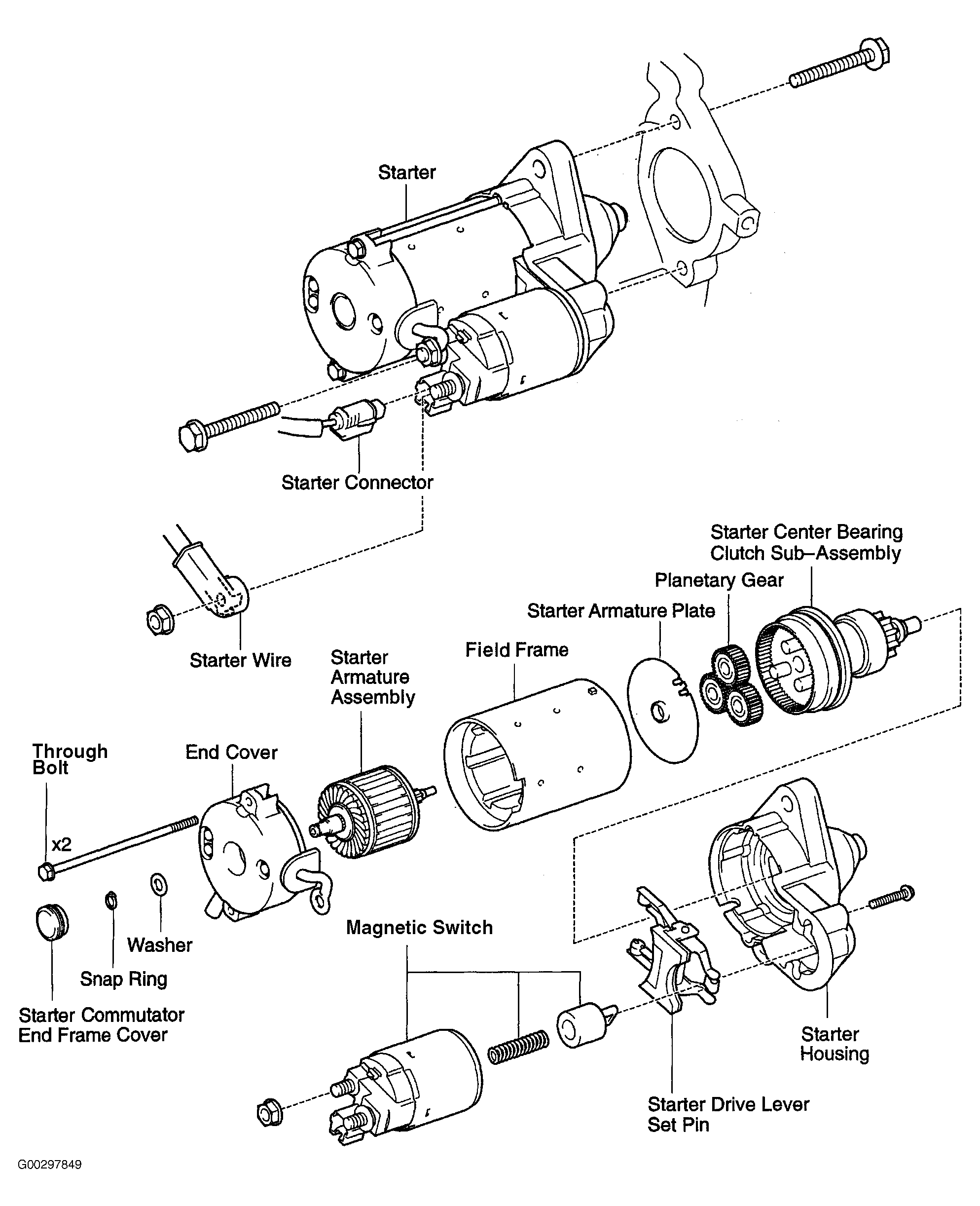

Fig 1: Exploded View Of 1.6 Kilowatt Permanent Magnet Starter (4.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

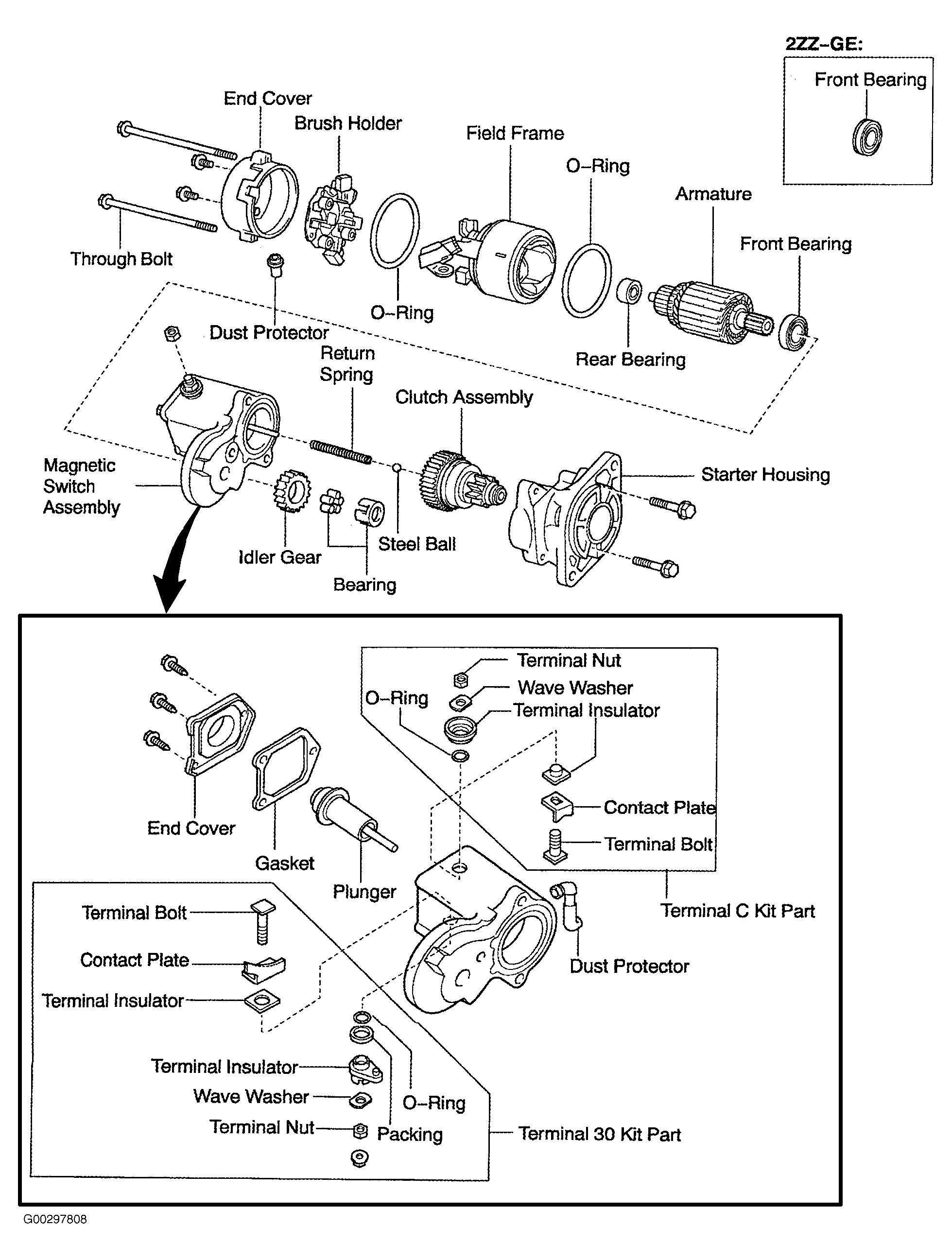

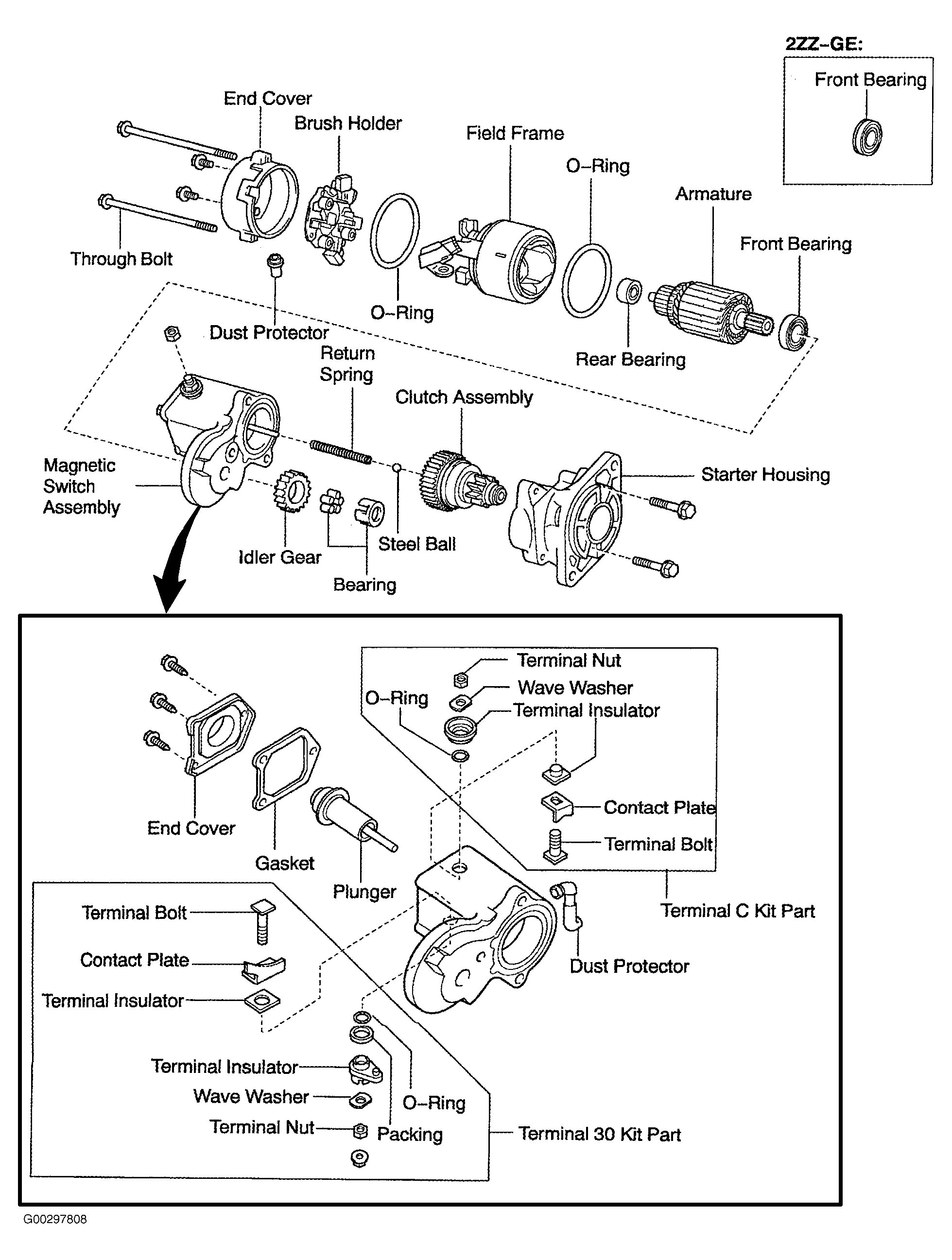

Fig 2: Exploded View Of 2 Kilowatt Starter & Magnetic Switch (4.0L)

Fig 3: Exploded View Of Starter & Magnetic Switch (4.7L)
