Component Locations

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For additional cruise control system component locations, see Fig 1 and Fig 2 . For connectors, grounding points, splices and other electrical components, see ELECTRICAL COMPONENT LOCATOR article in ELECTRICAL. For fuse locations, see FUSES & CIRCUIT BREAKERS article in ELECTRICAL.

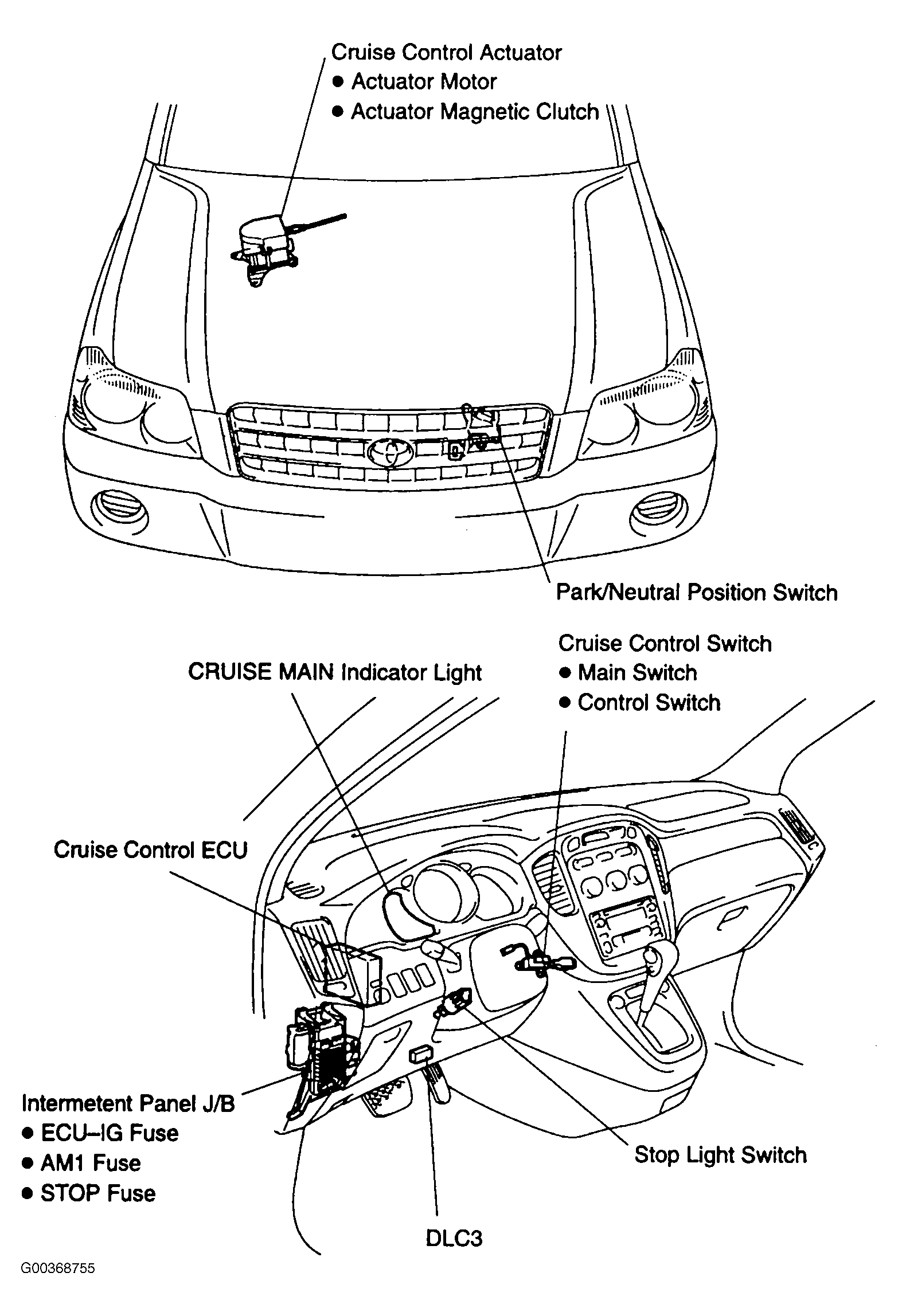

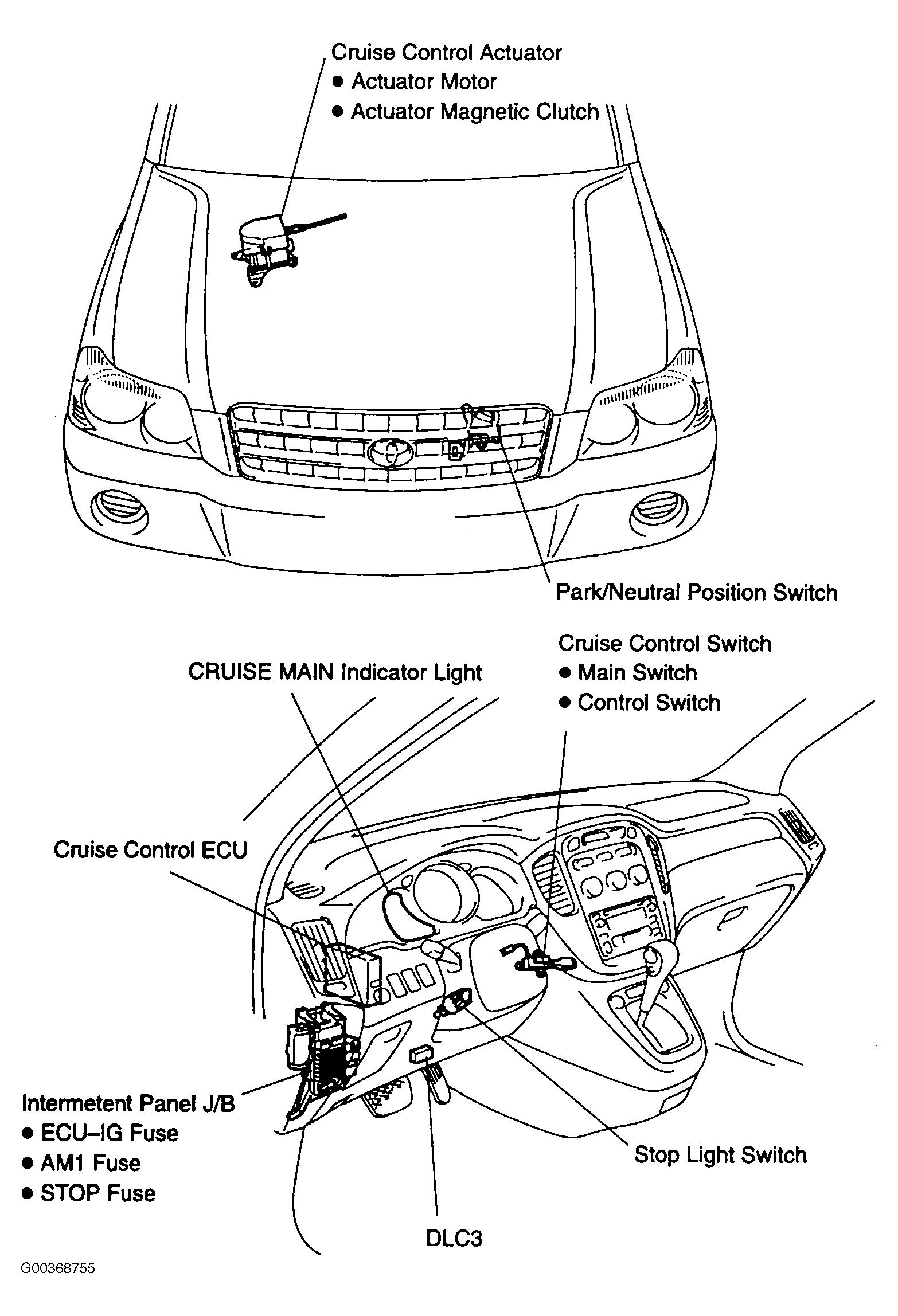

Fig 1: Locating Cruise Control Components (1 Of 2)

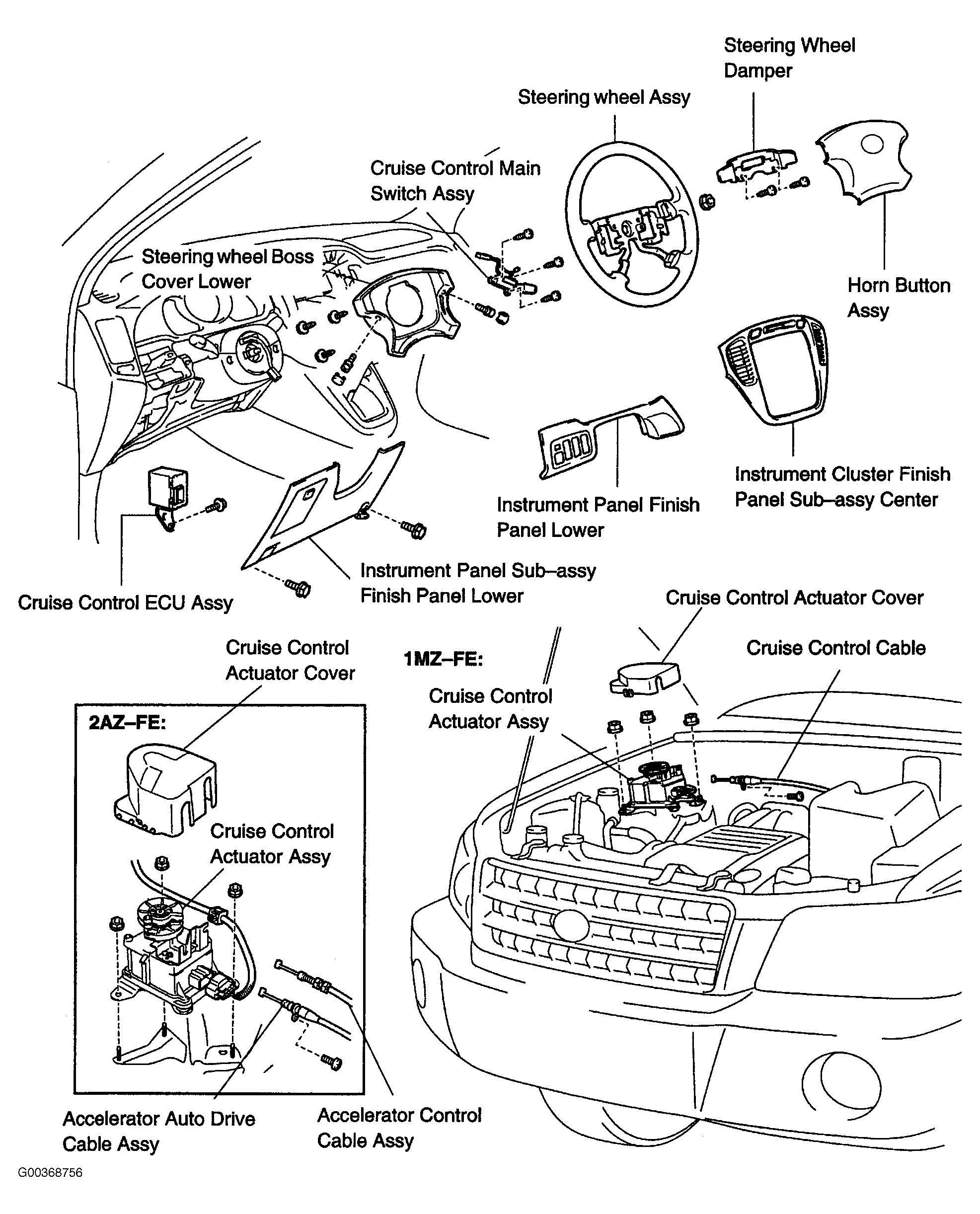

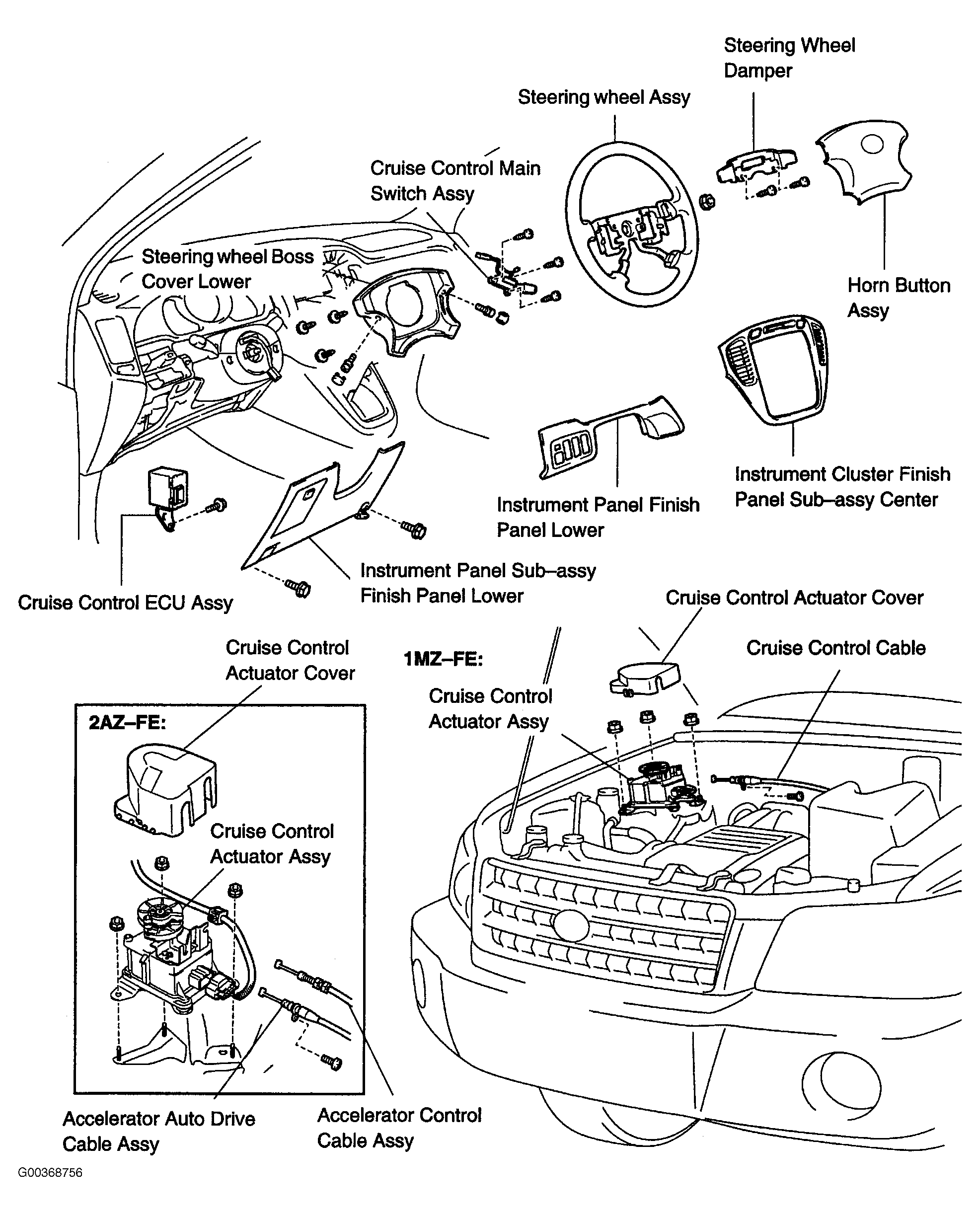

Fig 2: Locating Cruise Control Components (2 Of 2)
