Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

For DTC Trouble Code Difinition, see Fig 1

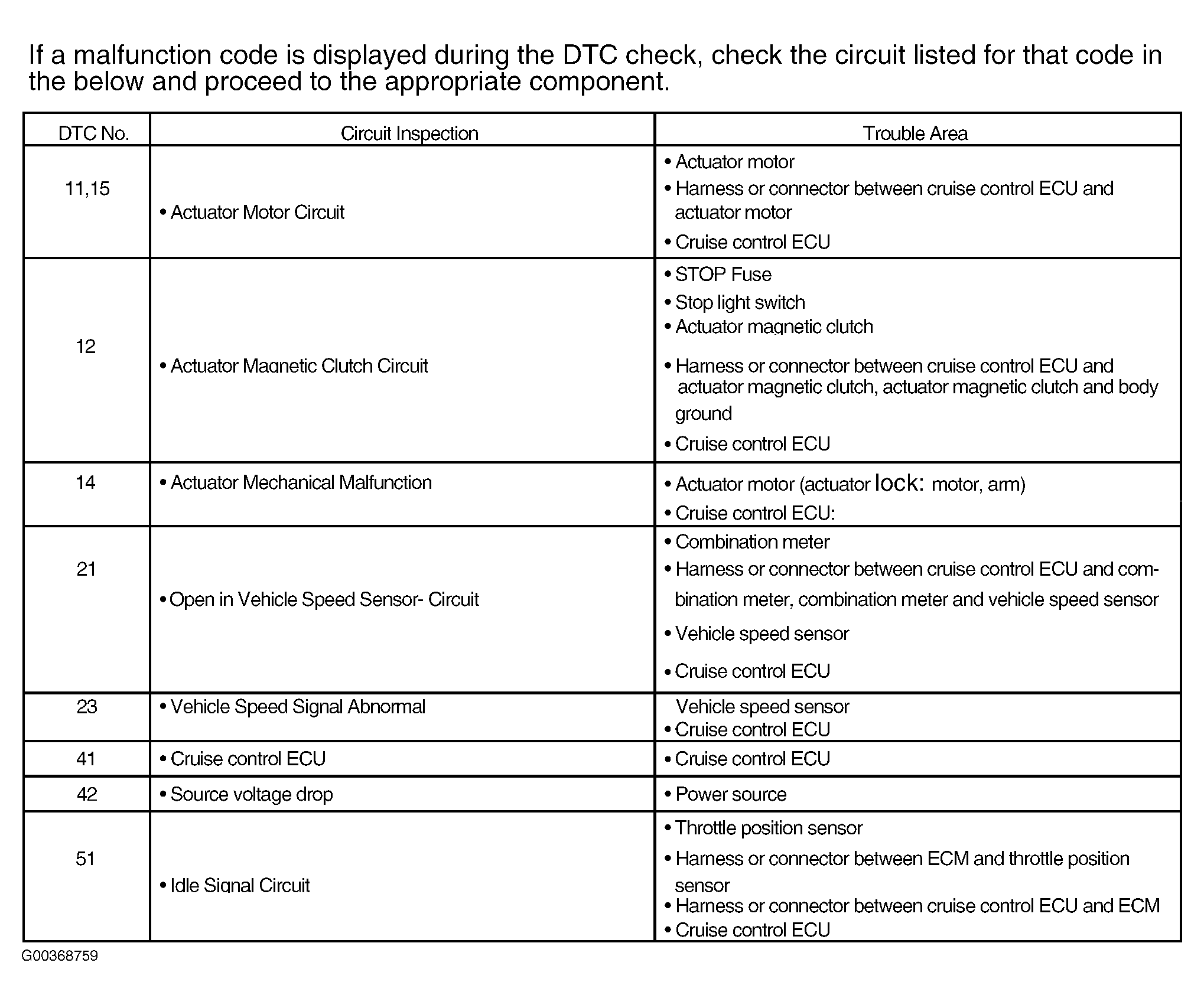

Fig 1: Diagnostic Trouble Code Chart
G00368759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
