Park/Neutral Position Switch Circuit

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

For Park/Neutral Position Switch Circuit testing procedure, see Fig 1-Fig 3 .

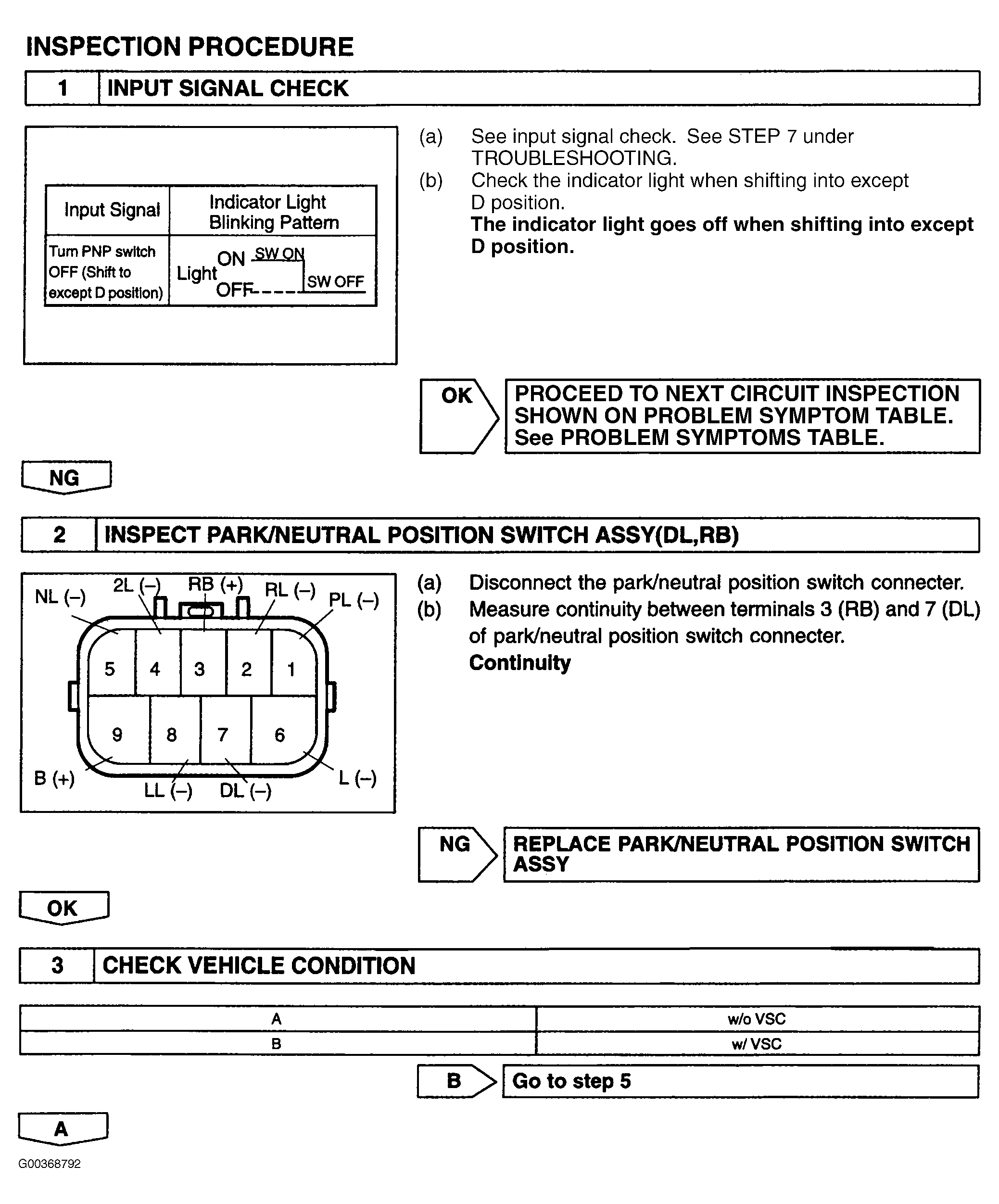

Fig 1: Testing Park/Neutral Position Switch Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

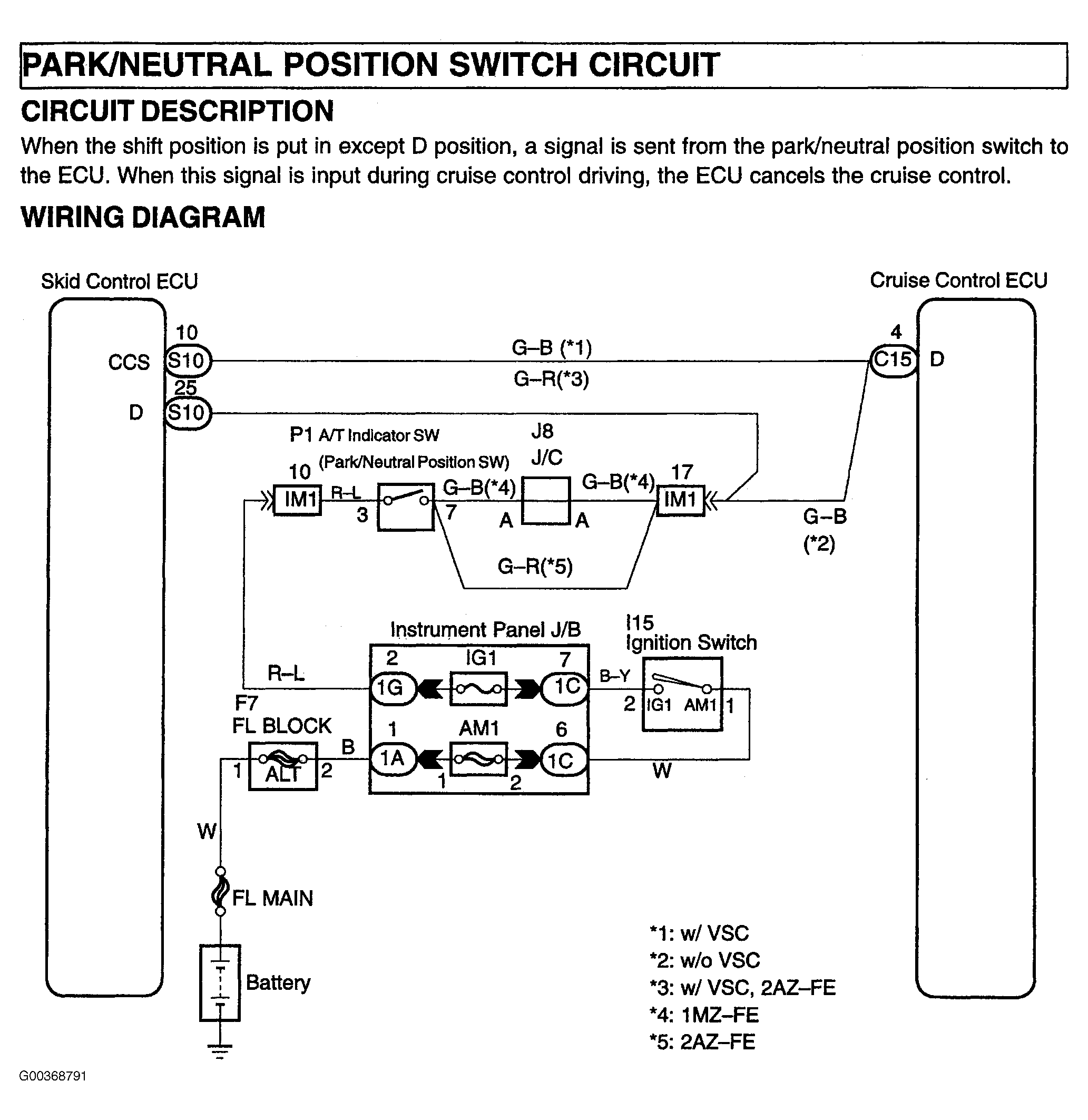

Fig 2: Testing Park/Neutral Position Switch Circuit (2 Of 3)

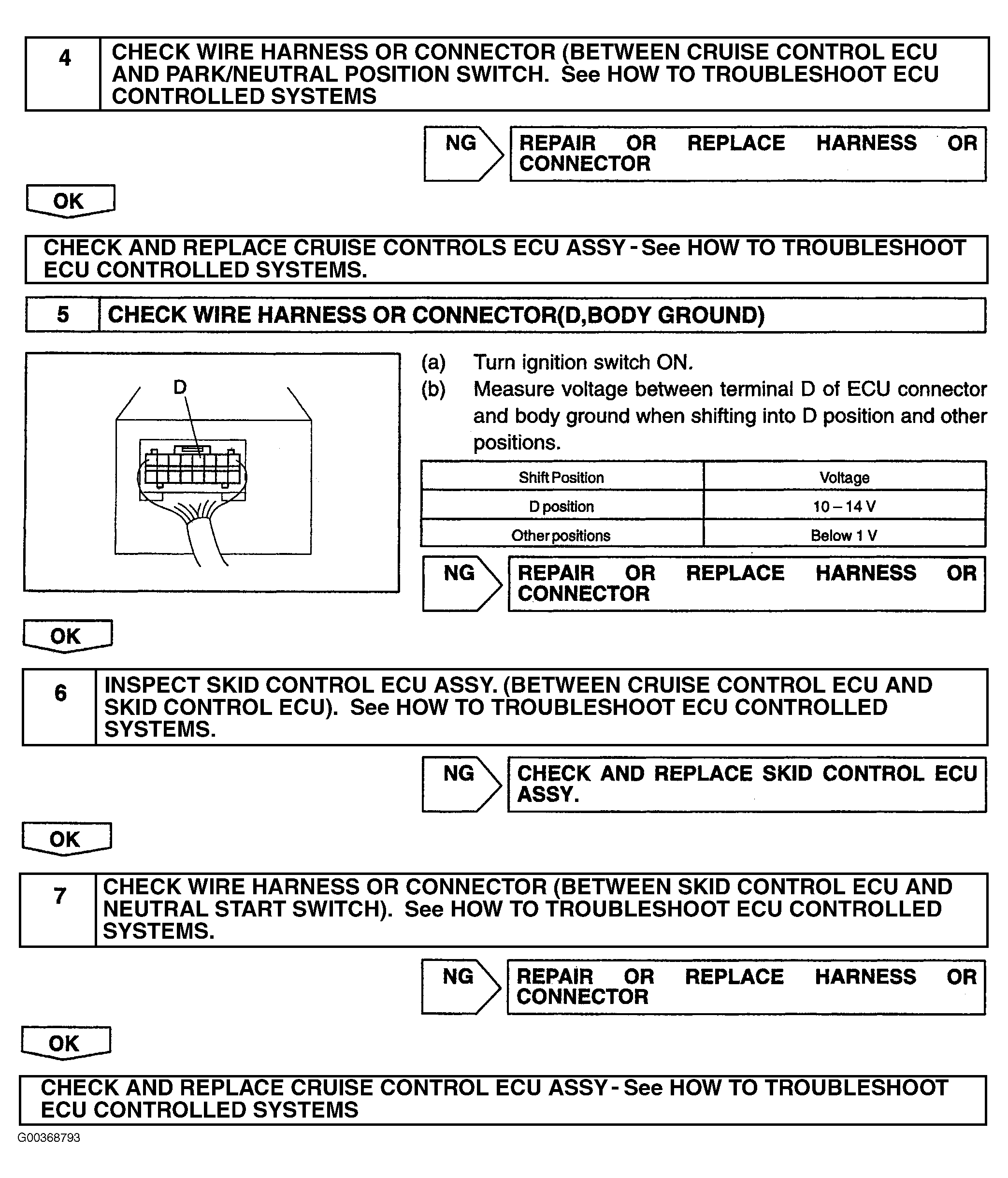

Fig 3: Testing Park/Neutral Position Switch Circuit (3 Of 3)
