Cruise Control Switch Circuit

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

For Main switch circuit testing procedure, see Fig 1-Fig 4 . For cruise control switch resistance values, see Fig 5.

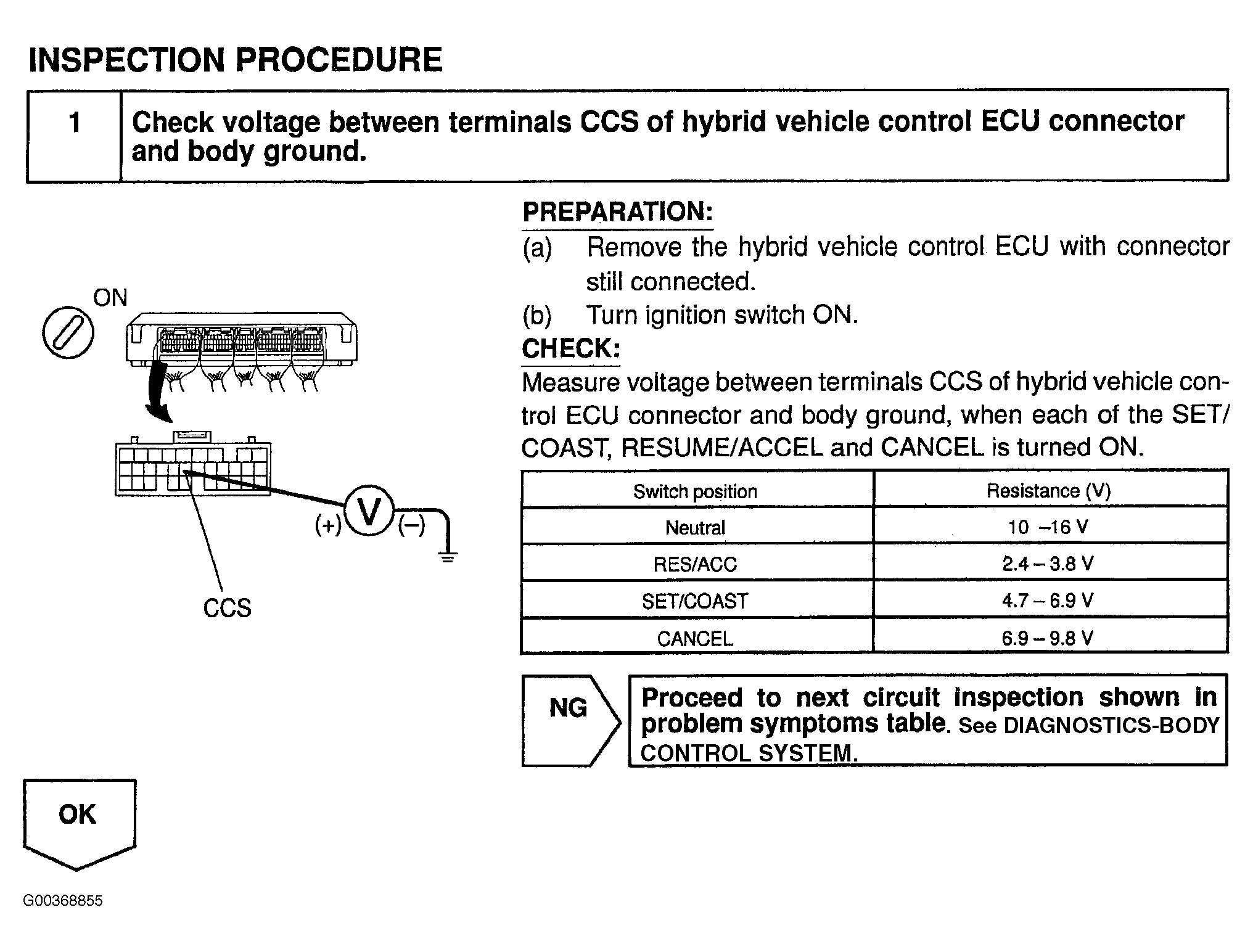

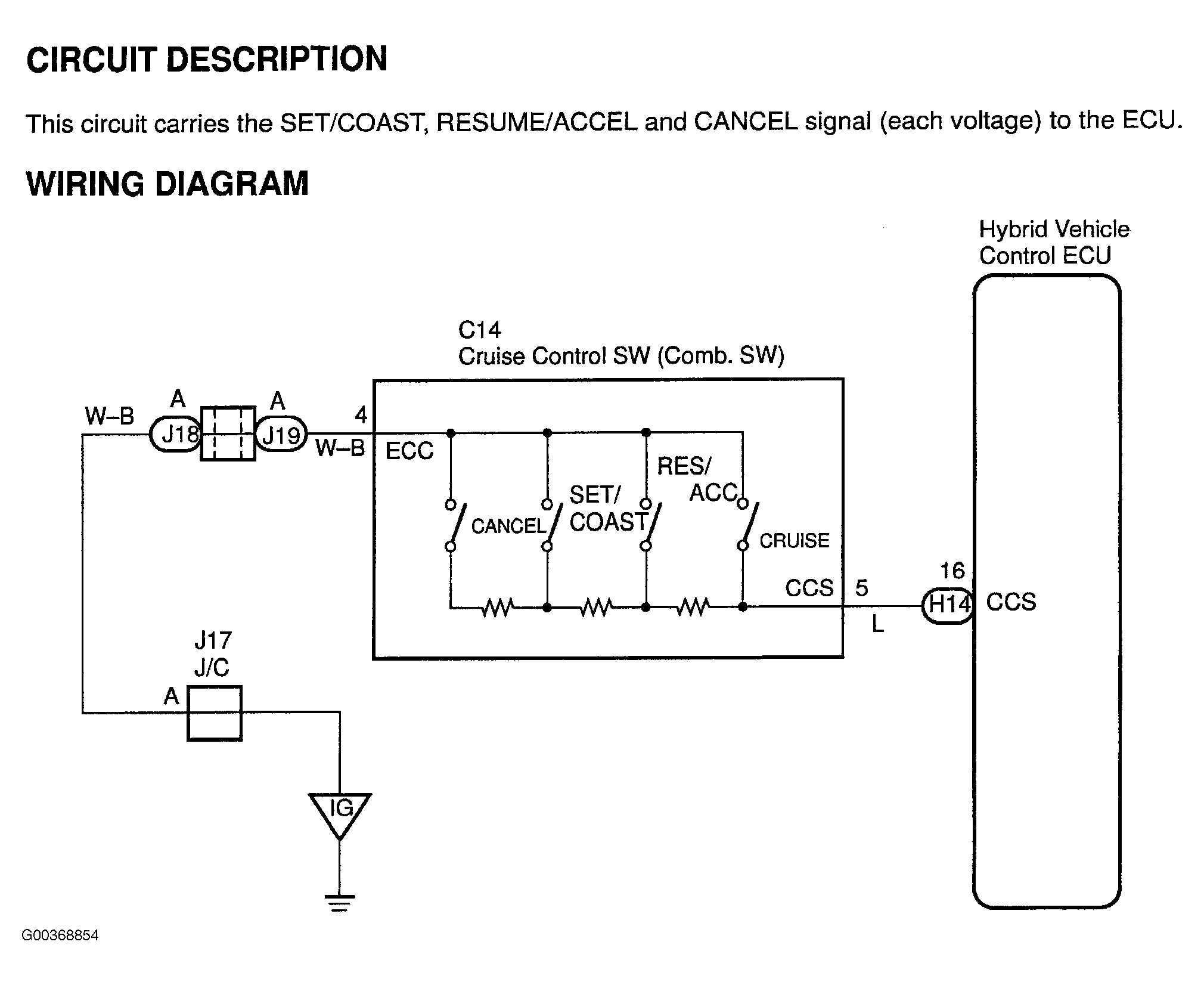

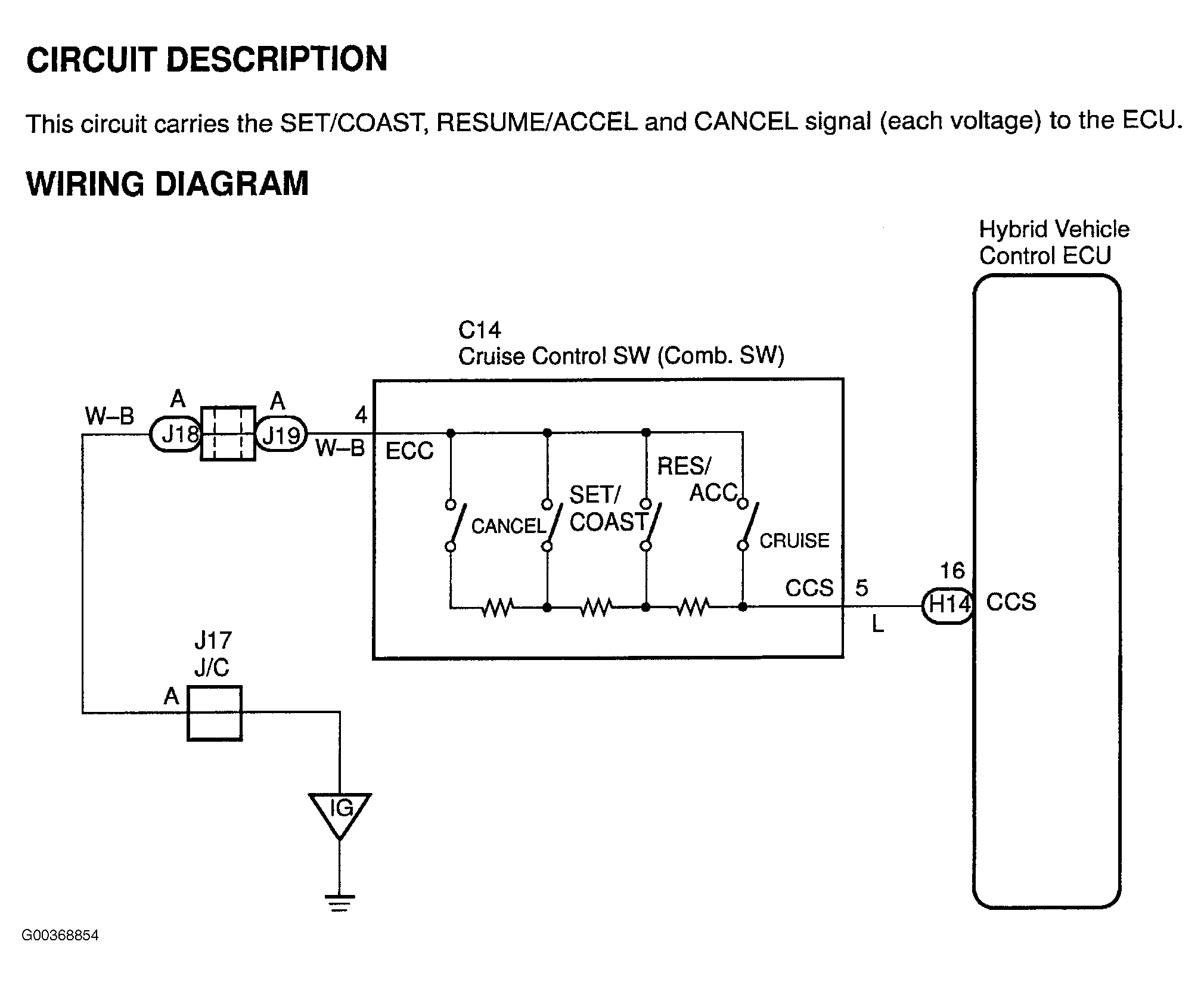

Fig 1: Testing Cruise Control Switch Circuit (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

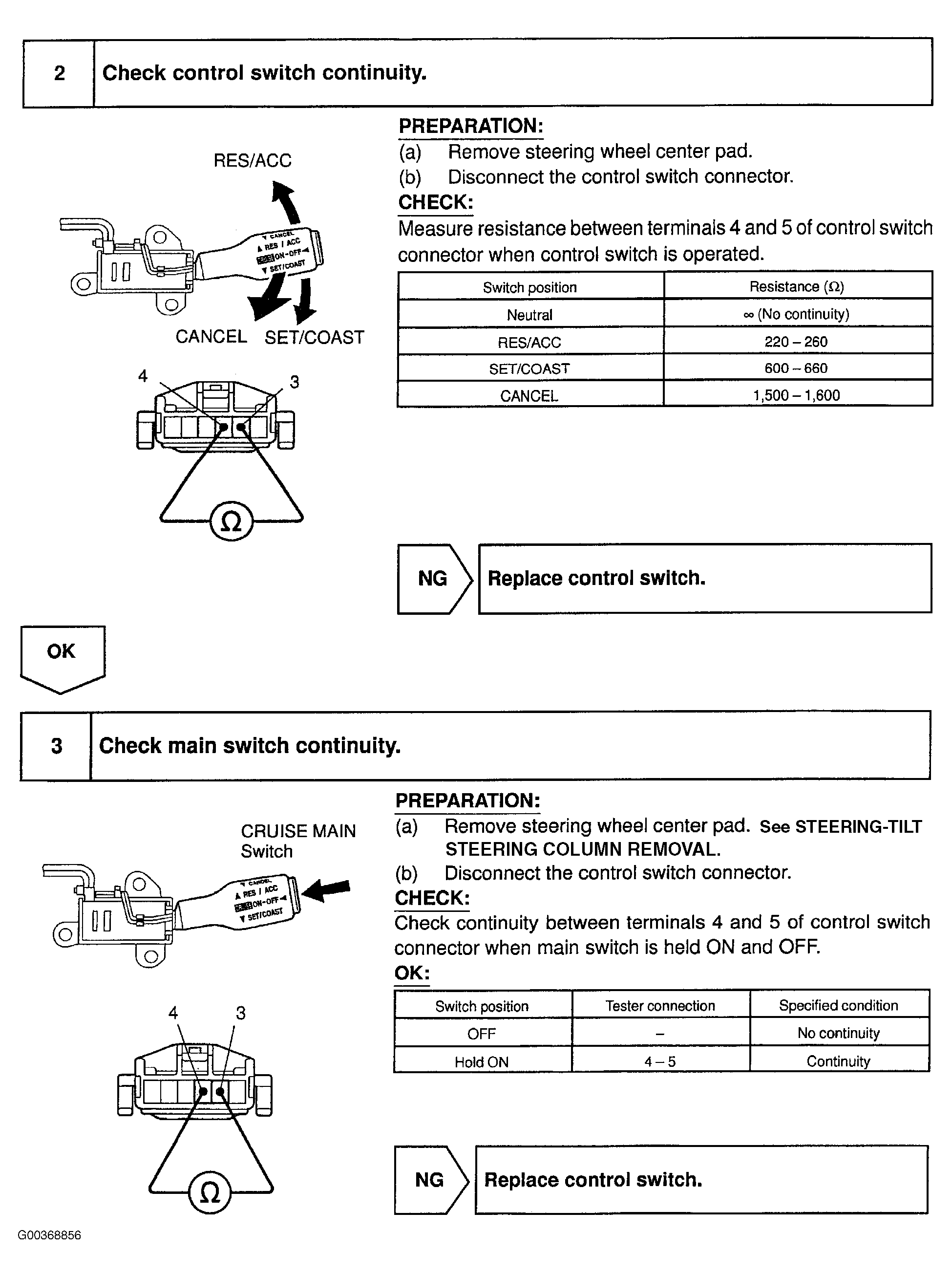

Fig 2: Testing Cruise Control Switch Circuit (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Testing Cruise Control Switch Circuit (3 Of 4)

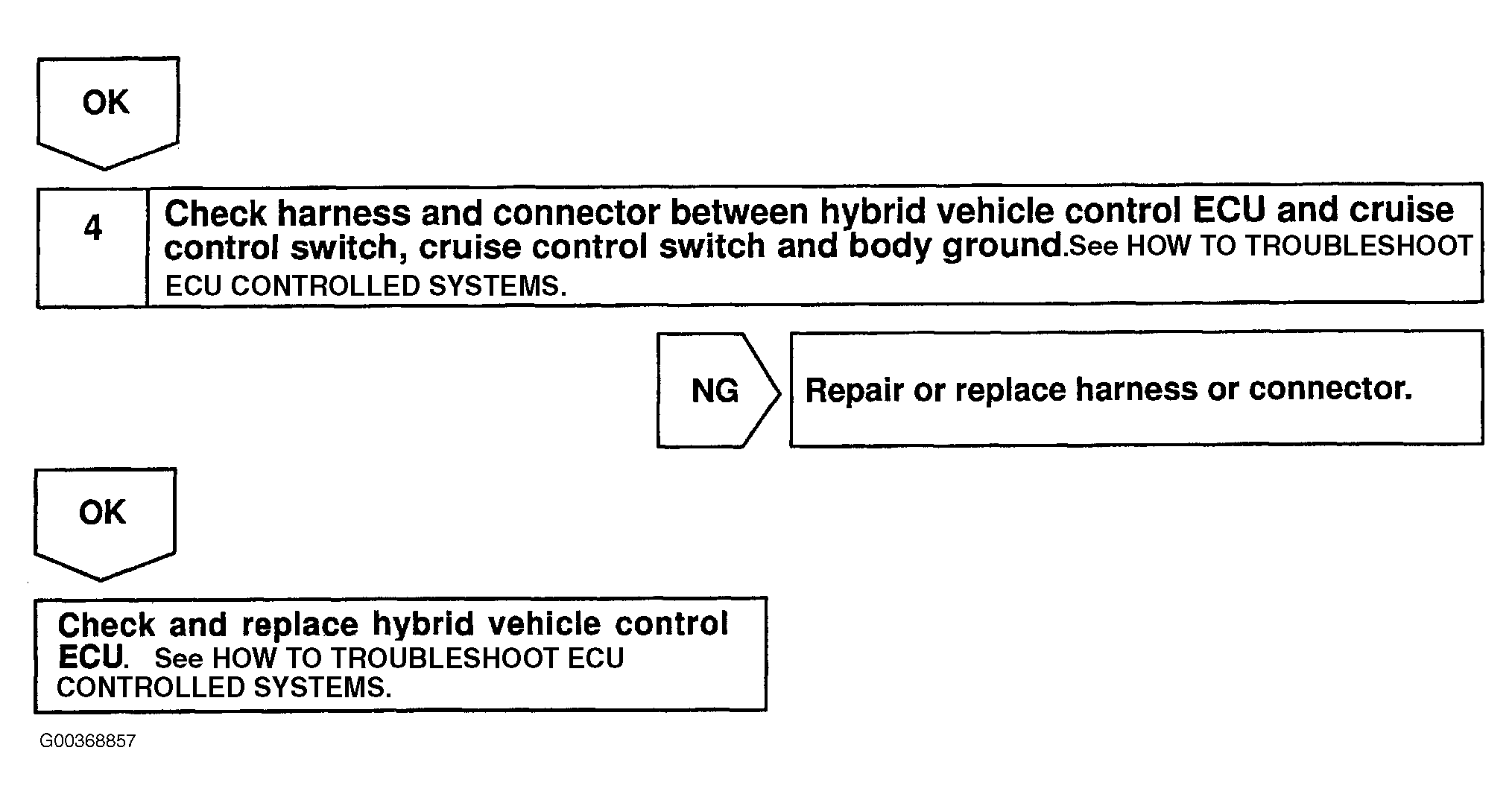

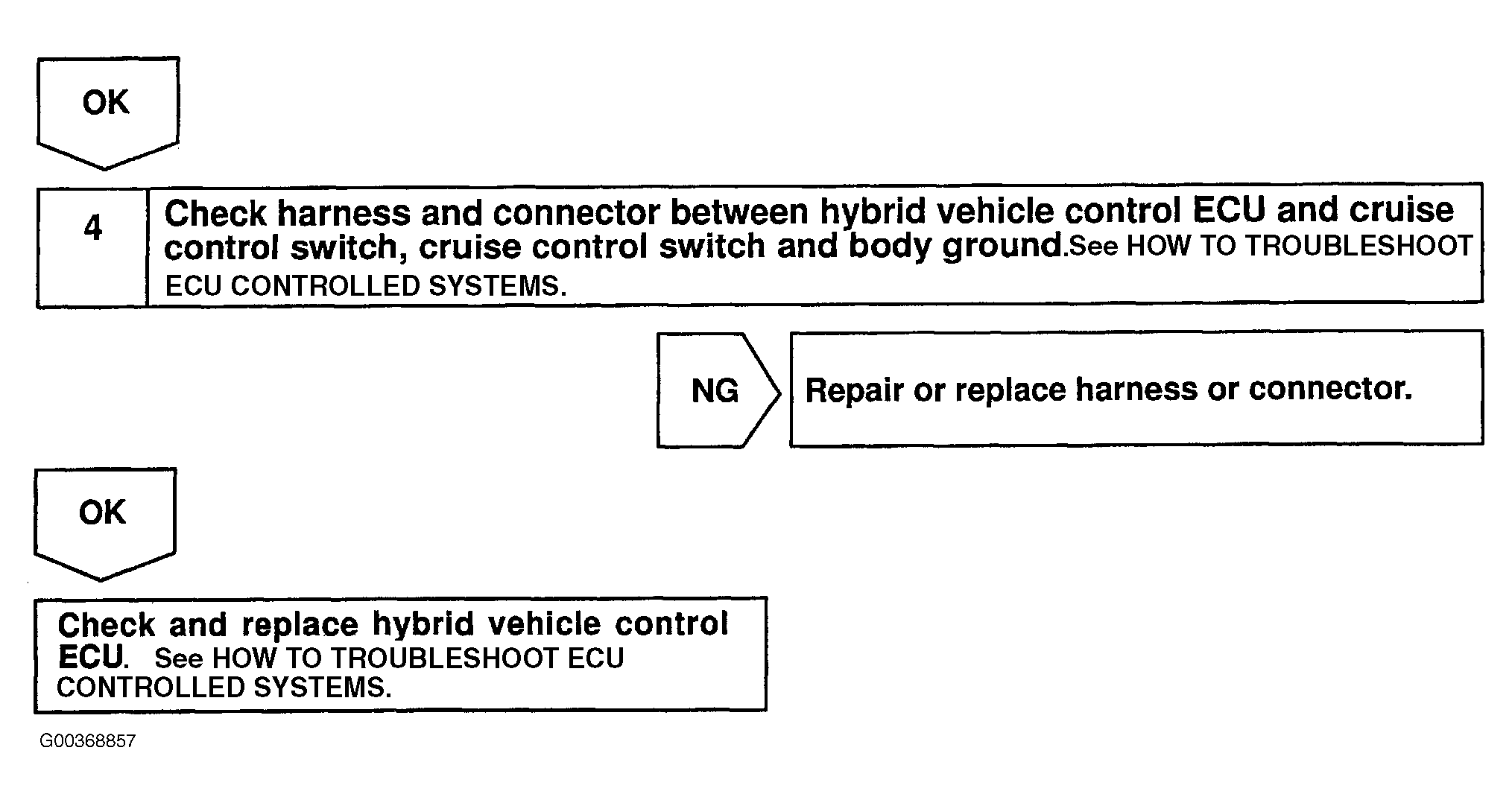

Fig 4: Testing Cruise Control Switch Circuit (4 Of 4)

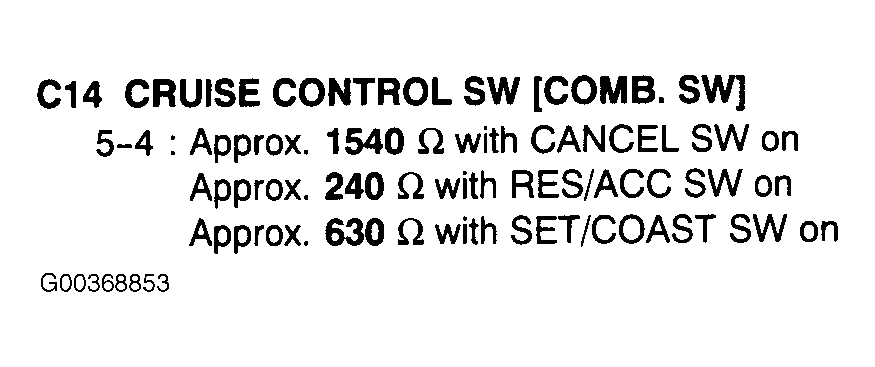

Fig 5: Identifying Cruise Control Switch Resistance Values
