Component Locations

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For additional cruise control system component locations, see Fig 1. For connectors, grounding points, splices and other electrical components, see ELECTRICAL COMPONENT LOCATOR article in ELECTRICAL. For fuse locations, see FUSES & CIRCUIT BREAKERS article in ELECTRICAL.

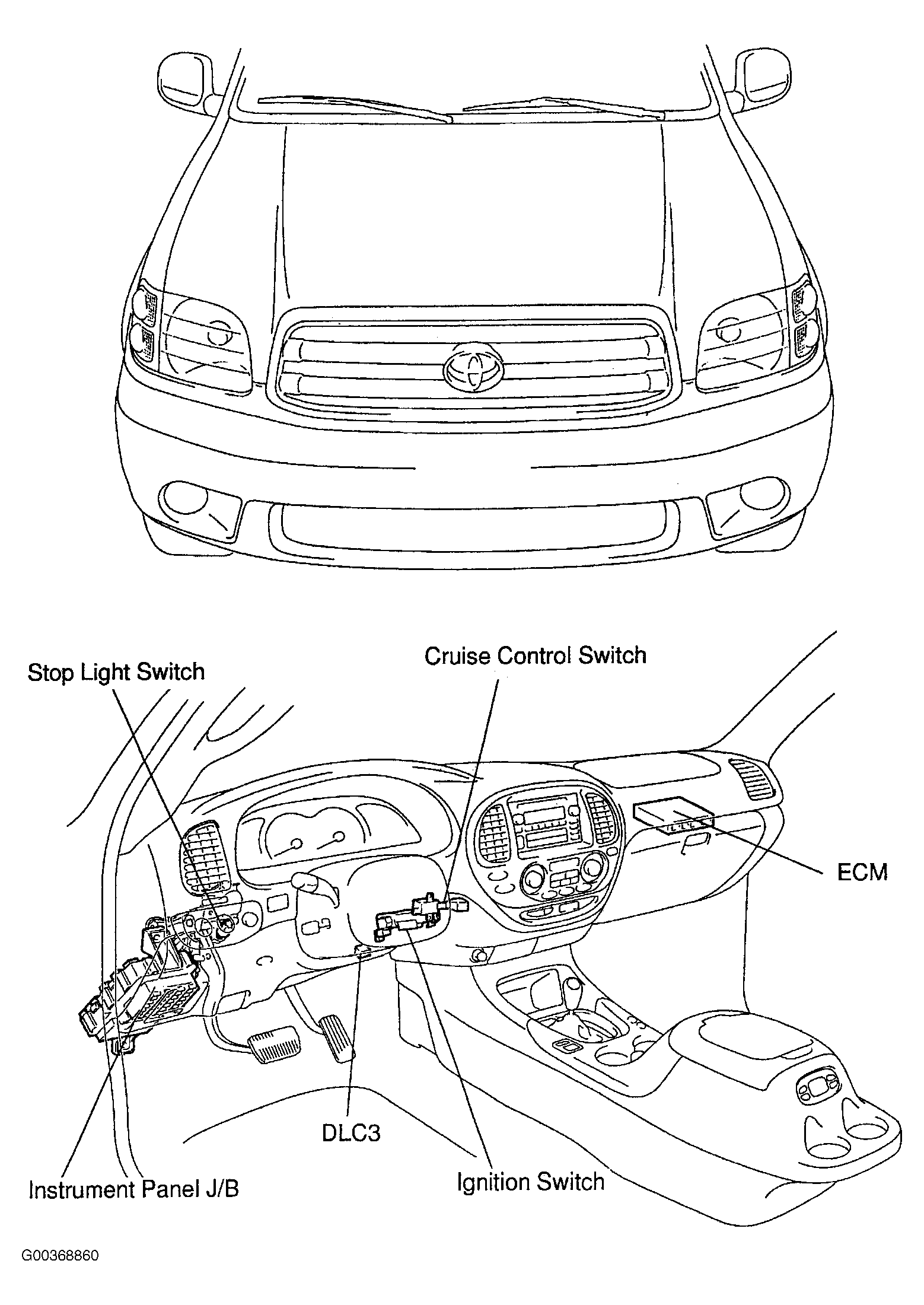

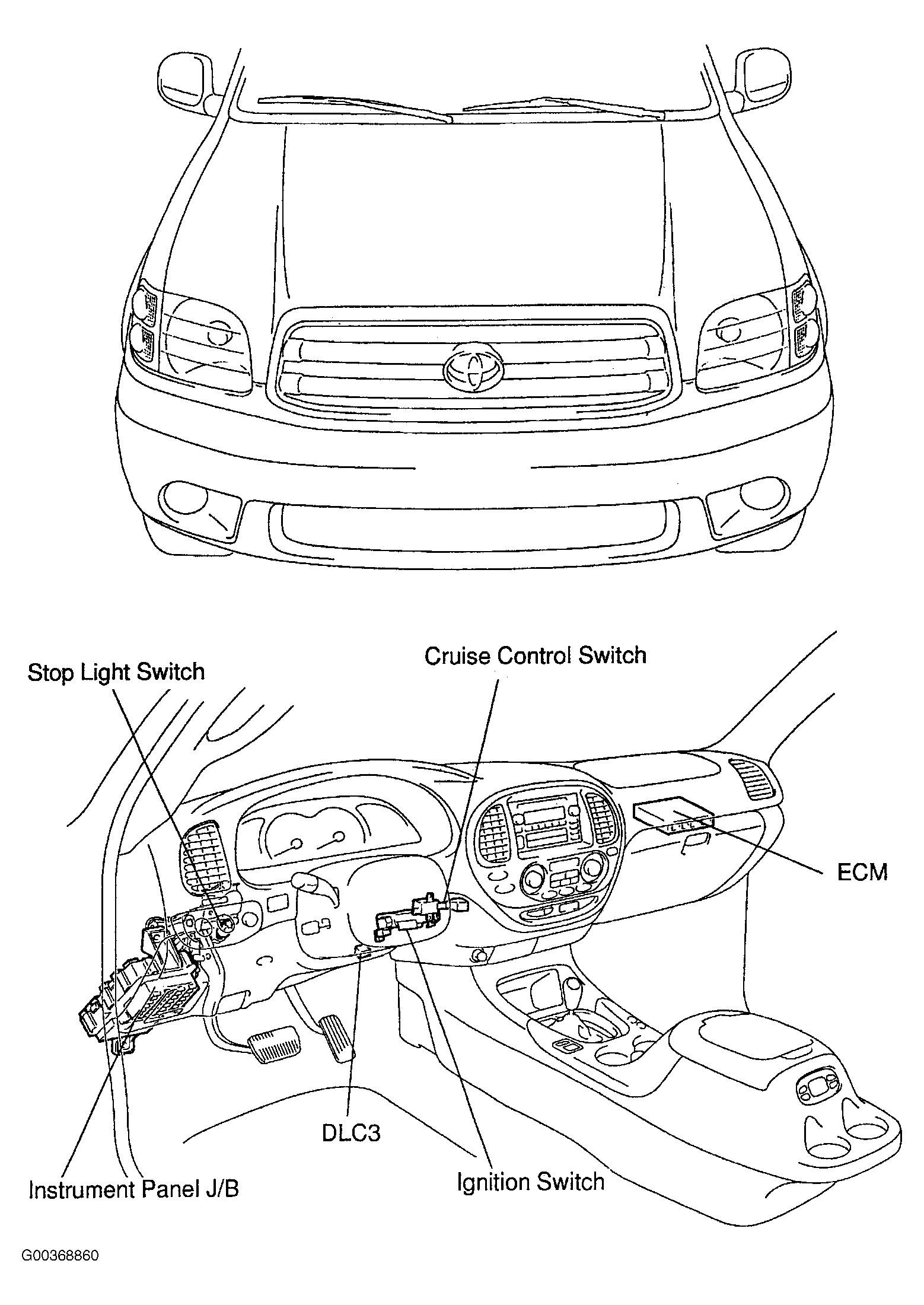

Fig 1: Locating Cruise Control Components
G00368860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
