ECM & Cruise Control Switch

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

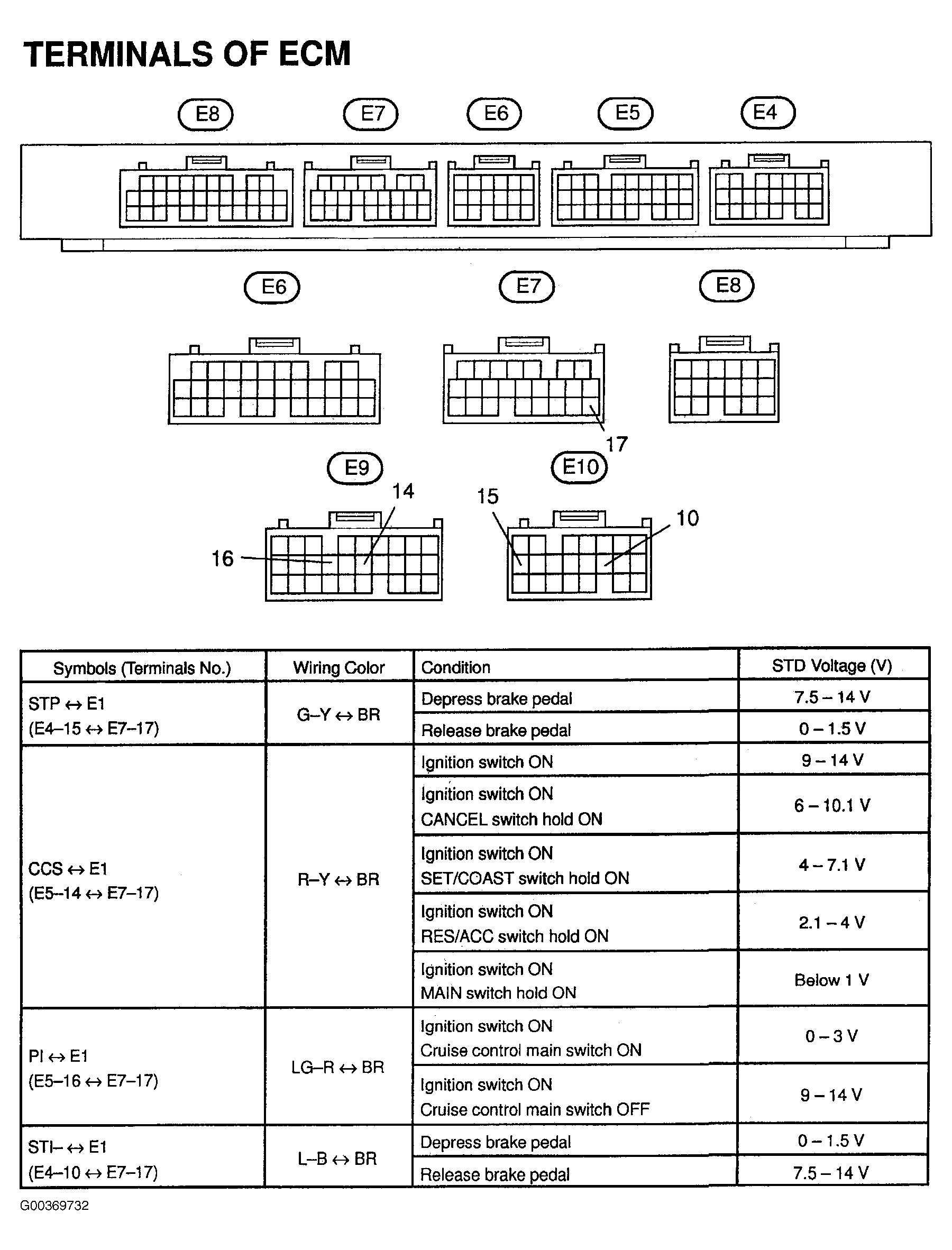

For ECM and cruise control main switch terminal readings, see Fig 1 and Figure .

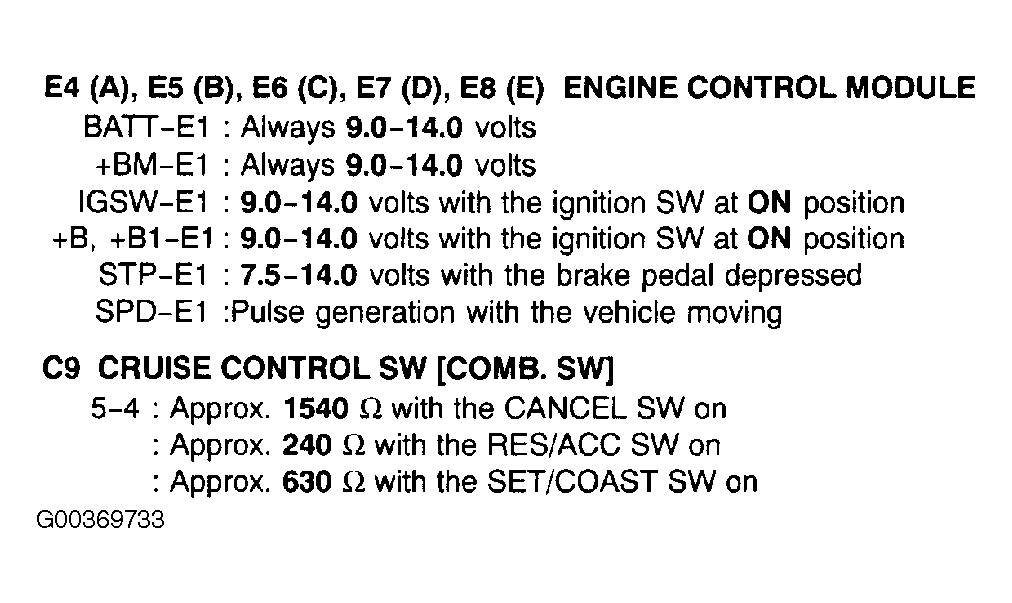

Fig 1: Identifying ECM Terminal Voltages
