Component Locations

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For additional cruise control system component locations, see illustration. See Fig 1. For connectors, grounding points, splices and other electrical components, see ELECTRICAL COMPONENT LOCATOR article in ELECTRICAL. For fuse locations, see FUSES & CIRCUIT BREAKERS article in ELECTRICAL.

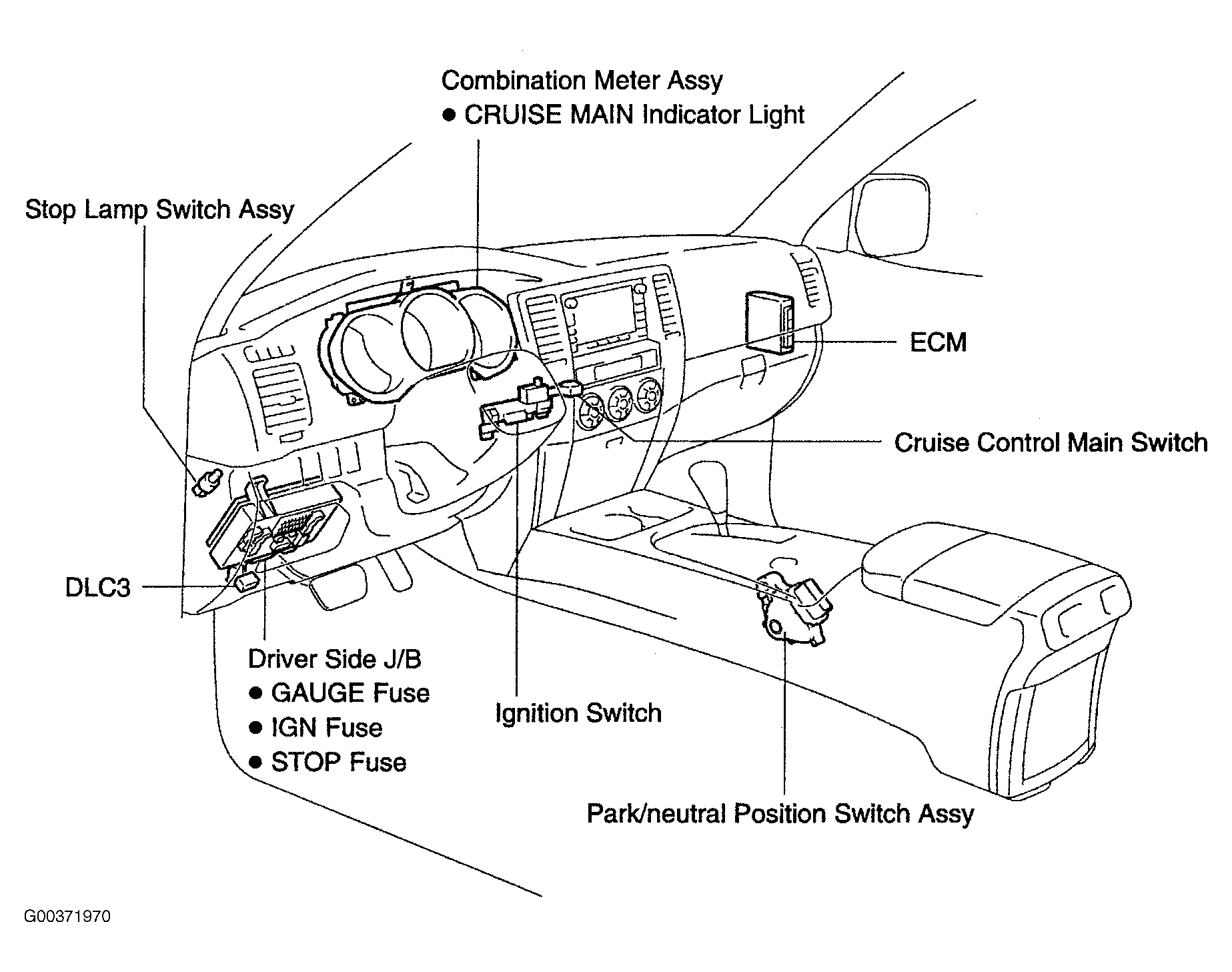

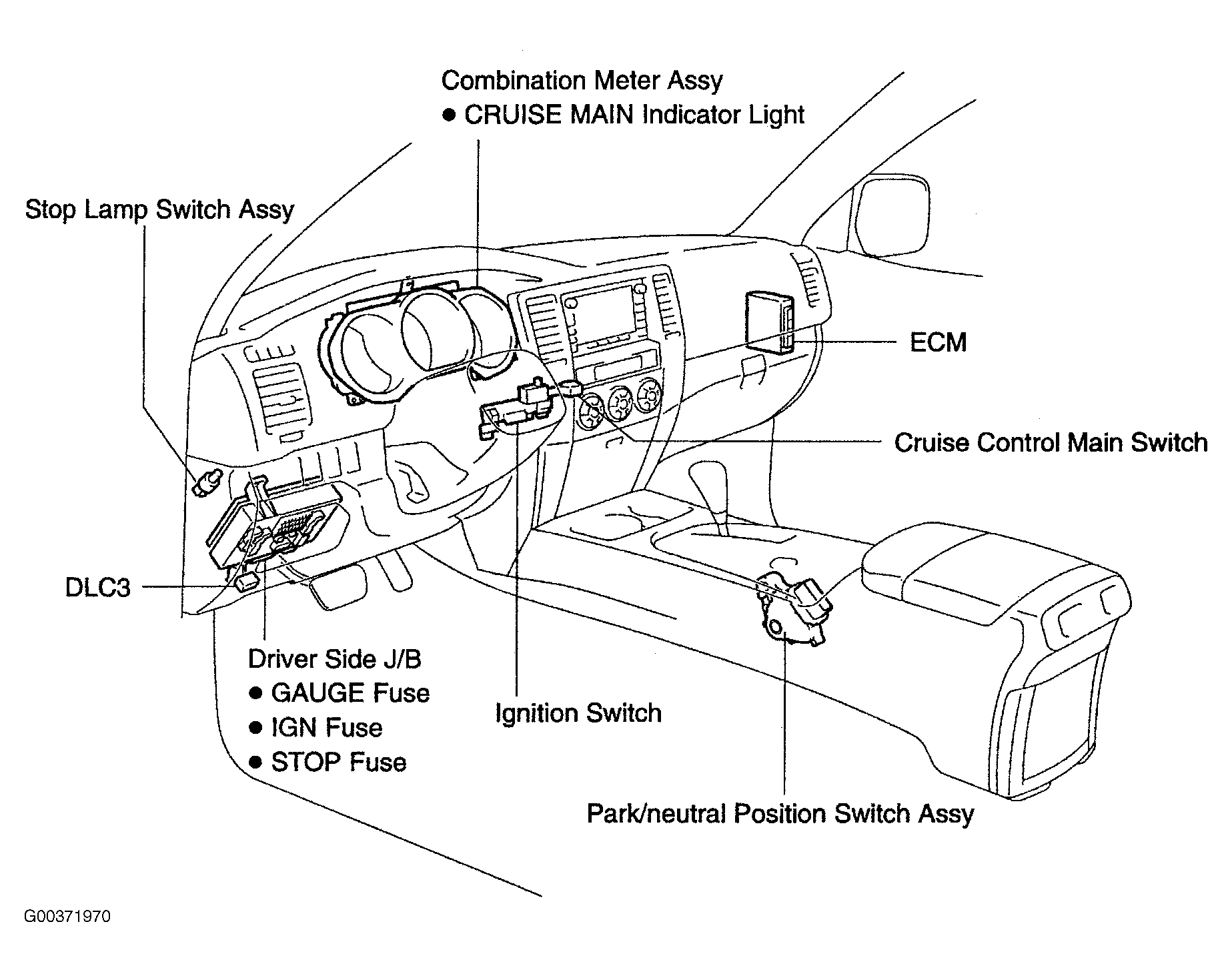

Fig 1: Locating Cruise Control Components
G00371970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
