Cruise Control Failure Warning

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A flashing cruise control light may indicate a Diagnostic Trouble Code (DTC). The DTC is derived by counting short flashes in between the long pauses. See Fig 1.

If the "CRUISE" indicator light in the instrument panel flashes, see Fig 3, when using the cruise control, press the "ON-OFF" button, see Fig 2, to turn the system off and then press it again to turn it on.

If any of the following conditions then occurs, there is some trouble in the cruise control system.

The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it comes on.

Fig 1: Reading DTCs Output By Flashes Of Cruise Indicator Light

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Cruise Control On/Off Button (Main Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Locating Instrument Panel Cruise Control Indicator Lamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying "-/SET" Switch

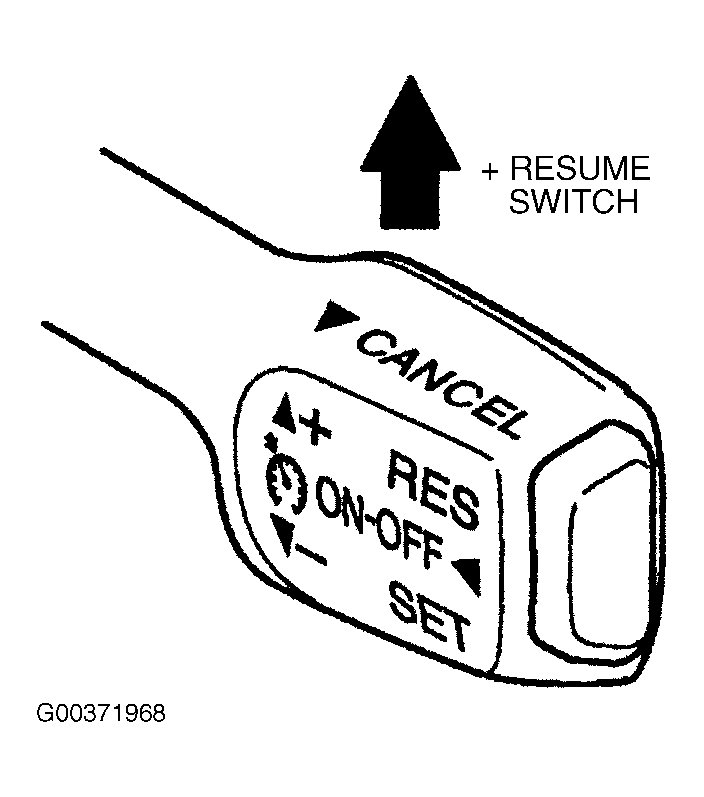

Fig 5: Identifying "+ Res" Switch

Fig 6: Identifying Cancel Switch
