Cruise Main Indicator Light

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

For cruise main indicator light testing procedure, see Fig 1.

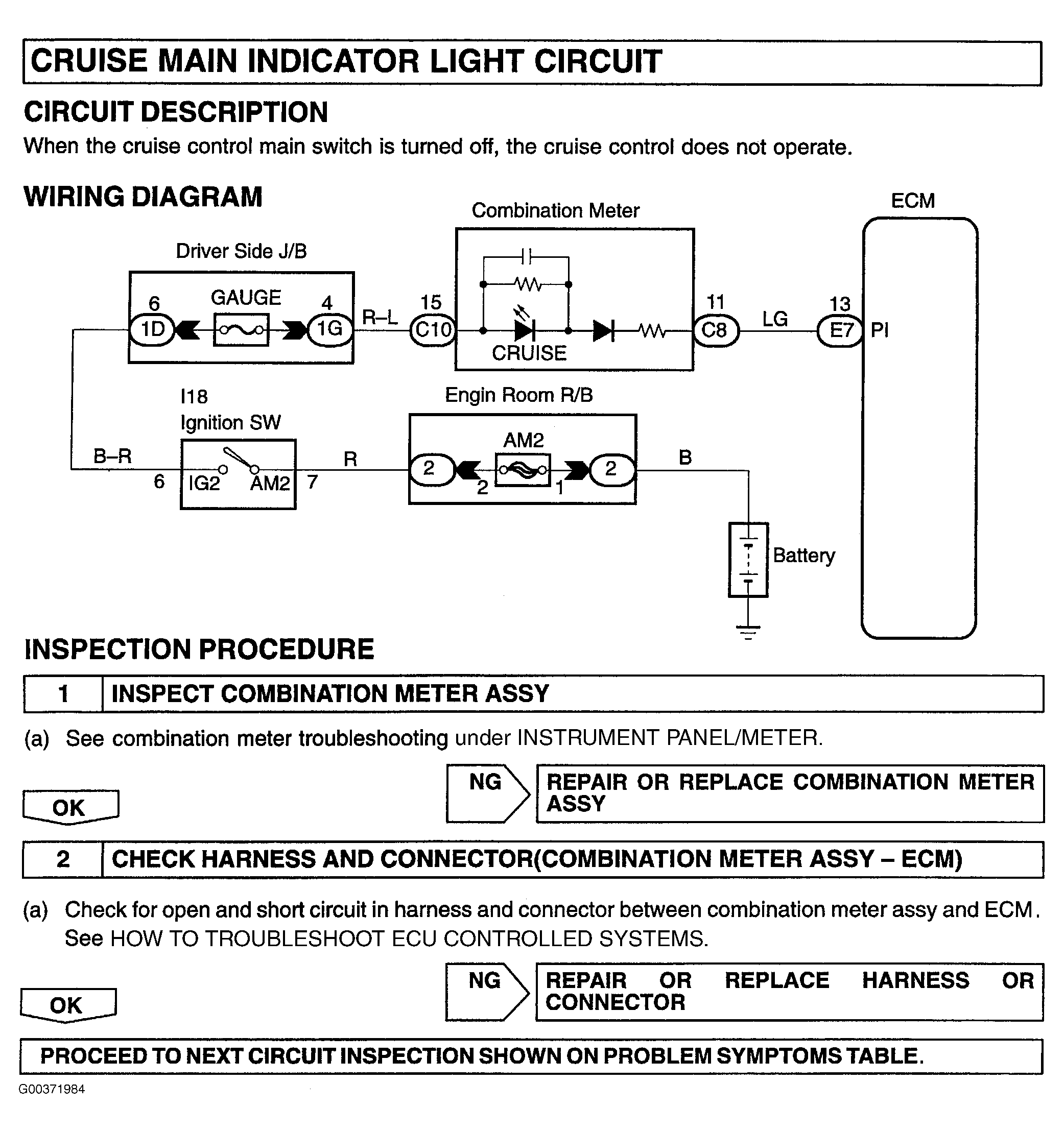

Fig 1: Testing Cruise Main Indicator Light
G00371984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
