Terminals Of ECM
WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

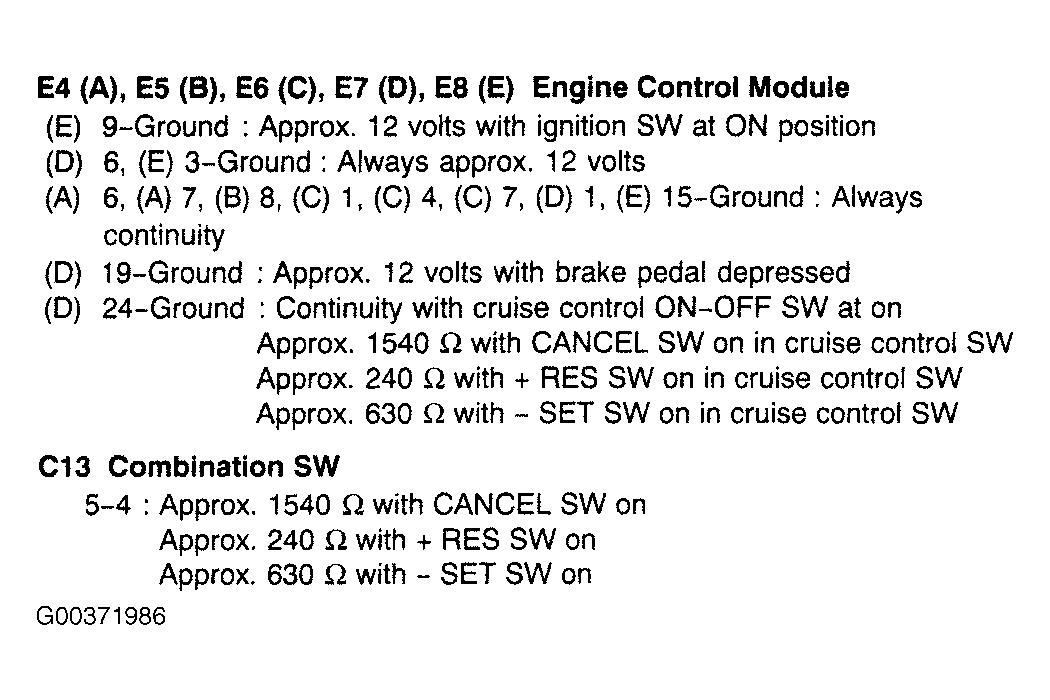

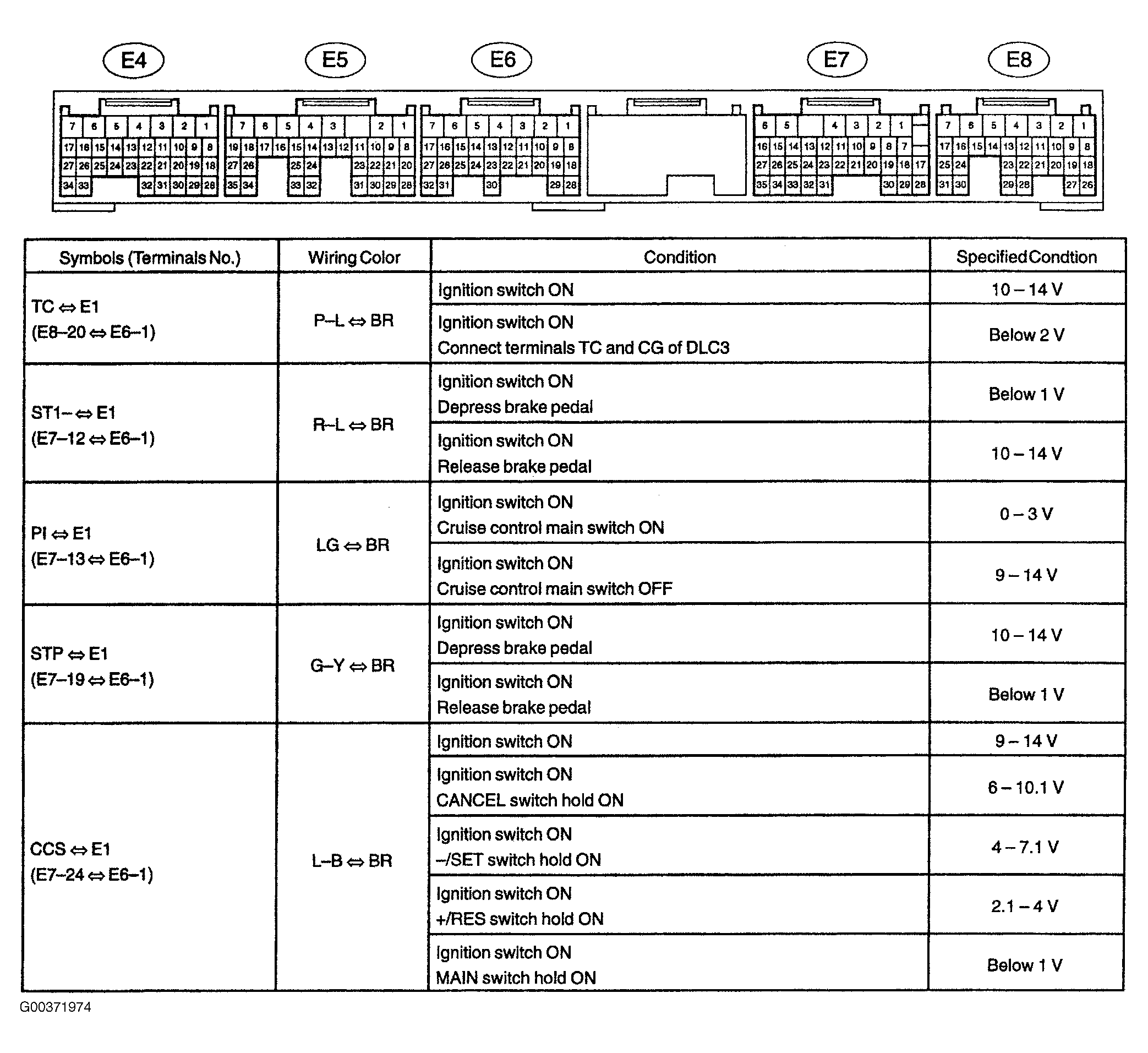

For ECM terminal specifications see illustration. See Fig 1. For ECM and Combination switch terminal resistance values, see illustration. See .
