Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

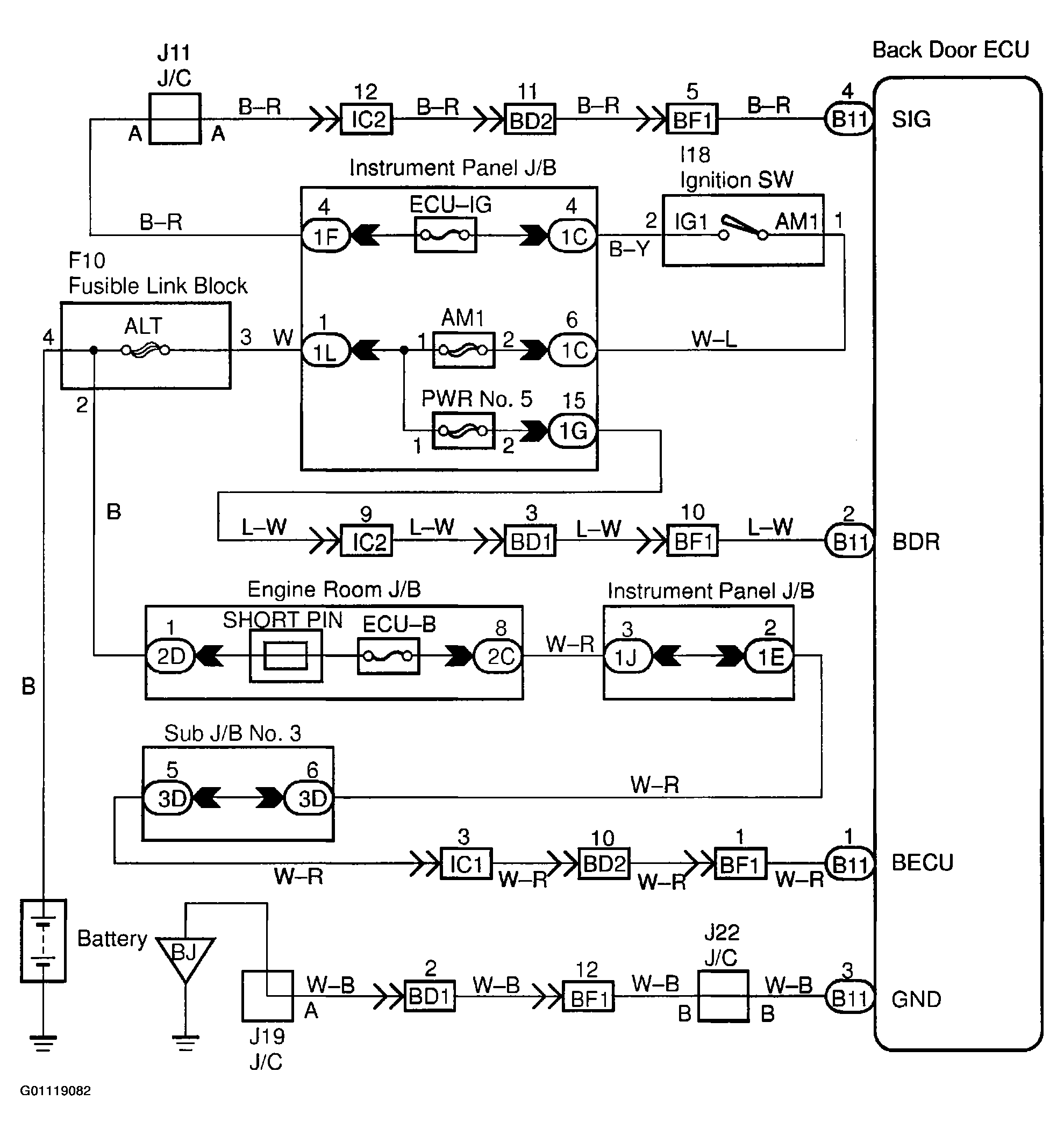

Fig 1: Power Source Circuit Wiring Diagram
G01119082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
