Clock Will Not Operate
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
Problem No. 1
- Check that the battery positive voltage is 10 - 16 V. If voltage is not as specified, replace the battery.
- Inspect the error of the clock.
Allowable error (per day): +/- 1.5 seconds
If the error exceeds the allowable error, replace the clock.
- Check that the clock adjusting button is sticking in position and has failed to return.
If the error exceeds the allowable error, replace the clock.

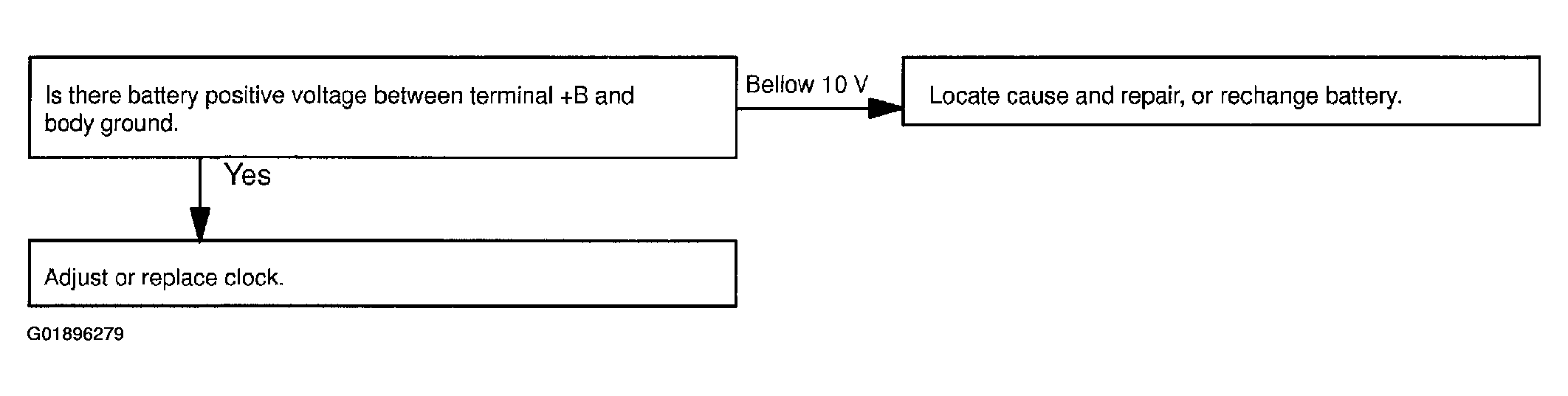

- Troubleshoot the using clock troubleshooting flowchart. See Fig 2.
NOTE:

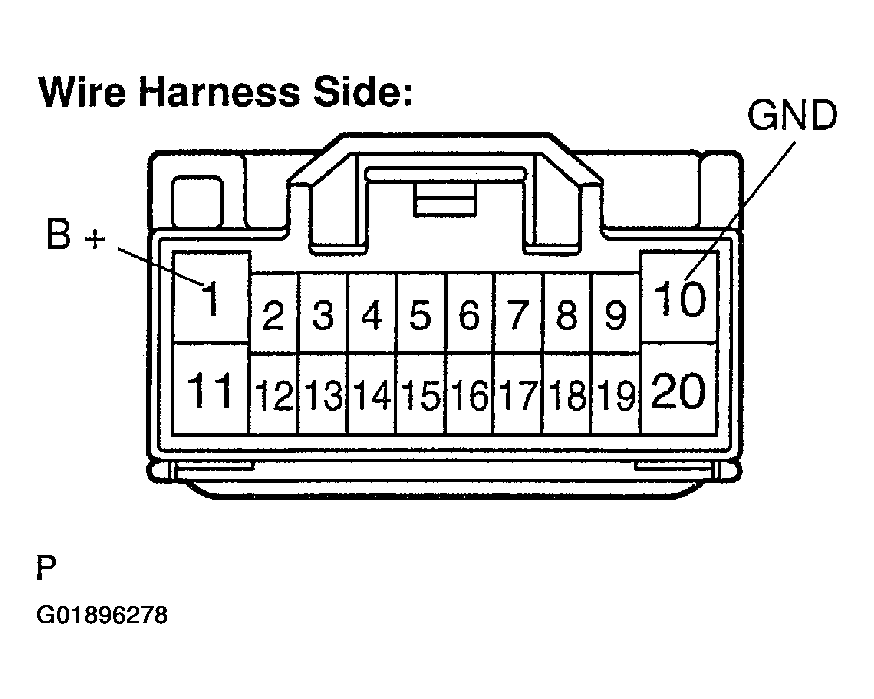

Inspect the connector on the wire harness side.
