Circuit Inspection

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some articles include figures containing information which when provided can be used in accordance with this procedure.

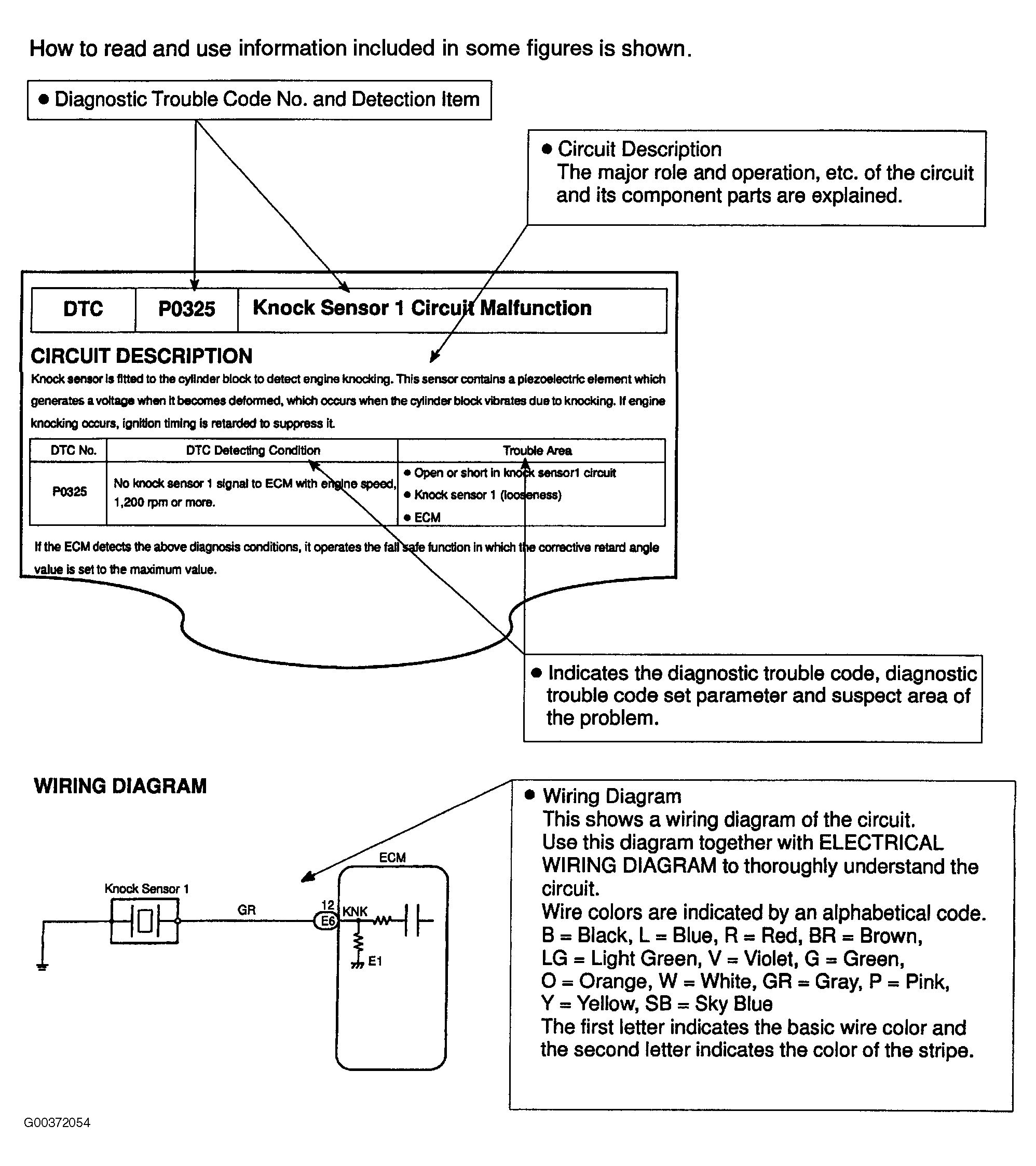

Fig 1: Reading & Understanding Circuit Inspection Figures (1 Of 2)
G00372054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

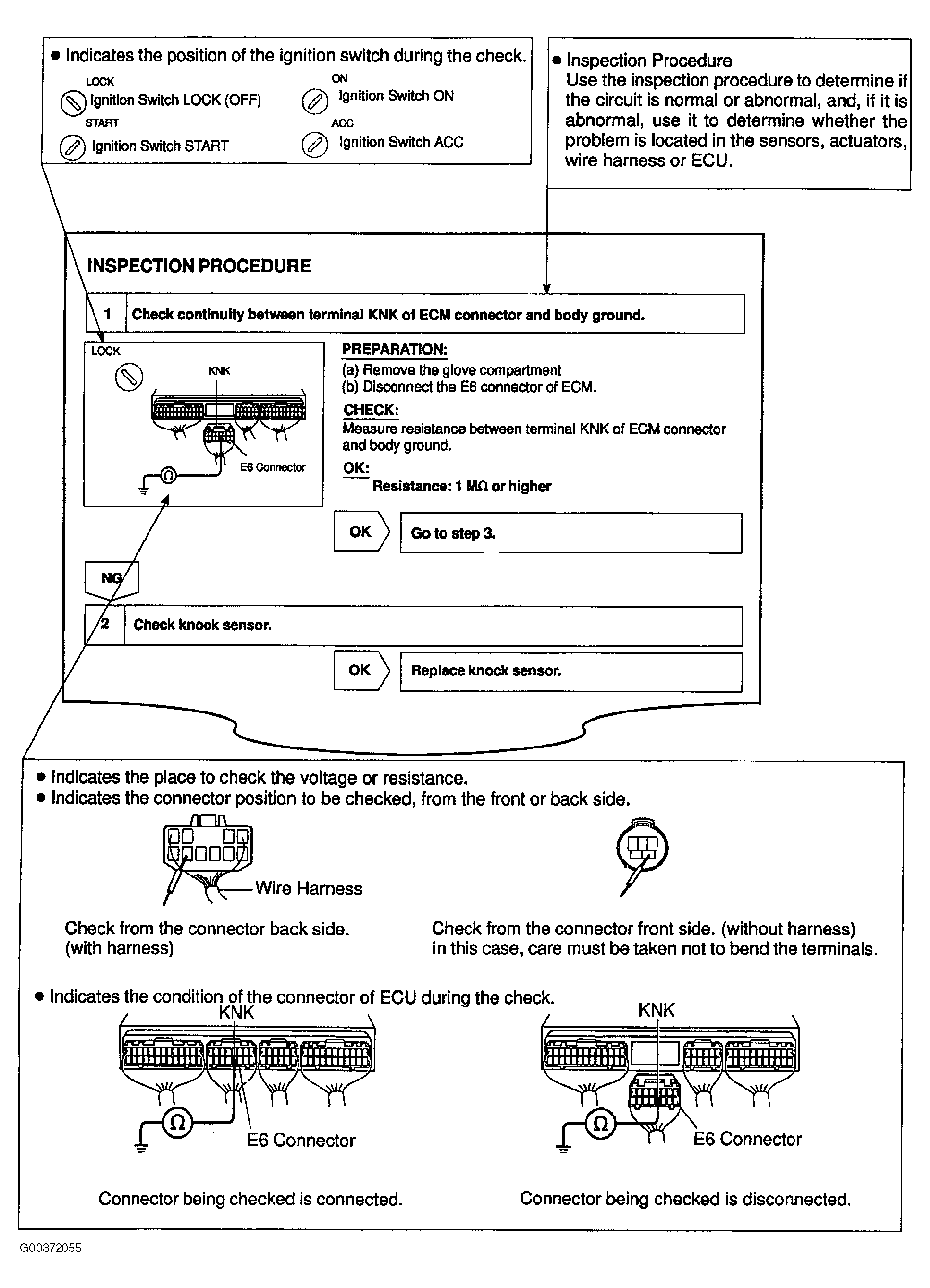

Fig 2: Reading & Understanding Circuit Inspection Figures (2 Of 2)
G00372055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
