Steering Column: Components

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

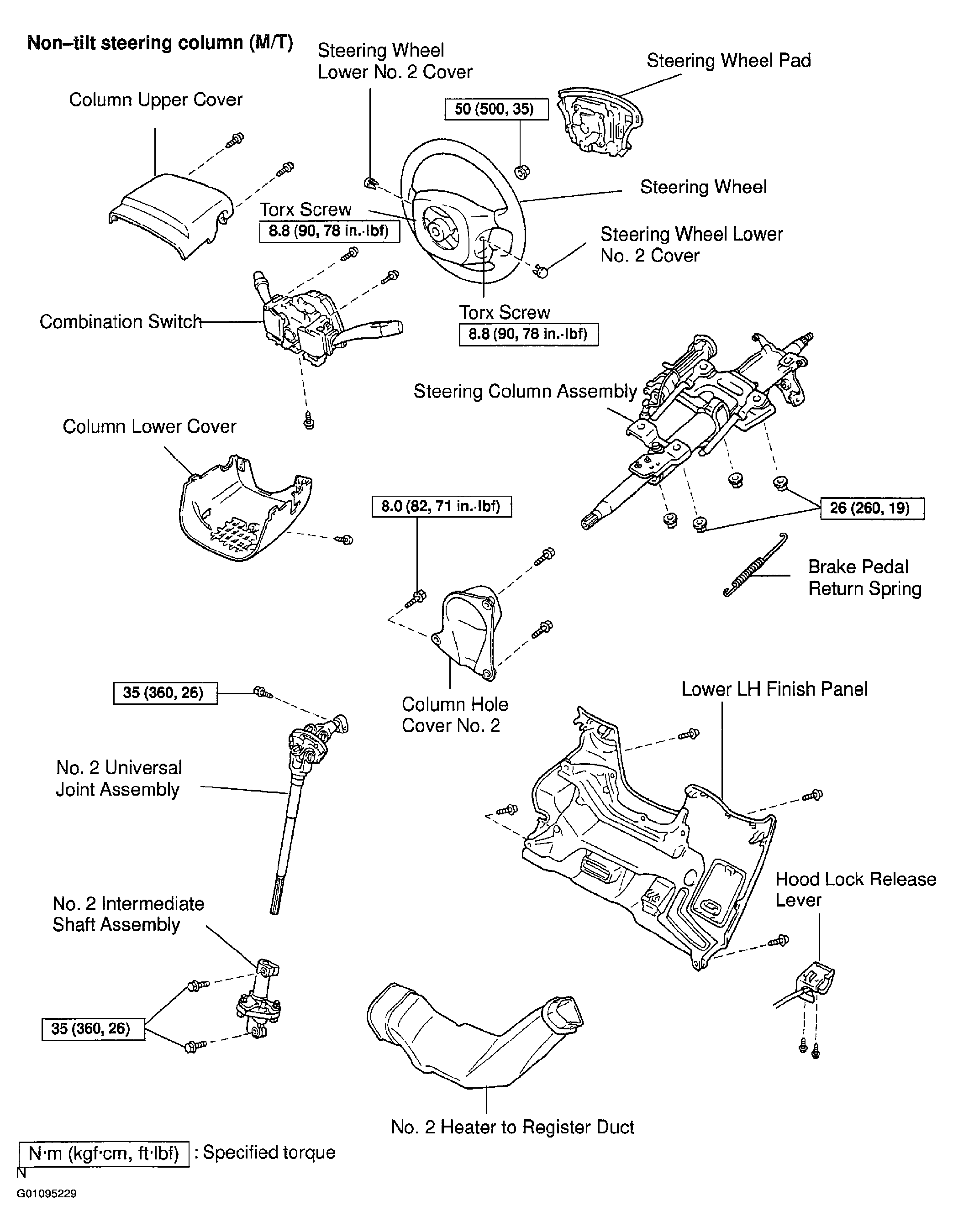

Fig 1: Identifying Non-Tilt Steering Column Related Components (M/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

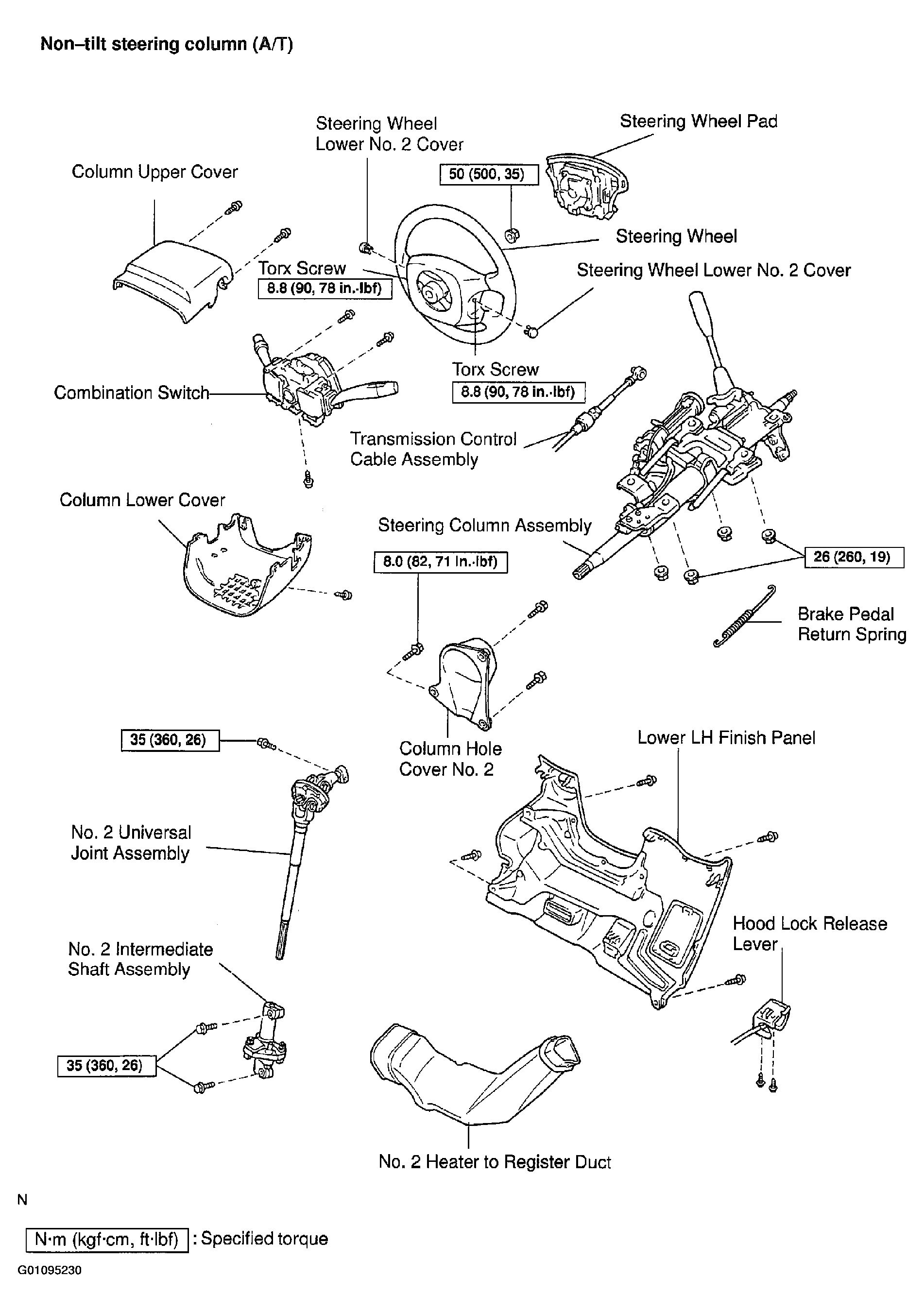

Fig 2: Identifying Non-Tilt Steering Column Related Components (A/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

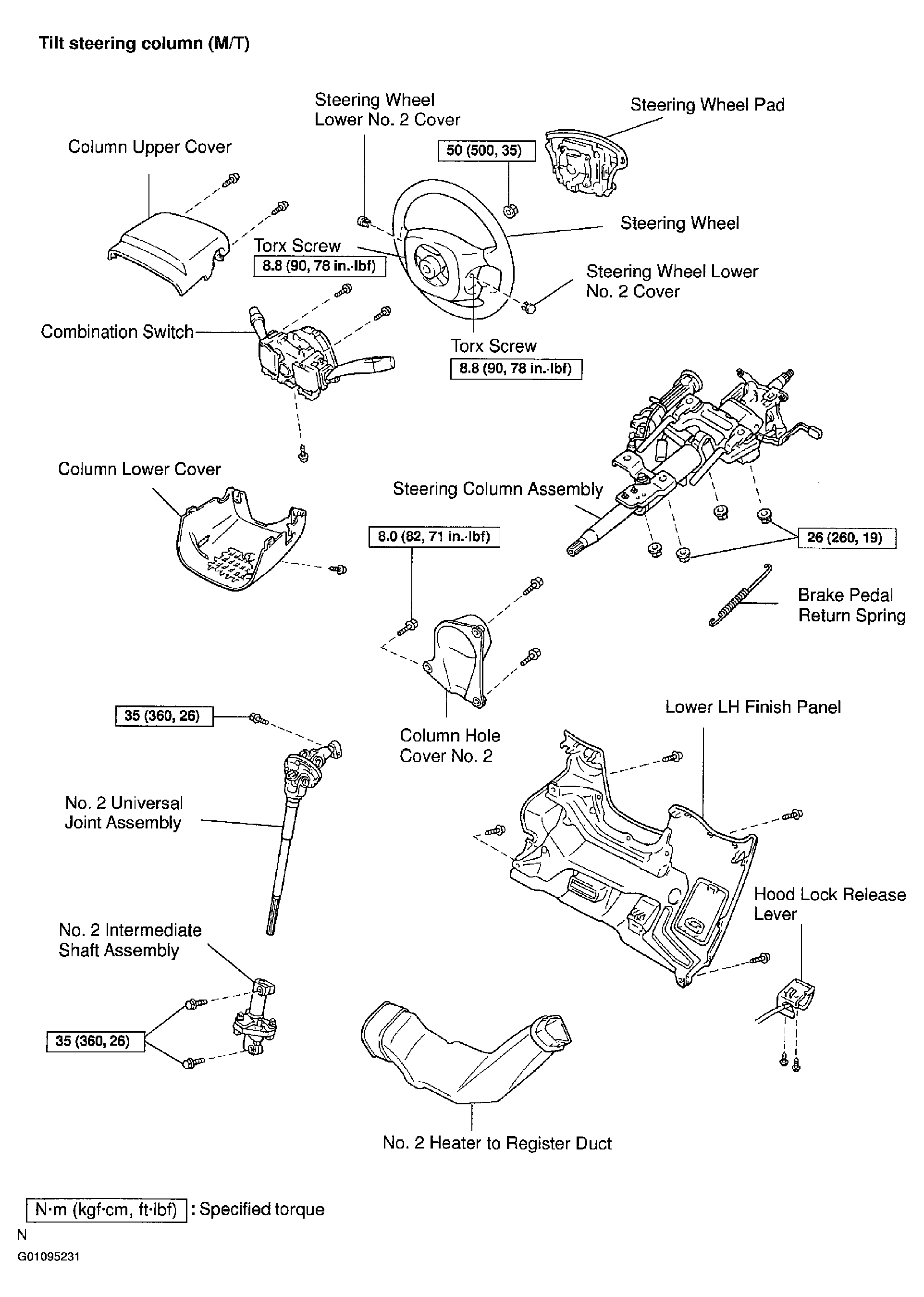

Fig 3: Identifying Tilt Steering Column Related Components (M/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

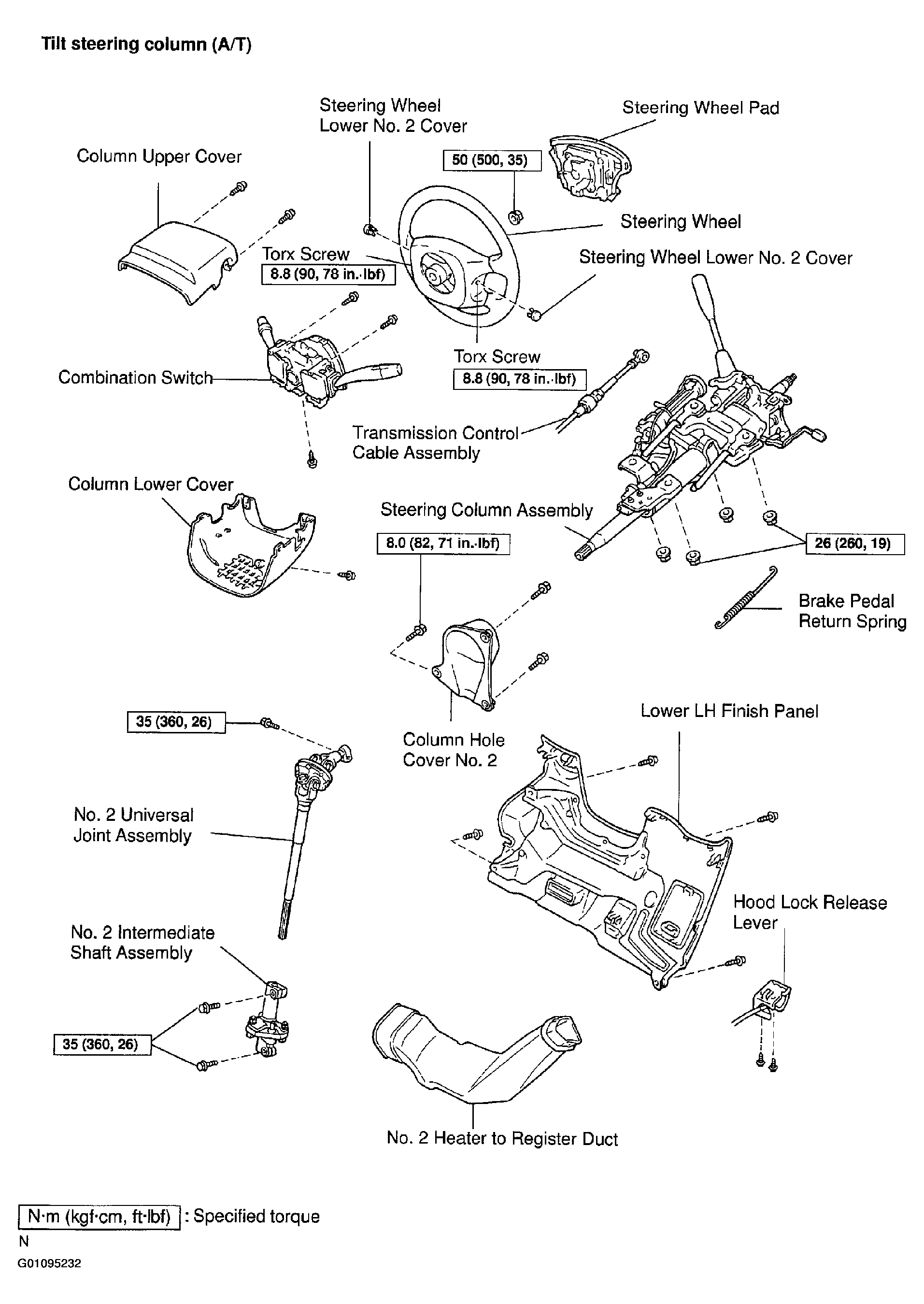

Fig 4: Identifying Tilt Steering Column Related Components (A/T)

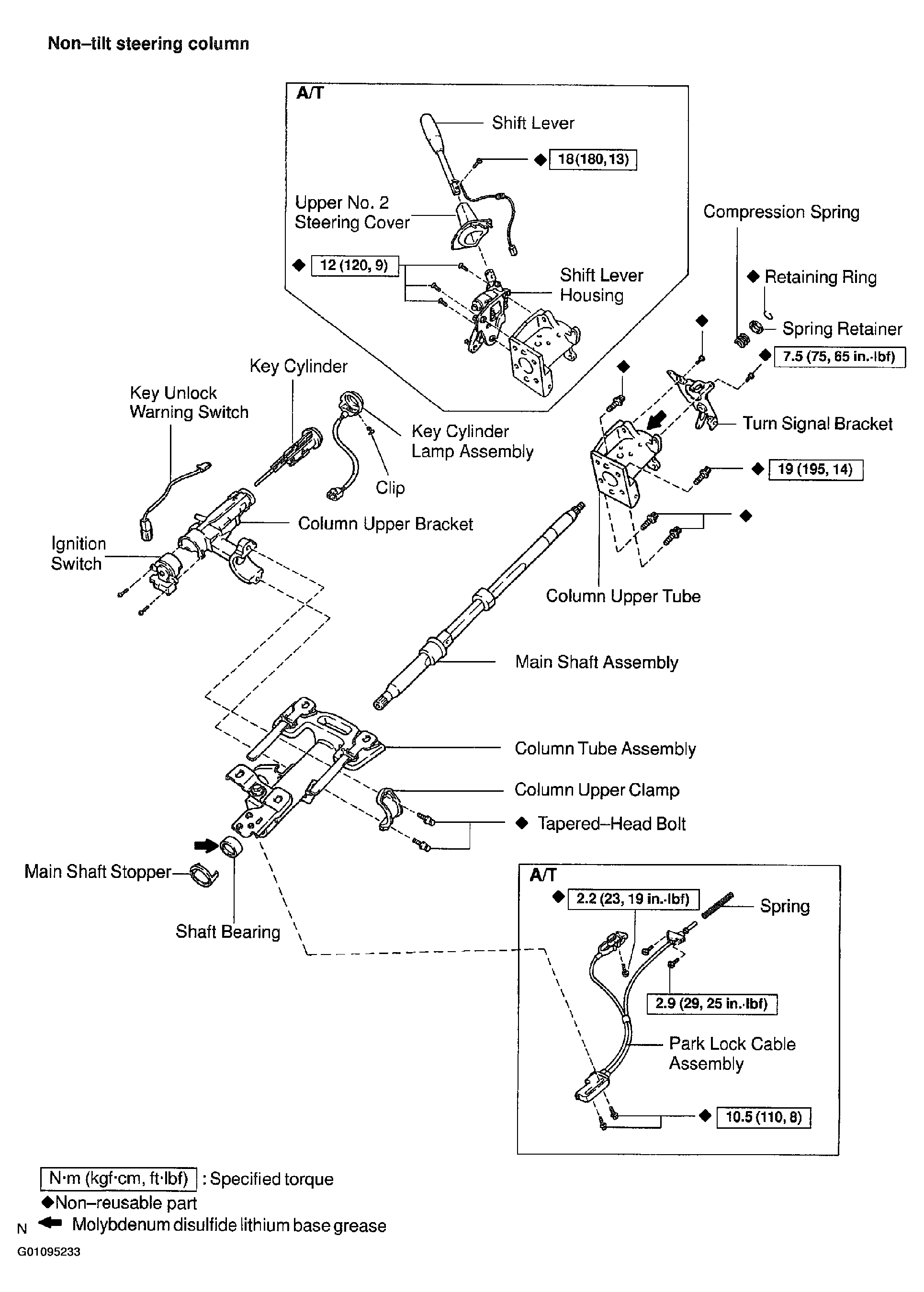

Fig 5: Exploded View Non-Tilt Steering Column

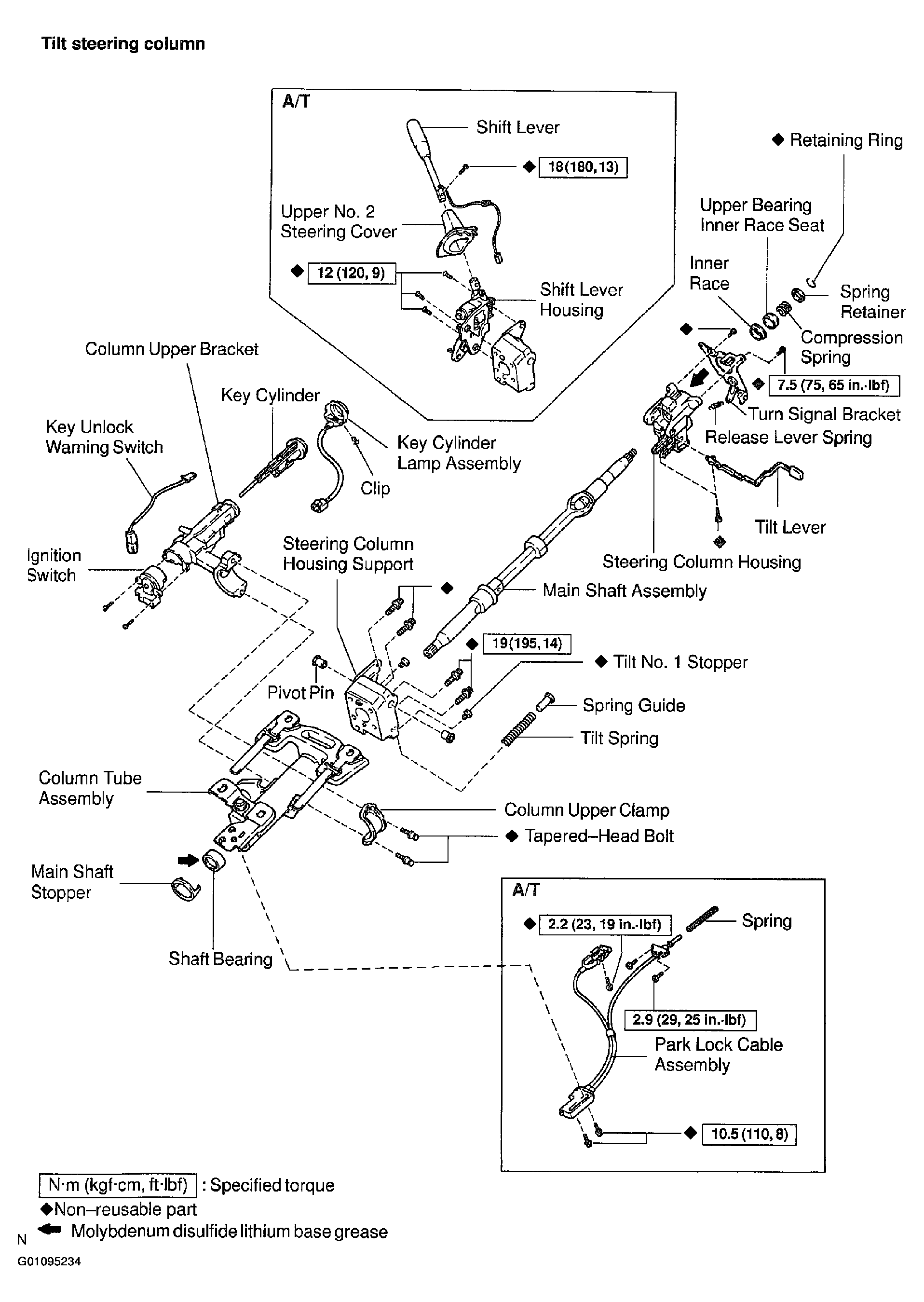

Fig 6: Exploded View Tilt Steering Column
