Steering Column: Inspection

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Inspect steering lock operation
Check that the steering lock mechanism operates properly.

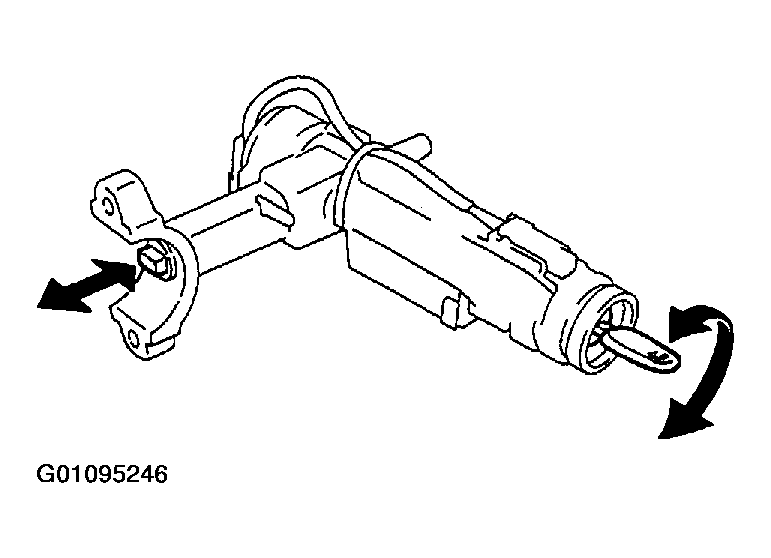

Fig 1: Verifying Steering Lock Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If necessary, replace key cylinder
1. Place the ignition key at the ACC position.
2. Push down the stop pin with a screwdriver, and pull out the cylinder.

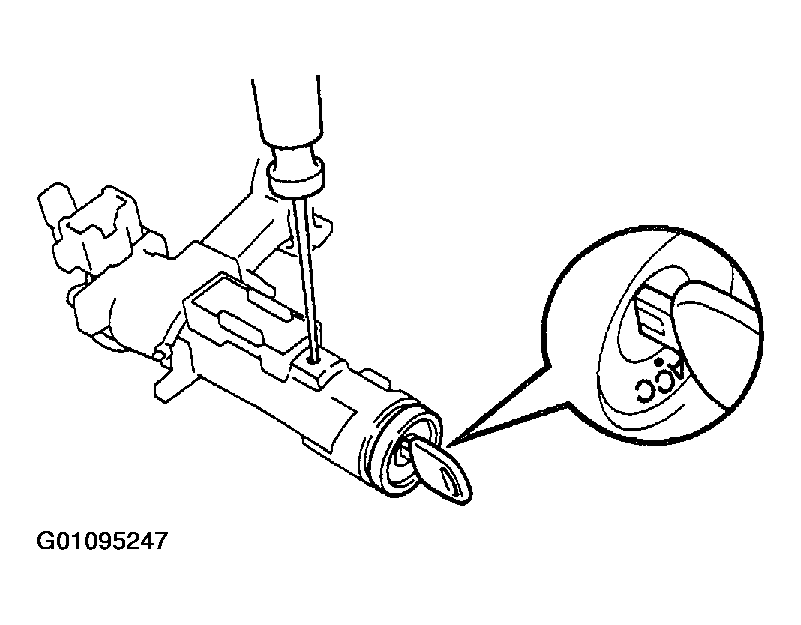

  Fig 2: Removing Key Cylinder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install a new cylinder.
Inspect ignition switch . See INSPECT IGNITION SWITCH CONTINUITY .
If necessary, replace ignition switch .
1. Remove the 2 screws and ignition switch.
2. Install a new ignition switch with the 2 screws.
Inspect key unlock warning switch . See INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY .
If necessary, replace key unlock warning switch .
1. Slide out the key unlock warning switch.
2. Install a new key unlock warning switch.
A/T: inspect bearing .
1. Check the bearing rotation condition and check for abnormal noise.

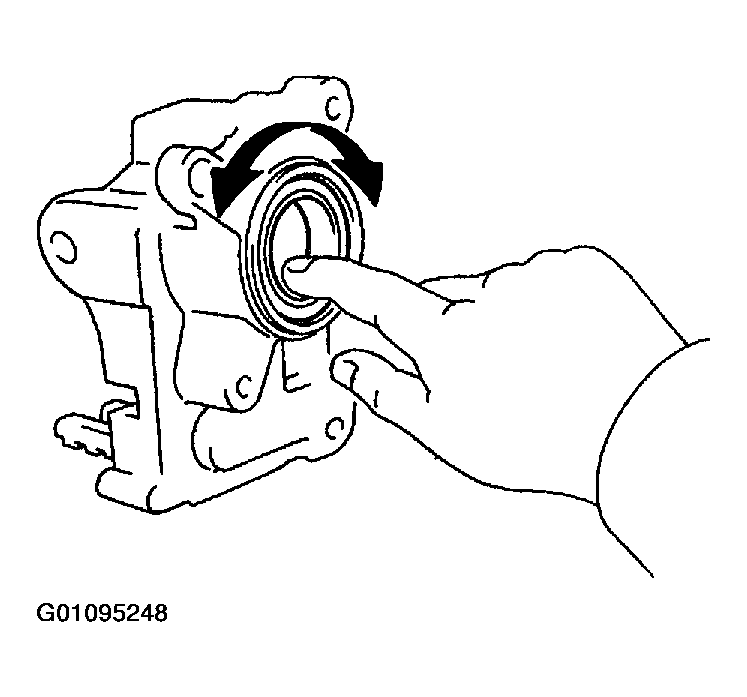

  Fig 3: Verifying Proper Bearing Condition
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If faulty, replace the column housing.
2. Coat the bearing with molybdenum disulfide lithium base grease.
If necessary, replace shaft bearing .
1. Using SST, press out the shaft bearing.

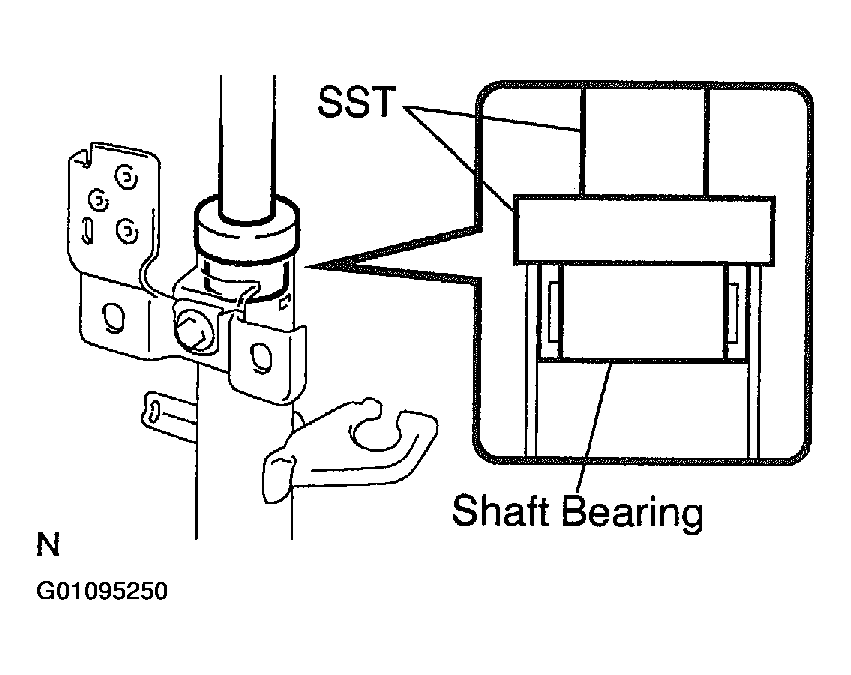

  Fig 4: Pressing Shaft Bearing Out
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09950-60010 (09951-00430),09950-70010 (09951-07360)
2. Coat a new shaft bearing with molybdenum disulfide lithium base grease.
3. Using SST, press in the shaft bearing.

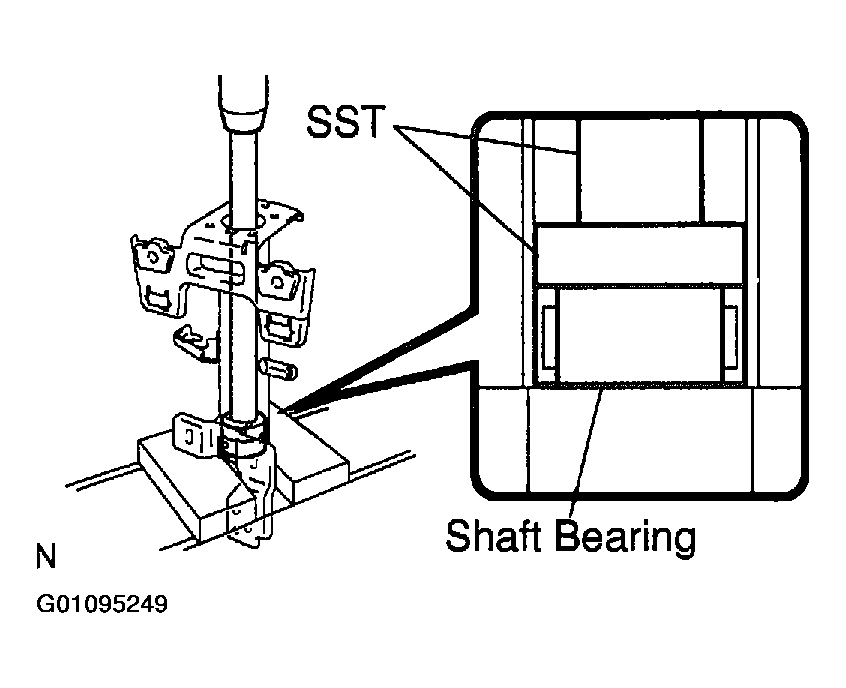

  Fig 5: Pressing Shaft Bearing In
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09950-60010 (09951-00460),09950-70010 (09951 -07150)
