Steering Column: Reassembly

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When using a vise, do not overtighten it.

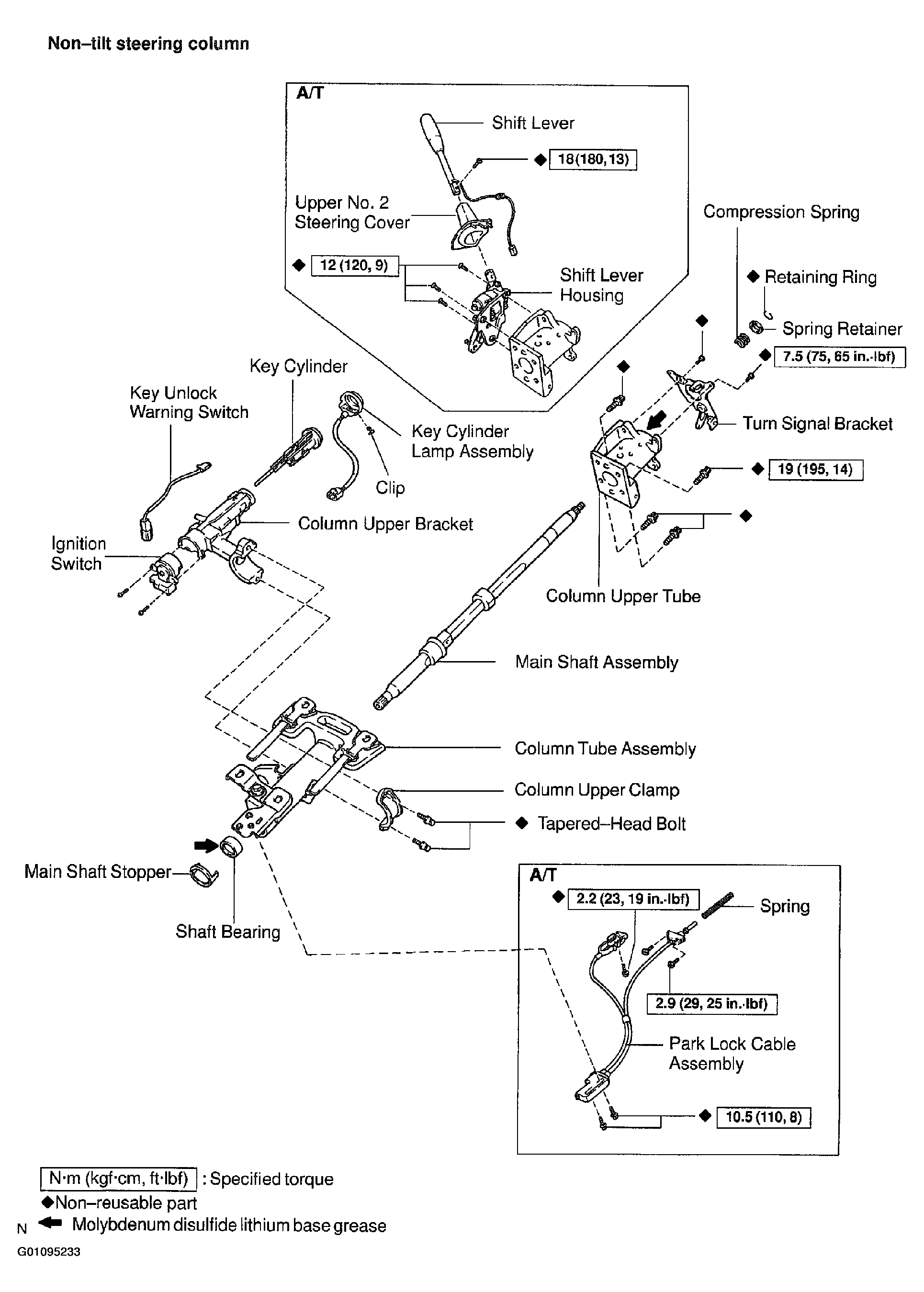

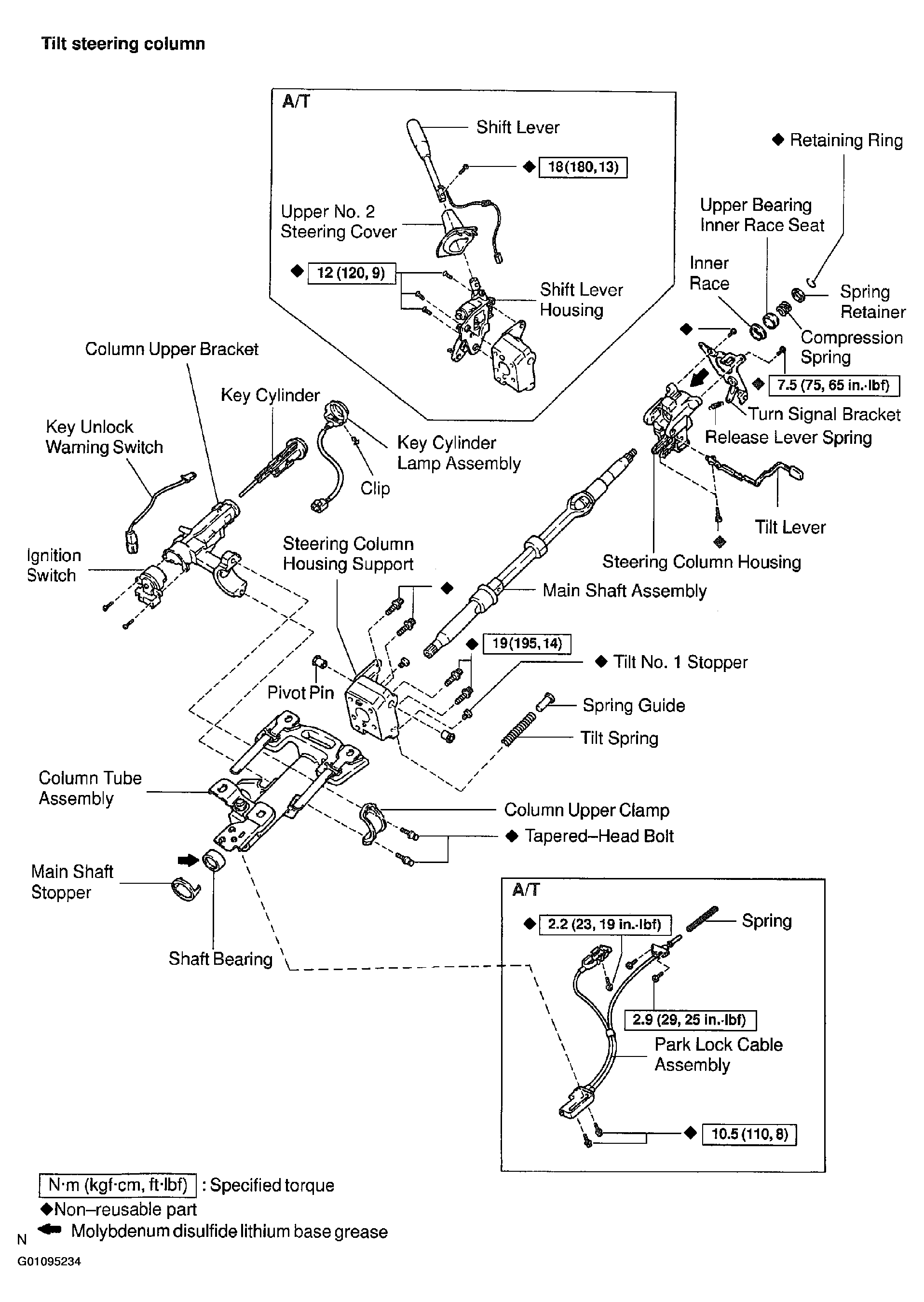

Coat parts indicated by arrows with molybdenum disulfide lithium base grease . See Figure or Figure .
Install main shaft assembly .
1. Non-tilt steering column:
  Install the compression spring and spring retainer.
2. Tilt steering column:
  Install the inner race, upper bearing inner race seat, compression spring and spring retainer.
3. Install a new retaining ring to the main shaft assembly.
4. Install the washer of SST to the main shaft assembly.
5. Install SST to the main shaft assembly, as shown in Fig 1.

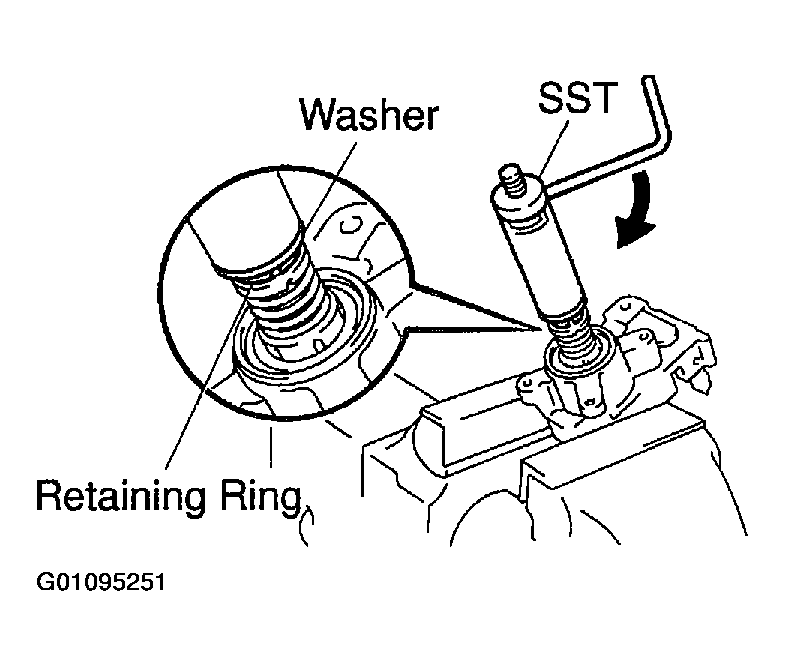

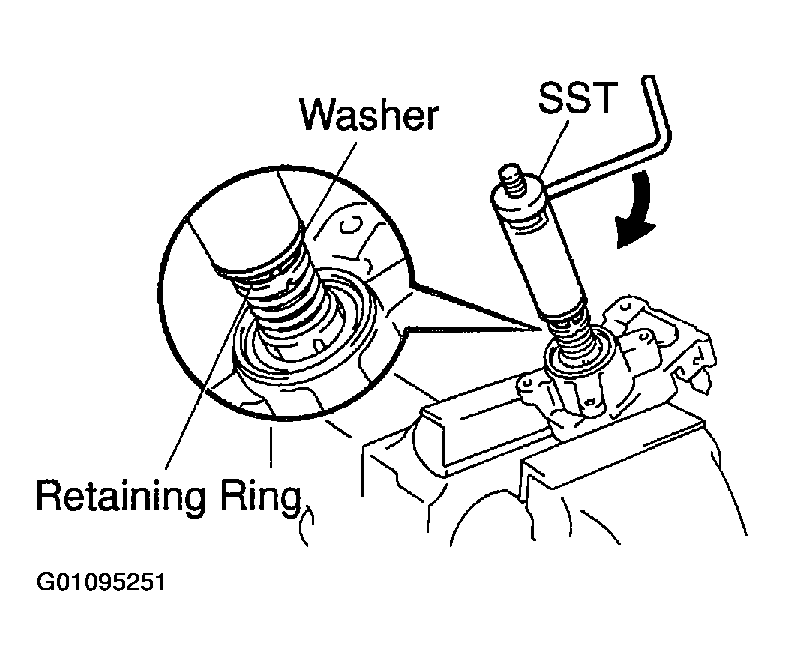

  Fig 1: Installing Main Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09612-07010
6. Using SST, push down the retaining ring until it fits into the shaft groove and install the main shaft assembly.
NOTE: Do not bend the universal Joint of the shaft assembly more than 15°.
Hold the main shaft assembly with your hand so that it does not rotate.
Install main shaft stopper .
Tilt steering column: install steering column housing support .
1. Install the 2 new tilt No.1 stopper with the steering column housing support.
2. Install 4 new Torx bolts.
  Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
Non-tilt steering column: install column upper tube with main shaft assembly .
1. Install the column upper tube with the main shaft assembly to the column tube assembly.
2. Install 4 new Torx bolts.
  Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
Tilt steering column: installing steering column housing with main shaft assembly .
1. Install the steering column housing with the main shaft assembly into the column tube assembly.
2. Install the tilt spring and spring guide.
3. Using a vise to hold the steering column housing and steering column housing support.
4. Temporarily install 2 new pivot pins.

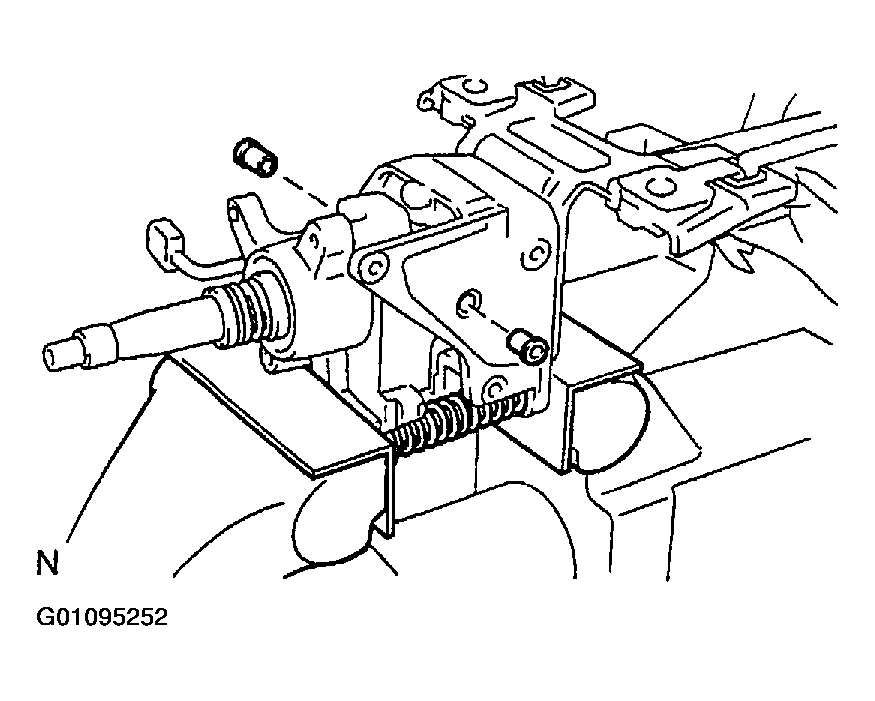

  Fig 2: Installing Pivot Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a punch and a hammer, tap in the pivot pin.
6. Using a pin punch, stake on 3 places evenly around the hole as shown in Fig 3.

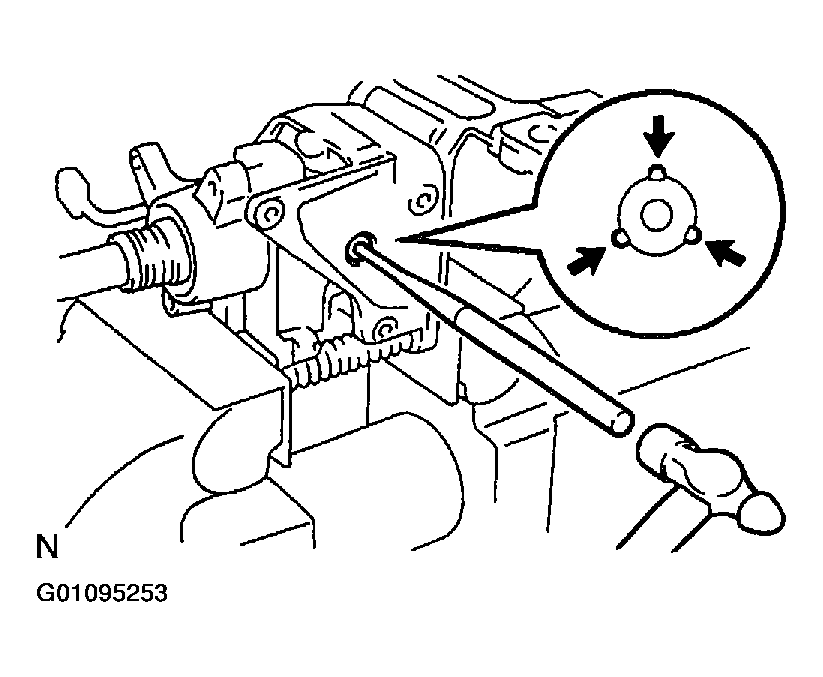

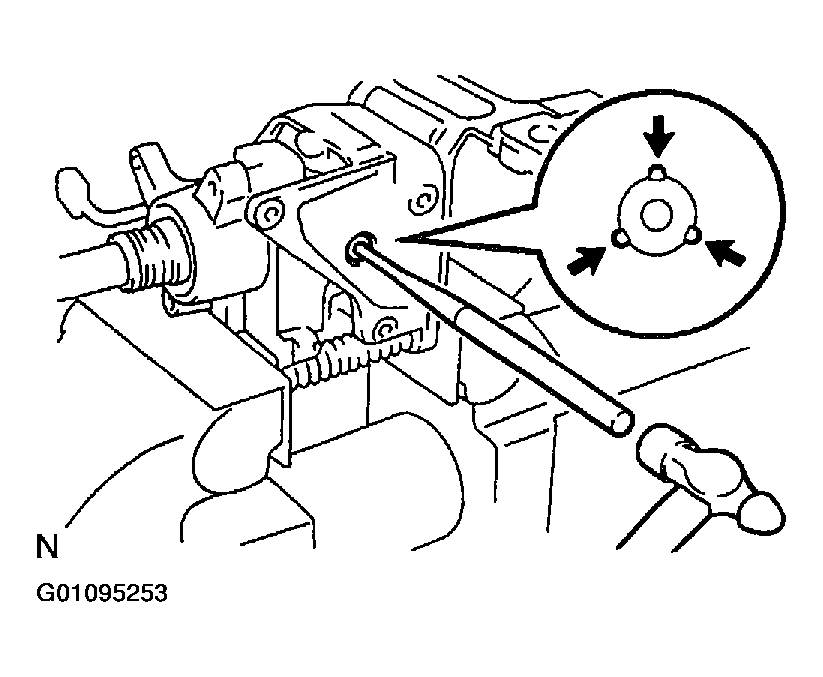

  Fig 3: Staking Pivot Pin Hole
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install turn signal bracket .
Install the turn signal bracket with 2 new Torx screws.

Torque: 7.5 N.m (75 kgf.cm, 65 in.lbf)

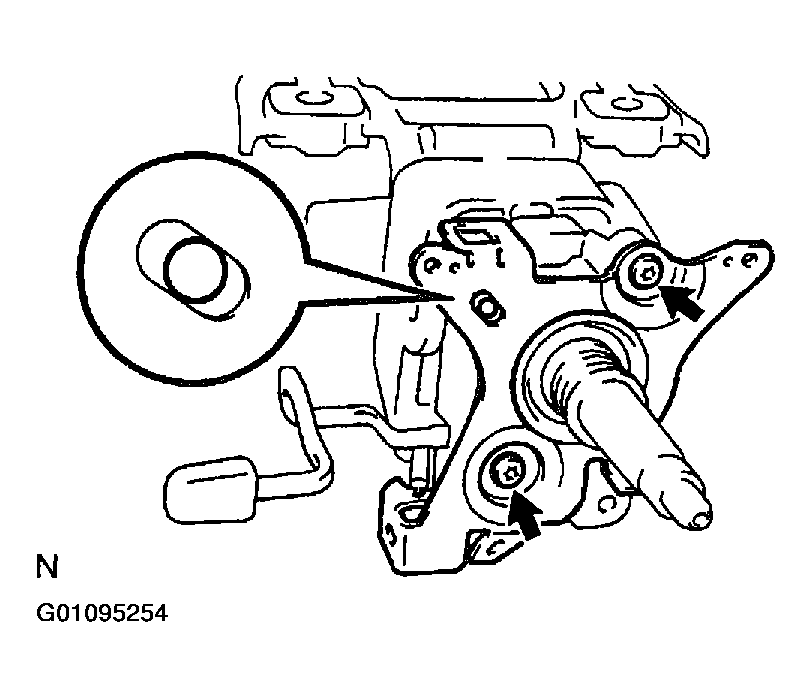

Fig 4: Locating Turn Signal Bracket Torx Screws & Alignment Hole
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Set the hole of the turn signal bracket and projection of steering column housing.
Tilt steering column : Install release lever spring.
A/T: Install park lock cable assembly . See REMOVAL & INSTALLATION .
A/T: Install shift lever housing .
Install the shift lever housing with 3 new Torx screws.

Torque: 12 N.m (120 kgf.cm, 9 ft.lbf)
A/T: Install upper no. 2 steering cover .
A/T: Install shift lever .
Install the shift lever with a new Torx screw.

Torque: 18 N.m (180 kgf.cm, 13 ft.lbf)
Install column upper bracket and column upper clamp .
1. Install the column upper bracket and column upper clamp with 2 new tapered-head bolts.
  NOTE: Insert the bracket pin into the column tube hole.

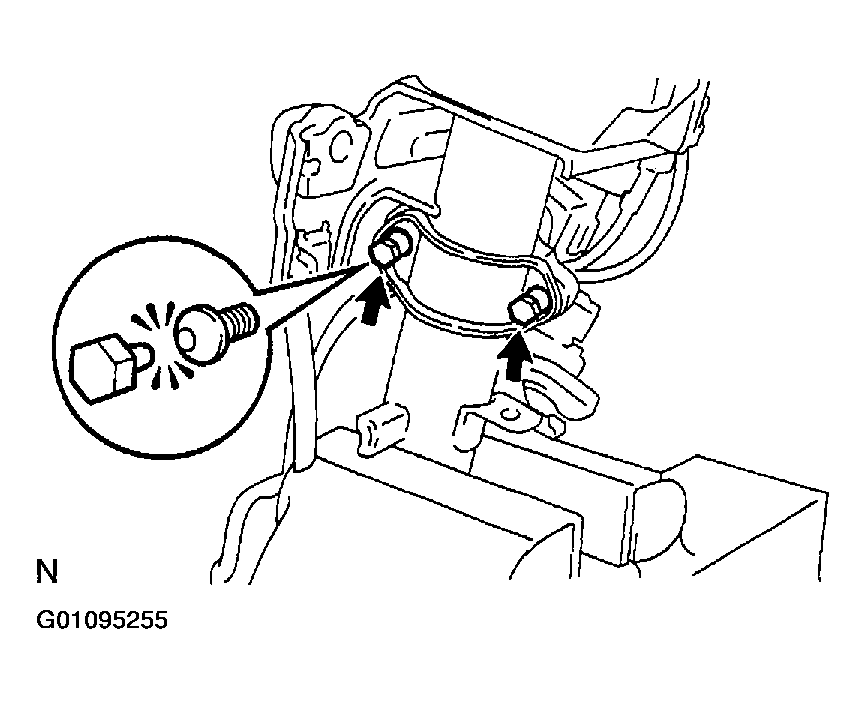

  Fig 5: Installing Tapered-Head Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the tapered-head bolts until the bolt heads break off.
Install key cylinder lamp assembly .
Install the clip with the key cylinder lamp.
