Step 4 - Inspect Door Unlock Detection Switch Continuity

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

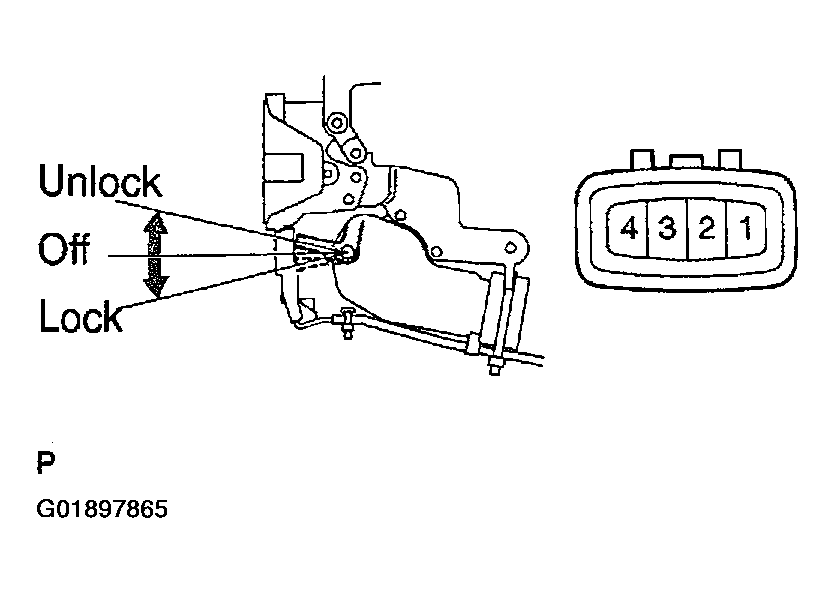

Fig 1: Identifying Driver's Door Unlock Detection Switch Terminals & Test Positions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

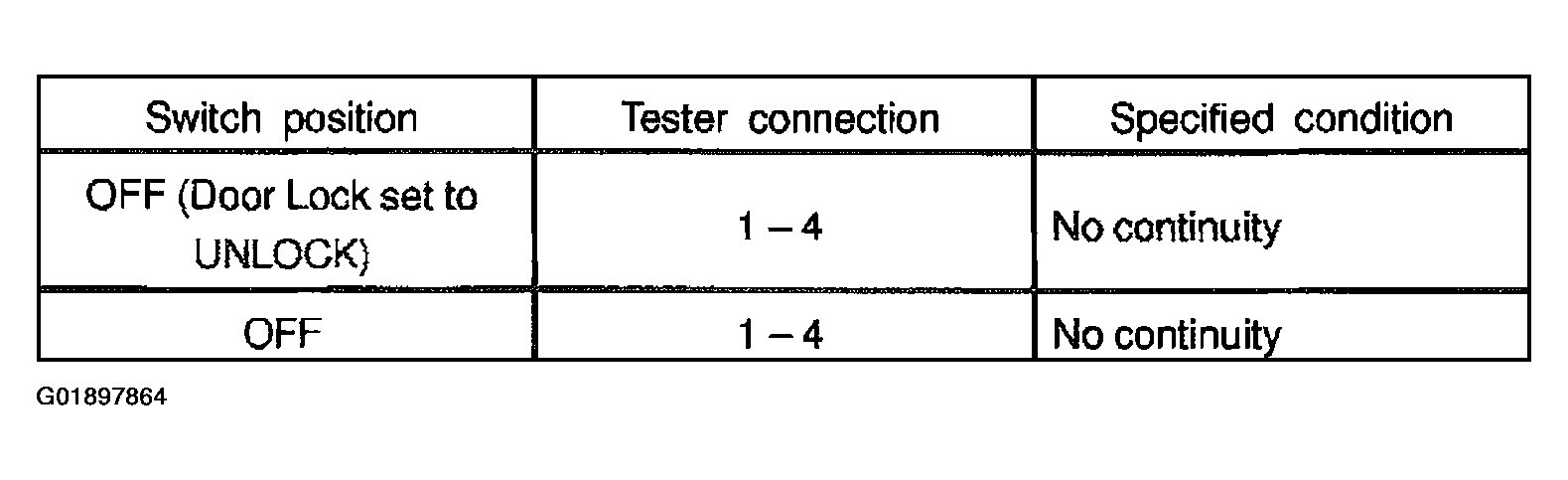

Fig 2: Driver's Door Unlock Detection Switch Specifications

If continuity is not as specified, replace the switch.
