Tilt Steering Column: Components

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

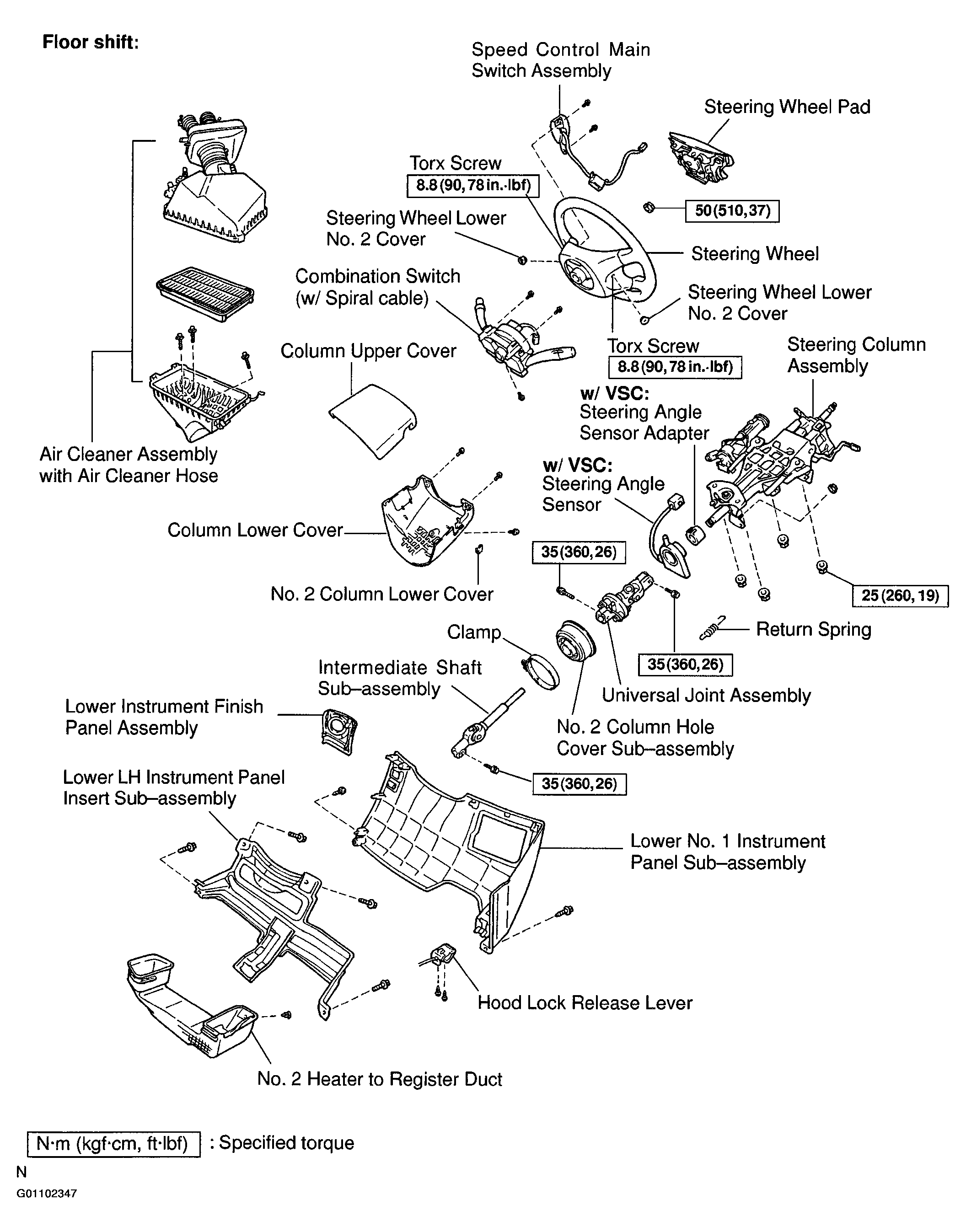

Fig 1: Identifying Tilt Steering Column Components (Floor Shift )

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

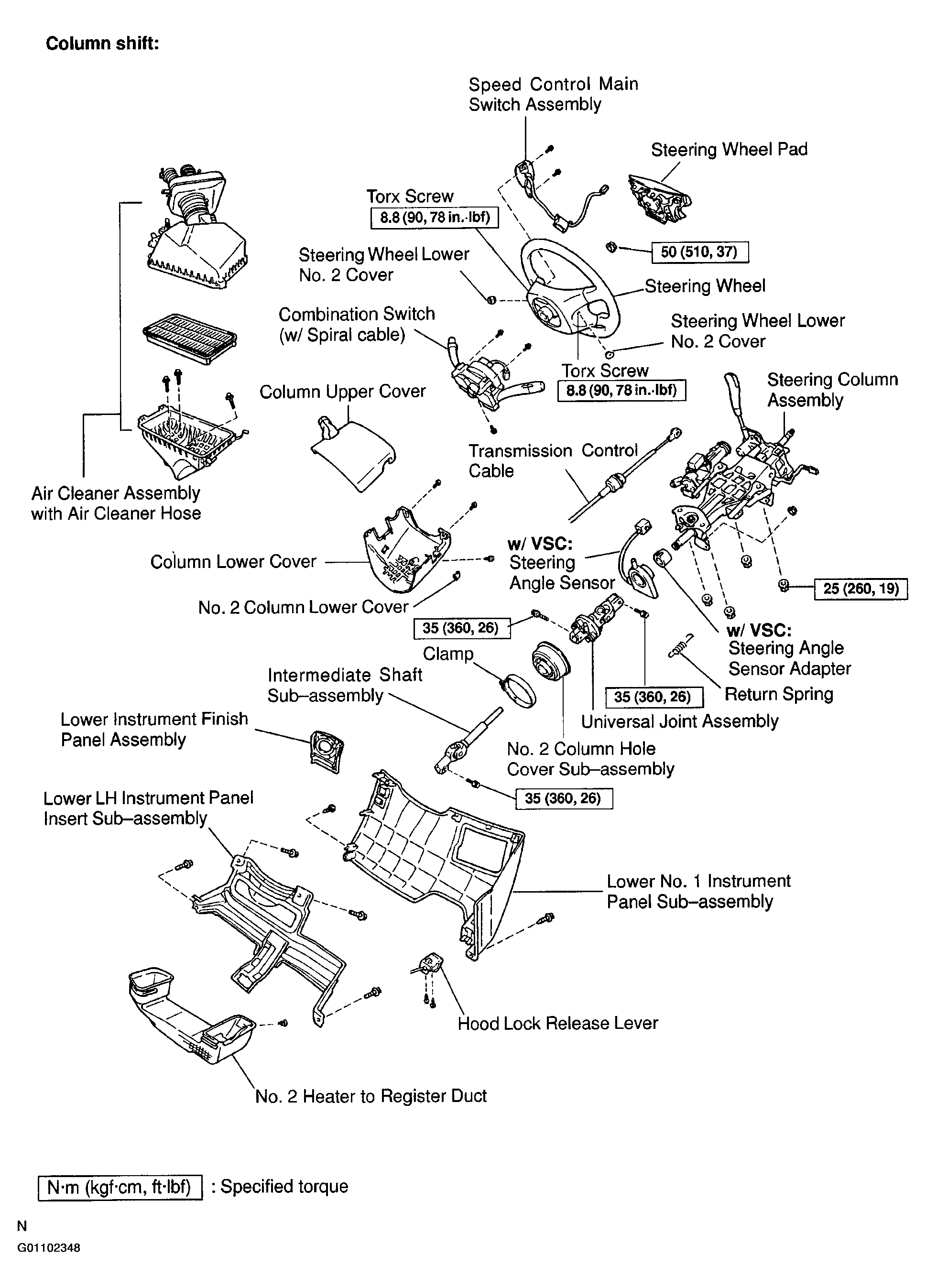

Fig 2: Identifying Tilt Steering Column Components (Column Shift )

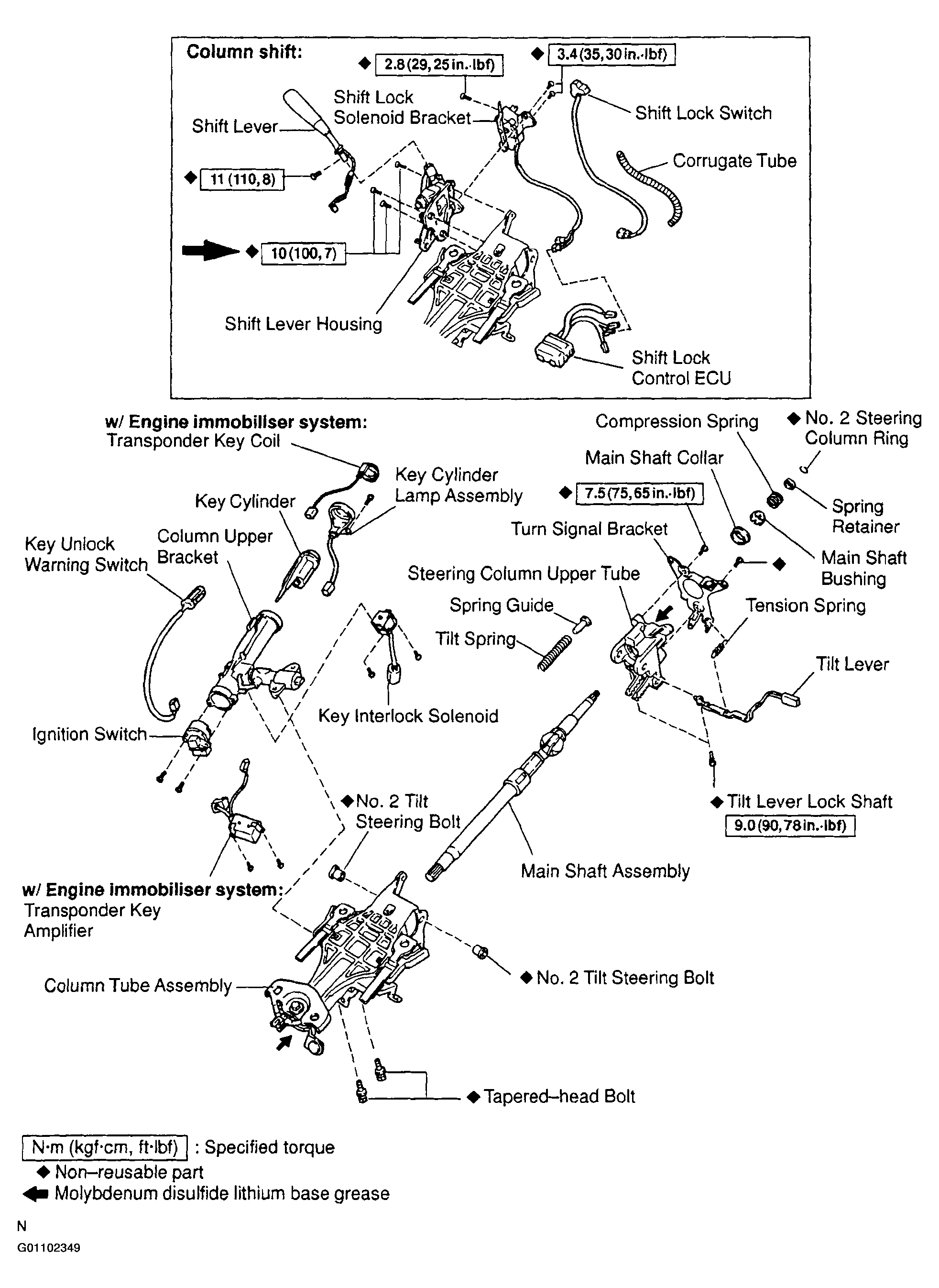

Fig 3: Exploded View Of Identifying Tilt Steering Column
