Combination Meter Circuit

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

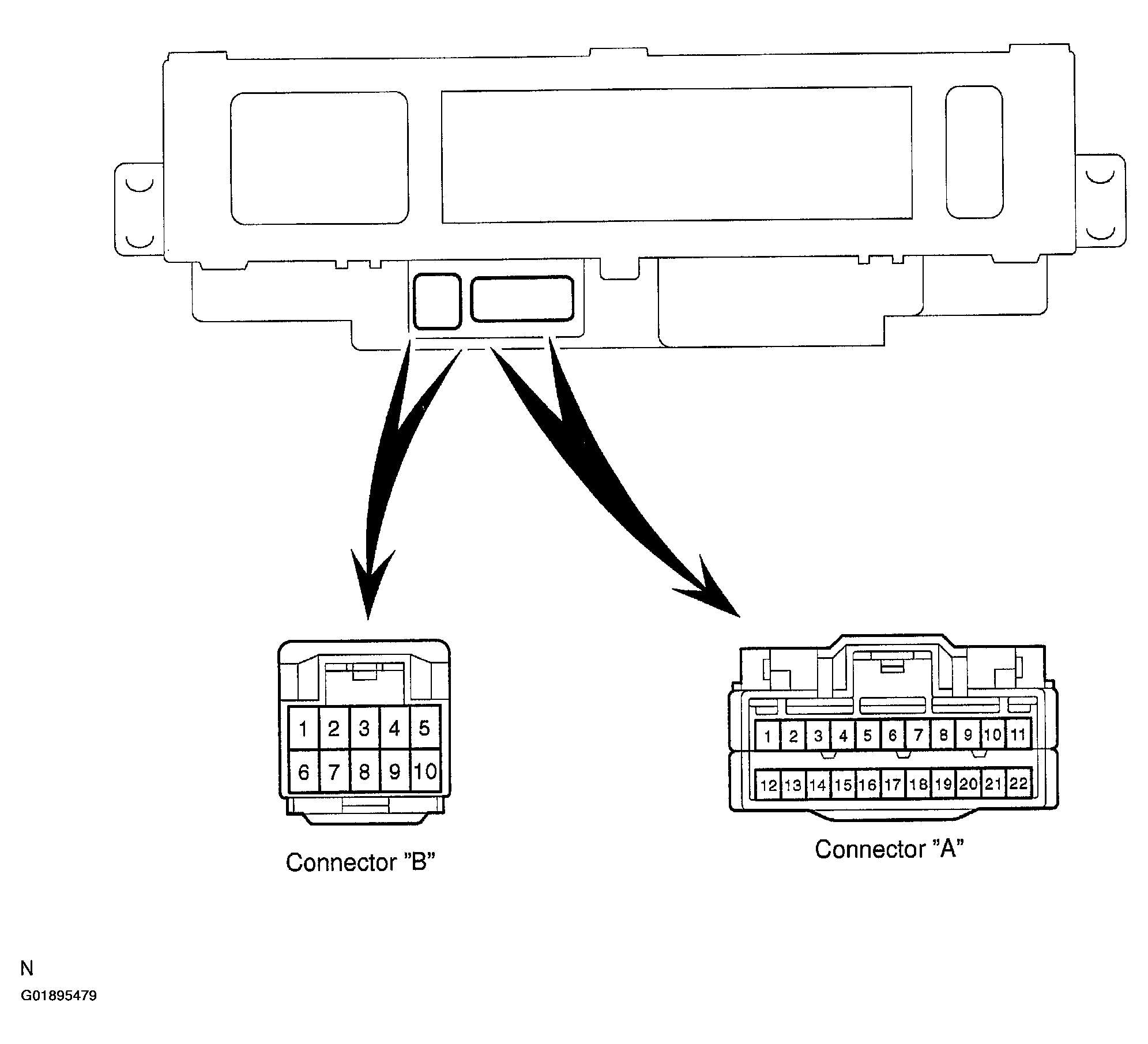

Fig 1: Locating Combination Meter Connectors & Identifying Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

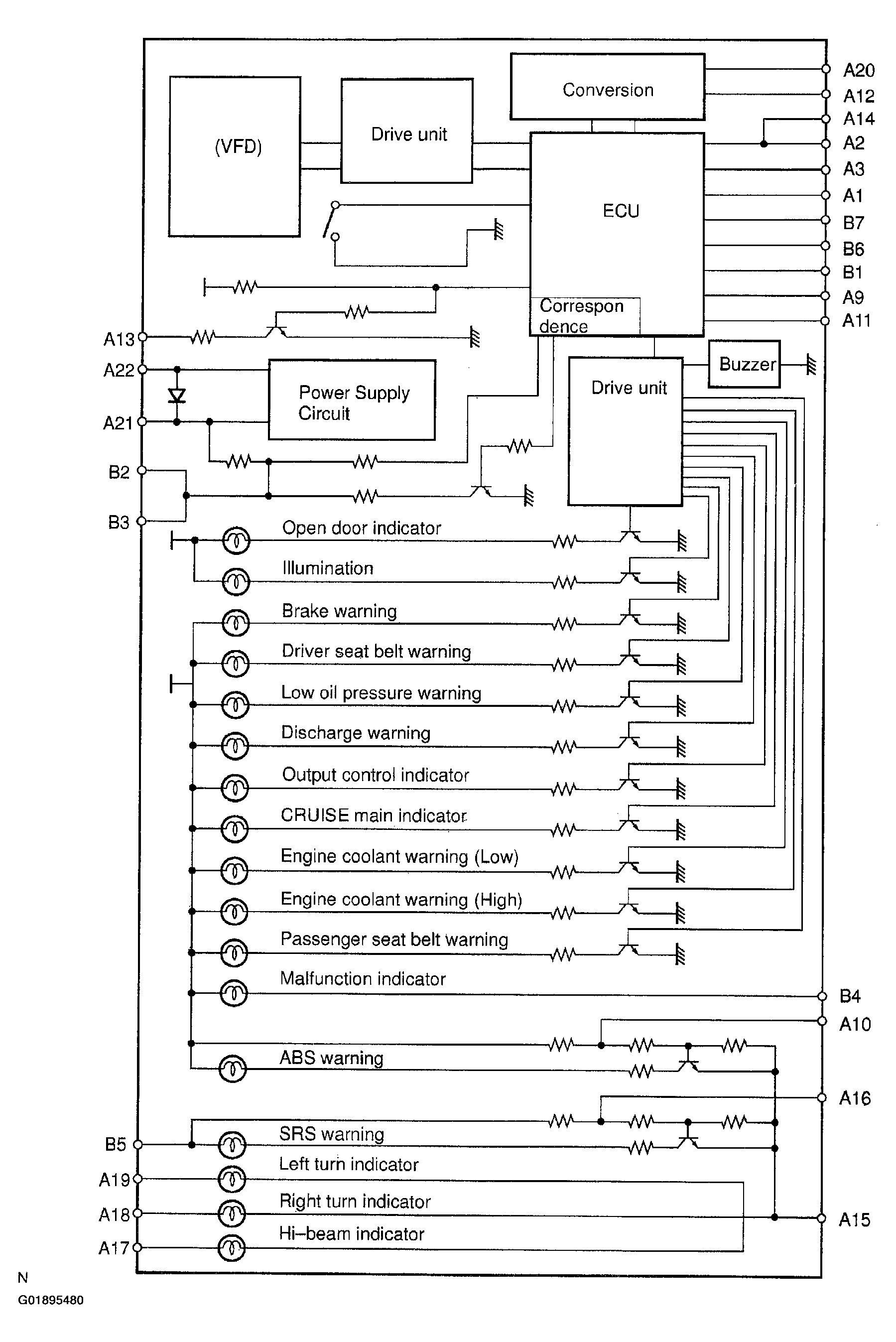

Fig 2: Combination Meter Wiring Diagram

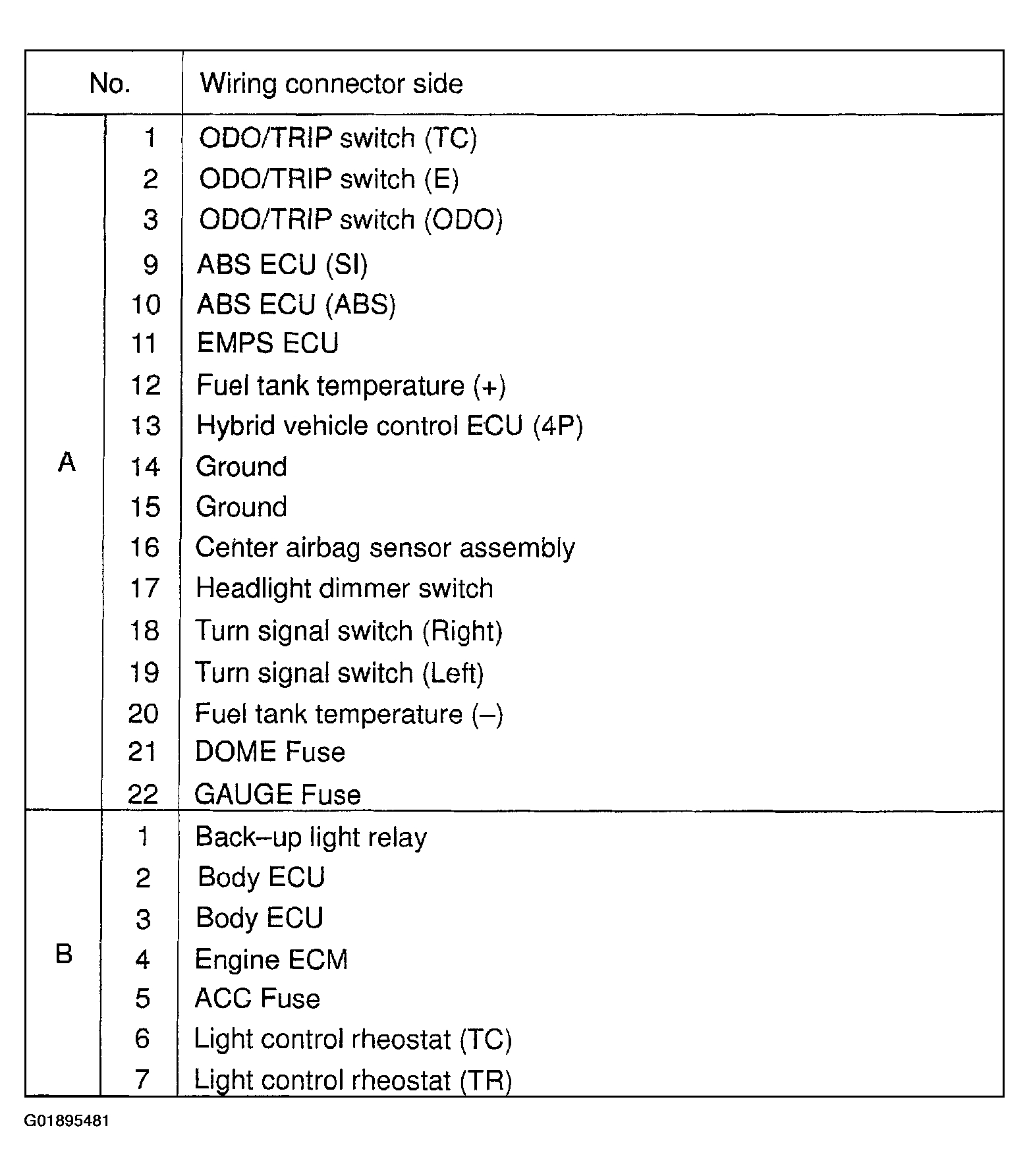

Fig 3: Legend For Combination Meter Connectors A & B
