Instrument Panel & Multi-Informational Display Symbols

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

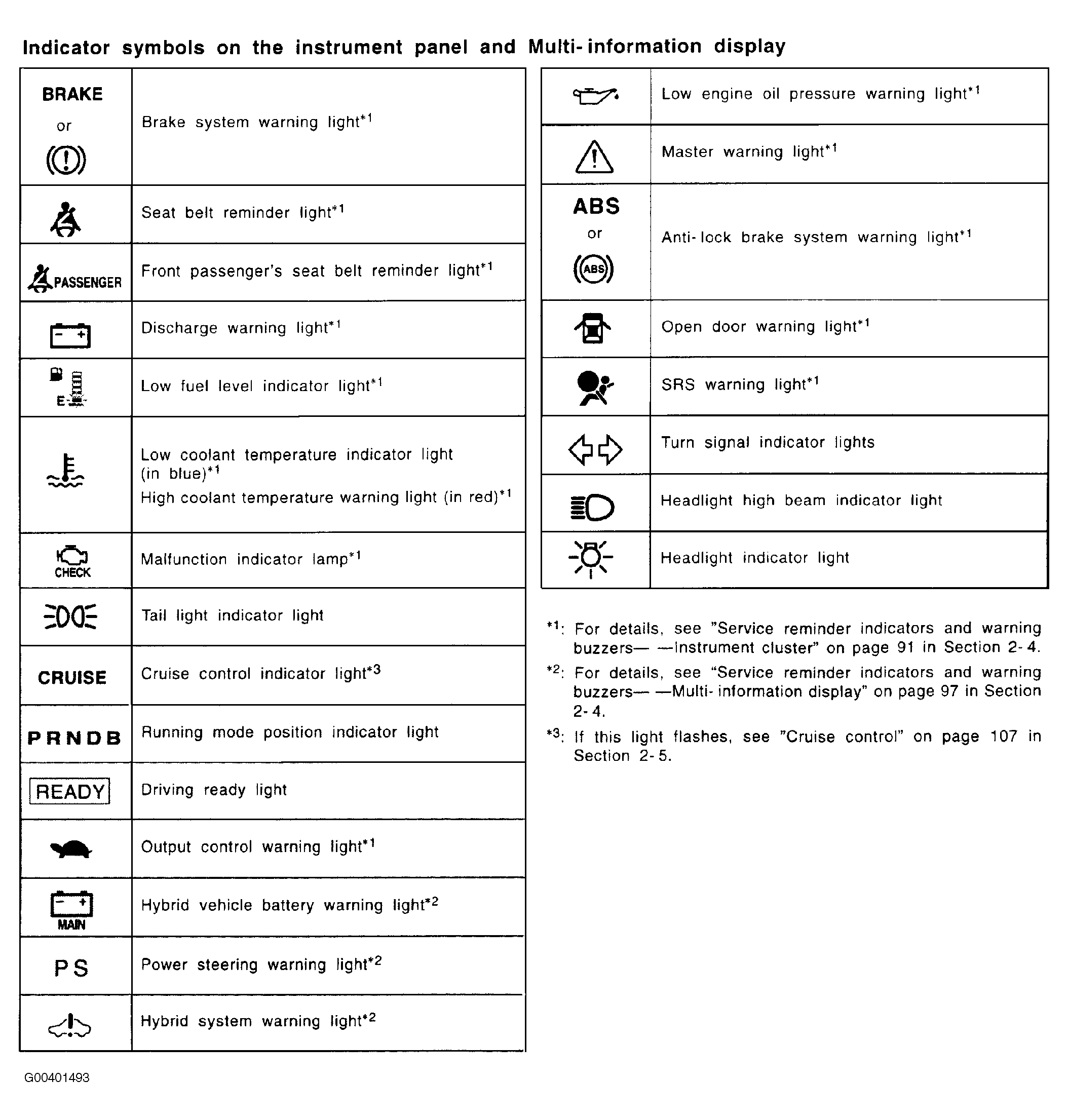

Fig 1: Identifying Indicator Symbols On Instrument Panel & Multi-Informational Display
G00401493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
