Counter Drive Gear: Reassembly

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Install ball bearing RH (MG1 side) .

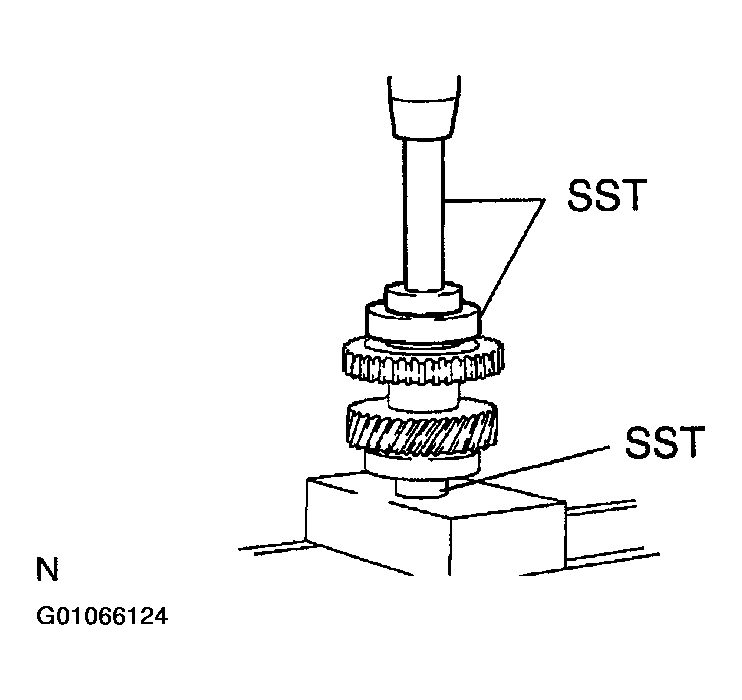

Fig 1: Pressing Right Side Counter Drive Gear Bearing In (MG1 side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST and a press, press in the ball bearing.

SST 09950-60010 (09951-00460), 09950-70010 (09951-07100).
Install ball bearing LH (MG2 side) .

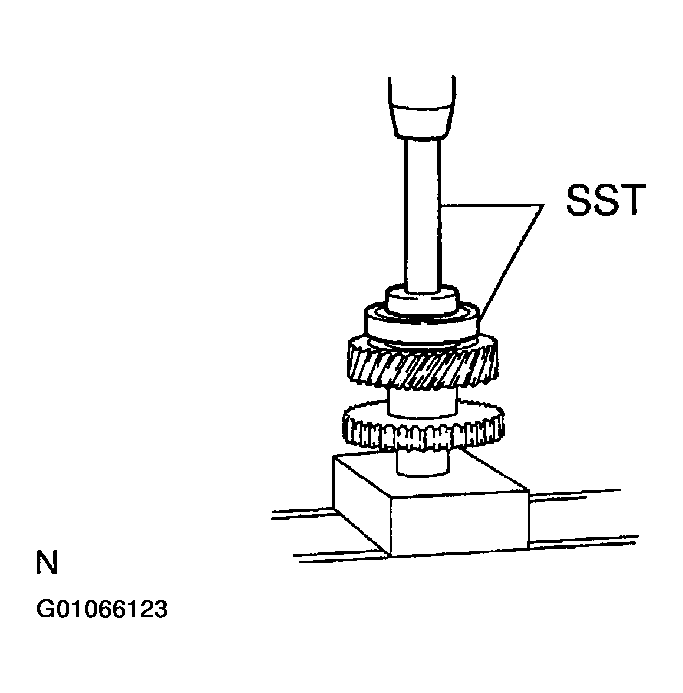

Fig 2: Pressing Left Side Counter Drive Gear Bearing Out (MG2 side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST and a press, press in the ball bearing.

SST 09950-60010 (09951-00330, 09951-00460), 09950-70010 (09951-07100).
