Counter Driven Gear: Reassembly

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Install new tapered roller bearing (MG1 side) .
Using SST and a press, press in a new tapered roller bearing.

SST 09608-06041.

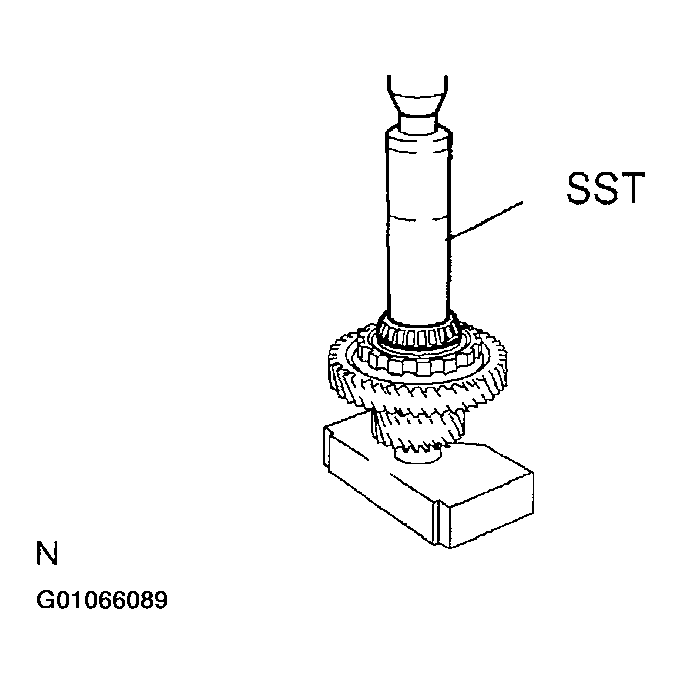

Fig 1: Pressing Counter Driven Gear Tapered Roller Bearing In (MG1 side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install new tapered roller bearing (MG2 side) .
Using SST and a press, press in a new tapered roller bearing.

SST 09608-06041, 09950-60010 (09951-00370).

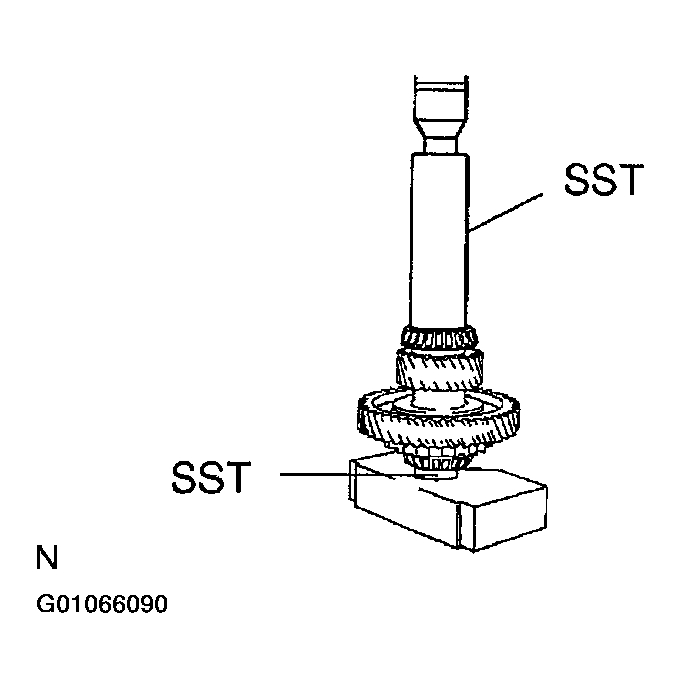

Fig 2: Pressing Counter Driven Gear Tapered Roller Bearing In (MG2 side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
