Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

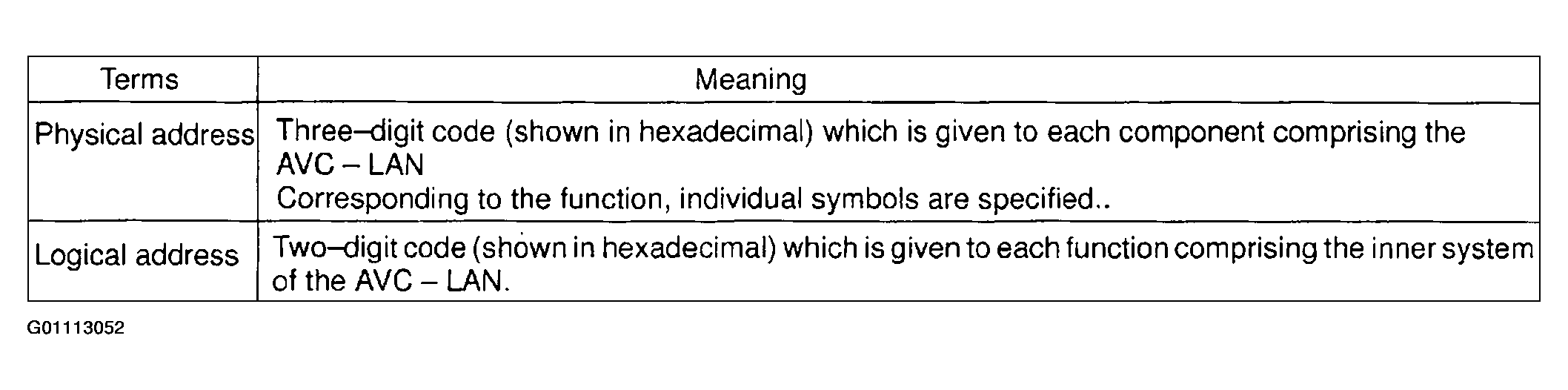

Fig 1: Defining Physical & Logical Address

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Physical address: 110 Multi display

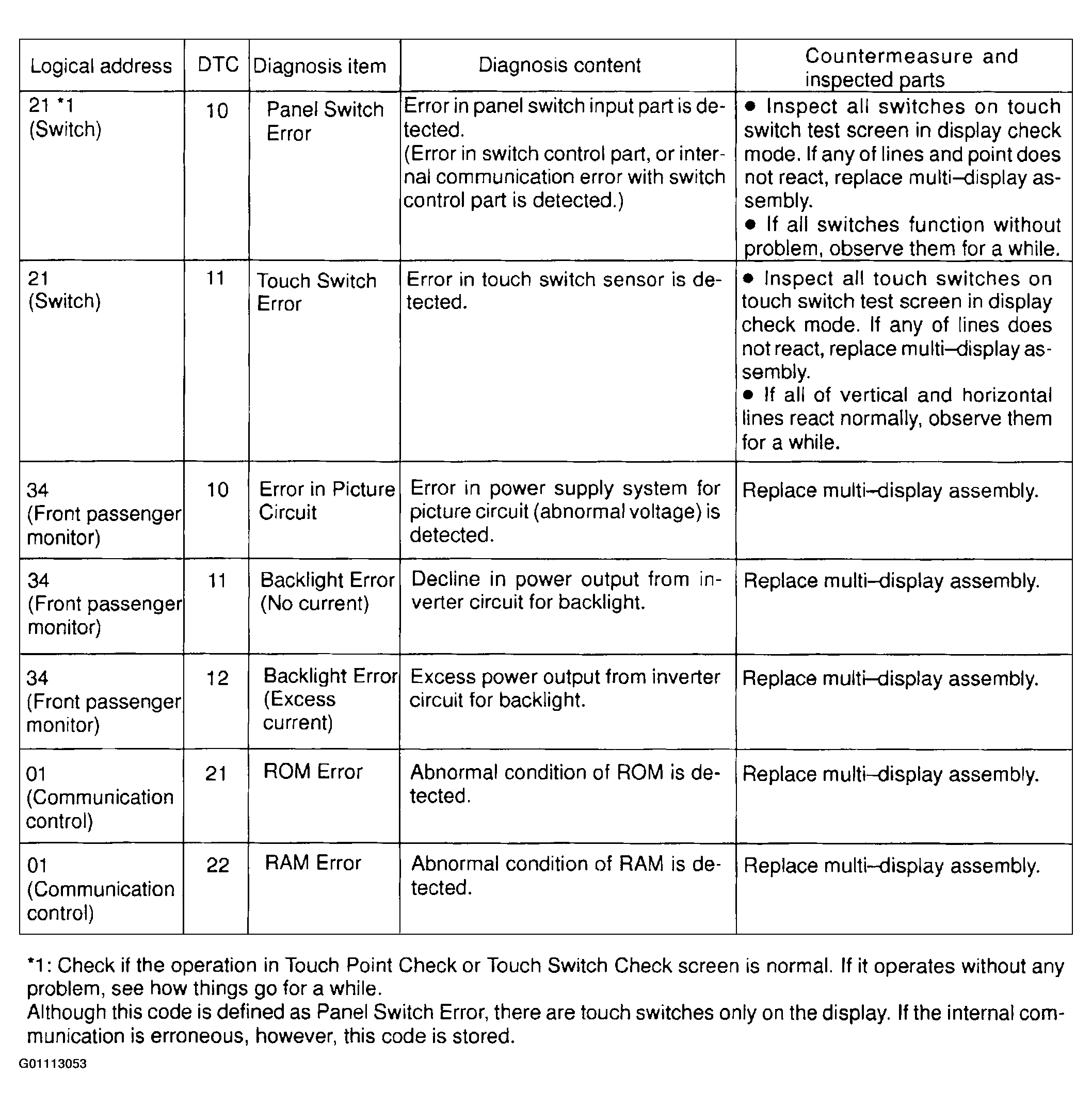

Fig 2: Identifying Logical Addresses, DTC's & Diagnosis For Physical Address 110 (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Logical Addresses, DTC's & Diagnosis For Physical Address 110 (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Physical address: 190 Radio receiver assembly

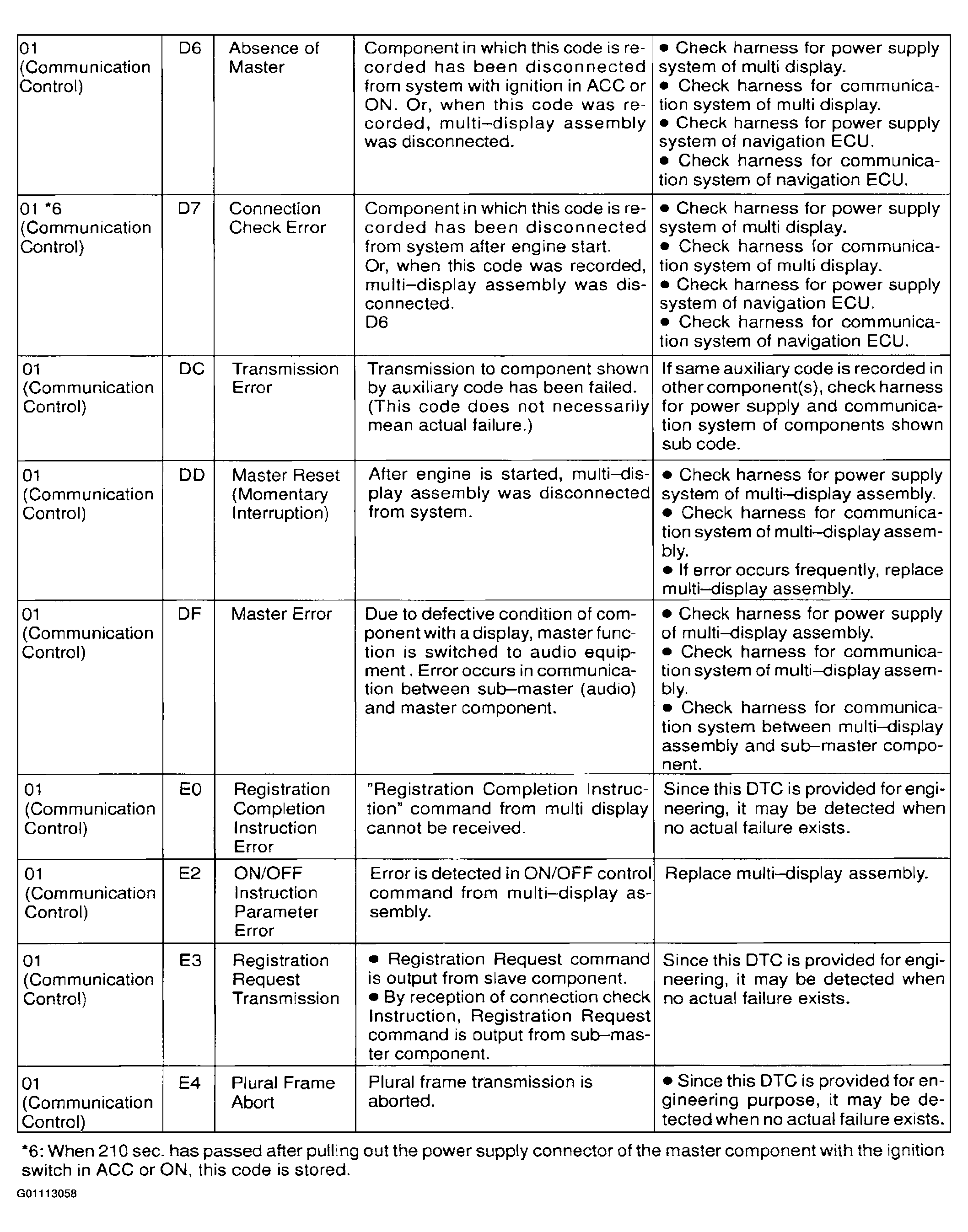

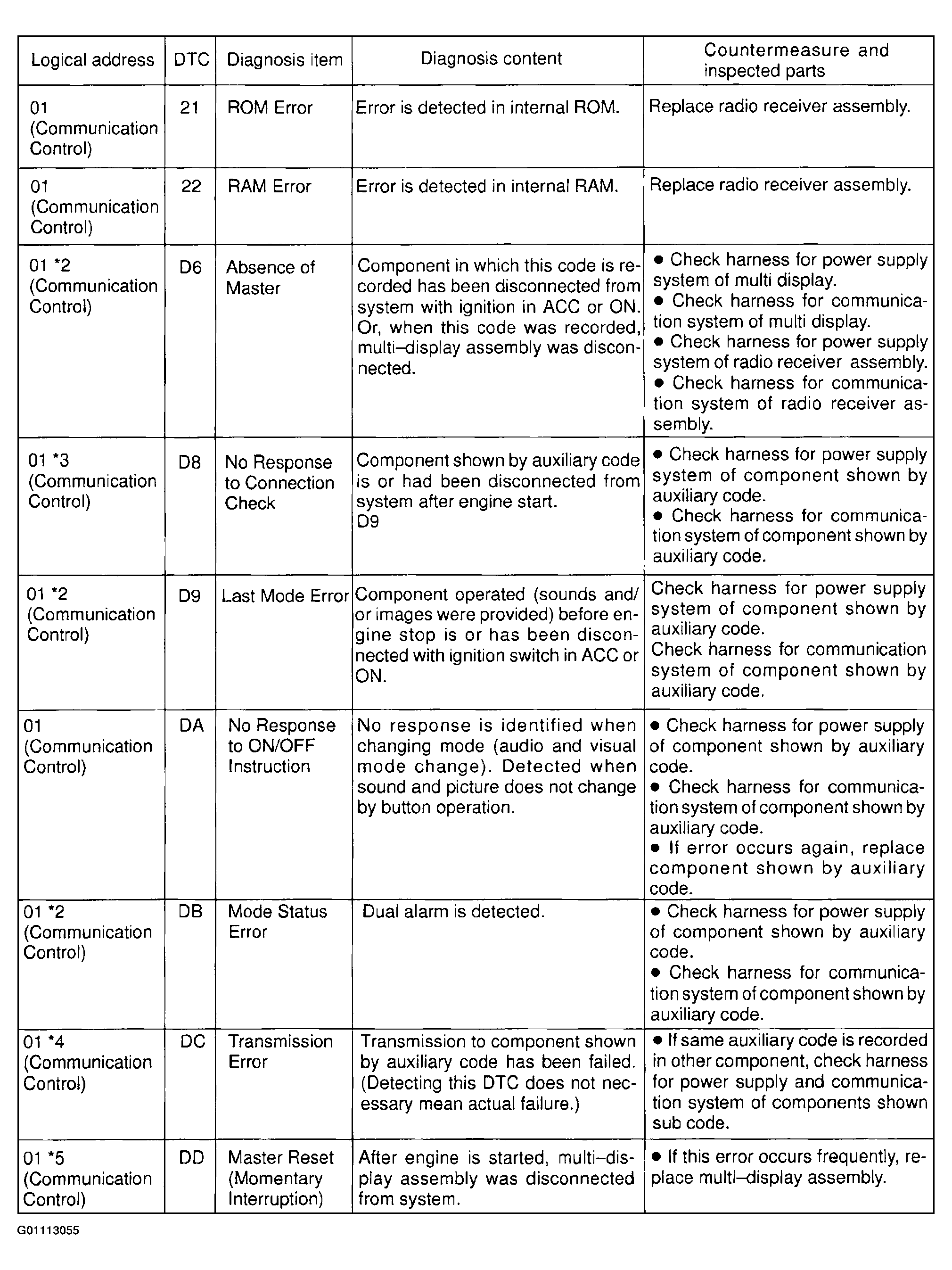

Fig 4: Identifying Logical Addresses, DTC's & Diagnosis For Physical Address 190 (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

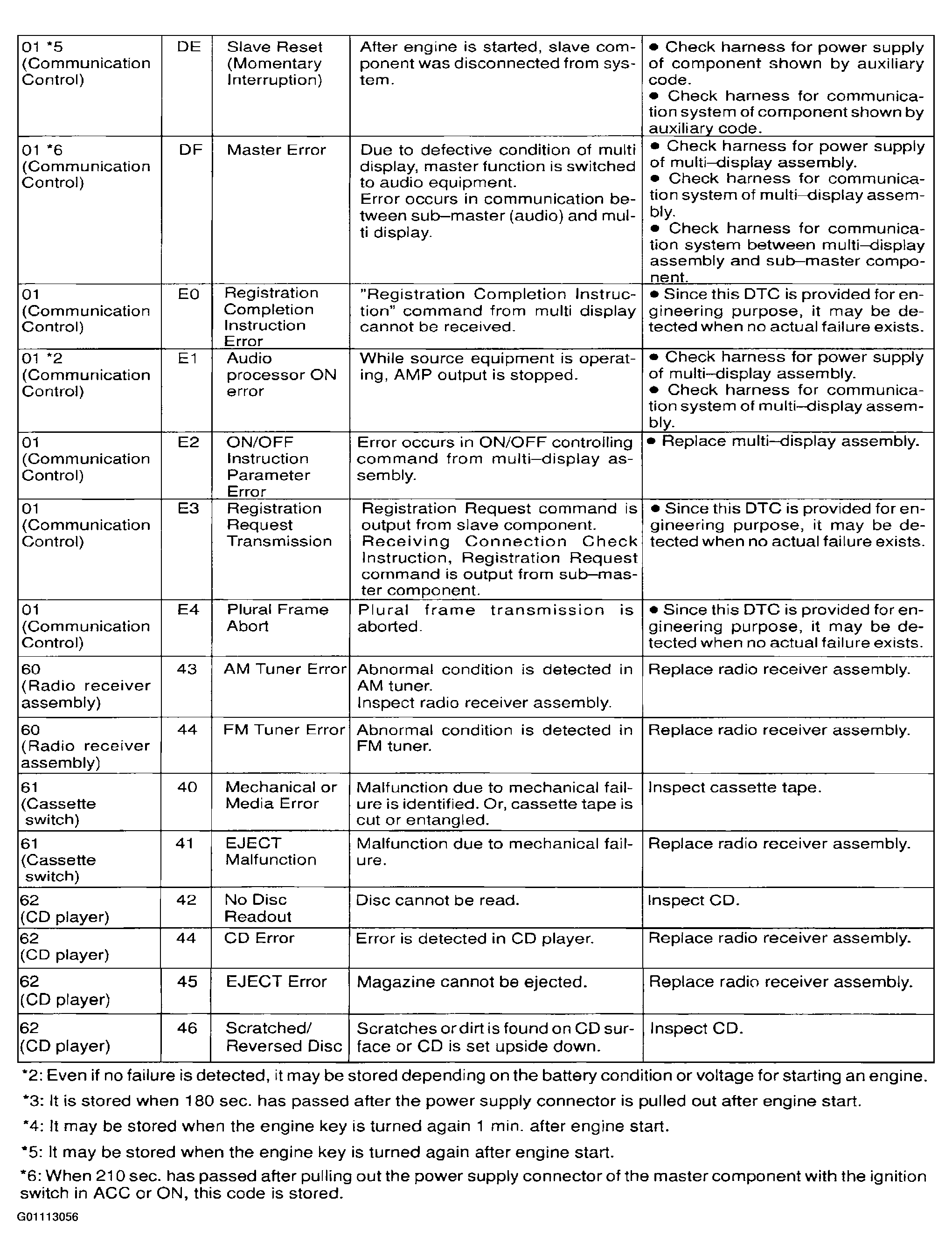

Fig 5: Identifying Logical Addresses, DTC's & Diagnosis For Physical Address 190 (2 Of 2)

Physical address: 178 Navigation ECU

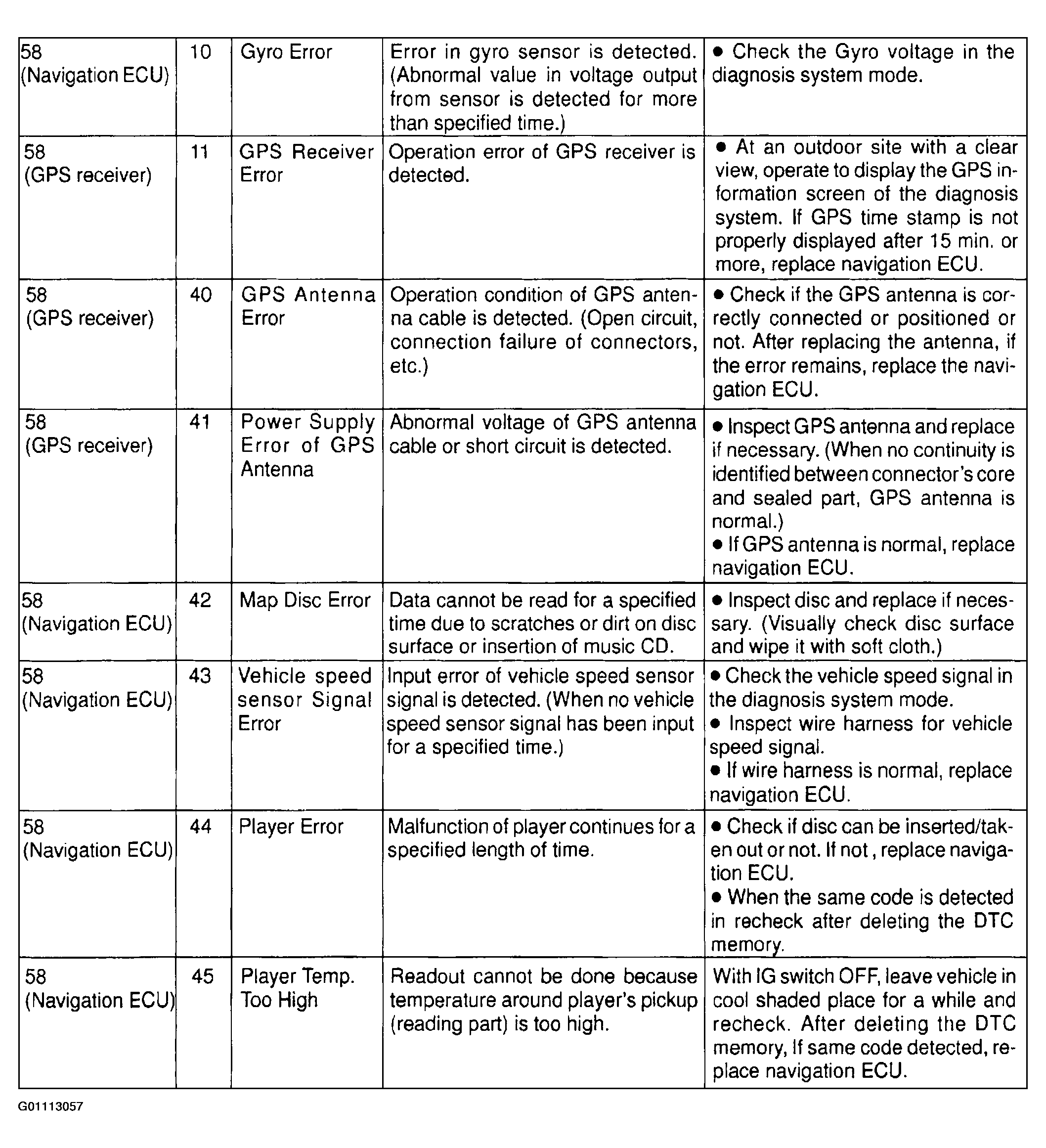

Fig 6: Identifying Logical Addresses, DTC's & Diagnosis For Physical Address 178 (1 Of 2)

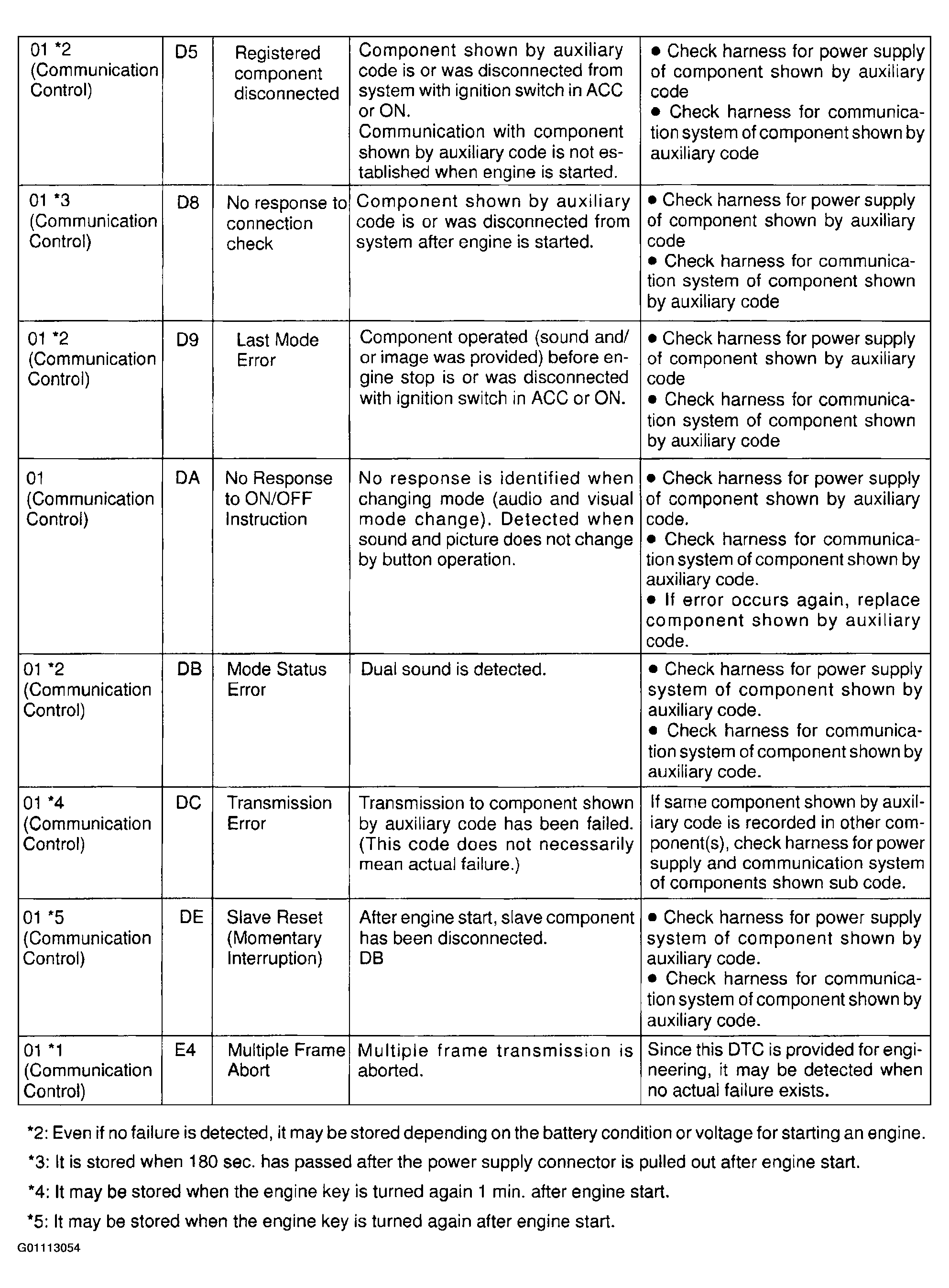

Fig 7: Identifying Logical Addresses, DTC's & Diagnosis For Physical Address 178 (2 Of 2)
