(5) - Inspect Power Main Relay Continuity

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

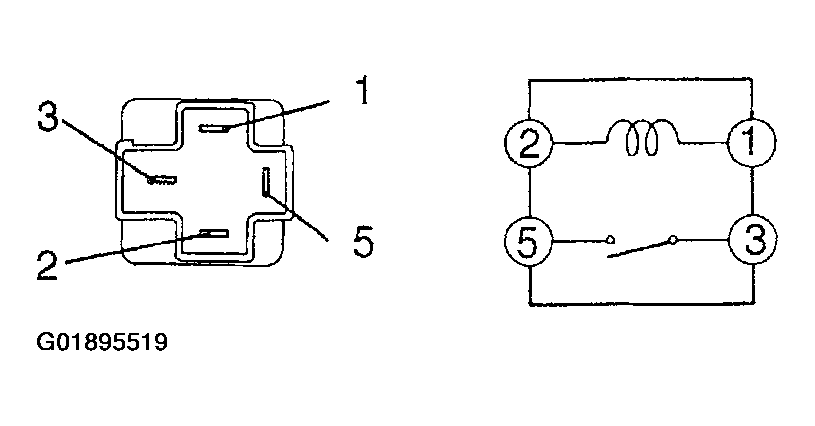

Fig 1: Identifying Power Main Relay Terminals
G01895519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

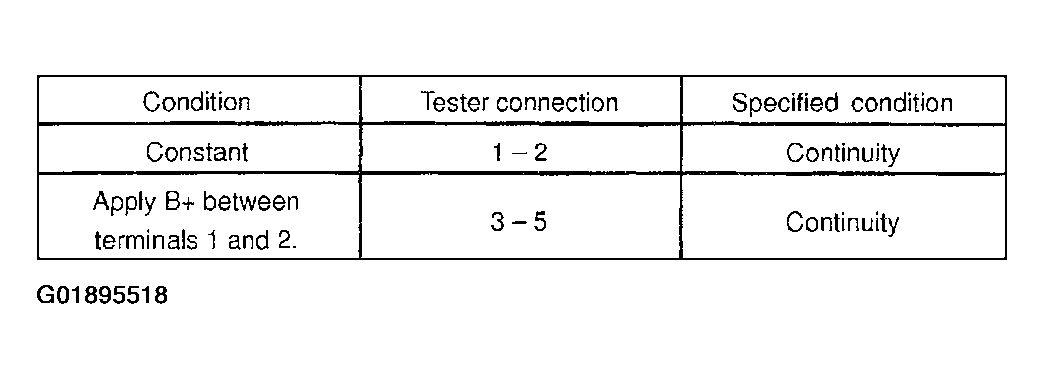

Fig 2: Power Main Relay Terminal Specifications
G01895518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the relay.
