(1) - One Touch Power Window Does Not Move Up And Down

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

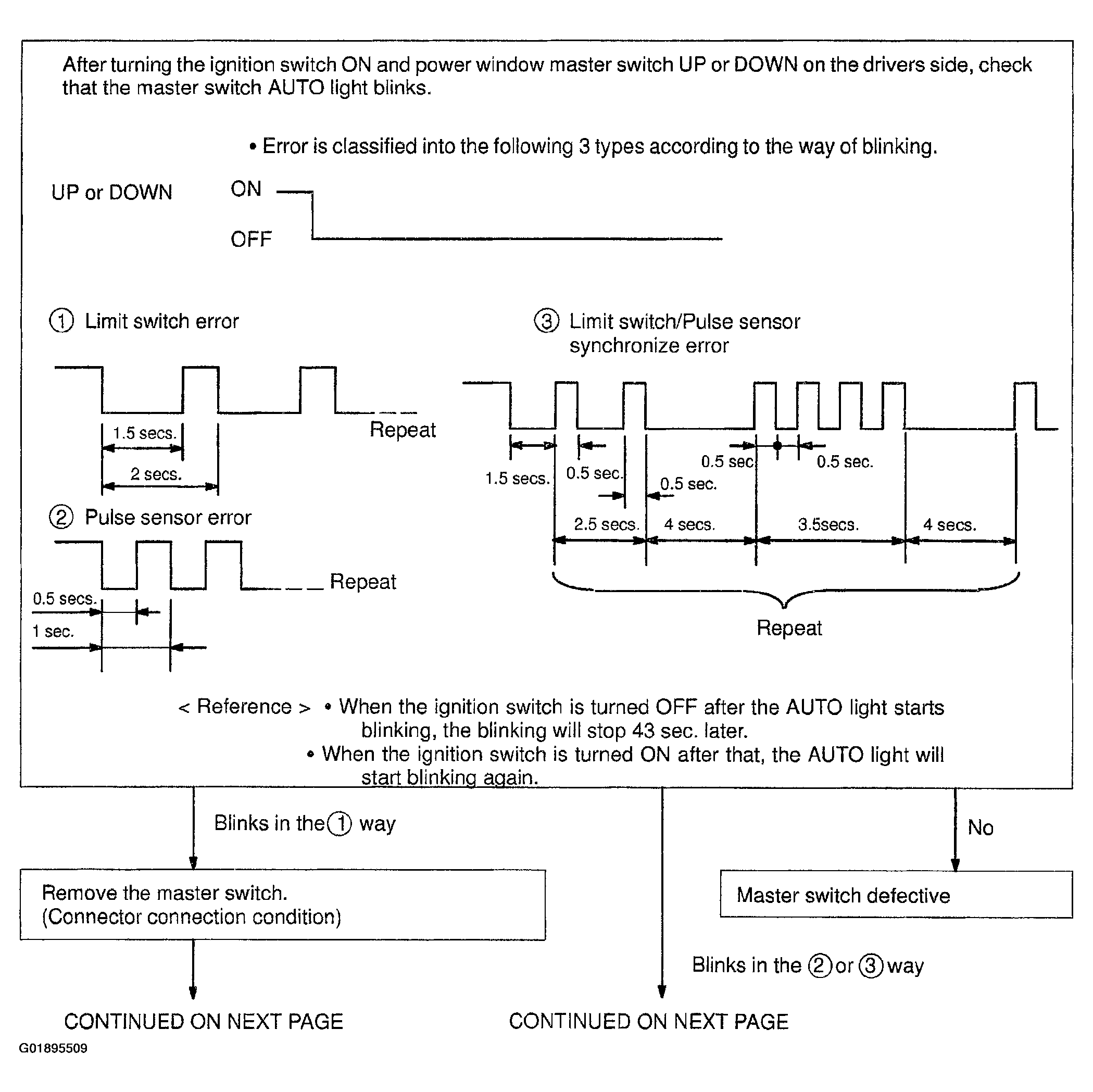

Fig 1: One Touch Power Window Does Not Move Up & Down Diagnostic Procedure (1 Of 2)
G01895509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

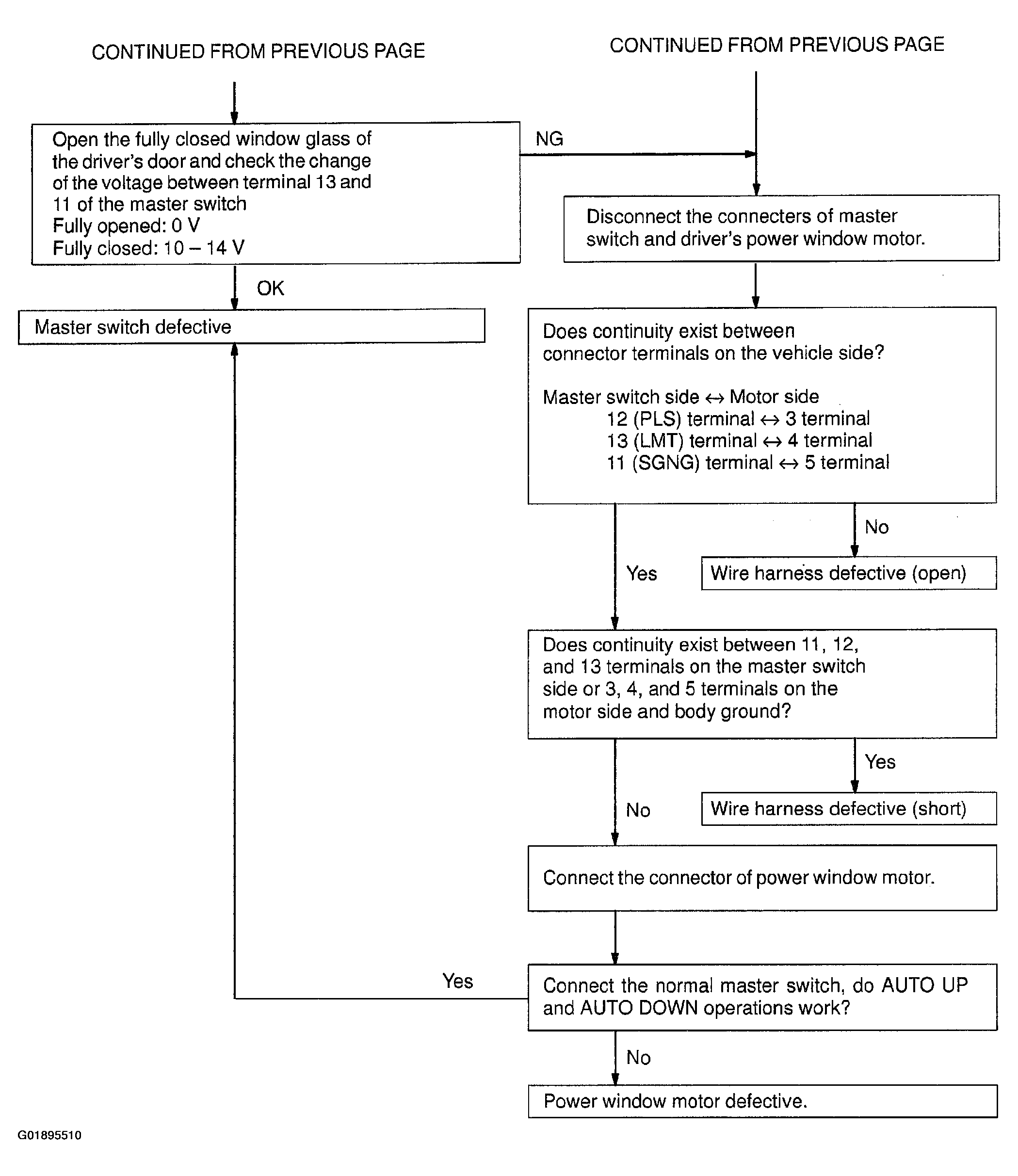

Fig 2: One Touch Power Window Does Not Move Up & Down Diagnostic Procedure (2 Of 2)
G01895510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
