(2) - During Auto Up Operation, The Power Window Moves Down

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

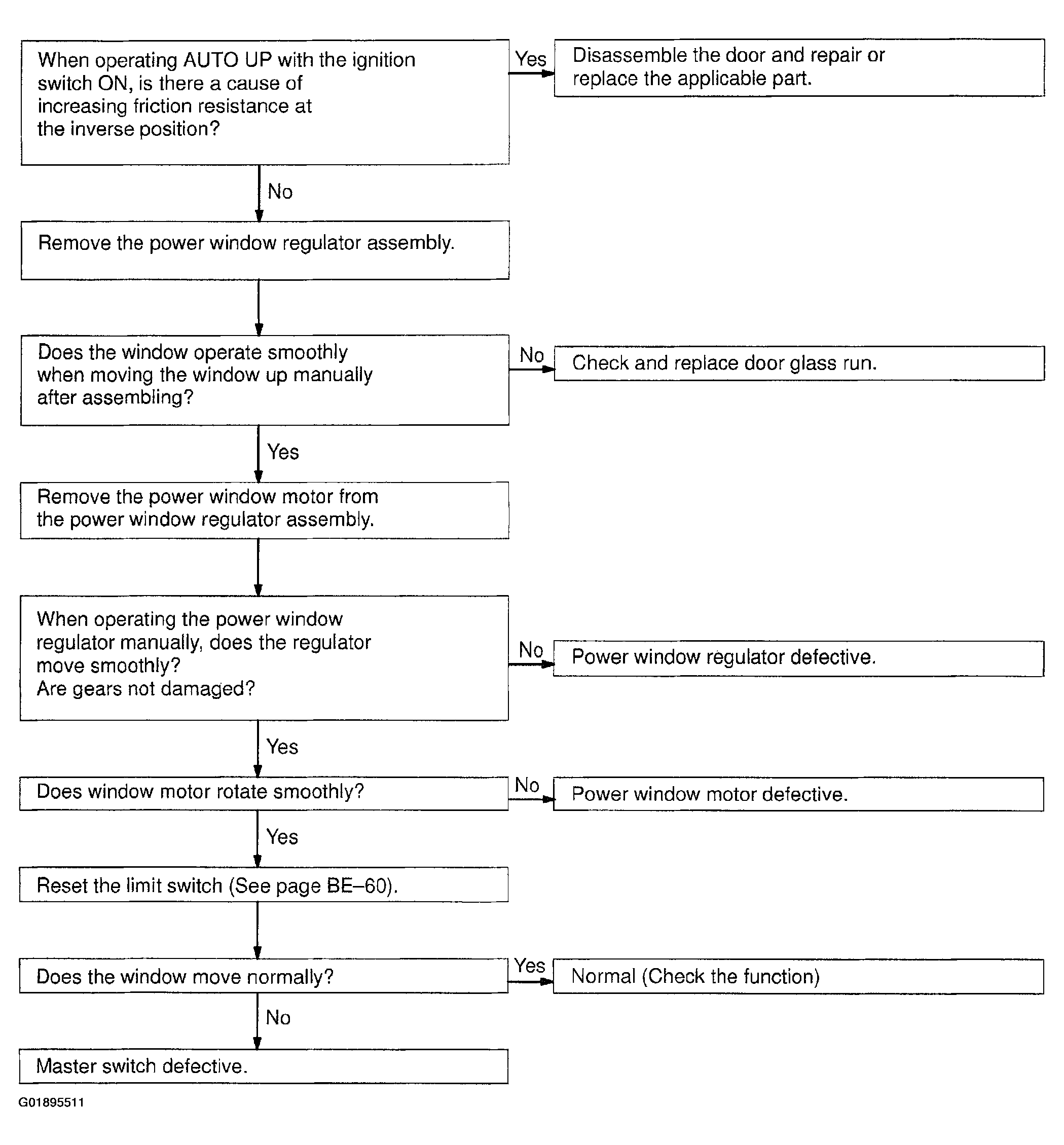

Fig 1: The Power Window Moves Down During Auto Up Operation Diagnostic Procedure
G01895511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
