Problem Symptoms Table: Notes
WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

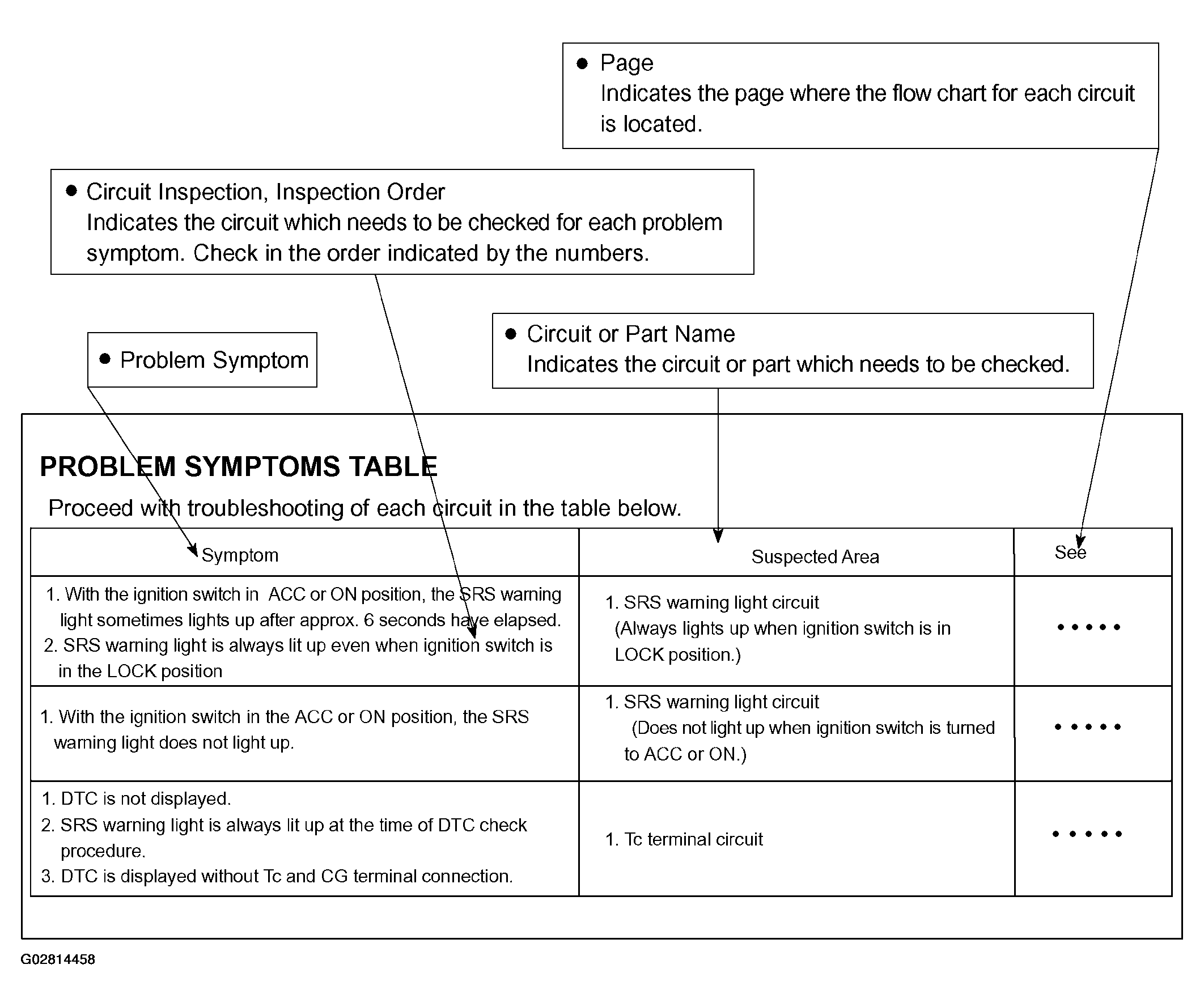

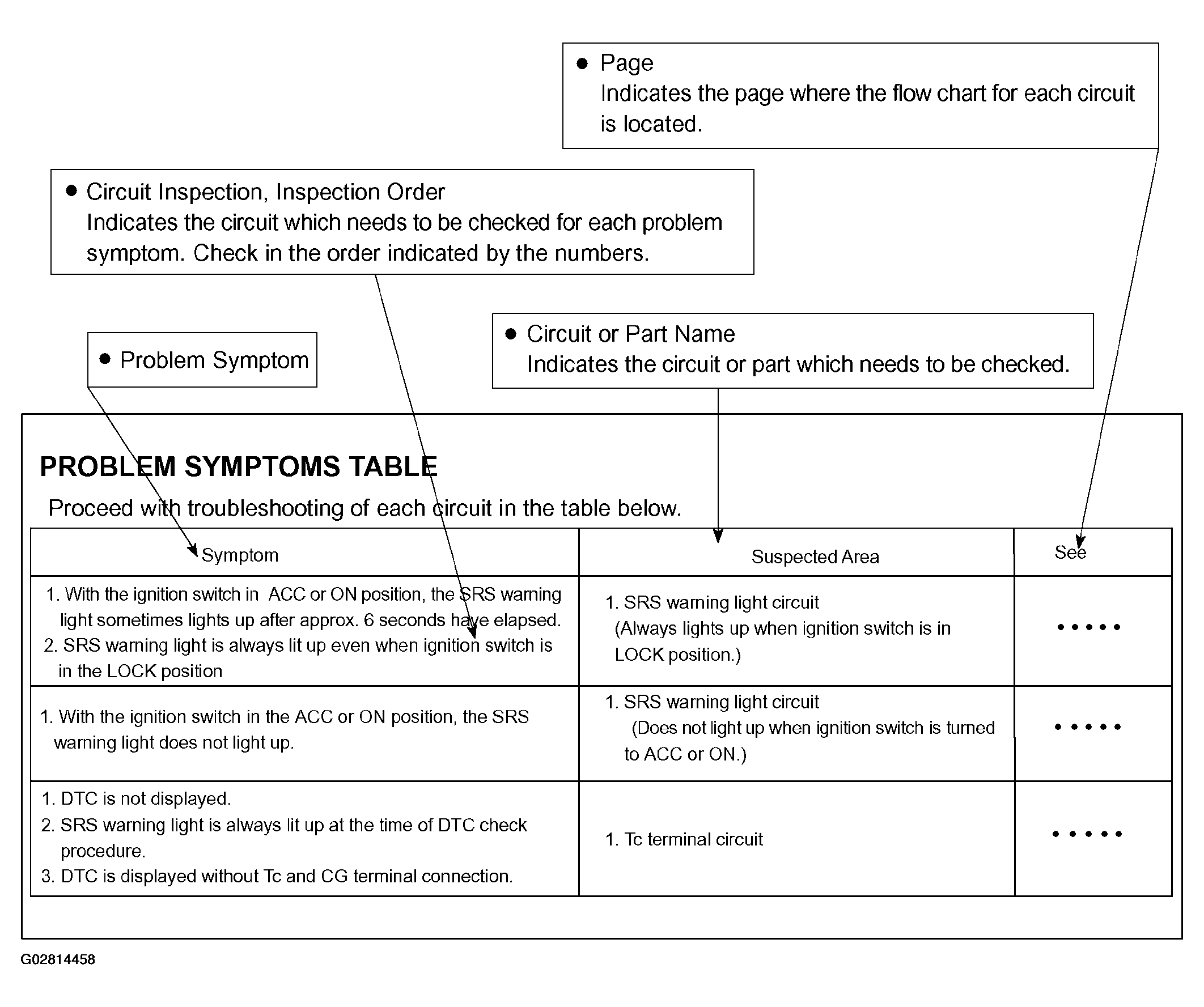

The suspected circuits or parts for each problem symptom are shown in Fig 1. Use this table to troubleshoot the problem when a "Normal" code is displayed in the diagnostic trouble chart check but the problem is still occurring. Numbers in Fig 1 indicate the inspection order in which the circuits or parts should be checked.
NOTE:
When the problem is not detected by the diagnostic system even though the problem symptom is present, it is considered that the problem is occurring outside the detection range of the diagnostic system, or that the problem is occurring in a system other than the diagnostic system.
