Vehicle Identification And Serial Numbers

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in Fig 1.

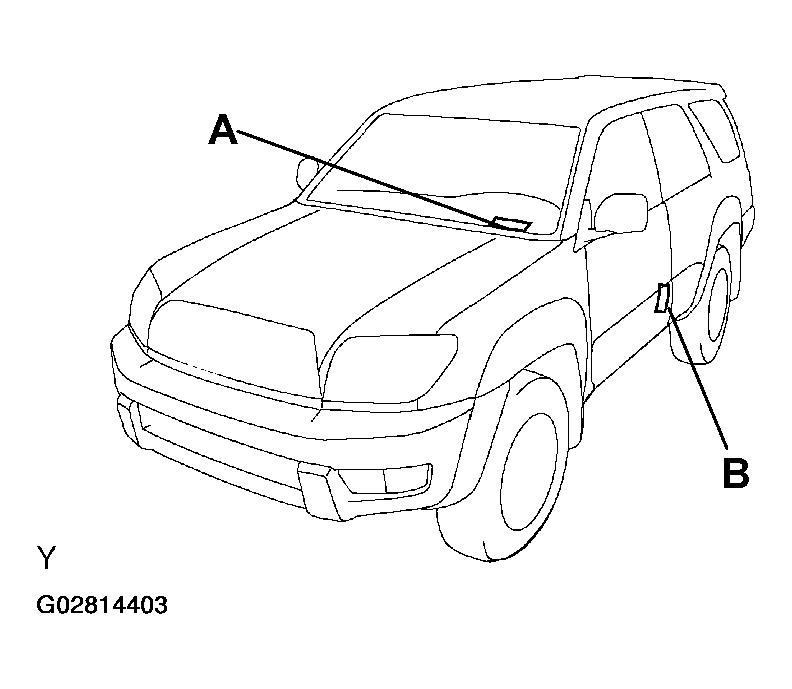

  Fig 1: Identifying Location Of Vehicle Identification Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Vehicle Identification Number Plate
  2. Certification Label
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine, and the transmission serial number is stamped on the housing, as shown in Fig 2 and Fig 3.
  1. A: Engine Serial Number
  2. B: Transmission Serial Number

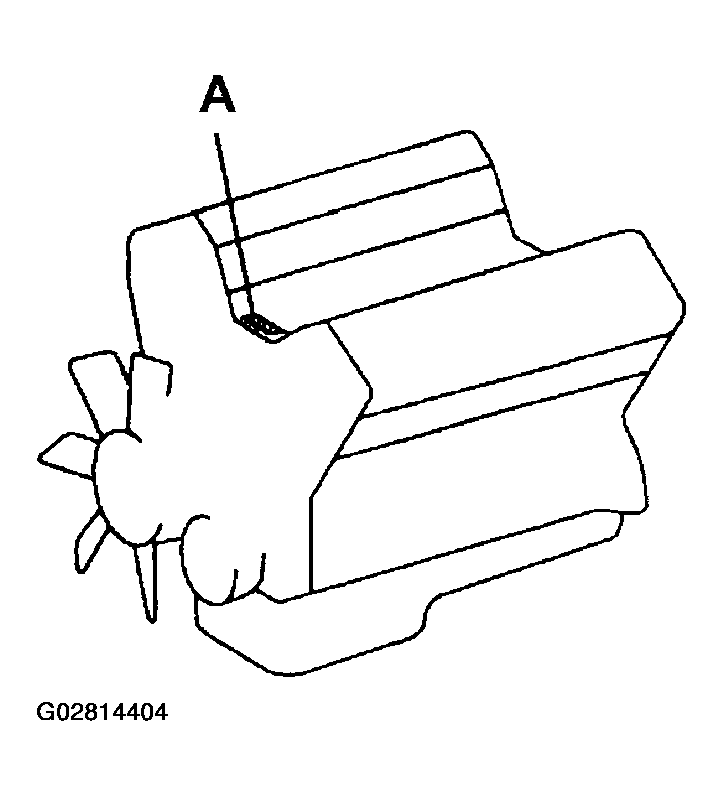

Fig 2: Identifying Engine Serial Number
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

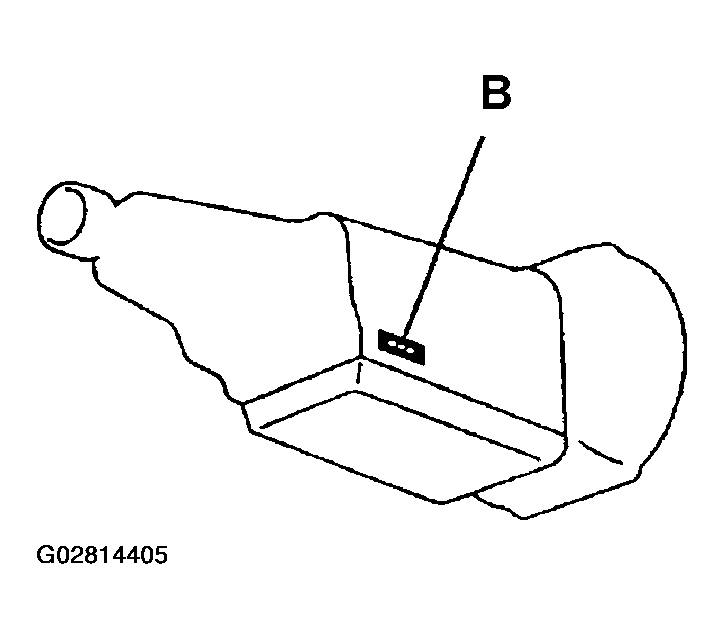

Fig 3: Identifying Transmission Serial Number
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
