Inspection Procedure

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

Check Manual Up/Down Function (Driver Side)
1. Check that the door glass can be operate manually.
1. NG: Another Problem (See MANUAL UP/DOWN FUNCTION DOES NOT OPERATE (DRIVER SIDE) )
2. OK: Go To Next Step
Check Power Window Regulator Master Switch Assy
1. Turn the ignition switch ON.
2. Operate the power window switch at the driver side.

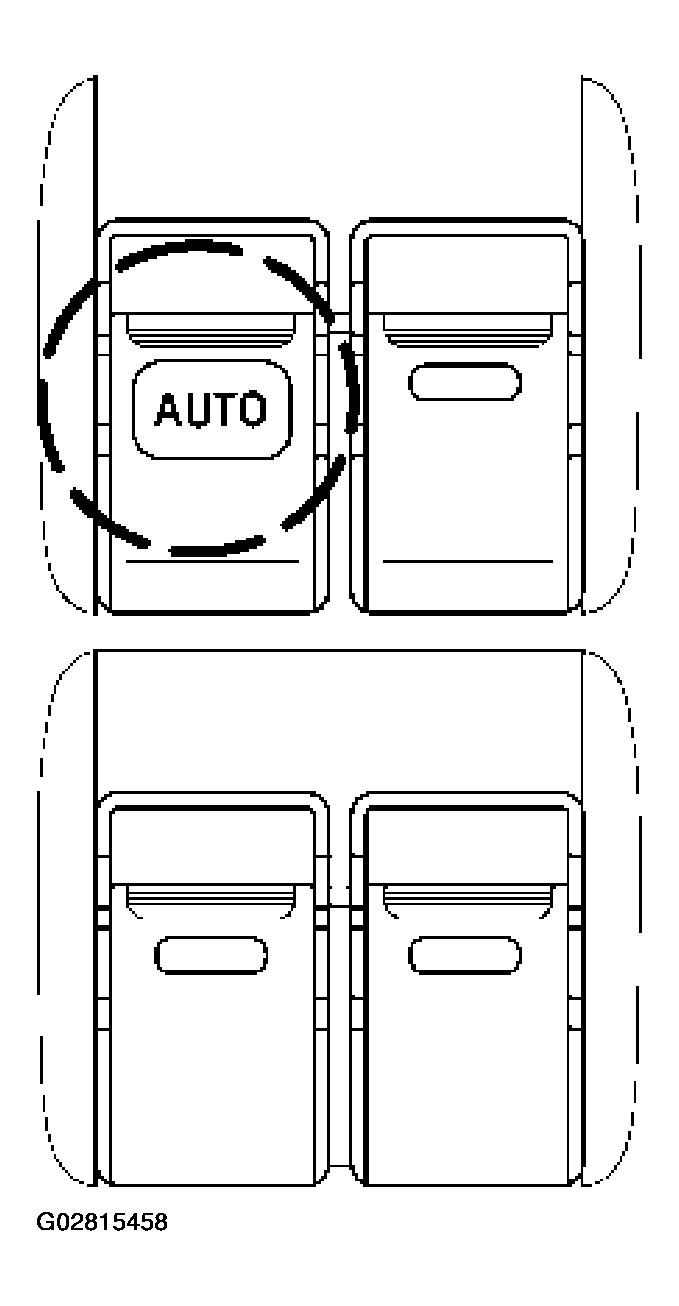

3. Check the blinking pattern of the illumination as shown in the illustration.

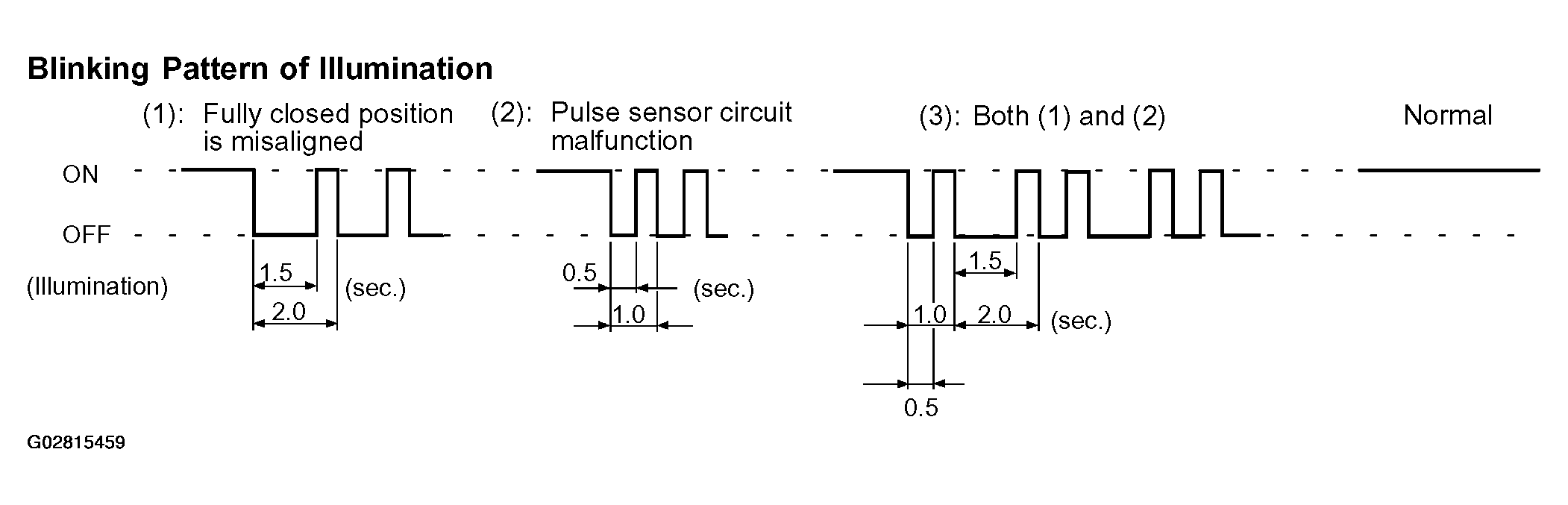

  Fig 2: Identifying Blinking Pattern Of Illumination
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. If the switch indicates (1), proceed to A.
  2. If the switch indicates (2) or (3), proceed to B.
  3. If the switch indicates normal, proceed to C.
1. A: Go To Next Step
2. B: Go To Step 4
3. C: Replace Power Window Regulator Master Switch Assy
Reset Power Window Regulator Motor (Driver Side)
1. Turn the ignition switch ON.
2. Open the door glass.
3. Pull up the power window switch for 2 notches until the door glass closes.
4. Check that the AUTO UP/DOWN function operates completely.
1. OK: END
2. NG: Go To Next Step
Check Harness And Connector (Master Switch >--< Motor)
1. Disconnect the D17 master switch connector.
2. Disconnect the P12 power window motor connector (driver side).
3. Check the continuity between the wire harness side connectors.

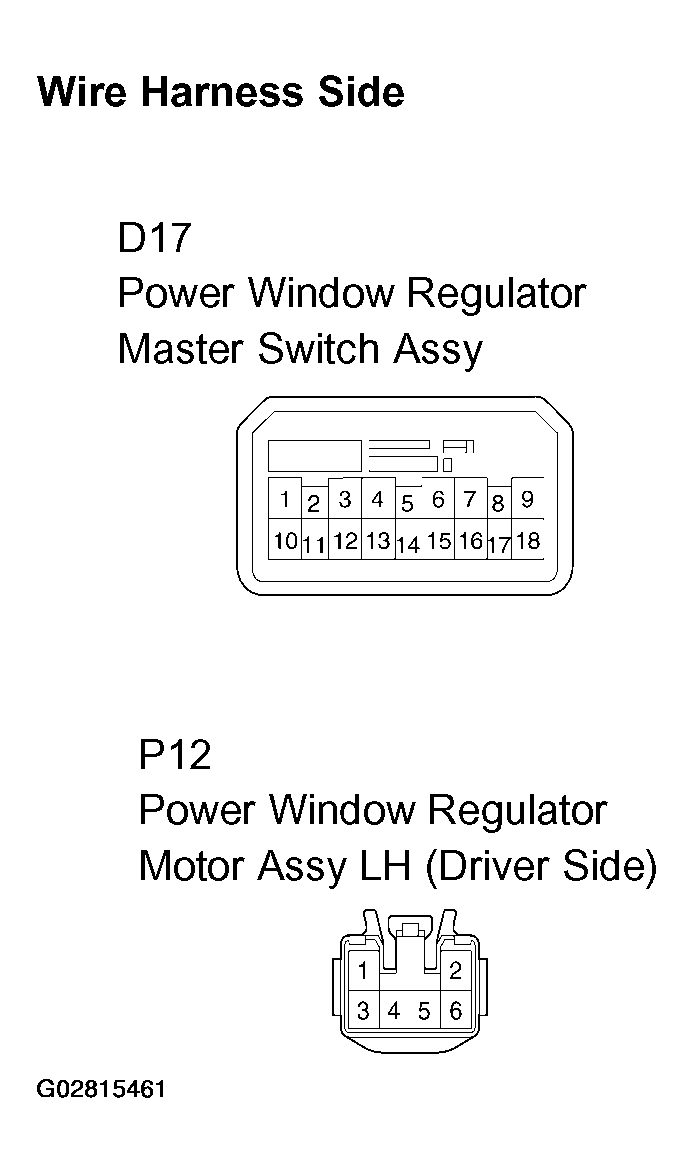

  Fig 3: Checking Master Switch & Regulator Motor Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

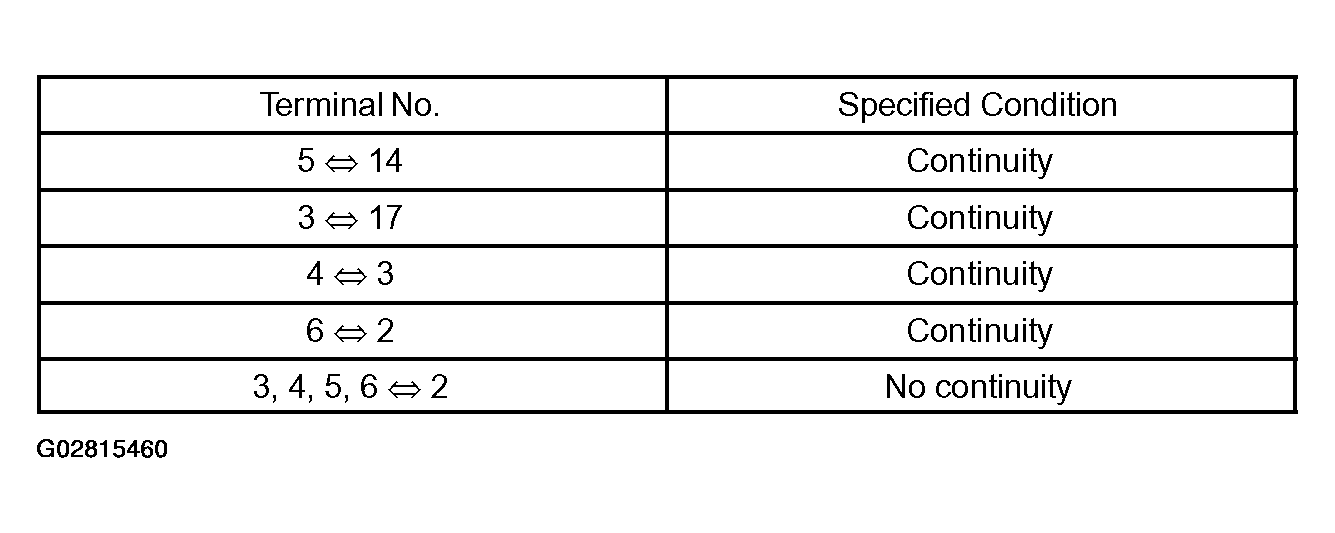

  Fig 4: Wire Harness Side Connector Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: Replace Power Window Regulator Motor Assy LH (Driver Side)
2. NG: Repair Or Replace Harness And Connector
