Section 422 (Power Window Control System - Diagnostics): Location

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

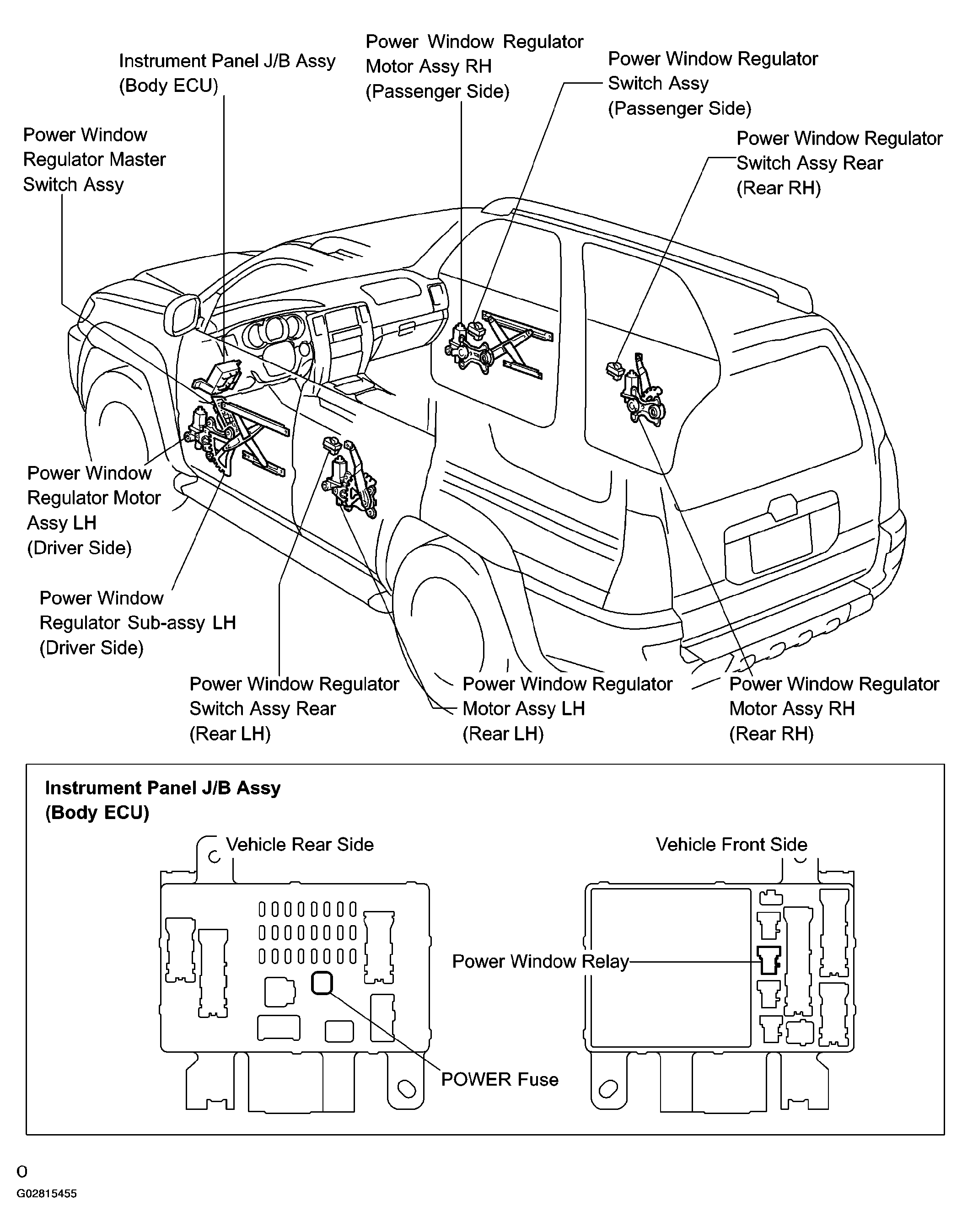

Fig 1: Locating Power Window Control System Components
G02815455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

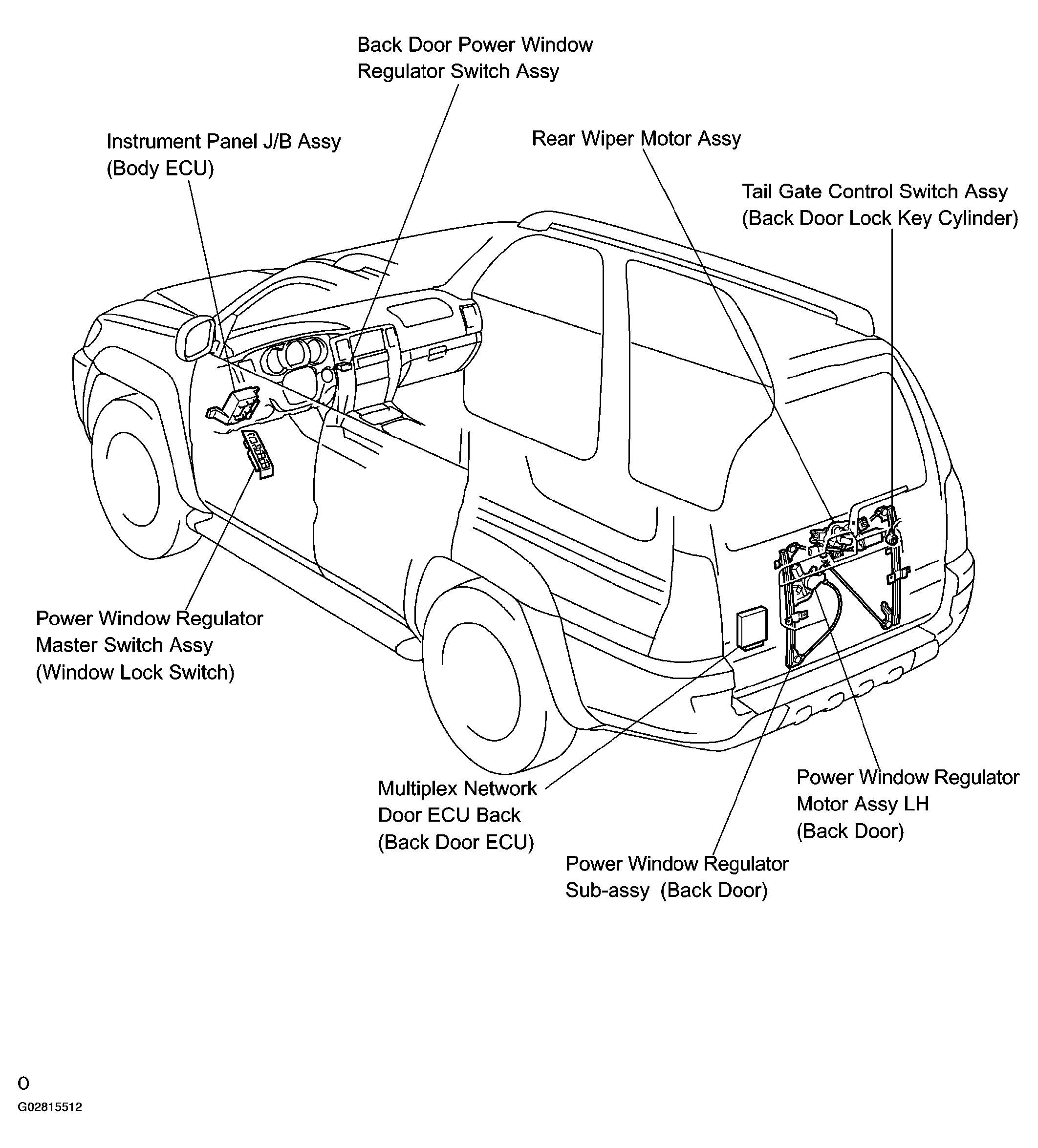

Fig 1: Locating Back Door Power Window Components
G02815512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
