Manual Up/Down Function Does Not Operate (Driver Side): Wiring Diagram

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

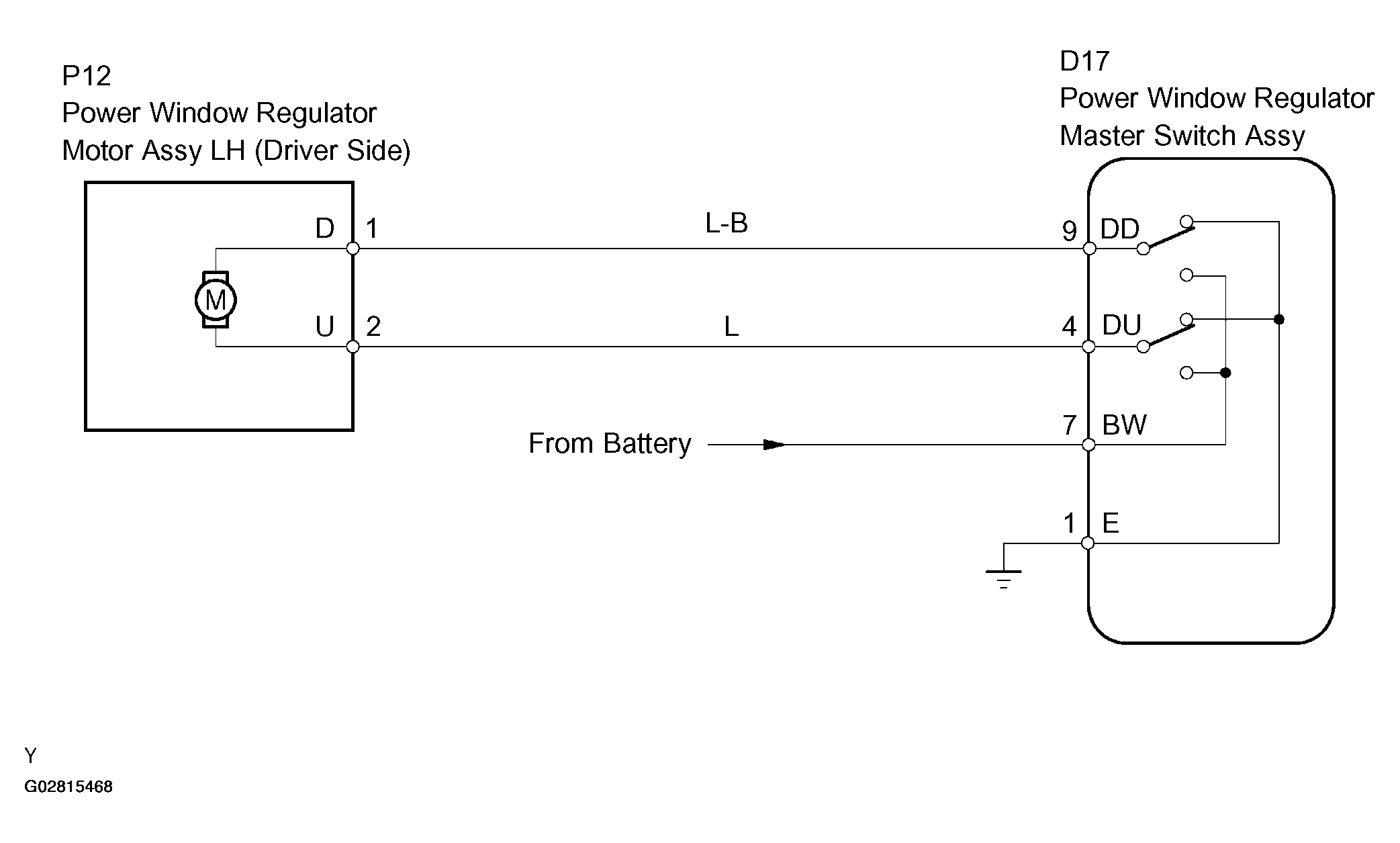

Fig 1: Power Window Regulator Master Switch & Motor Circuit
G02815468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
