Inspection Procedure

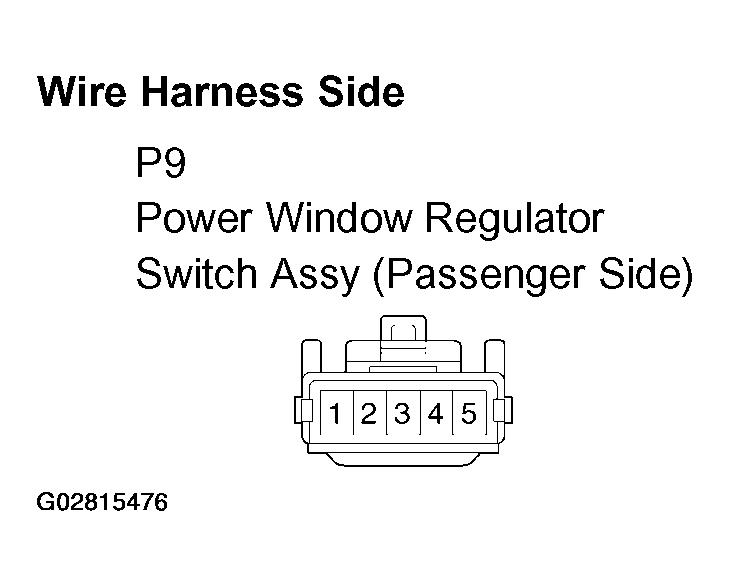

Fig 1: Power Window Regulator Switch (Passenger Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the P9 power window switch connector.
2. Turn the ignition switch ON.
3. Check the voltage between the switch terminal 4 of the wire harness side connector and body ground.

   Standard: 10 - 14 V

1. OK: Go to Next Step
2. NG: Repair Or Replace Harness And Connector (Switch >--< Relay)

1. Remove the power window switch.
2. Check the continuity between the switch terminals when the switch is operated.

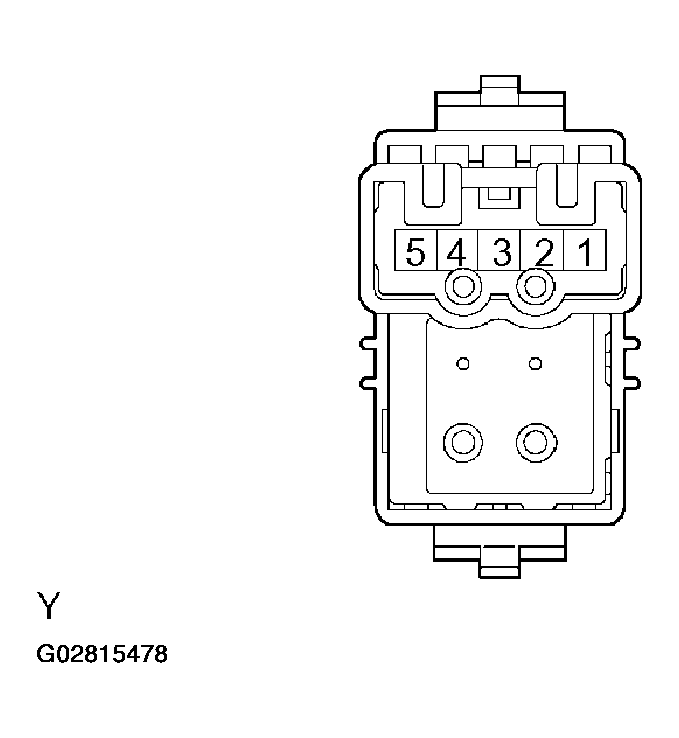

   Fig 2: Identifying Power Window Regulator Switch Terminals (Passenger Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

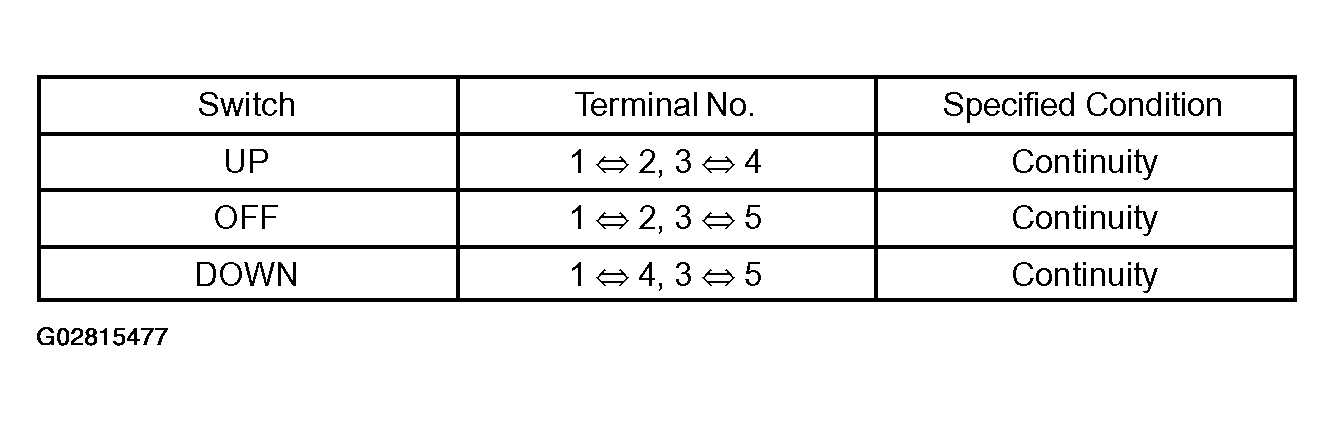

   Fig 3: Power Window Regulator Switch Specifications Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: Go To Next Step
2. NG: Replace Power Window Regulator Switch Assy (Passenger Side)

1. Disconnect the P13 power window motor connector.
2. Check the continuity between the wire harness side connectors.

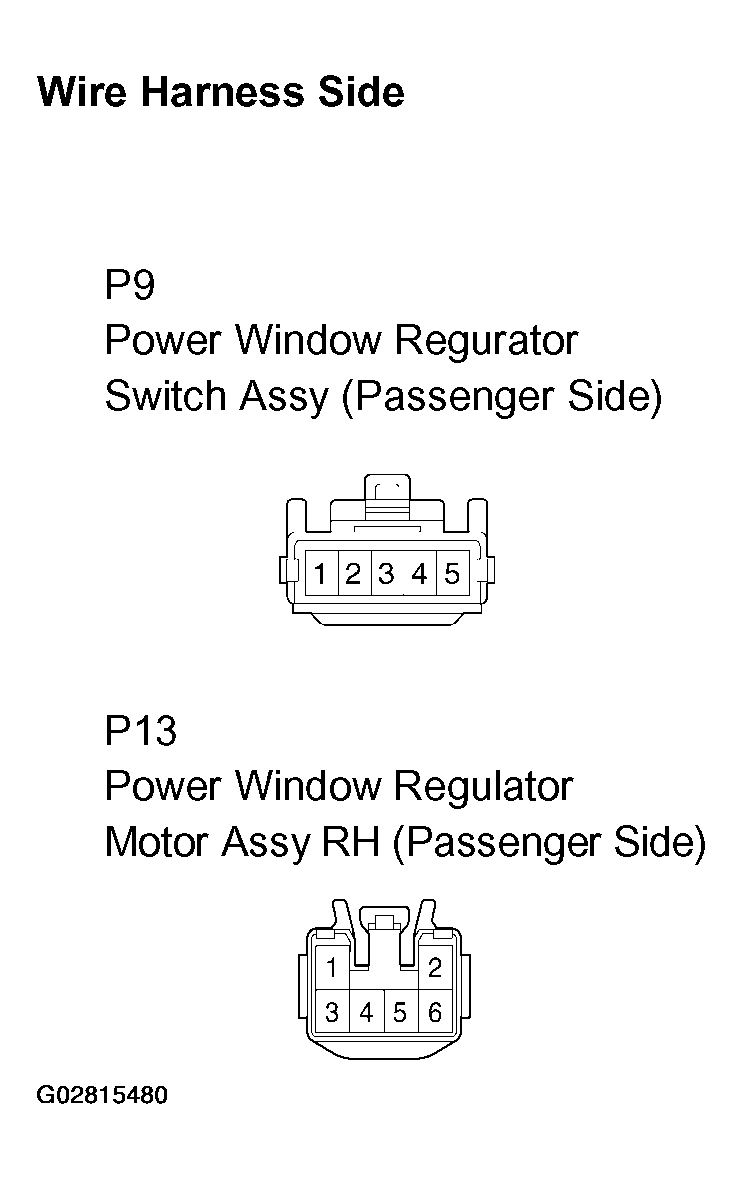

   Fig 4: Checking Harness And Connector (Switch And Motor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

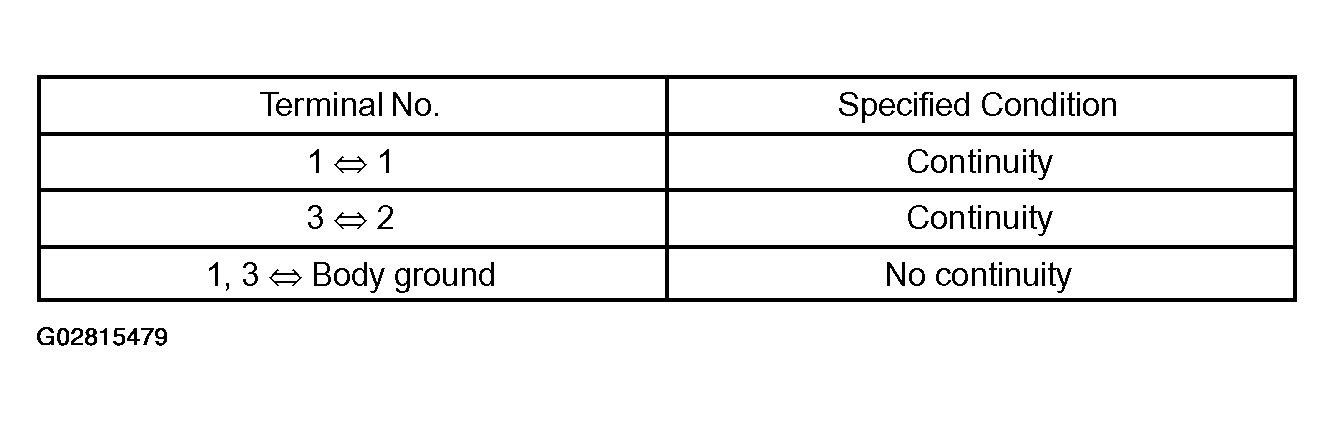

   Fig 5: Switch & Motor Specifications Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: Go to Next Step
2. NG: Repair Or Replace Harness And Connector

1. Remove the motor (See FRONT DOOR ).
2. Apply battery voltage to the connector terminals 1 and 2.
3. Check that the motor rotates smoothly.

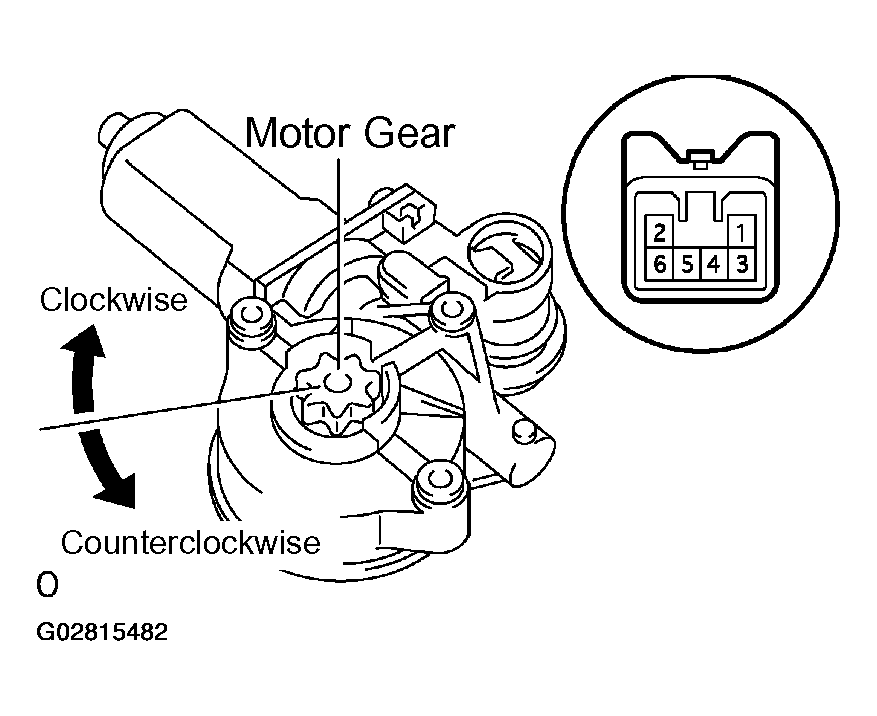

   Fig 6: Checking Motor Gear Rotates Smoothly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

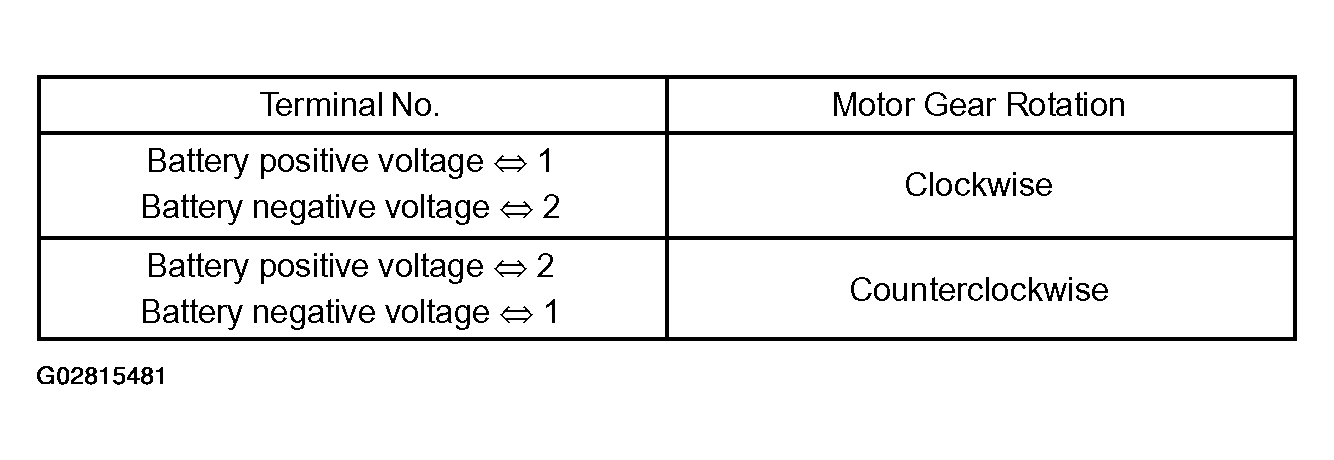

Fig 7: Window Regulator Motor Specifications Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: Repair Or Replace Harness And Connector (Master Switch >--< Switch)
2. NG: Replace Power Window Regulator Motor Assy RH (Passenger Side)
