Section 435 (Abs Speed Sensor Front LH): Replacement
WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Replacement of RH side is same as that of LH side.
- REMOVE FRONT WHEEL
- REMOVE SPEED SENSOR FRONT LH

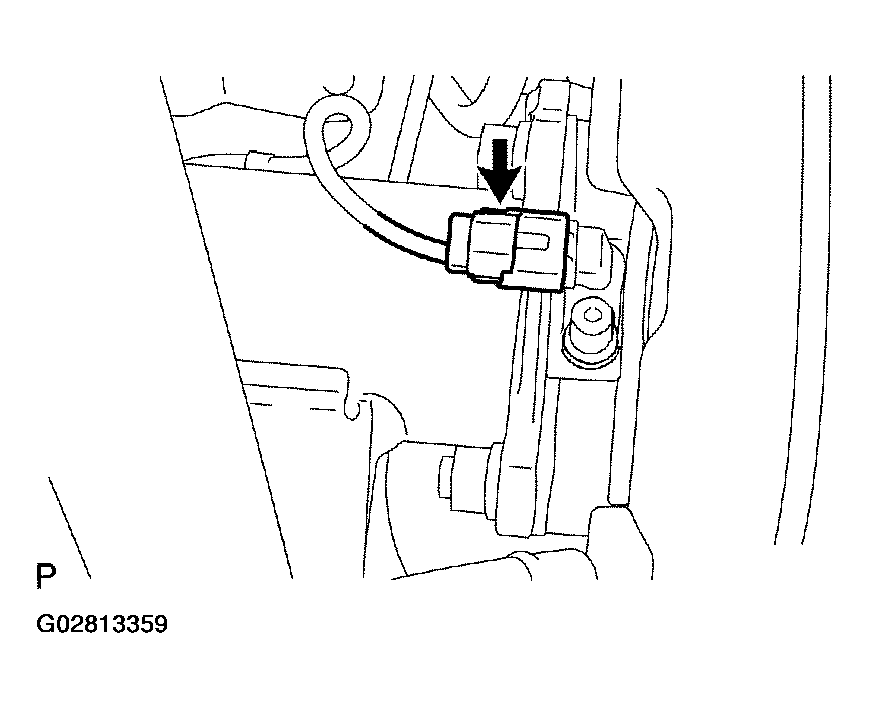

- Disconnect the speed sensor connector.
- Do not stick and foreign matter on the sensor tip.
- Do not let the foreign matter into the sensor installation hole.

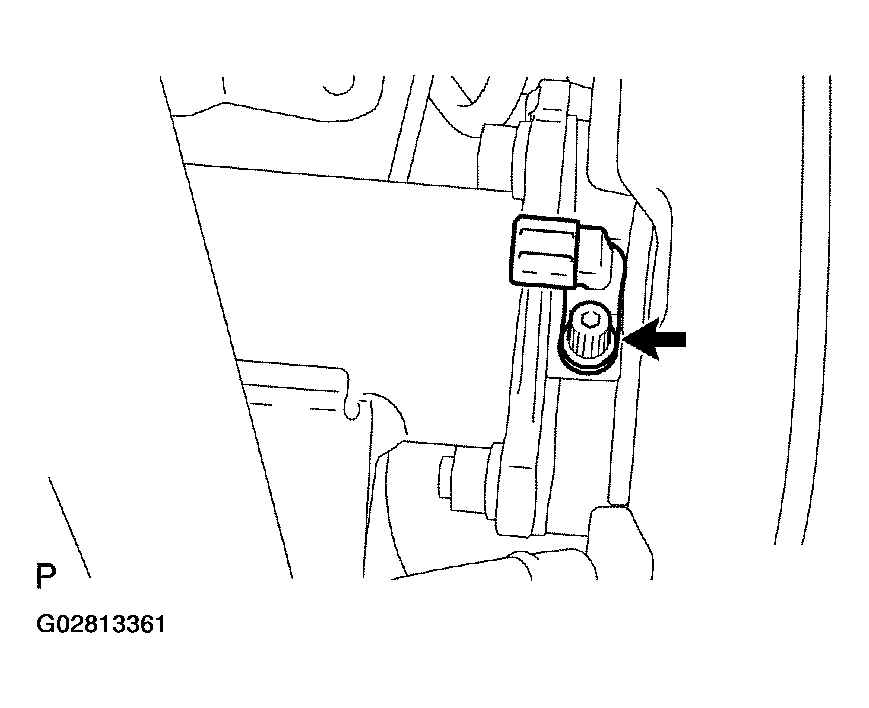

- Using a hexagon wrench (5 mm), remove the bolt and front speed sensor from the steering knuckle.
NOTE:Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL SPEED SENSOR FRONT LH
- Using a hexagon wrench (5 mm), install the front speed sensor with the bolt to the steering knuckle.
Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)
- Connect the speed sensor connector.
NOTE: Make sure the sensor tip is clean.Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Using a hexagon wrench (5 mm), install the front speed sensor with the bolt to the steering knuckle.
- INSTALL FRONT WHEEL
Torque: 110 N.m (1,122 kgf.cm, 81 ft.lbf)
- CHECK VSC SENSOR SIGNAL (See PRE-CHECK )
