Section 439 (Center Stop Lamp Assembly): Replacement

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER STOP LAMP ASSY (W/O REAR SPOILER)
1. Release the 5 fitting claws as shown in Fig 1.

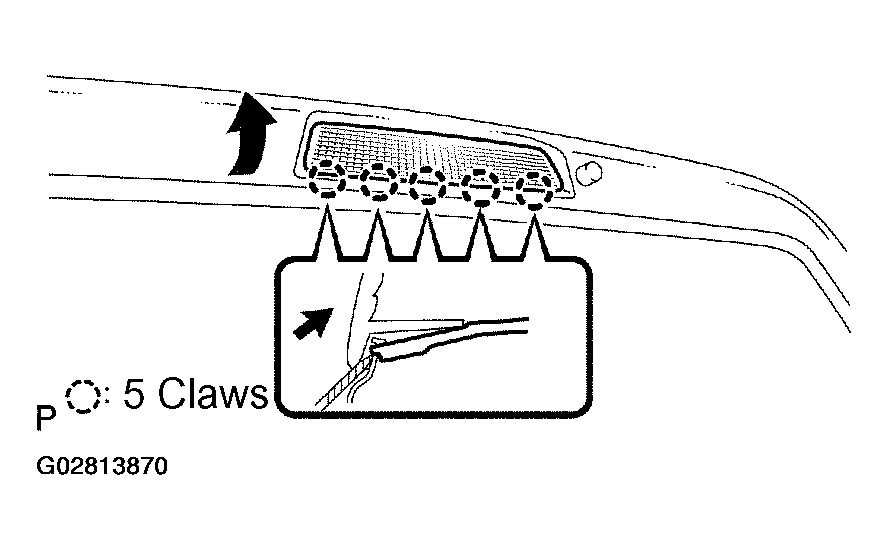

  Fig 1: Removing Center Stop Lamp Assembly (W/O Rear Spoiler)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector and remove the center stop lamp assy.
REMOVE SPOILER, RR (W/ REAR SPOILER) (See REAR SPOILER )
REMOVE CENTER STOP LAMP ASSY (W/ REAR SPOILER)
1. Disconnect the connector.

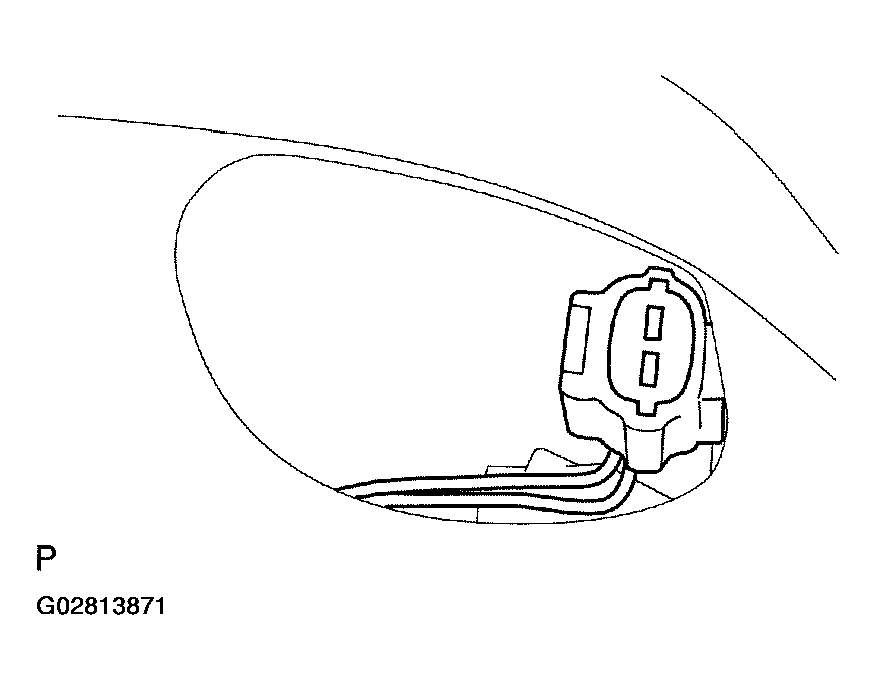

  Fig 2: Removing Center Stop Lamp Assembly Connector (W/ Rear Spoiler)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the strap on the connector of center stop lamp assy.

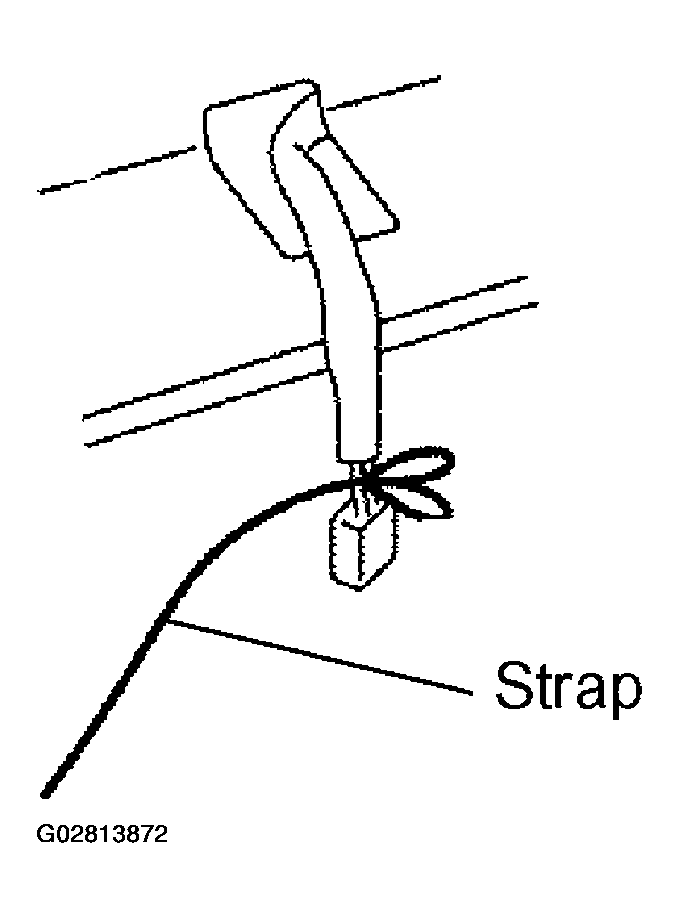

  Fig 3: Installing Strap On Center Stop Lamp Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 screws.

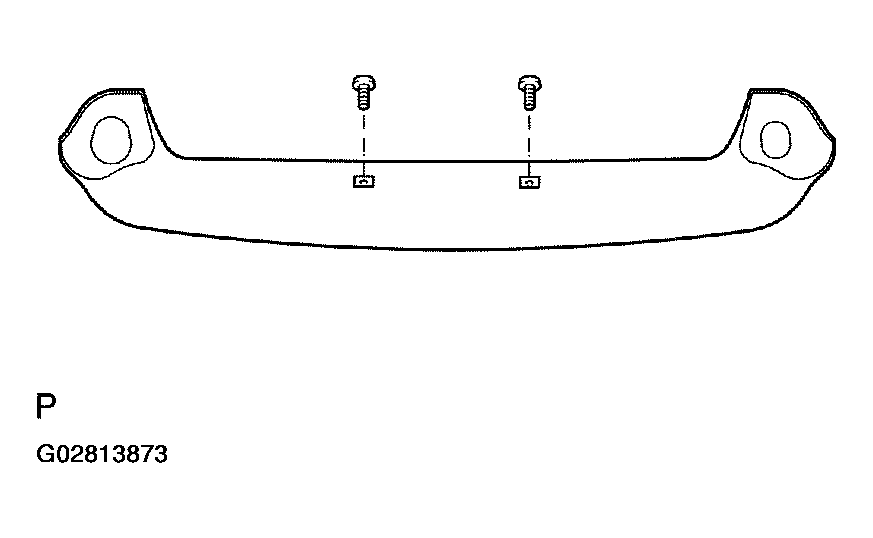

  Fig 4: Removing Spoiler Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Pass the connector through the inside the rear spoiler sub- assy and remove the center stop lamp assy w/ bracket.
  NOTE:
  Leave the strap inside the rear spoiler sub-assy.
5. Remove the 2 nuts and center stop lamp assy.

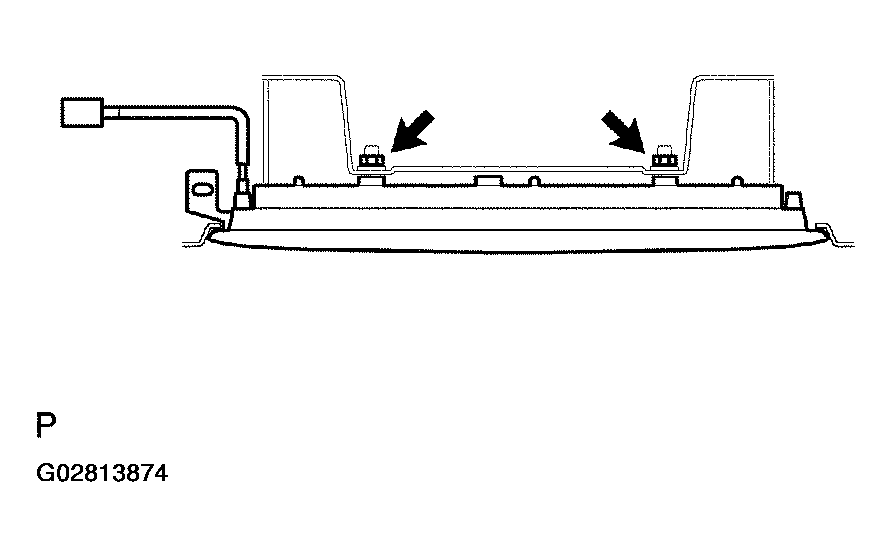

  Fig 5: Removing Center Stop Lamp Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER STOP LAMP BULB (W/O REAR SPOILER)
1. Remove the center stop lamp socket and center stop lamp bulb as shown in Fig 6.

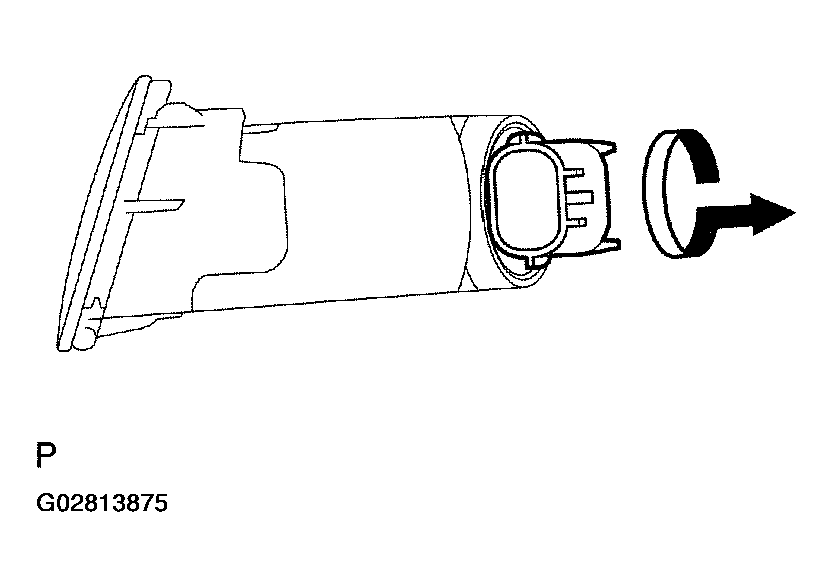

  Fig 6: Removing Center Stop Lamp Bulb (W/O Rear Spoiler)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the center stop lamp bulb from the center stop lamp socket.
INSTALL SPOILER, RR (W/ REAR SPOILER) (See REAR SPOILER )
