Section 441 (Instrument Panel/Meter): Components
WARNING:
This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

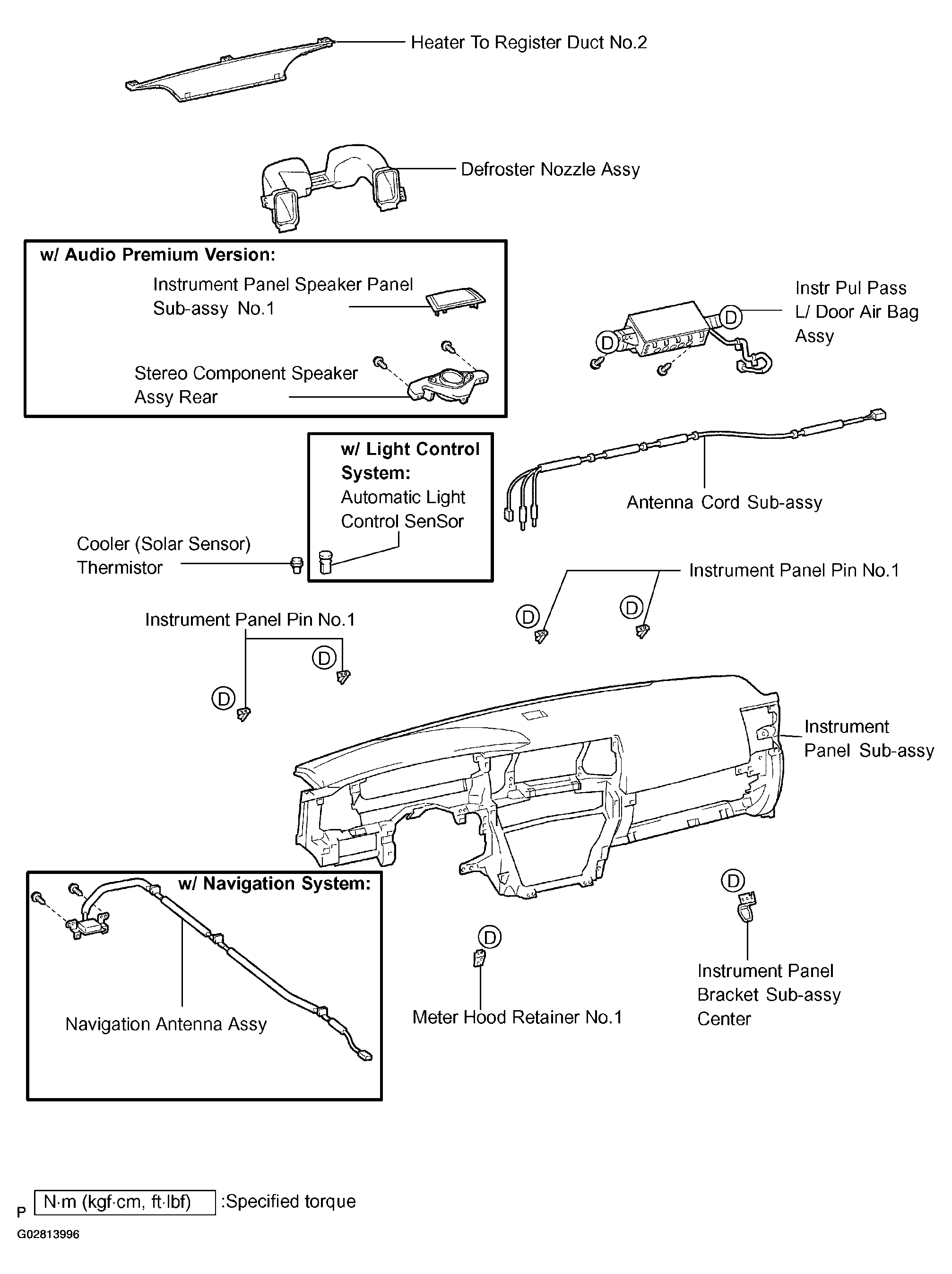

Fig 1: Locating Component Of Instrument Panel/Meter (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

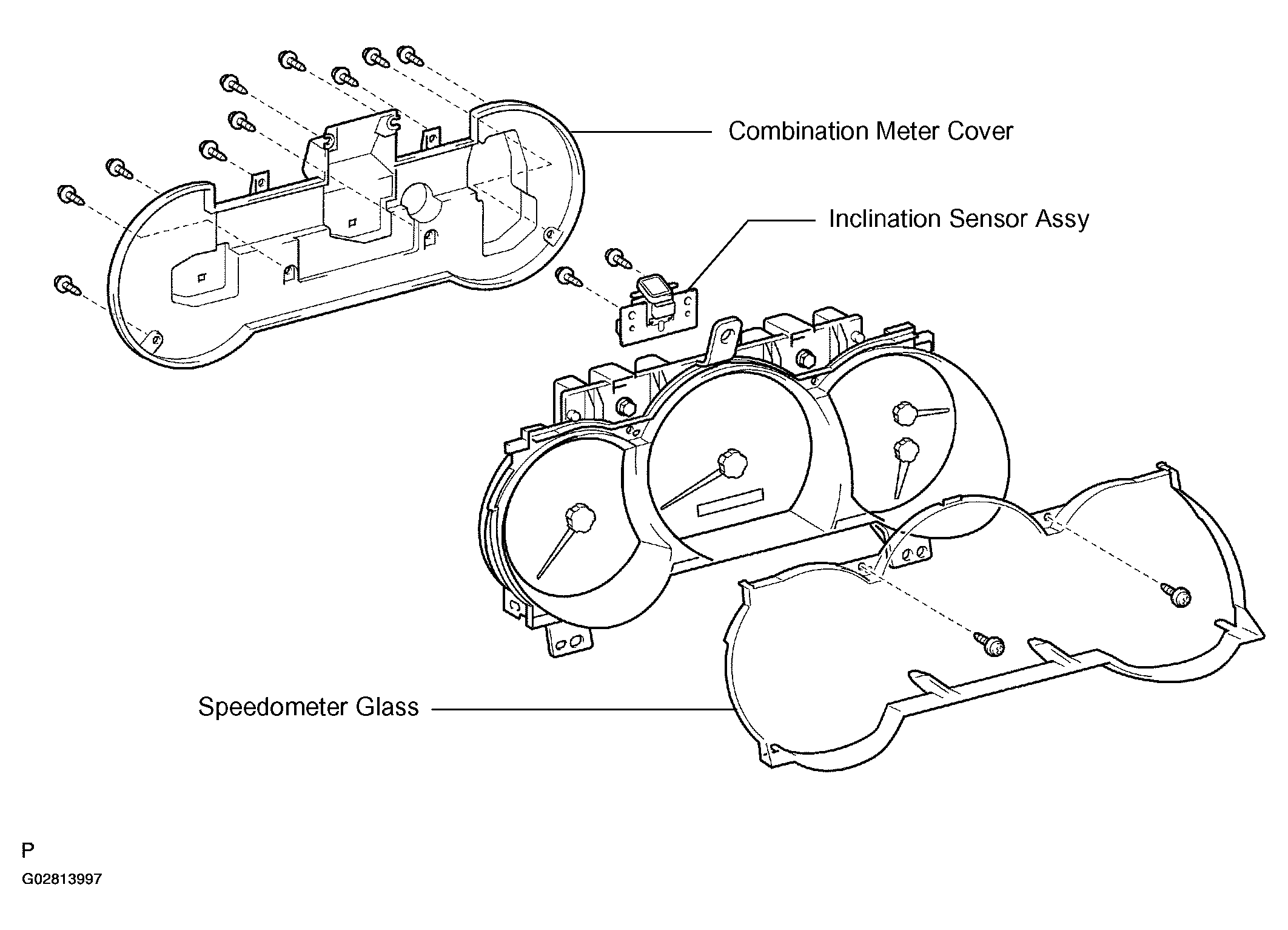

Fig 2: Locating Component Of Instrument Panel/Meter (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

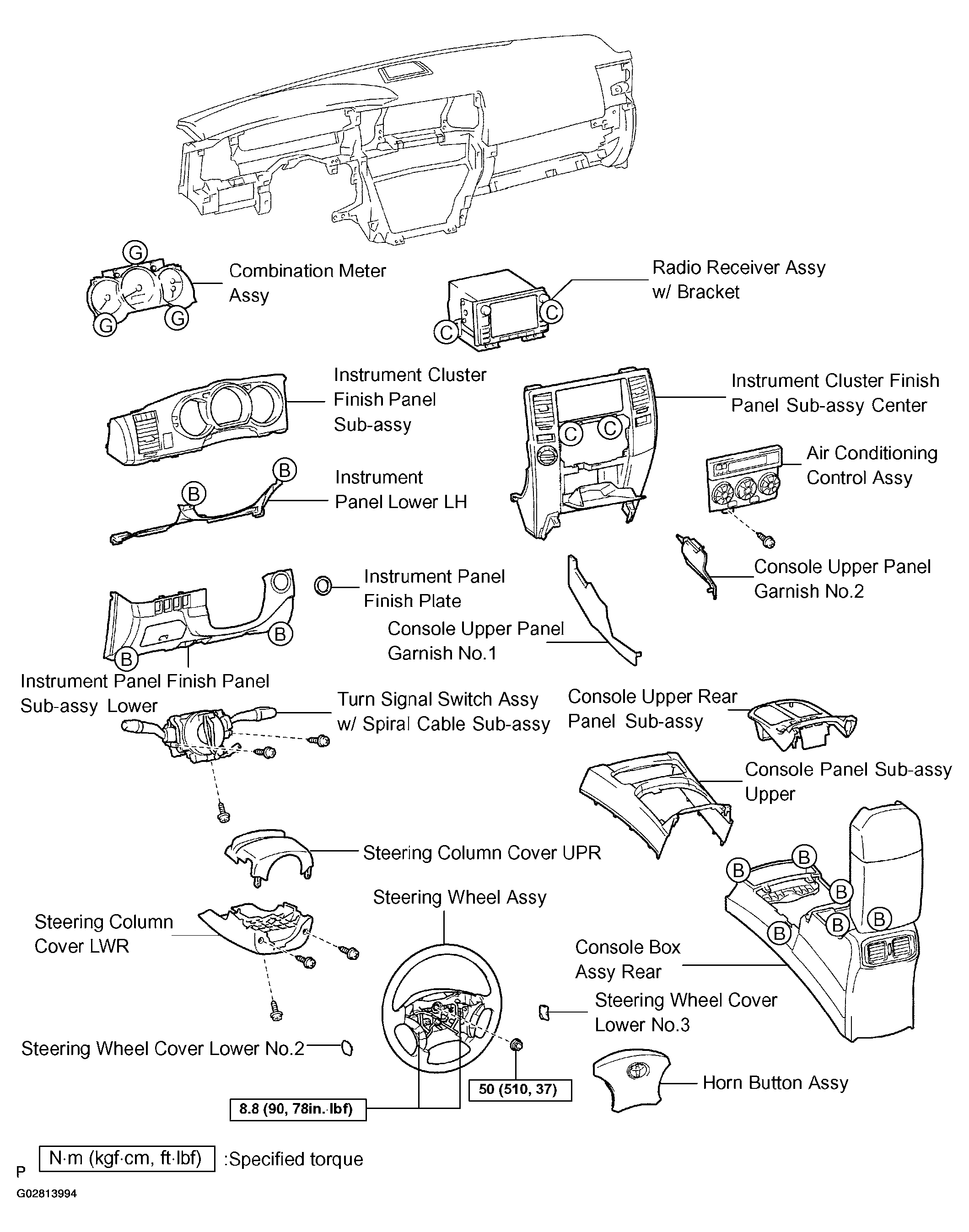

Fig 3: Locating Component Of Instrument Panel/Meter (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

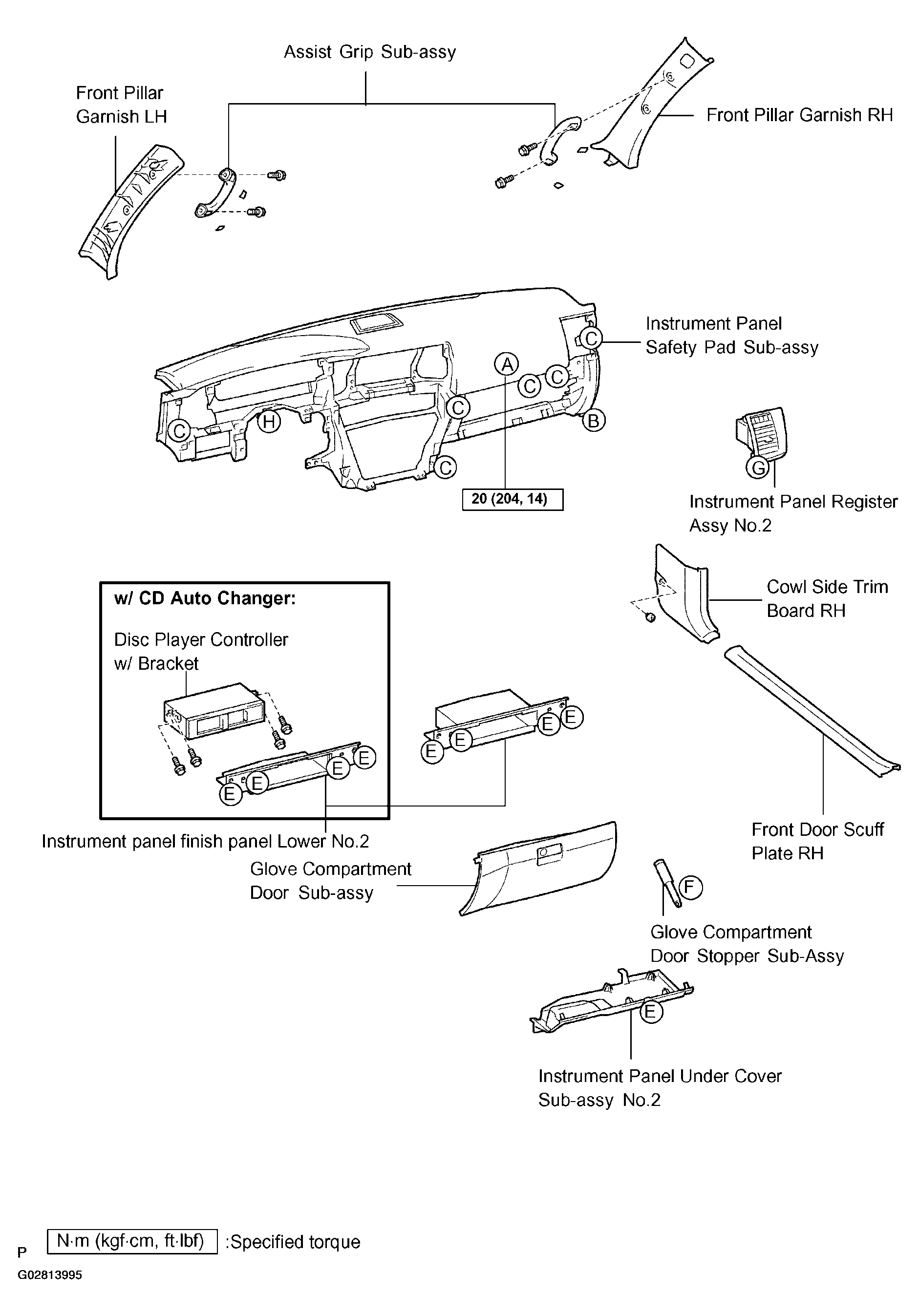

Fig 4: Locating Component Of Instrument Panel/Meter (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
