Vehicle Identification And Serial Numbers

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in the illustration.
      1. A: Vehicle Identification Number Plate
      2. B: Certification Label

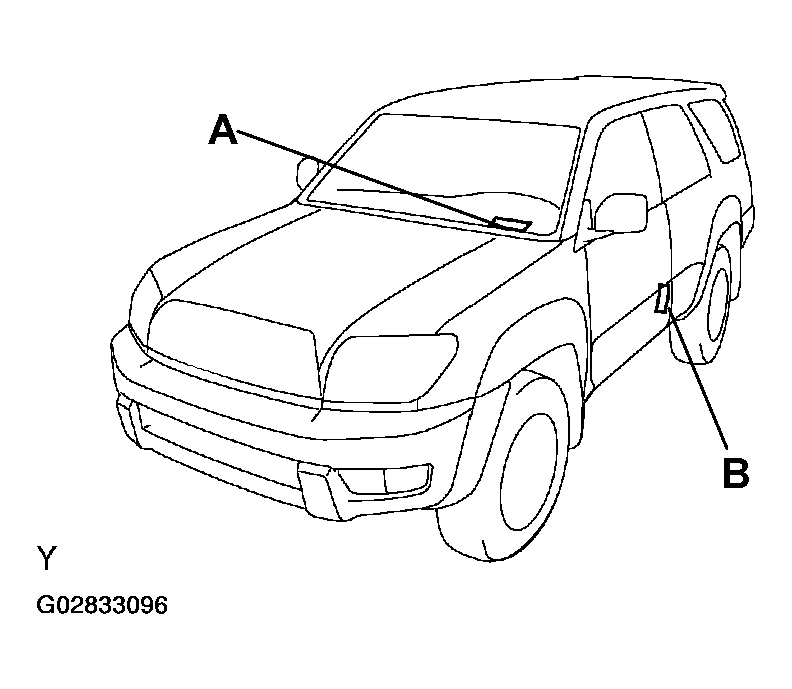

        Fig 1: Identifying Vehicle Identification Number Location
        G02833096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine, and the transmission serial number is stamped on the housing, as shown in the illustration.
      1. A: Engine Serial Number
      2. B: Transmission Serial Number

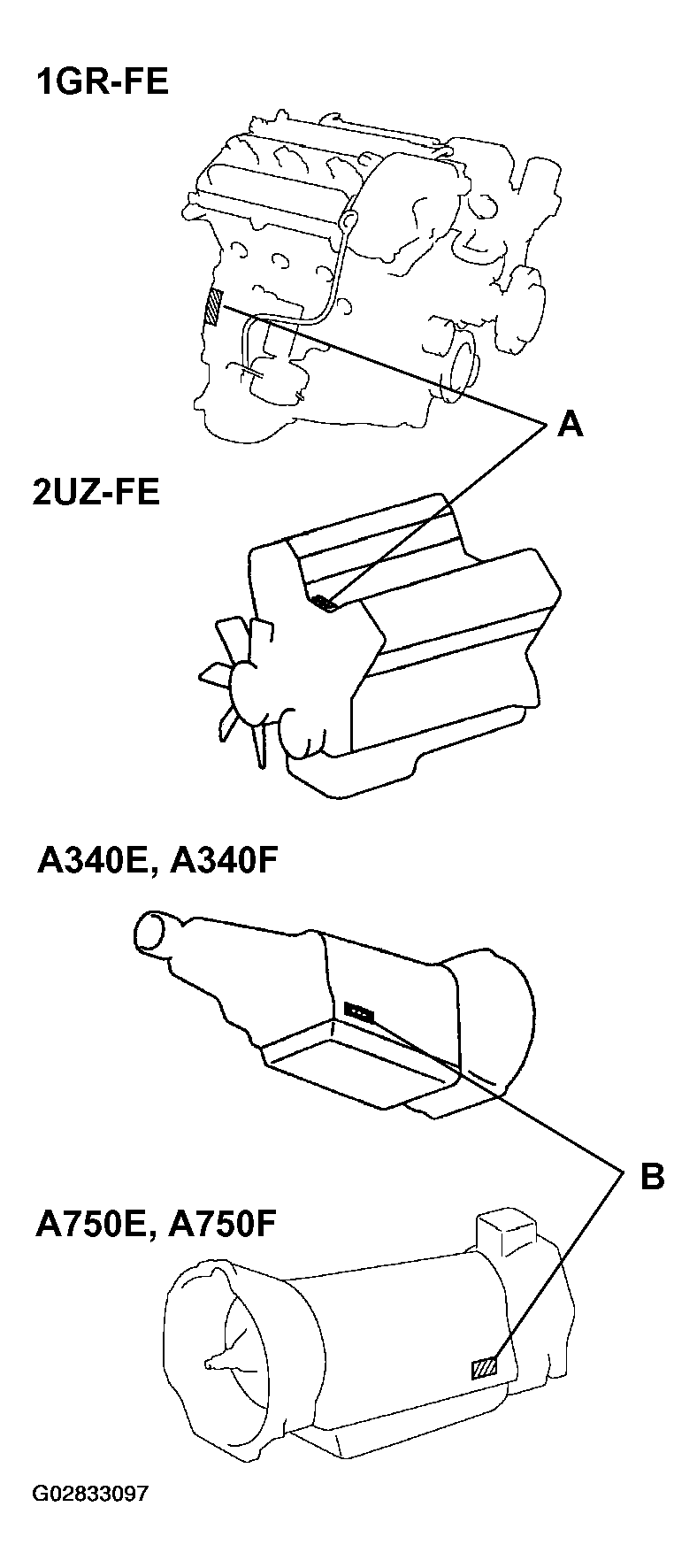

        Fig 2: Identifying Engine Serial Number & Transmission Serial Number Locations
        G02833097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
