Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WIRE HARNESS (POWER SOURCE)

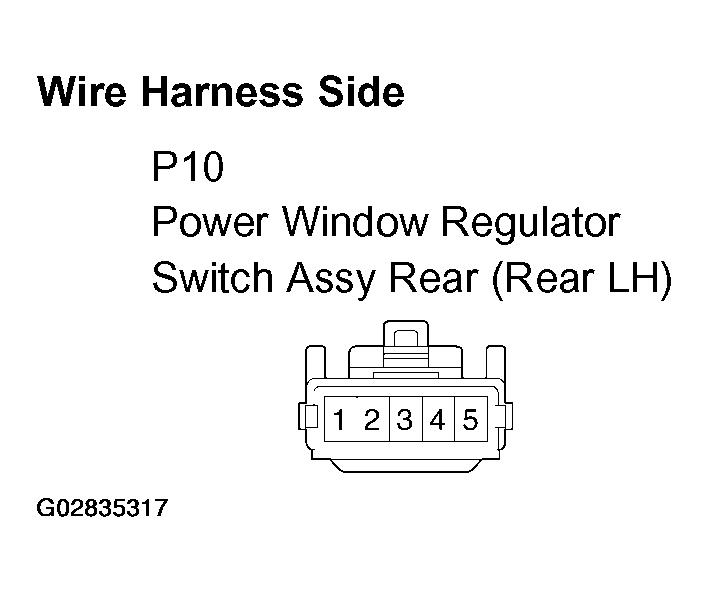

Fig 1: Checking Wire Harness (Power Source)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the P10 switch connector.
2. Turn the ignition switch ON.
3. Check the voltage between terminal 4 of the wire harness side connector of the switch and the body ground.
Standard: 10 - 14 V

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (SWITCH <=> RELAY)

OK: Go To Next Step
INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR LH)
1. Remove the power window switch.
2. Check the continuity between the terminals of the switch connector when the switch is operated.

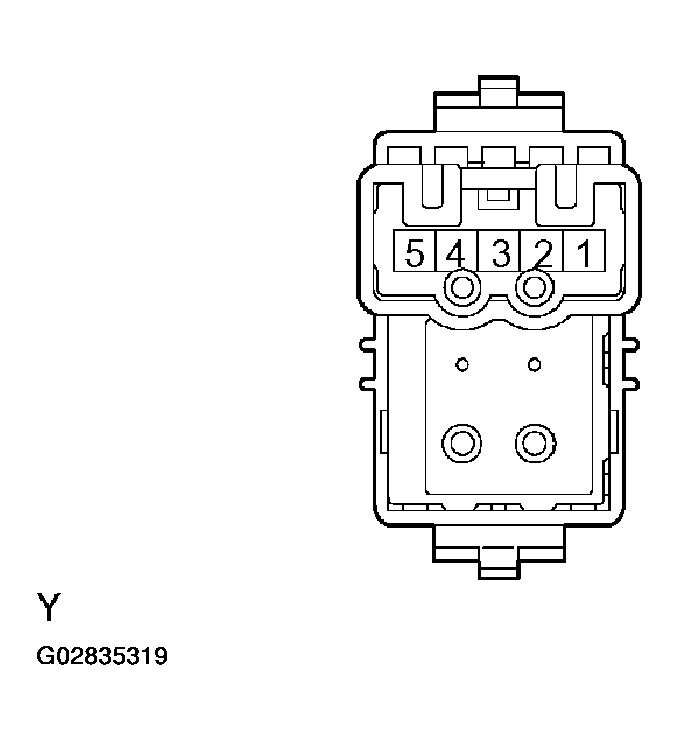

  Fig 2: Inspecting Power Window Regulator Switch Assy Rear (Rear LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

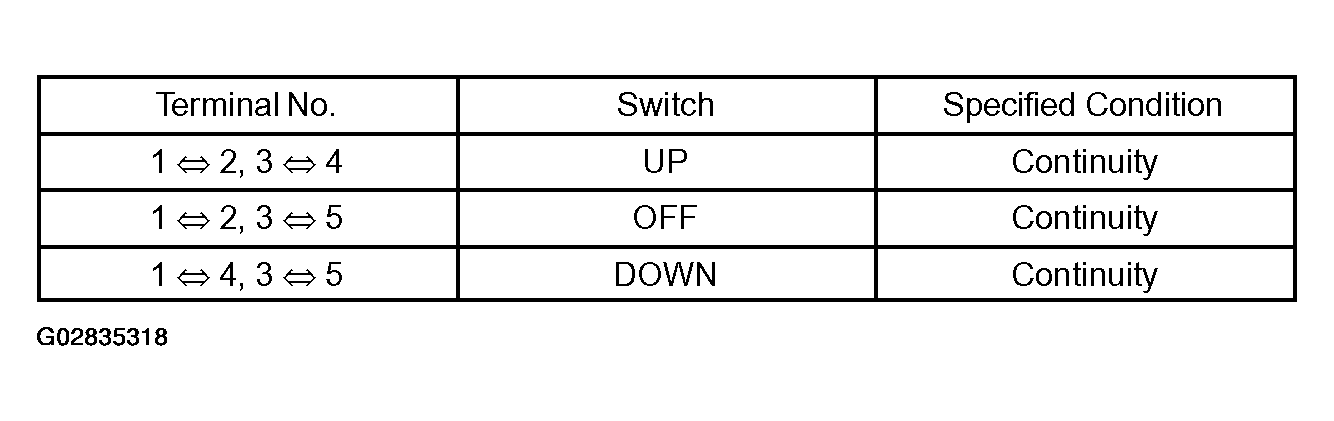

  Fig 3: Standard
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR LH)

OK: Go To Next Step
CHECK WIRE HARNESS (SWITCH <=> MOTOR) (SWITCH <=> BODY GROUND)
1. Disconnect the P14 motor connector.
2. Check the continuity between the wire harness side connectors.

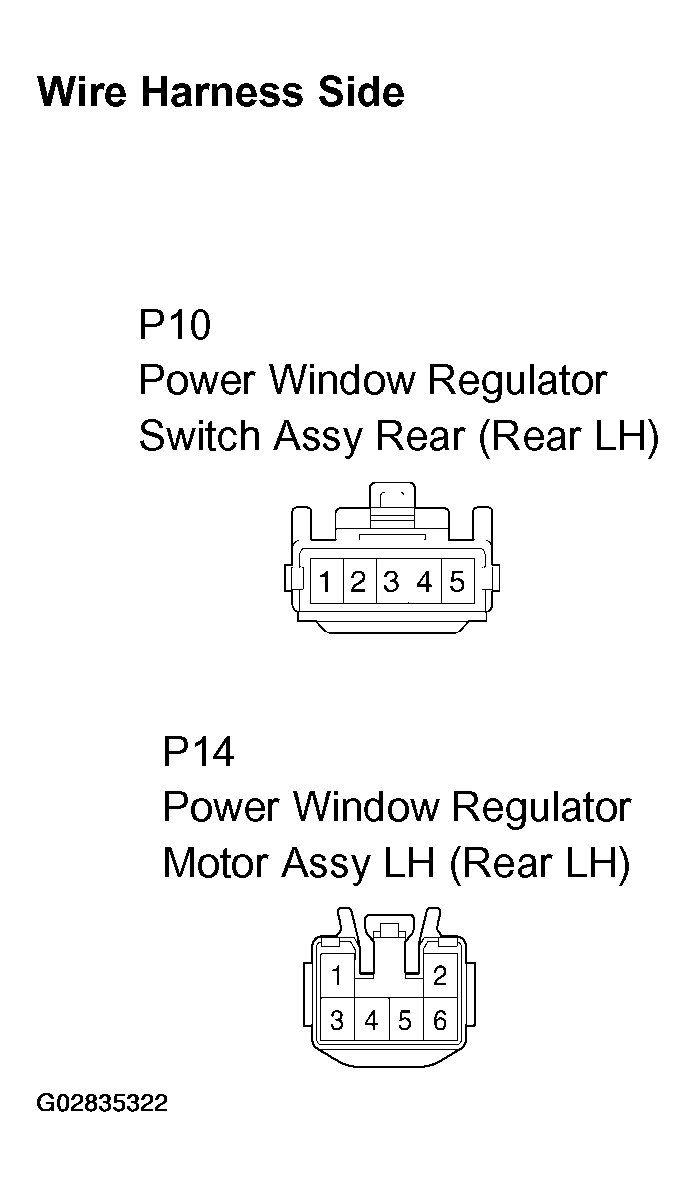

  Fig 4: Identifying P14 Motor Connector And P10 Switch Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

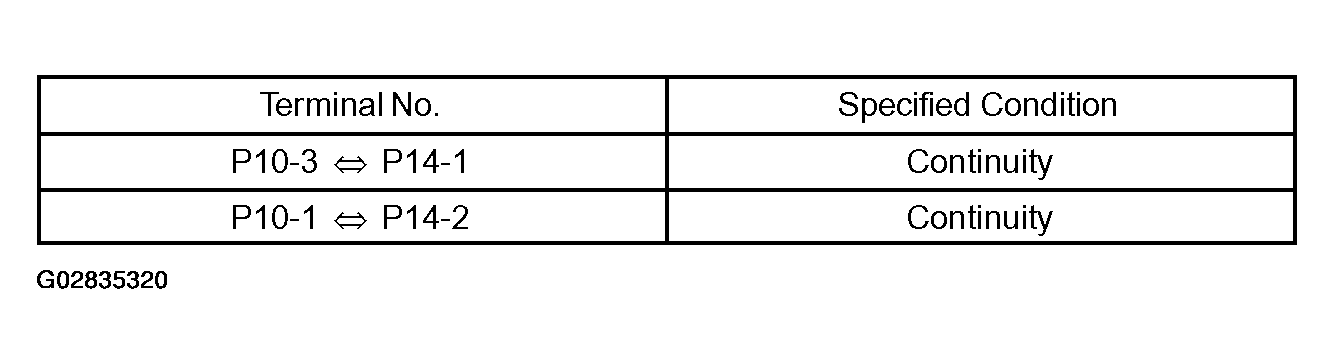

  Fig 5: Standard
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the continuity between the P10 switch connector and the body ground.

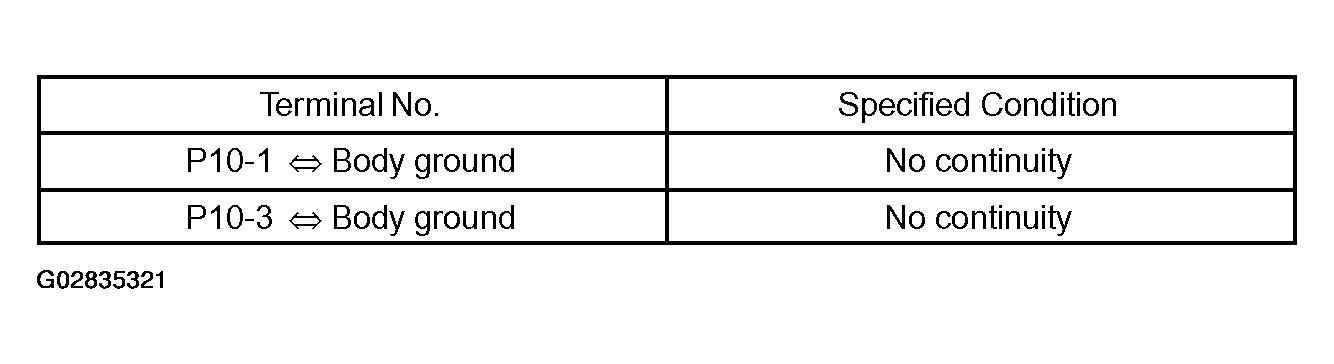

Fig 6: Standard
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go To Next Step

INSPECT POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)

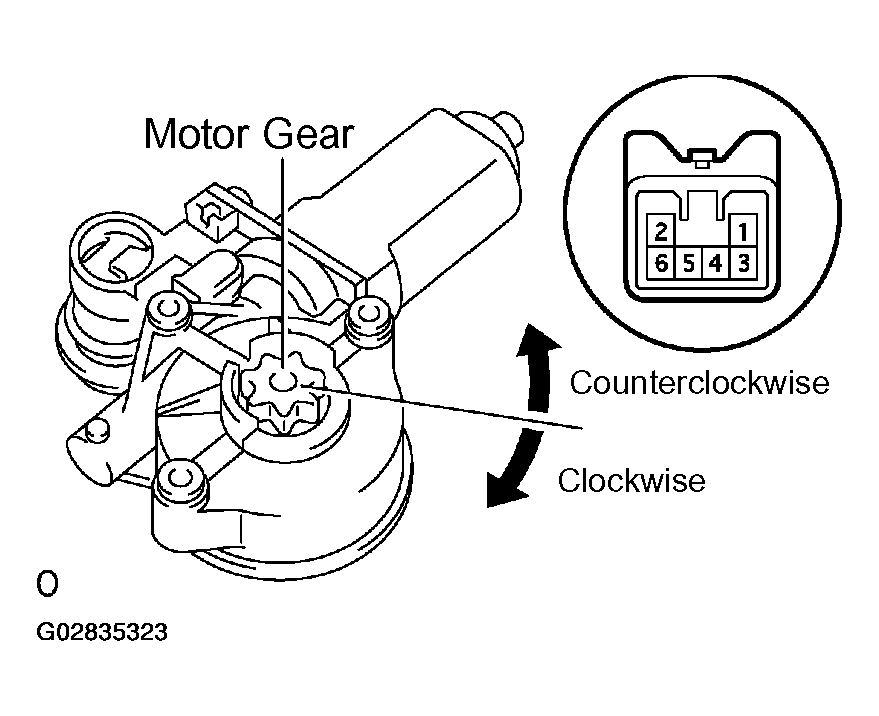

Fig 7: Inspecting Power Window Regulator Motor Assy LH (Rear LH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the motor (See OVERHAUL ).
Apply battery voltage to connector terminals 1 and 2.
Check that the motor rotates smoothly.

STANDARD

Terminal No.	Motor Gear Rotation
Battery positive voltage --> 2 Battery negative voltage --> 1	Clockwise
Battery positive voltage --> 1 Battery negative voltage --> 2	Counterclockwise

NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)

OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (MASTER SWITCH <=> SWITCH)
