Section 484 (Power Window Control System - Diagnostics): Pre-Check

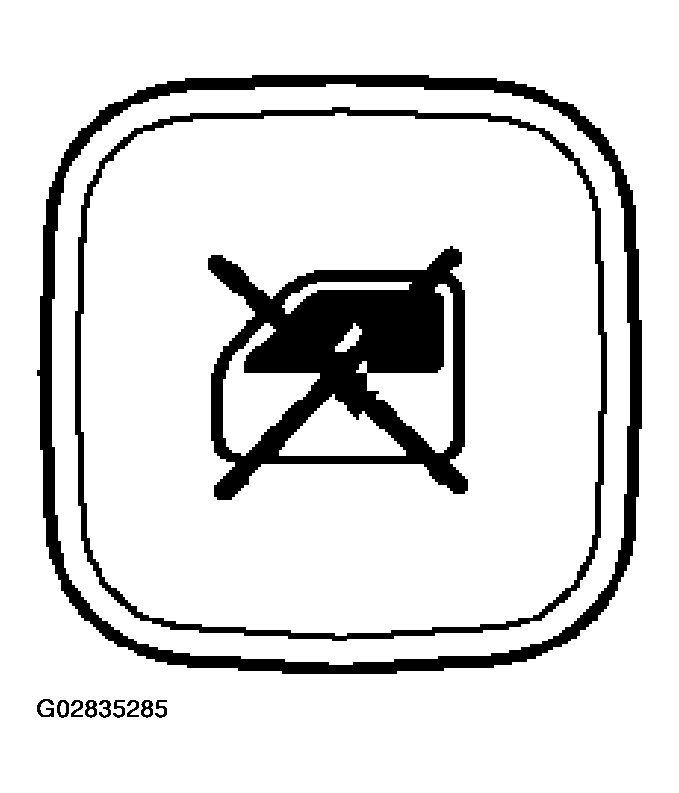

Fig 1: Checking Window Lock Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that operation of the door glasses except the driver side door glass and the back door glass and the roof glass disabled when the window lock switch of the power window master switch pressed.
2. Check that the door glasses, the back door glass and the roof glass can be operated when the window lock switch pressed again.

1. Check that the door glass can be operated using the master switch as follows.
   STANDARD



   Condition	Master Switch	Switch Operation	Door Glass
   Ignition switch ON	AUTO	Pull halfway UP	UP (Closed)
   		Push halfway DOWN	DOWN (Open)

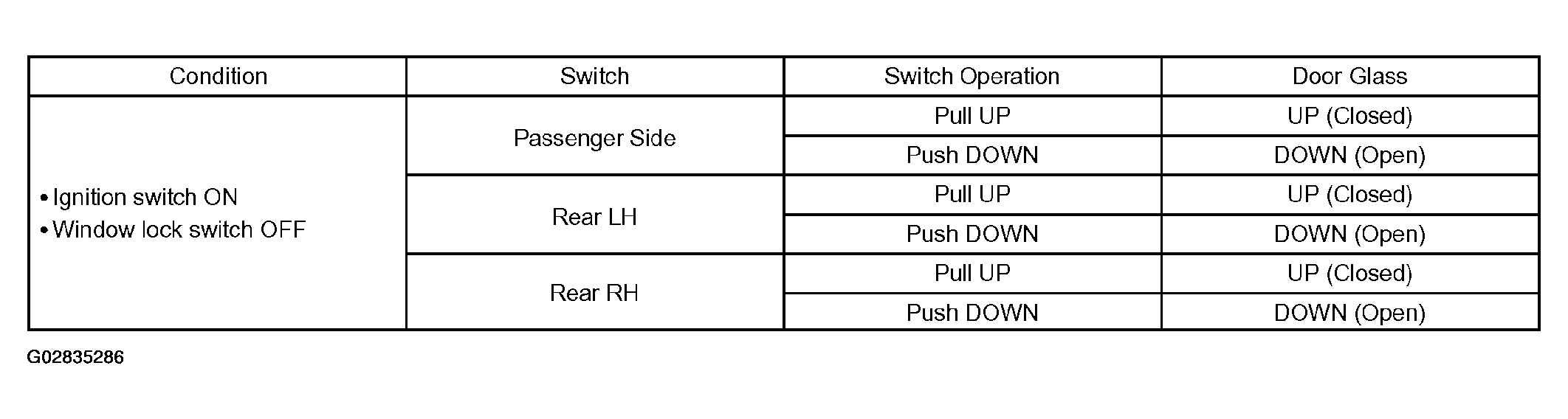

2. Check that each door glass can be operated using each power window switch as follows.

Fig 2: Standard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the door glass can be operated using the master switch as follows.

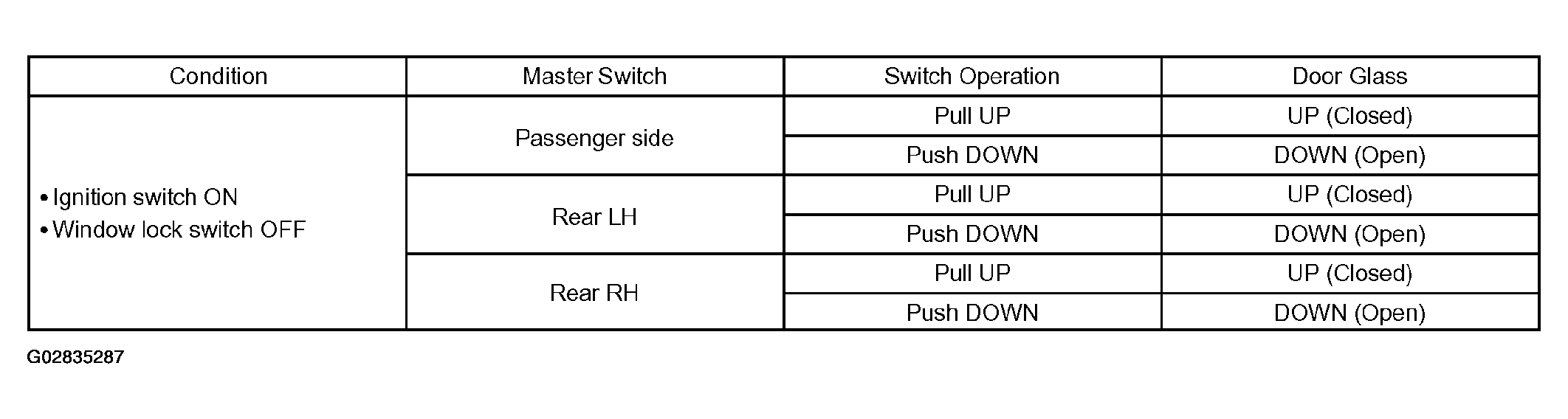

1. Check that the door glasses other than the driver side door glass can be operated using the master switch as follows.

Fig 3: Standard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. When both of the following conditions are fulfilled, check that the door glasses, the back door glass and the roof glass can be operated even after the ignition switch is turned OFF:

• Within 45 seconds after the ignition switch turned OFF
• The driver side door is closed

HINT:

The jam protection function prevents any part of your body from getting caught by accident between the door frame and the door glass during power window operation.

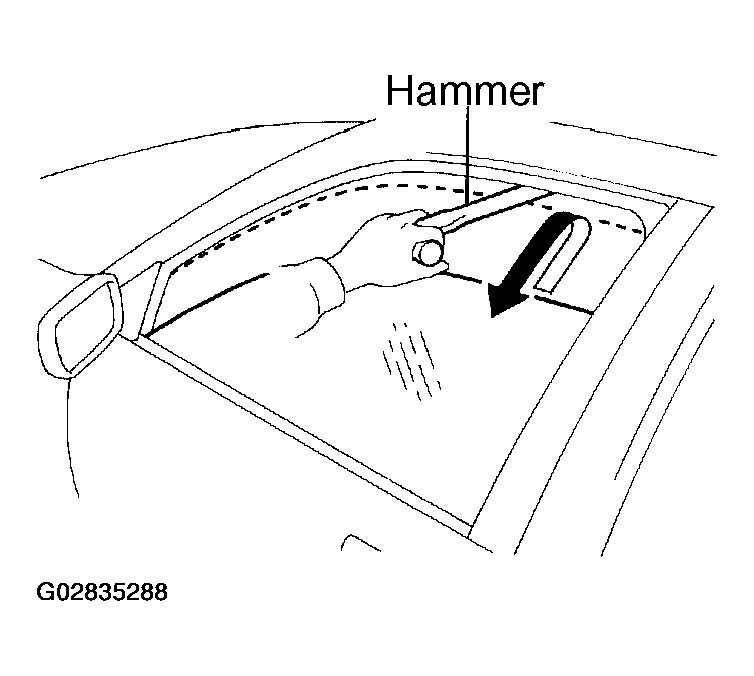

Fig 4: Checking Jam Protection Function

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the door glass goes down by approximately 50 mm (2.0 in.) right when something gets caught between the door frame and door glass during power window operation. However, when the opening amount between the vehicle body and the door glass less than 200 mm (7.9 in.), the door glass keeps going down until the opening amount reaches 200 mm (7.9 in.) and stops there.

Operative condition:

• AUTO UP
• AUTO UP operation after the ignition switch OFF
• MANUAL UP operation after the ignition switch OFF

1. If the pulse sensor of the power window motor malfunctions, the power window functions will be restricted:

• The AUTO UP/DOWN and the remote UP/DOWN functions are disabled.
• The manual UP/DOWN function can be performed via each power window switch.
