Remote Up/Down Function Does Not Operate: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

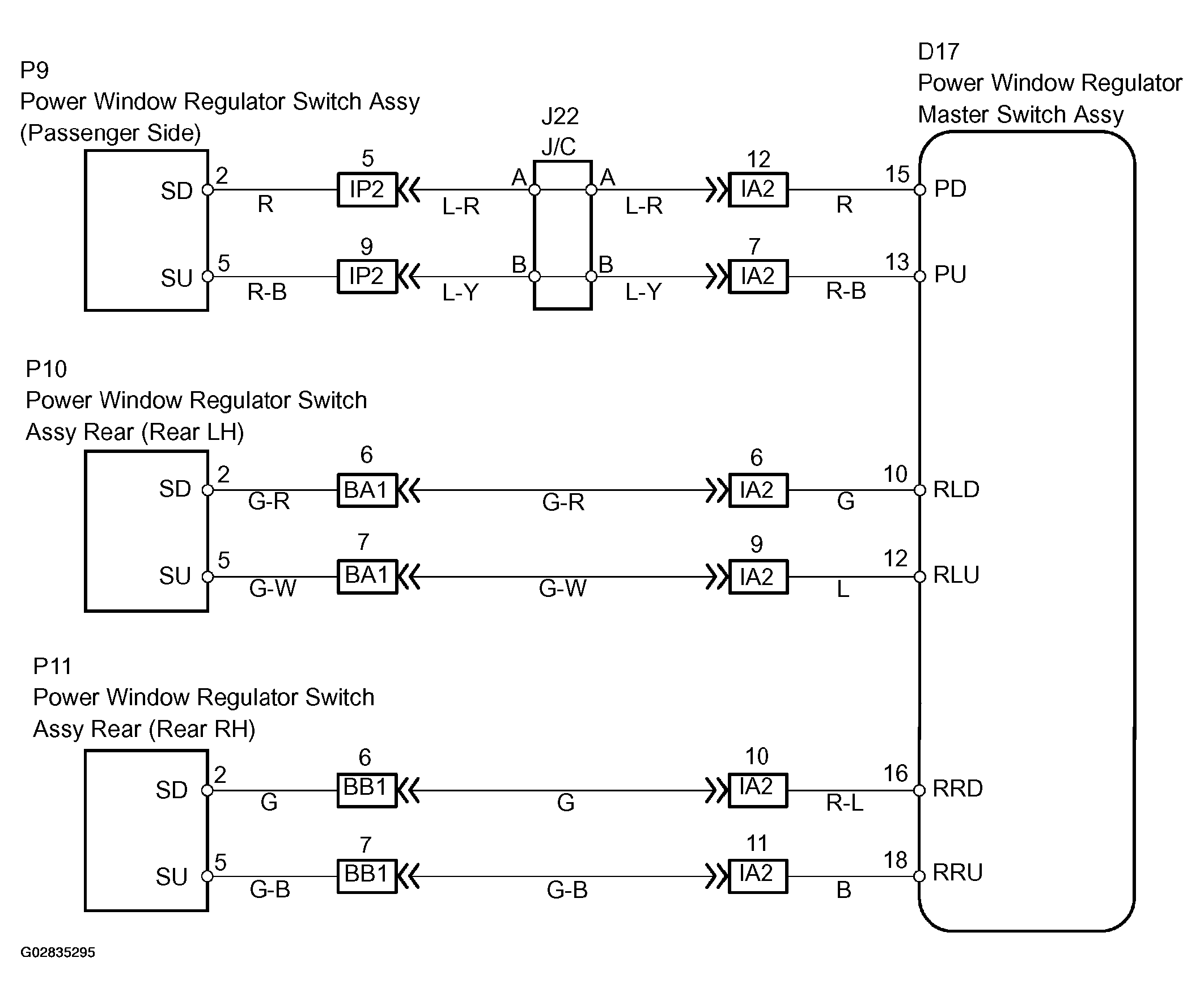

Fig 1: Wiring Diagram
G02835295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
