Front Wheel Alignment: Adjustment

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TIRE (See WHEEL AND TIRE SYSTEM )

MEASURE VEHICLE HEIGHT

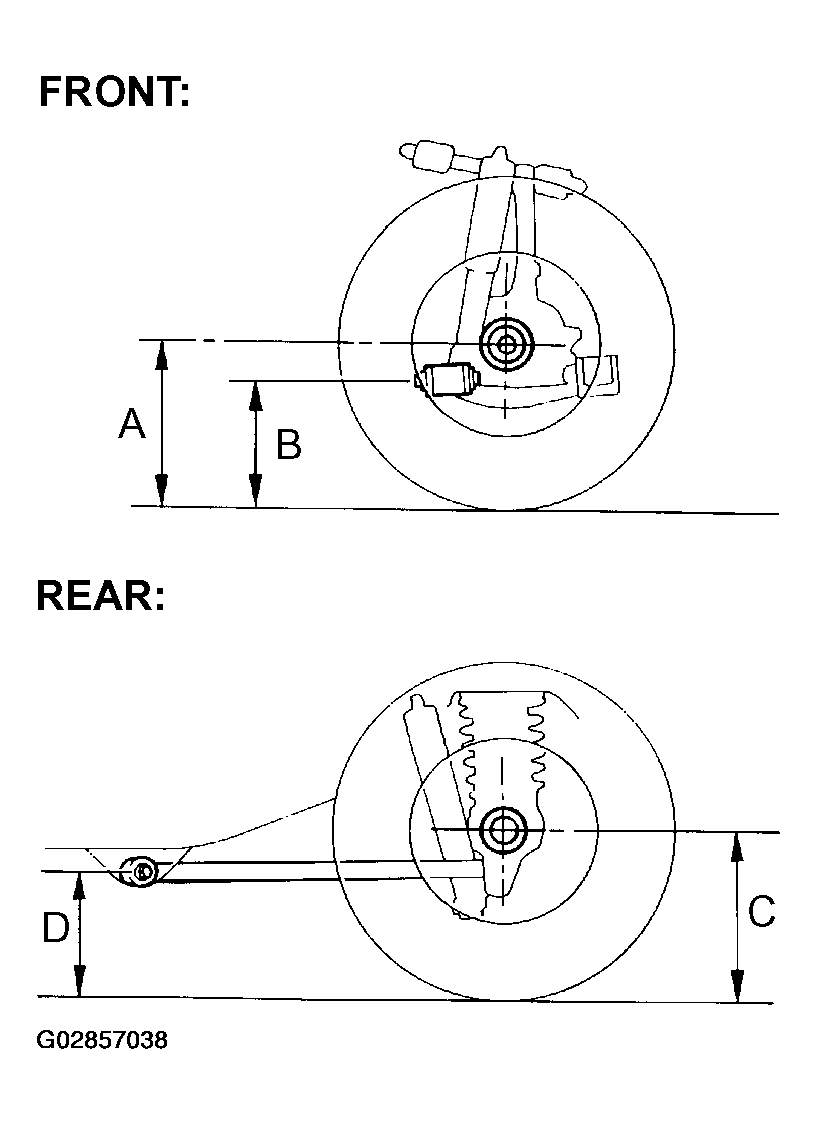

Fig 1: Identifying Vehicle Height Measurements

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Vehicle height:

NOTE: Vehicle Model Code information in the following charts is available in the MODEL CODE IDENTIFICATION article.

2WD EXCEPT AIR SUSPENSION

Vehicle Model	Front A- B	Rear C - D
UZN210L-GKAGKA	113.6 mm (4.47 in.)	71.7 mm (2.82 in.)
UZN210L-GKAZKA	113.5 mm (4.47 in.)	72.3 mm (2.85 in.)

2WD AIR SUSPENSION

Vehicle Model	Front A-B	Rear C-D
UZN210L-GKAZKA	112.7 mm (4.44 in)	81.4 mm (3.20 in.)

4WD EXCEPT AIR SUSPENSION

Vehicle Model	Front A-B	Rear C-D
UZN215L-GKAGKA	99.9 mm (3.93 in.)	71.6 mm (2.82 in.)
UZN215L-GKAZKA	99.8 mm (3.93 in.)	72.1 mm (2.84 in.)

4WD AIR SUSPENSION

Vehicle Model	Front A - B	Rear C - D
UZN215L-GKAZKA	99.2 mm (3.91 in.)	78.9 mm (3.11 in.)

Measuring points:

A: Ground clearance of front wheel center

B: Ground clearance of lower suspension arm No. 2 set bolt center

C: Ground clearance of rear wheel center

D: Ground clearance of strut rod set bolt center

NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.

INSPECT TOE-IN

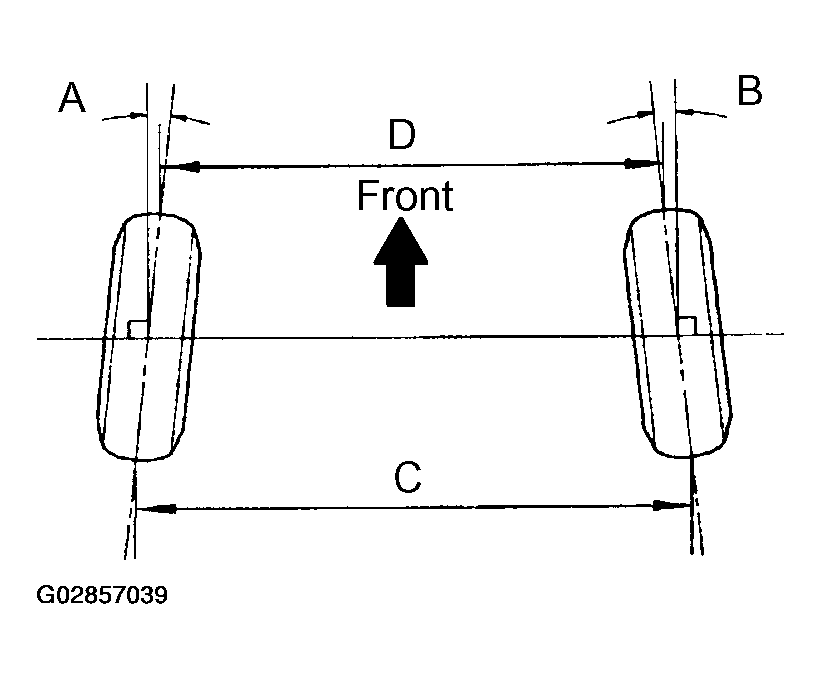

Fig 2: Inspecting Toe-In

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TOE-IN SPECIFICATION

Toe-in
(total)

A + B: 0°05' +/- 0°10' (0.08° +/- 0.16°)
C- D: 1 +/- 2 mm (0.04 +/- 0.08 in.)

If the toe-in is not within the specified value, adjust it at the rack ends.

ADJUST TOE-IN

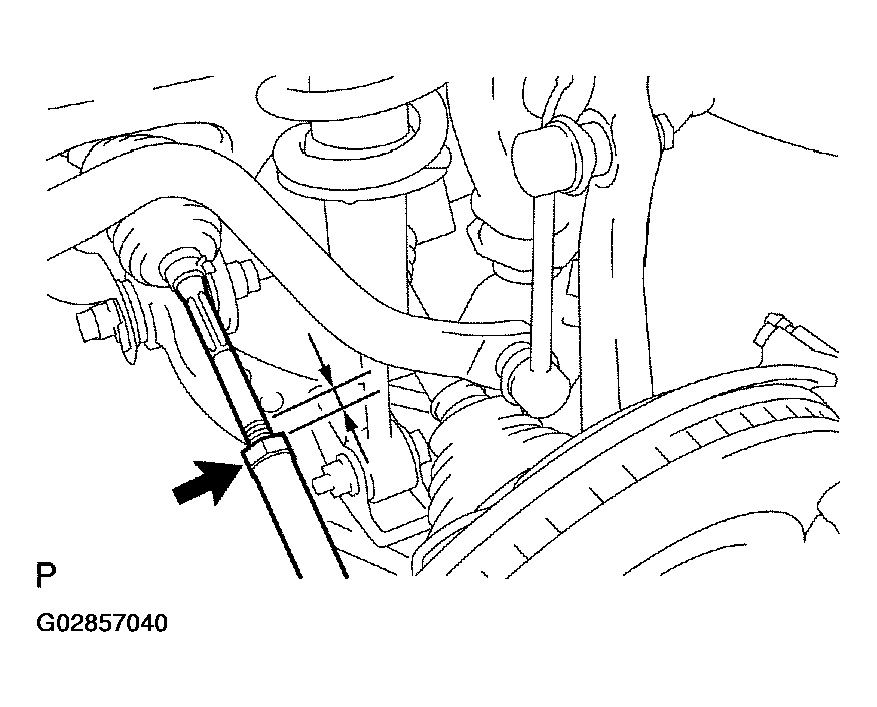

1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.
3. Turn the right and left rack ends by an equal amount to adjust the toe-in.
  HINT:

  Try to adjust the toe-in to the center of the specified value.
4. Make sure that the lengths of the right and left rack ends are the same.
5. Torque the tie rod end lock nuts.
  Torque: 88 N m (897 kgf cm, 65 ft Ibf)
6. Place the boots on the seats and install the clips.
  HINT:

  Make sure that the boots are not twisted.
7. Perform VSC system calibration (See PRE-CHECK )

INSPECT WHEEL ANGLE

Turn the steering wheel fully, and measure the turning angle.

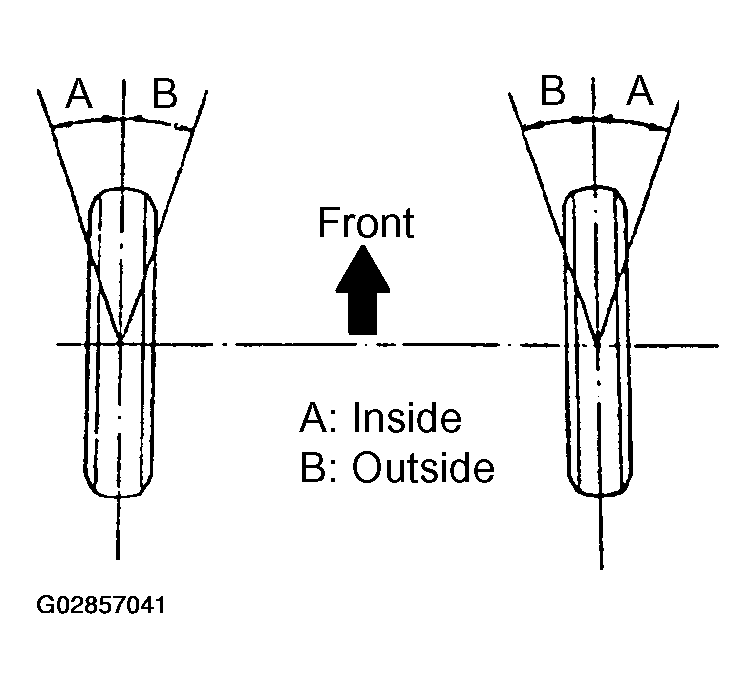

Fig 4: Identifying Wheel Angles

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wheel angle:

WHEEL ANGLE : 2WD

Inside wheel	37° 00' (35° 00' - 38° 00') 37.00° (35.00° - 38.00°)
Outside wheel (Reference)	32° 30' 32.50°

WHEEL ANGLE : 4WD

Inside wheel	36° 40' (34° 40' - 37° 40') 36.67° (34.67° - 37.67°)
Outside wheel (Reference)	32° 53' 32.88°

If the wheel angles differ from the standard of the specification, inspect the toe-in.

INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

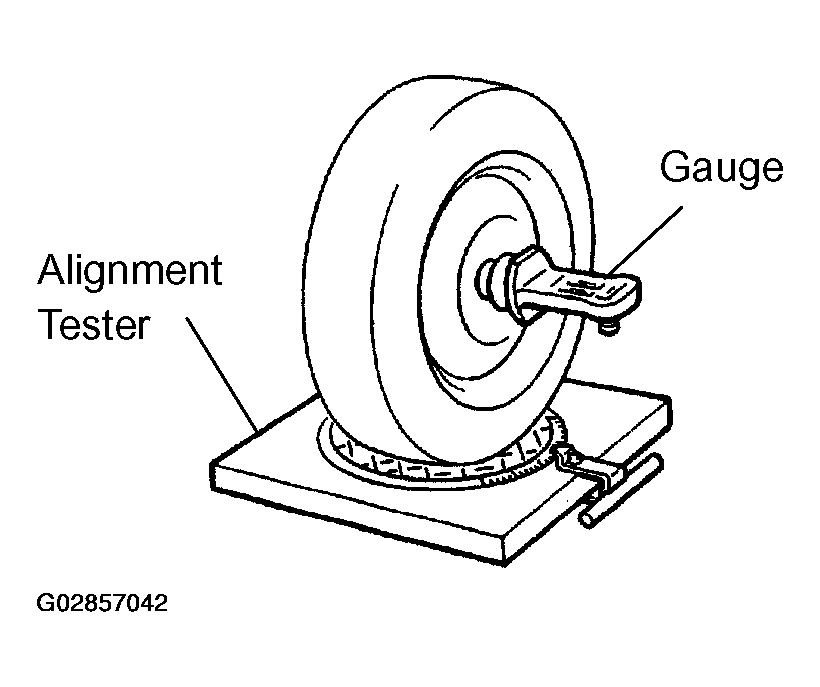

Install the camber-caster-kingpin gauge or position vehicle on wheel alignment tester.

Fig 5: Inspecting Camber, Caster And Steering Axis Inclination

Inspect the camber, the caster and the steering axis inclination.

Camber, caster and steering axis inclination:

2WD Except Air Suspension

Camber Right-left error	-0° 28' +/- 45' (-0.47° +/- 0.75°) 45' (0.75°) or less
Caster Right-left error	3°23' +/- 45' (3.38° +/- 0.75°) 45' (0.75°) or less
Steering axis inclination Right-left error Right-left error	12° 58' +/- 45' (12.97° +/- 0.75° 45' (0.75°) or less)

2WD Air Suspension

Camber Right-left error	-0° 30' +/- °45' (-0.50° +/- 0.75°) 45' (0.75°) or less
Camber Right-left error	3° 33' +/- 45' (3.55° +/- 0.75°) 45' (0.75°) or less
Steering axis inclination Right-left error	13° 00' +/- 45' (13.00° +/- 0.75° 45' (0.75°) or less

4WD Except Air Suspension

Camber Right-left error	-0° 09' +/- 45' (-0.15° +/- 0.75° 45' (0.75°) or less)
Caster Right-left error	3° 13' +/- 45' (3.22° +/- 0.75°) 45' (0.75°) or less
Steering axis inclination Right-left error	12° 39' +/- 45' (12.65° +/- 0.75°) 45' (0.75°) or less

4WD Air Suspension

Camber Right-left error	-0° 10' +/- 45' (-0.17° +/- 0.75° 45' (0.75°) or less
Caster Right-left error	3° 22' +/- 45' (3.37° +/- 0.75°) 45' (0.75°) or less
Steering axis inclination Right-left error	12° 40' +/- 45' (12.67° +/- 0.75°) 45' (0.75°) or less

If the steering axis inclination is not as specified after camber and caster have been correctly adjusted, recheck the steering knuckle and front wheel for distortion or looseness.

ADJUST CAMBER AND CASTER
NOTE: After the camber has been adjusted, inspect the toe-in.
1. Loosen the nut and bolt.
2. Turn the camber adjust cam No. 2 and toe adjust plate No. 2 in the circumference direction, and adjust the camber and the caster.
  HINT:

  Try to adjust the camber and caster to the center value.

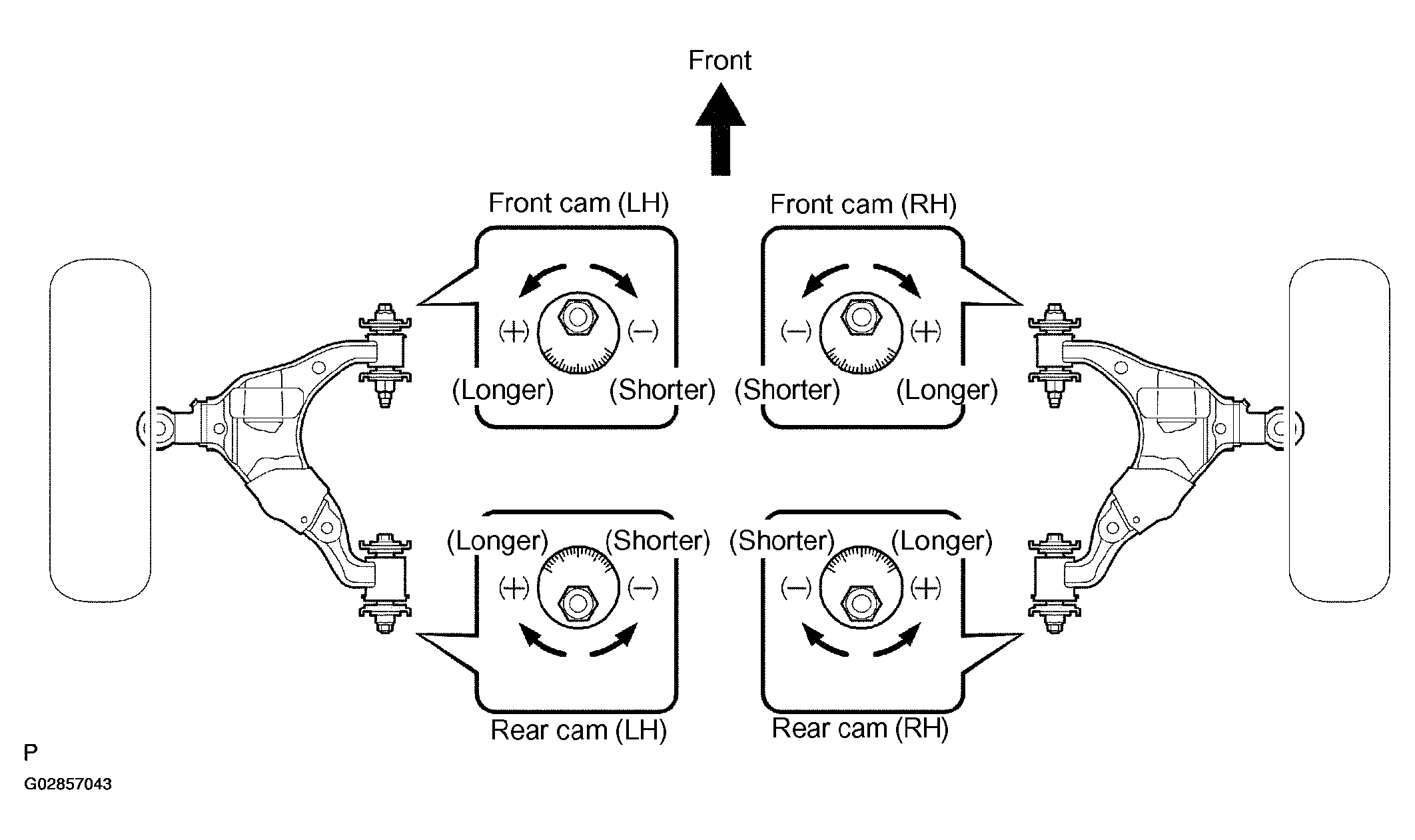

  Fig 6: Camber, Caster And Steering Axis Inclination : 2WD Except Air Suspension
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. How to read adjustment chart (using examples).

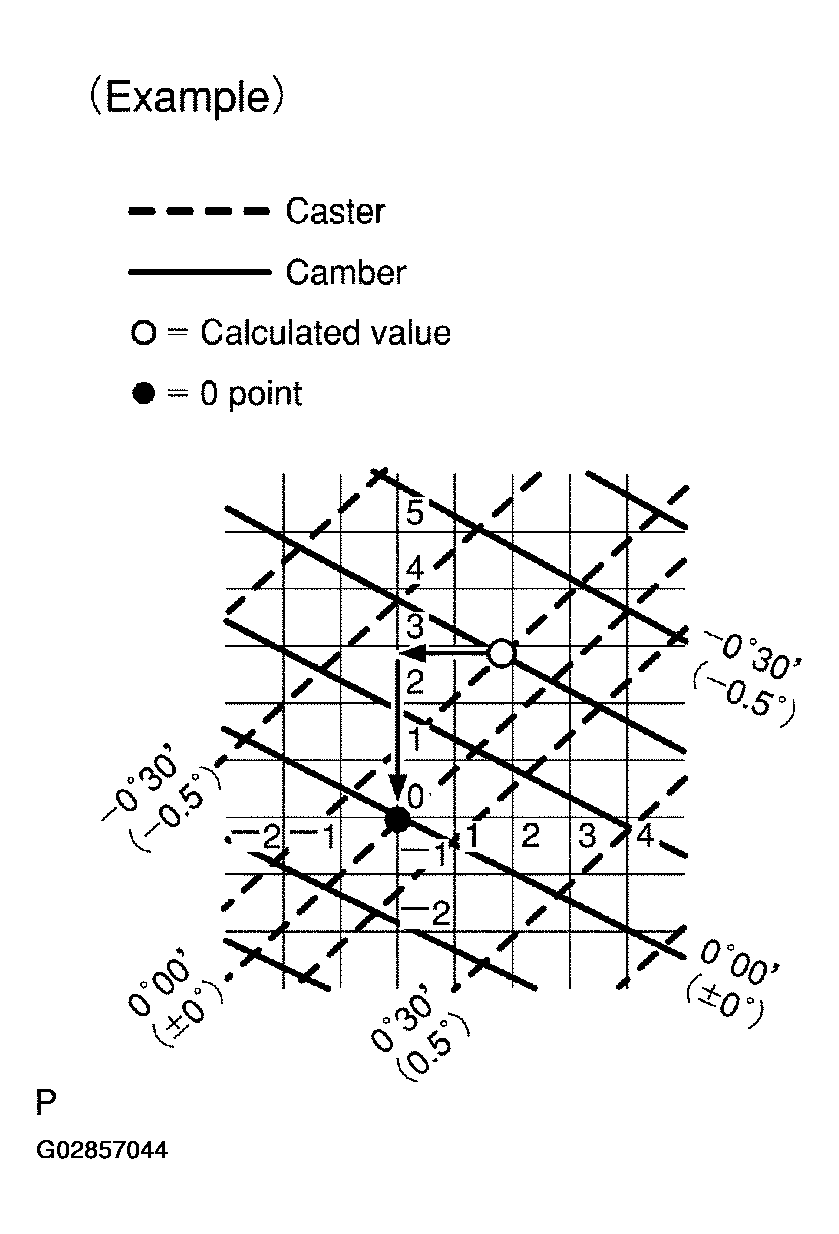

  Fig 7: Adjustment Chart (Example)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Measure the present alignment.
    Camber: 0°15' (0.25°)

    Caster: 2°45' (2.75°)
  2. Make the difference between the standard value (A) and the measured value (B) on the adjustment chart.
    Standard value:

    Camber: 0°35' (0.58°)

    Caster: 2°55' (2.92°)

    Formula: B - A = C

    Camber: 0°15' - (0°35') = - 0°20'

    Caster: 2°45' - (2°55') = - 0°10'
  3. As shown in the chart, read the distance from the marked point to 0 point, and adjust the front and/or rear adjusting cams accordingly.
    Toe adjust cam: - (Shorter) 2.8

    Camber adjust cam: - (Shorter) 1.8

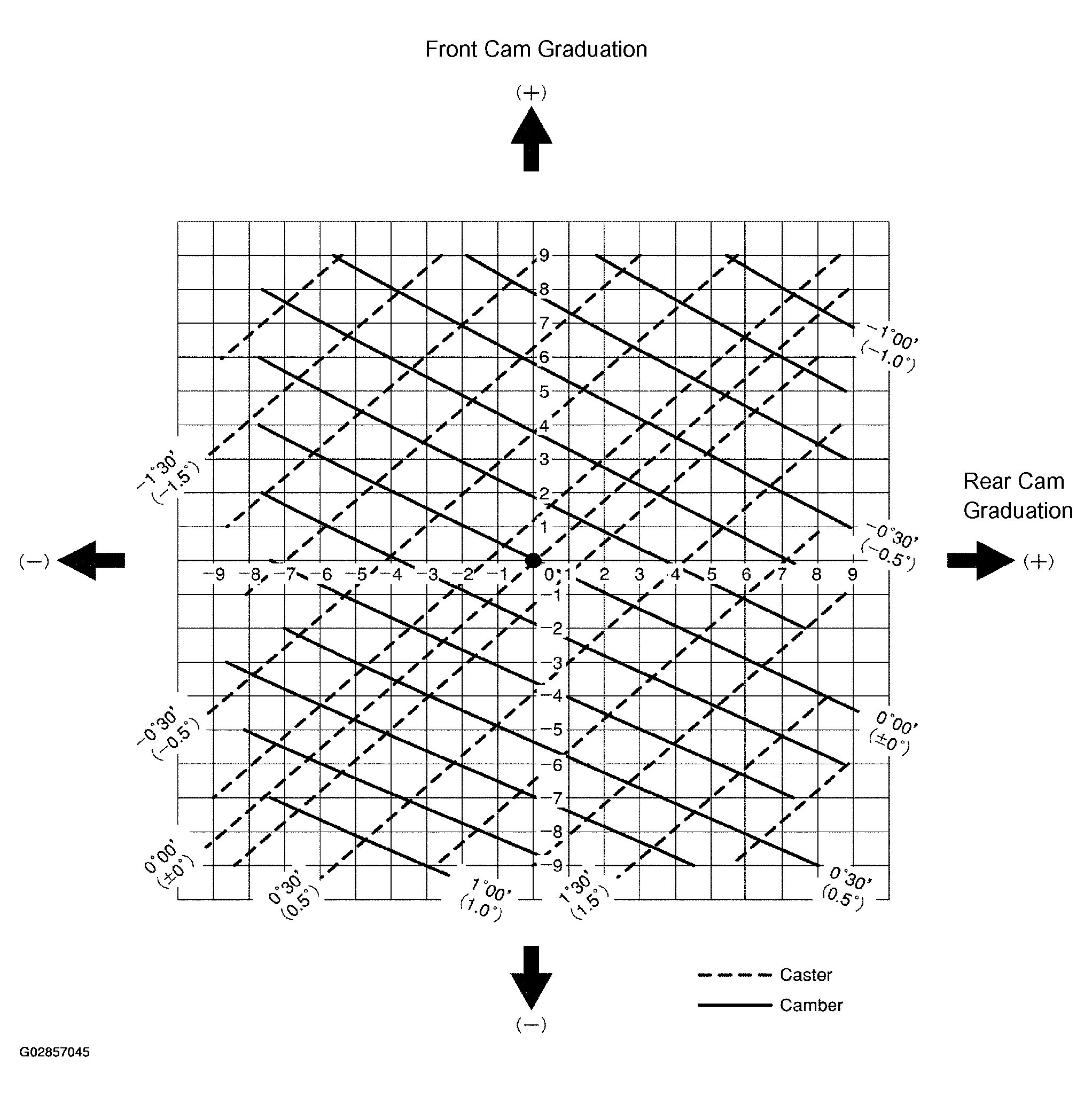

Fig 8: Adjustment Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
