Component Location Graphics

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

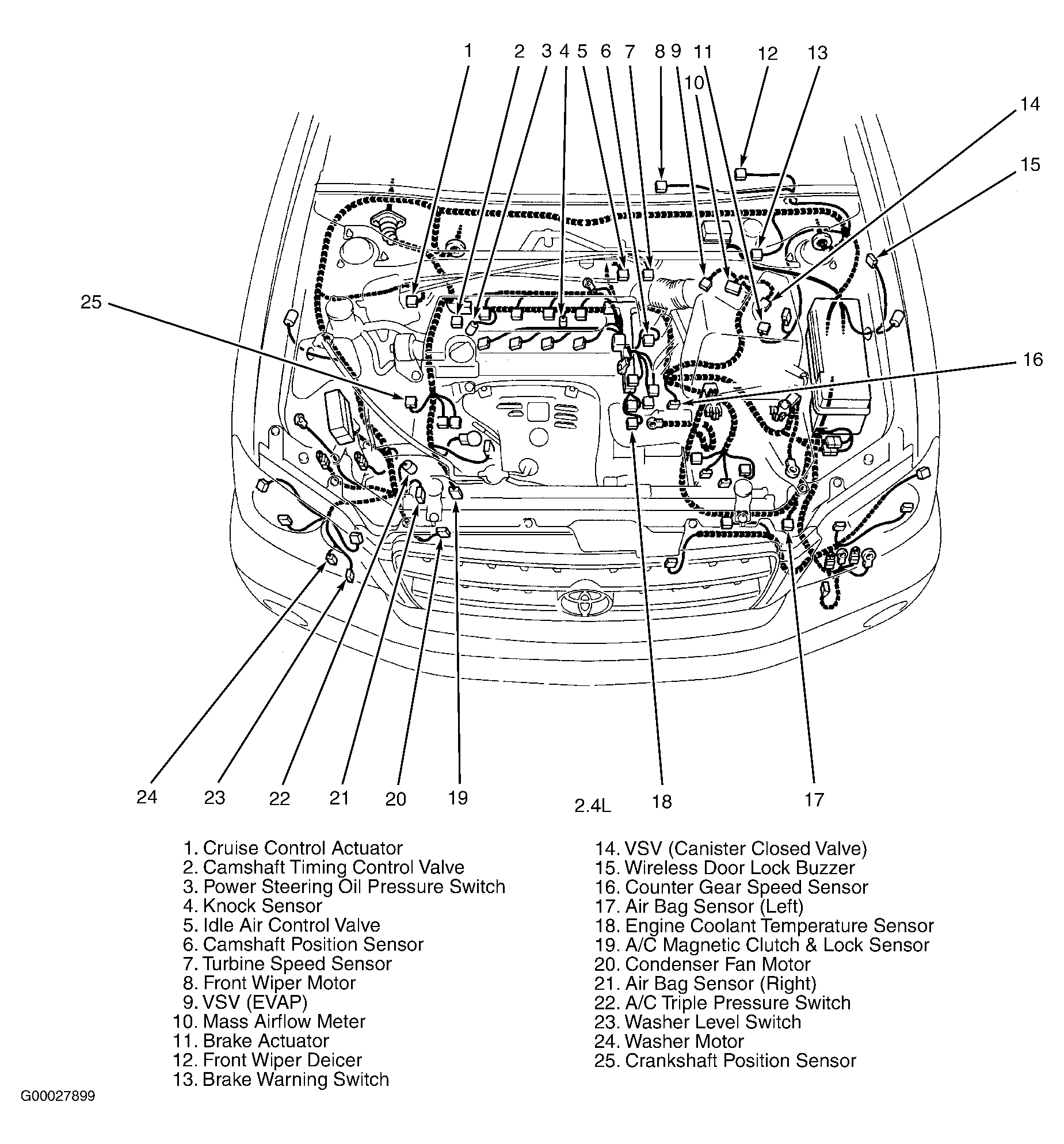

Fig 1: Engine Compartment (2.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

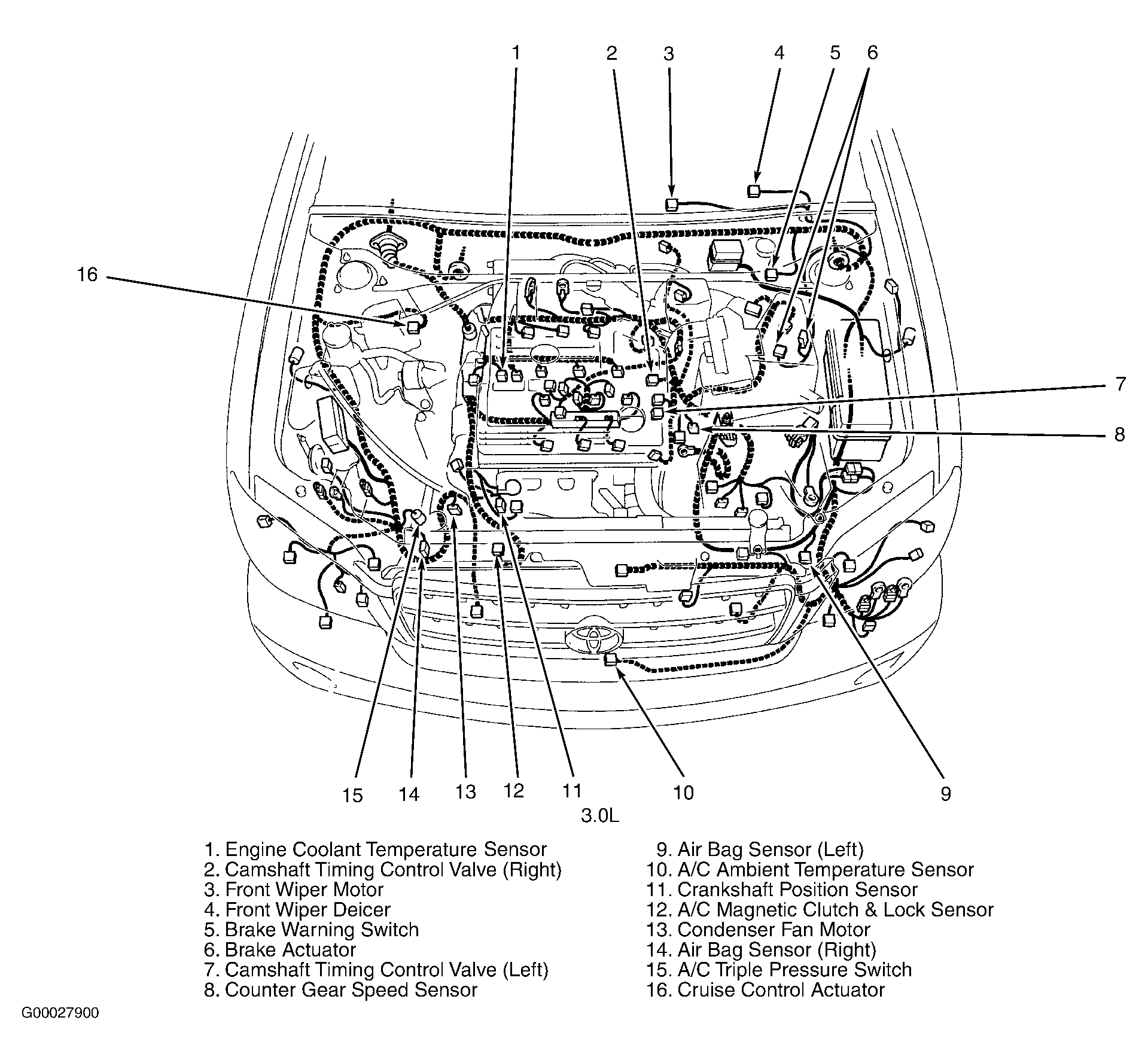

Fig 2: Engine Compartment (3.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

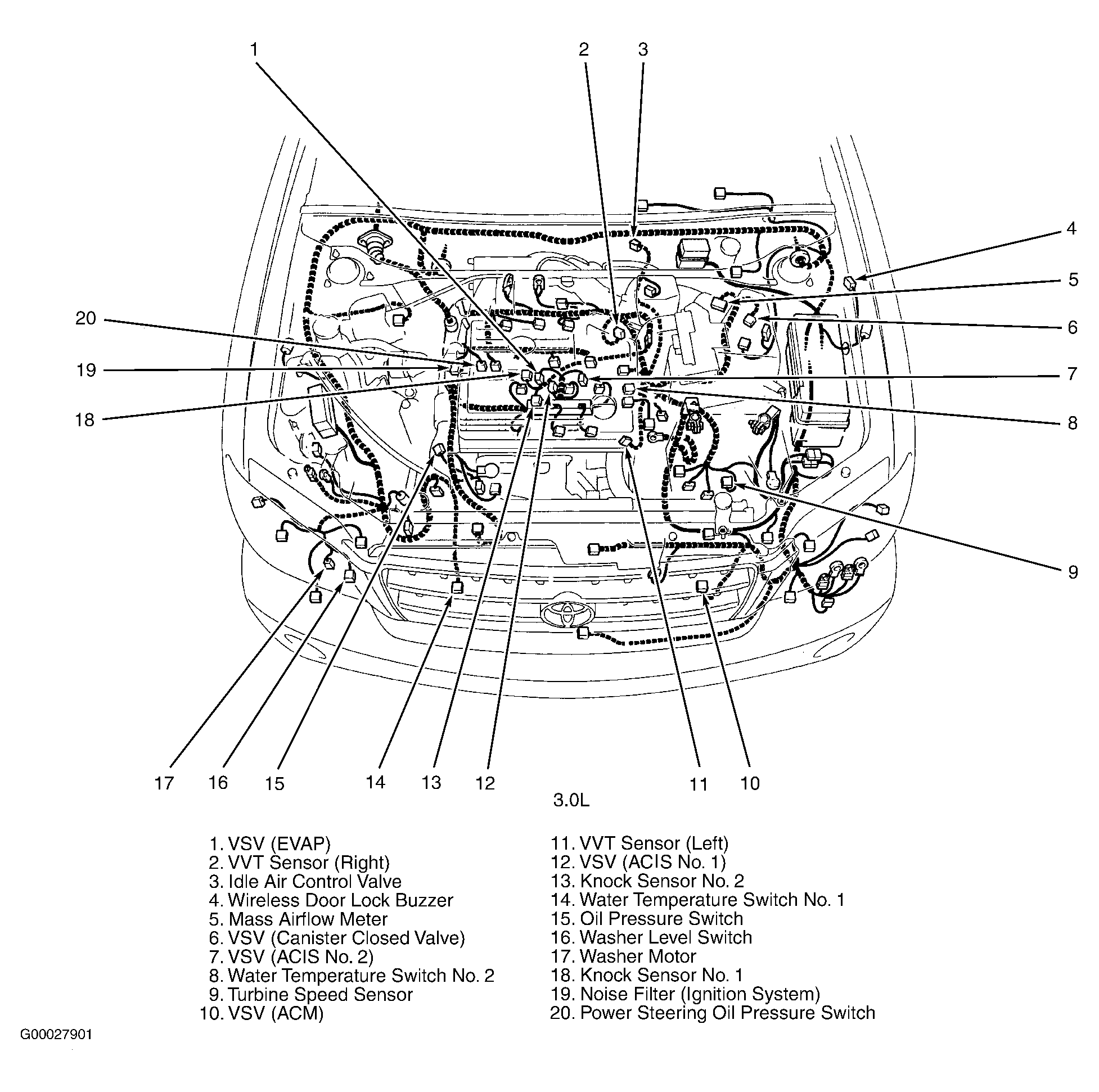

Fig 3: Engine Compartment (3.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Junction & Relay Block Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash

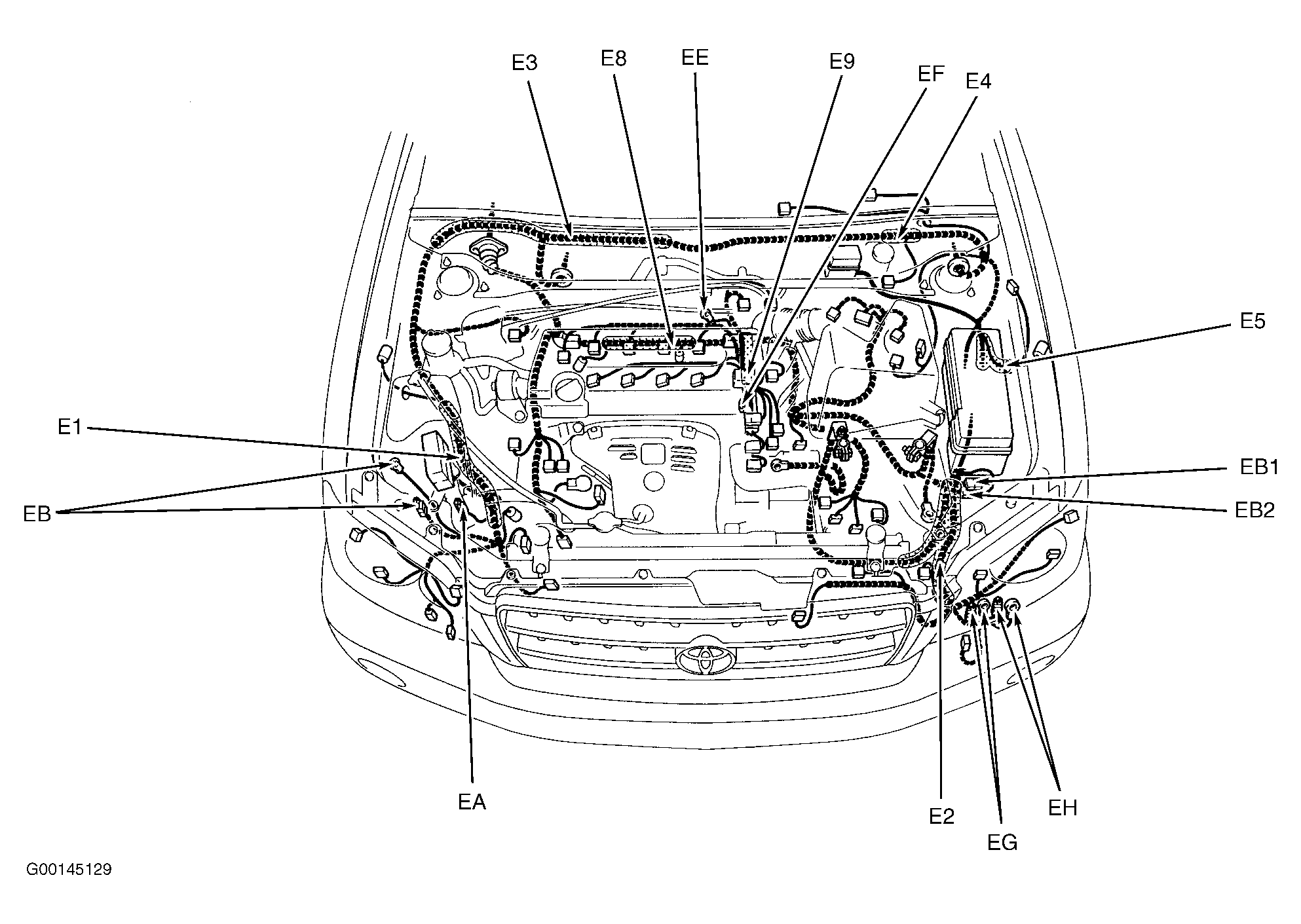

Fig 6: Engine Compartment (2.4L)

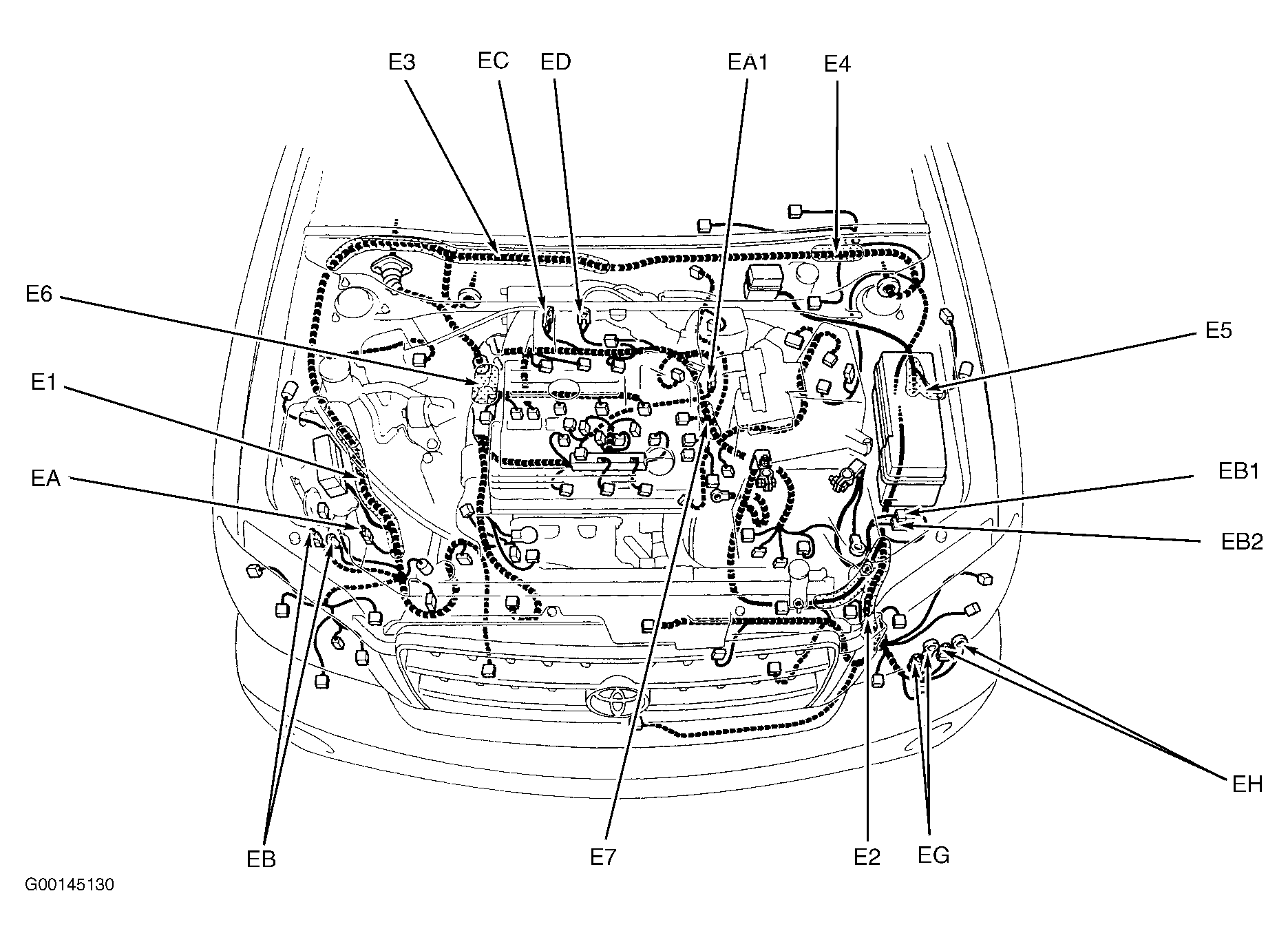

Fig 7: Engine Compartment (3.0L)
