Control Units
WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

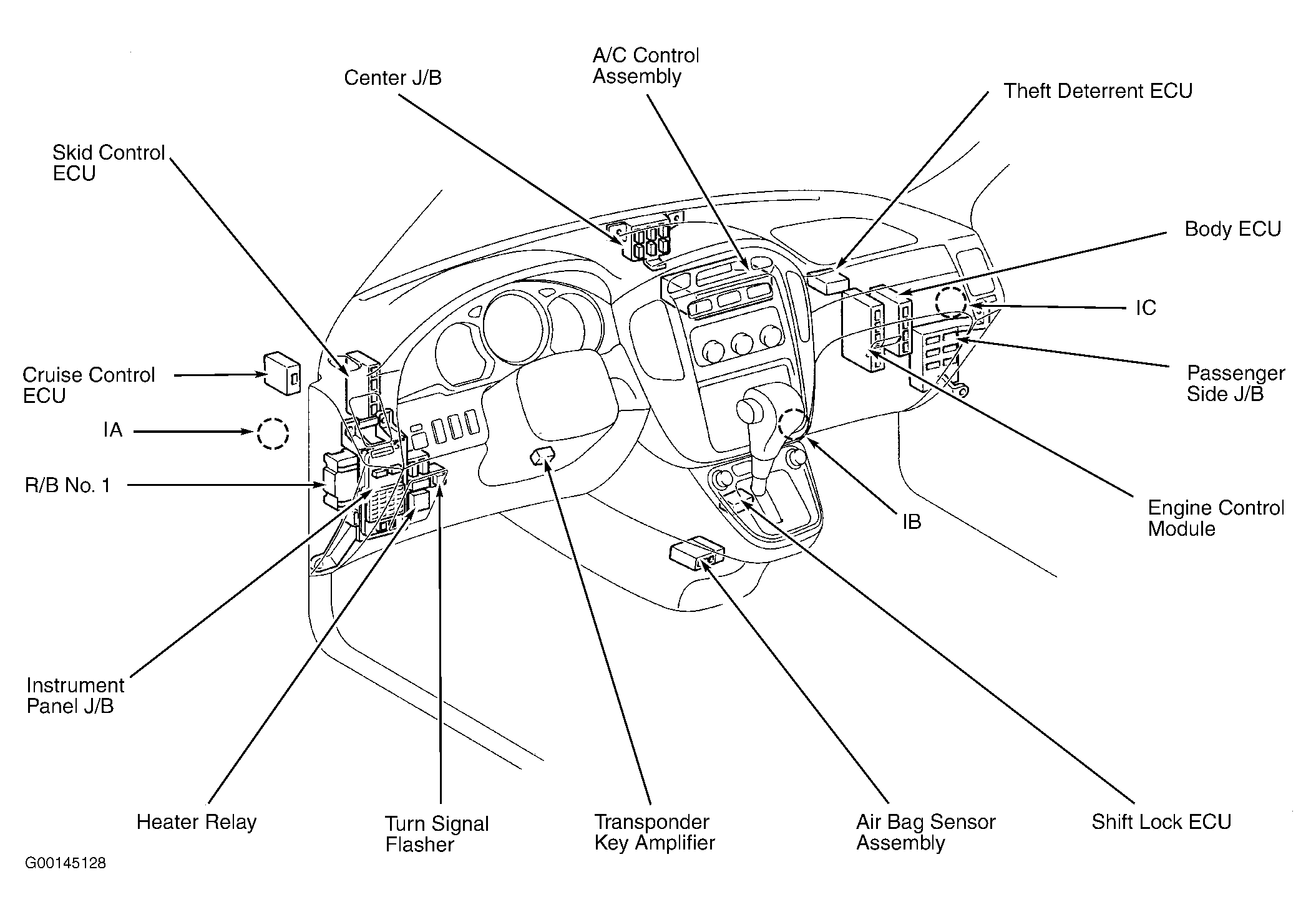

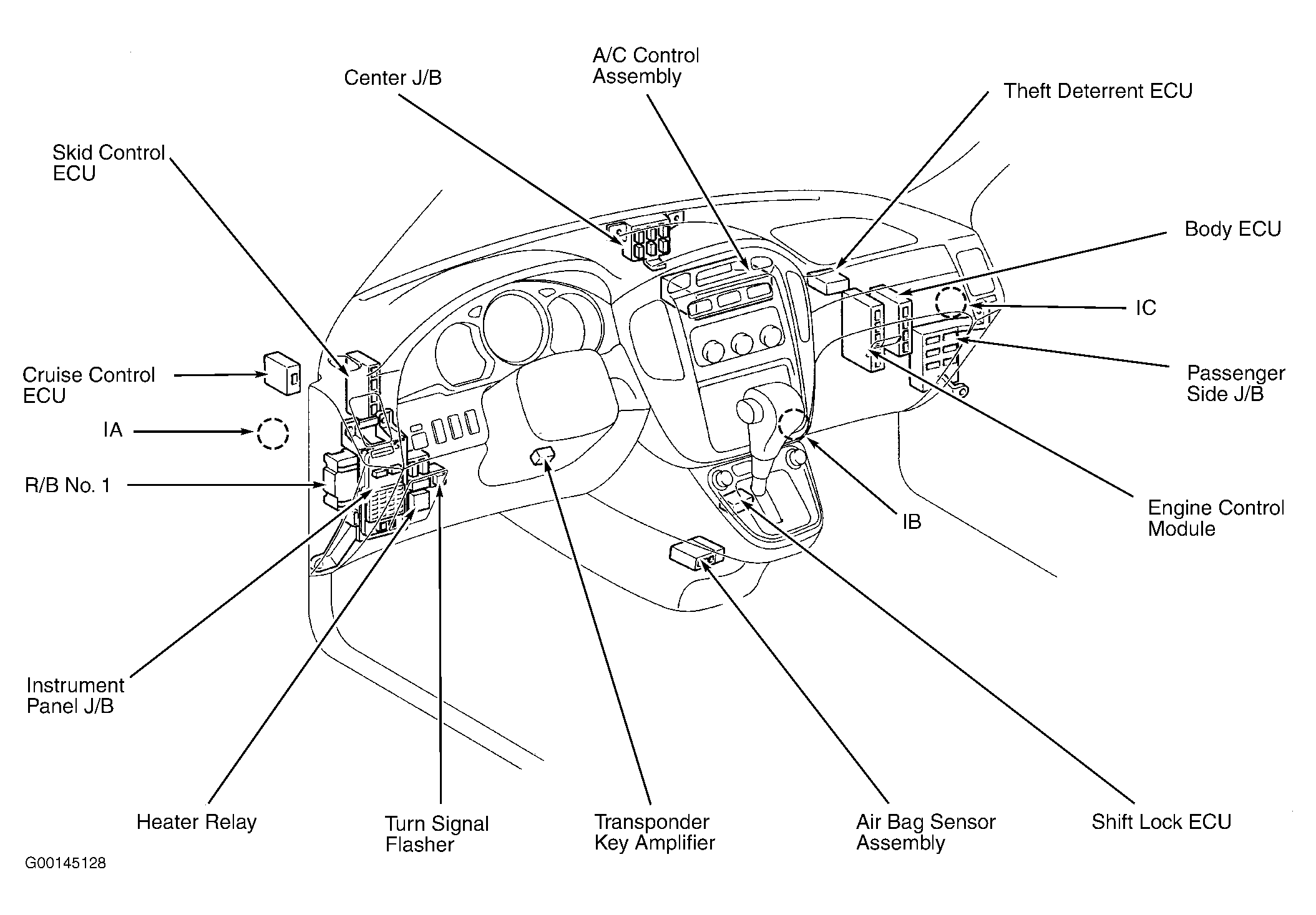

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| A/C Control Assembly | Behind center of dash. See Figure. |
| Body ECU | Behind right side of dash. See Figure. |
| Cruise Control ECU | Behind left side of dash. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Ignition Coil & Ignitor | On top of each spark plug. |
| Shift Lock ECU | At base of shifter lever. See Figure. |
| Skid Control ECU | Above instrument panel J/B. See Figure. |
| Sliding Roof Control ECU | On front of sliding roof. |
| Theft Deterrent ECU | Behind right side of dash. See Figure. |
| Wireless Door Lock ECU | On right side of luggage compartment. |
