Lighting System: Inspection

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. HEADLAMP DIMMER SWITCH ASSY
    1. Inspect the light control switch continuity.

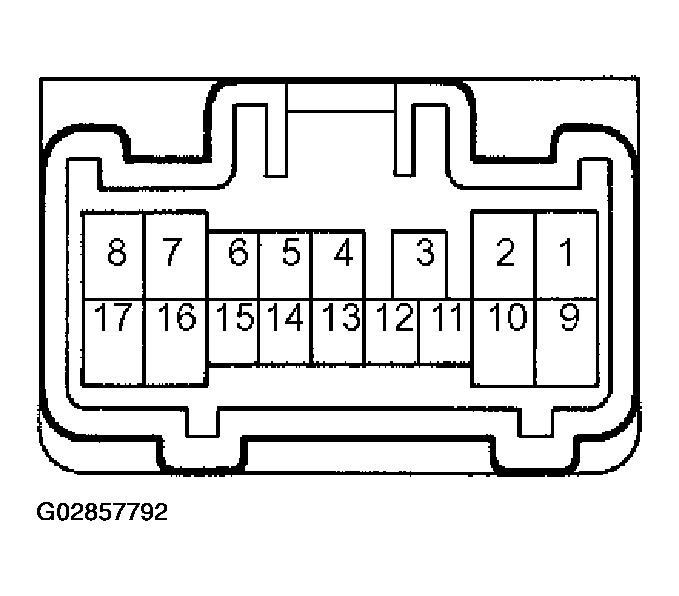

      Fig 1: Identifying Headlamp Dimmer Switch Assy Terminal
      G02857792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Check that there is continuity between terminals at each switch position as shown in the chart.
      SPECIFIED CONDITION

      Switch operation Tester connection Specified condition
      OFF - No continuity
      TAIL 14-16 Continuity
      HEAD 13-16 - 14 Continuity
      AUTO 16-12 Continuity
    2. Inspect the headlamp dimmer switch continuity.
      1. Check that there is continuity between terminals at each switch position as shown in the chart.
      SPECIFIED CONDITION

      Switch operation Tester connection Specified condition
      FLASH 7-8 - 16 Continuity
      LOW BEAM 16-17 Continuity
      HI BEAM 7-16 Continuity
    3. Inspect the turn signal switch continuity.
      1. Check that there is continuity between terminals at each switch position as shown in the chart.
      SPECIFIED CONDITION

      Switch operation Tester connection Specified condition
      Right turn 2-3 Continuity
      Neutral - No continuity
      Left turn 1-2 Continuity
    4. Inspect the front fog lamp switch continuity.
      1. Check that there is continuity between terminals at each switch position as shown in the chart.
      SPECIFIED CONDITION

      Switch operation Tester connection Specified condition
      OFF - No continuity
      ON 10-11 Continuity
  2. HAZARD WARNING SIGNAL SWITCH ASSY
    1. Check that there is continuity between terminals at each switch position as shown in the chart.

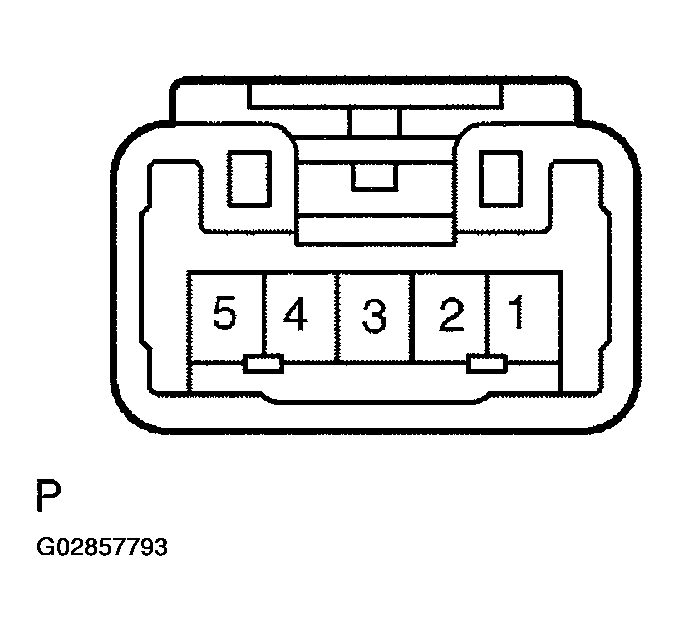

      Fig 2: Identifying Hazard Warning Signal Switch Assy Terminal
      G02857793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SPECIFIED CONDITION

      Switch operation Tester connection Specified condition
      OFF 2-3 No continuity
      ON 2-3 Continuity
      Illumination circuit 4-5 Continuity
    2. Inspect illumination operation.
      1. Connect the battery positive (+) lead to terminal 4 and the battery negative (-) lead to terminal 5, then check that the illumination lights up.
    3. FOG LAMP RELAY
      1. Inspect the relay continuity.

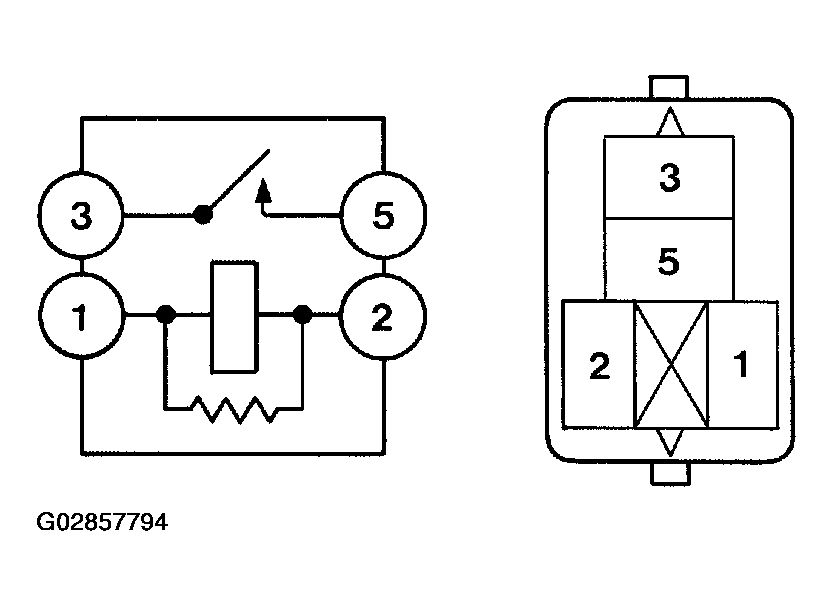

      Fig 3: Identifying Fog Lamp Relay Terminal
      G02857794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SPECIFIED CONDITION

      Condition Tester connection Specified condition
      Constant 1-2 Continuity
      Constant 3-5 No continuity
      Apply B+ between terminals 1 and 2. 3-5 Continuity
    4. ROOF CONSOLE BOX ASSY
      1. Inspect the map lamp continuity.

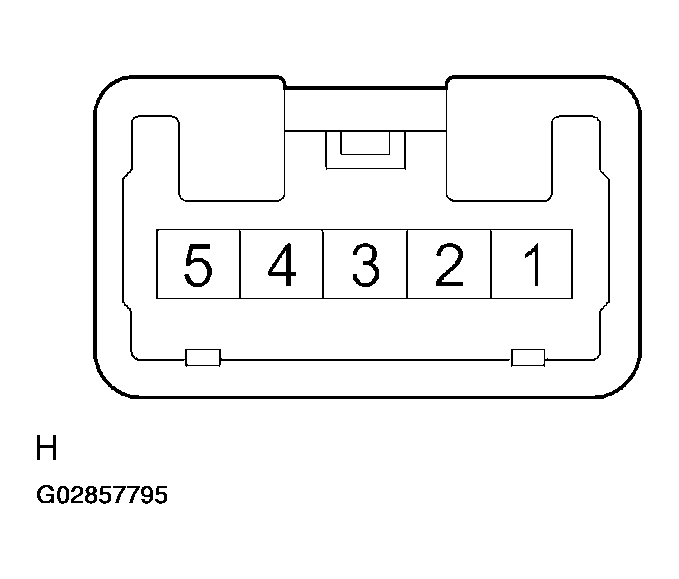

        Fig 4: Identifying Roof Console Box Assy Connector Terminal
        G02857795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Check that there is continuity between terminal 1 and 5 when the switch is operated.

        Standard:

        ON: Continuity

        OFF: No continuity

    5. ROOM LAMP ASSY NO.1
      1. Inspect the room lamp assy No.1 continuity.

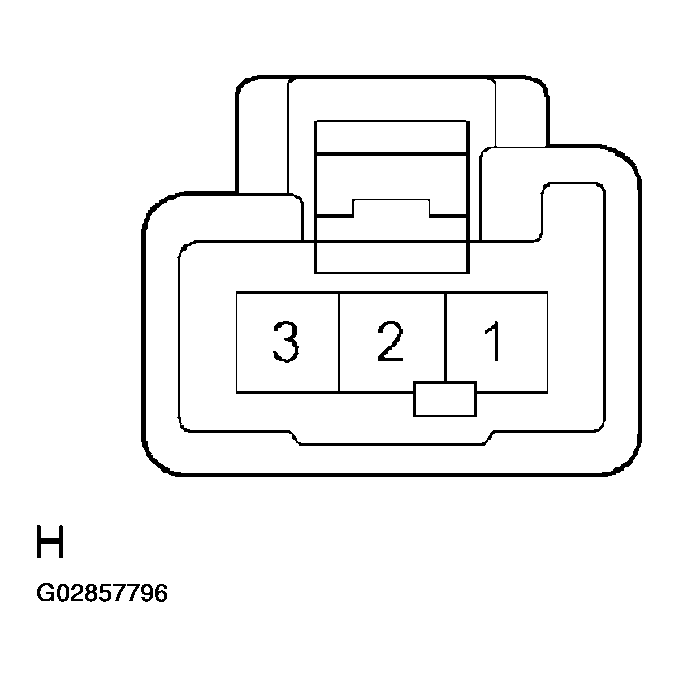

        Fig 5: Identifying Room Lamp Assy No.1 Connector Terminal
        G02857796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Check that there is continuity between terminals at each switch position as shown in the chart.
        STANDARD

        Switch operation Tester connection Specified condition
        OFF - No continuity
        DOOR 1-2 Continuity
        ON 1-3 Continuity
    6. ROOM LAMP ASSY NO.2
      1. Inspect the room lamp assy No.2 continuity.

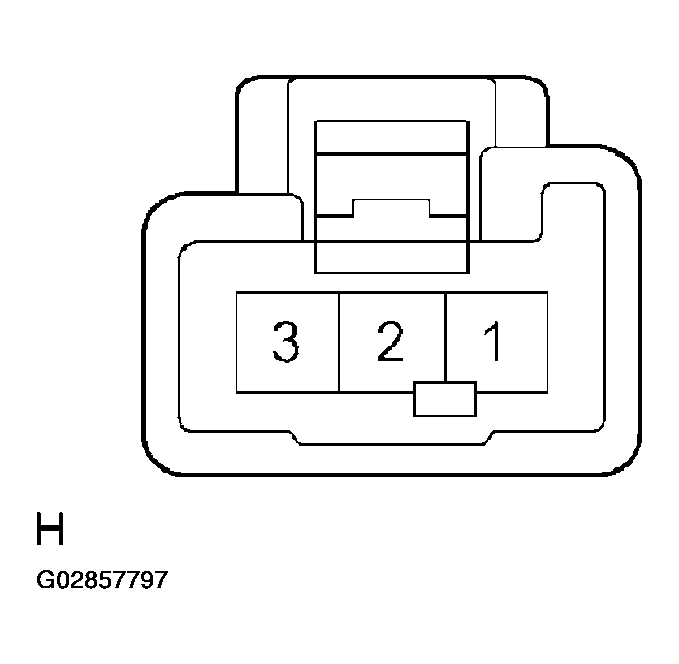

        Fig 6: Identifying Room Lamp Assy No.2 Connector Terminal
        G02857797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Check that there is continuity between terminals at each switch position as shown in the chart.
        STANDARD

        Switch operation Tester connection Specified condition
        OFF - No continuity
        DOOR 1-2 Continuity
        ON 1-3 Continuity
    7. COURTESY LAMP ASSY
      1. Inspect the courtesy lamp assy continuity.
        1. Check that there is continuity between terminals when the switch is operated.

        Standard:

        ON (When shaft is pressed): No continuity

        OFF (When shaft is not pressed): Continuity

    8. GLOVE BOX LAMP ASSY
      1. Inspect the glove box lamp assy continuity.
        1. Check that there is continuity between terminals when the switch is operated.

        Standard:

        ON (When shaft is pressed): No continuity

        OFF (When shaft is not pressed): Continuity

    9. LH STEP SUB-ASSY
      1. Inspect the side step lamp assy.
        1. Check that there is continuity between terminals when the courtesy lamp switch is operated.

        Standard:

        ON: Continuity

        OFF: No continuity

      2. Inspect the rear wheel lamp assy.
        1. Check that there is continuity between terminals when the courtesy lamp switch is operated. Standard: ON: Continuity OFF: No continuity

        Standard:

        ON: Continuity

        OFF: No continuity

    10. TAIL LAMP RELAY
      1. Inspect relay continuity.

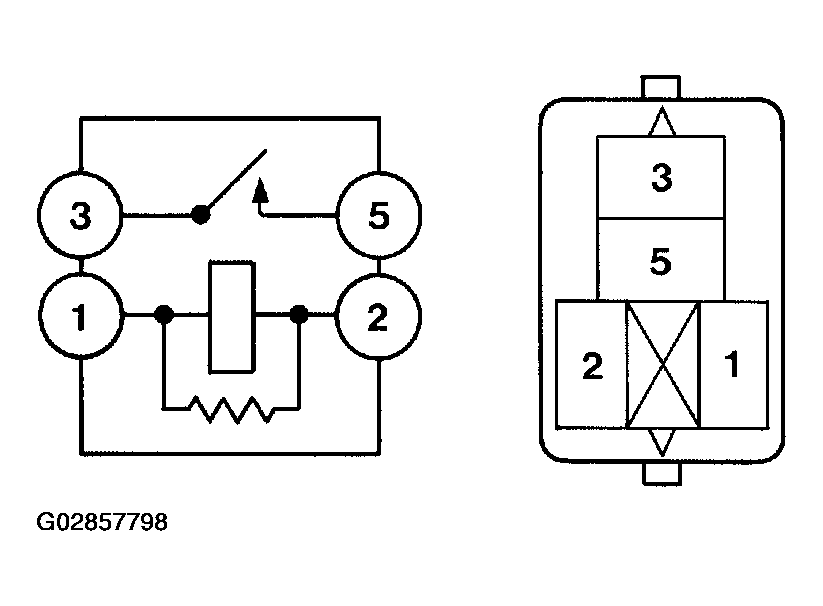

      Fig 7: Identifying Tail Lamp Relay Connector Terminal
      G02857798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD

      Condition Tester connection Specified condition
      Constant 1-2 Continuity
      Constant 3-5 No continuity
      Apply B+ between terminal 1 and 2 3-5 Continuity
    11. HEADLAMP RELAY
      1. Inspect relay continuity.

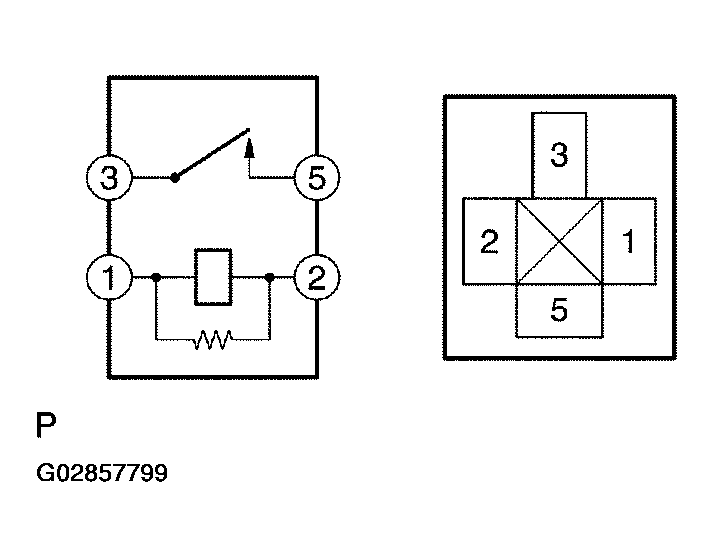

      Fig 8: Identifying Headlamp Relay Connector Terminal
      G02857799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD

      Condition Tester connection Specified condition
      Constant 1-2 Continuity
      Constant 3-5 No continuity
      Apply B+ between terminal 1 and 2 3-5 Continuity
    12. STOP LAMP SWITCH ASSY
      1. Check that the continuity between terminals at each switch position, as shown in the chart.

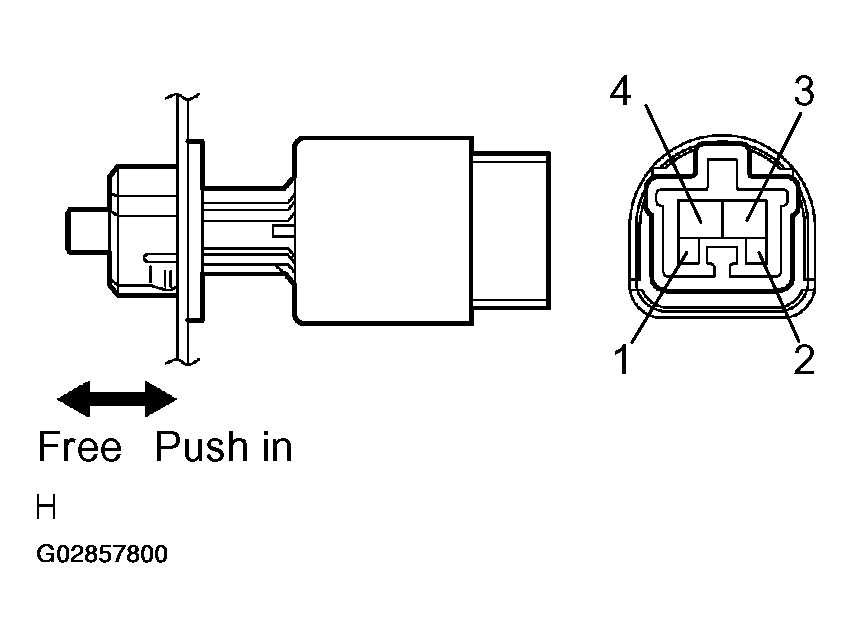

      Fig 9: Identifying Stop Lamp Switch Assy Connector Terminal
      G02857800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD

      Switch position Tester connection Specified condition
      Switch pin free 1-2 No continuity
      Switch pin free 3-4 Continuity
      Switch pin pushed in 1-2 Continuity
      Switch pin pushed in 3-4 No continuity
