Audio & Visual System: Components
WARNING:
This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

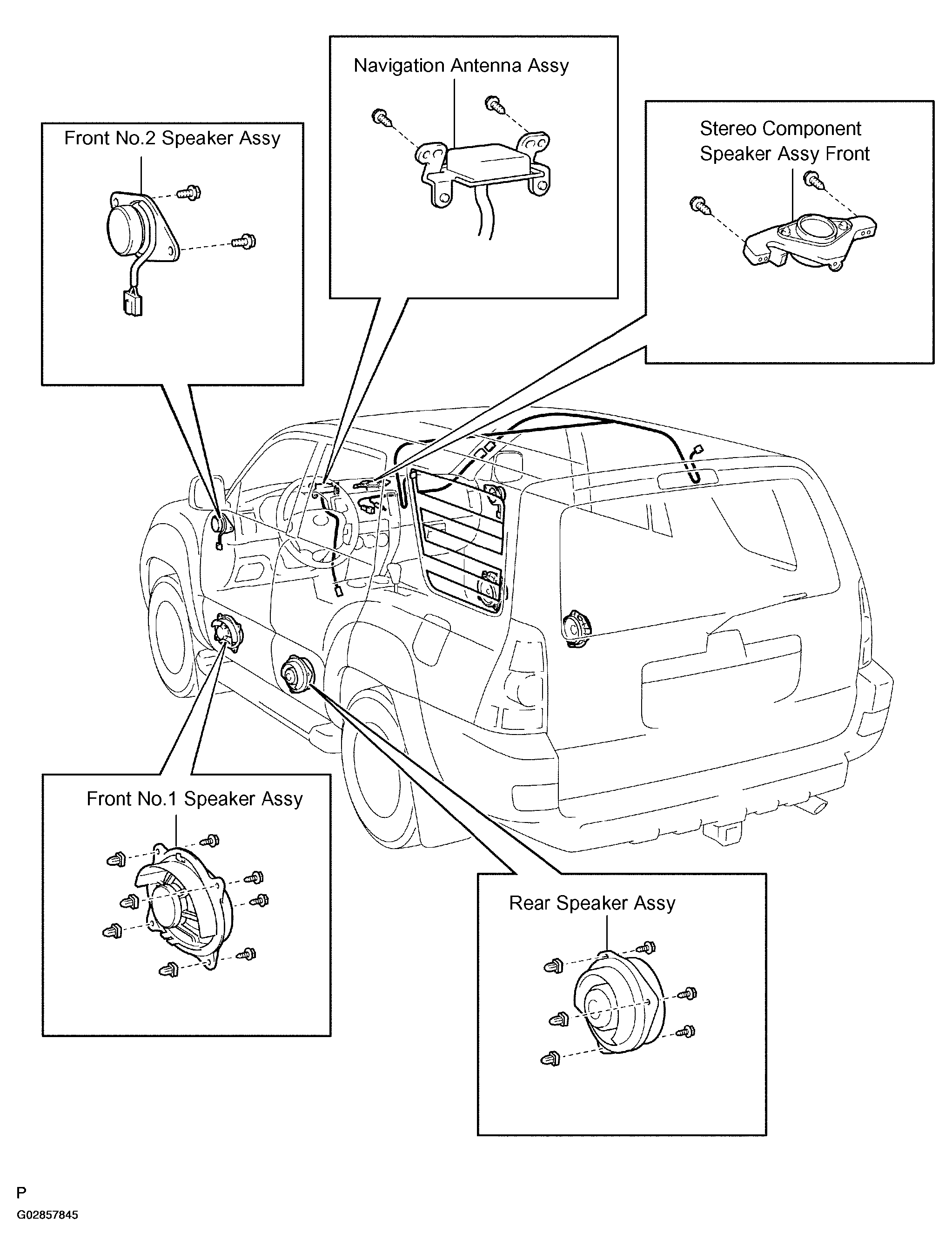

Fig 1: Identifying Components Of Audio And Visual System (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

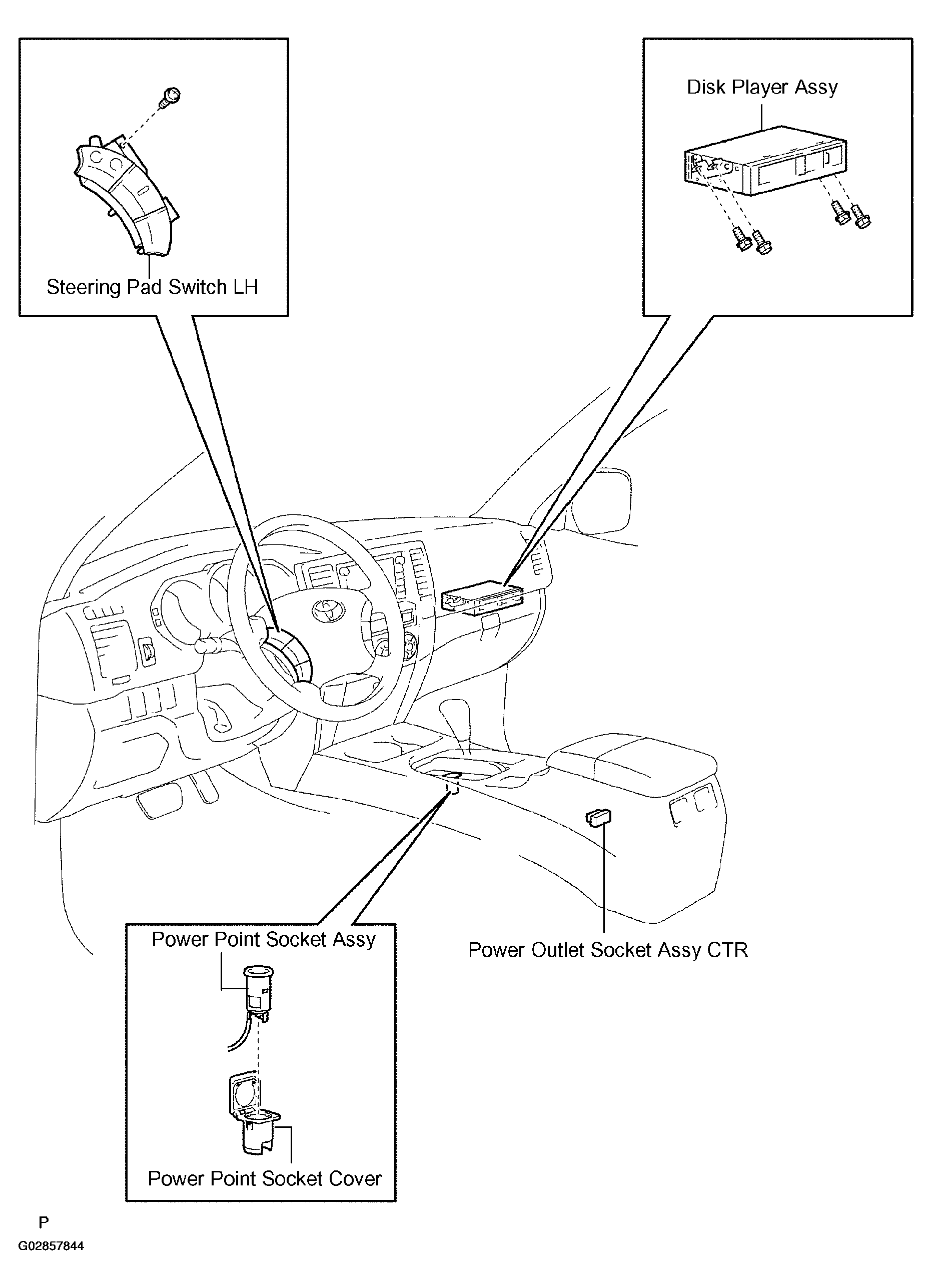

Fig 2: Identifying Components Of Audio And Visual System (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

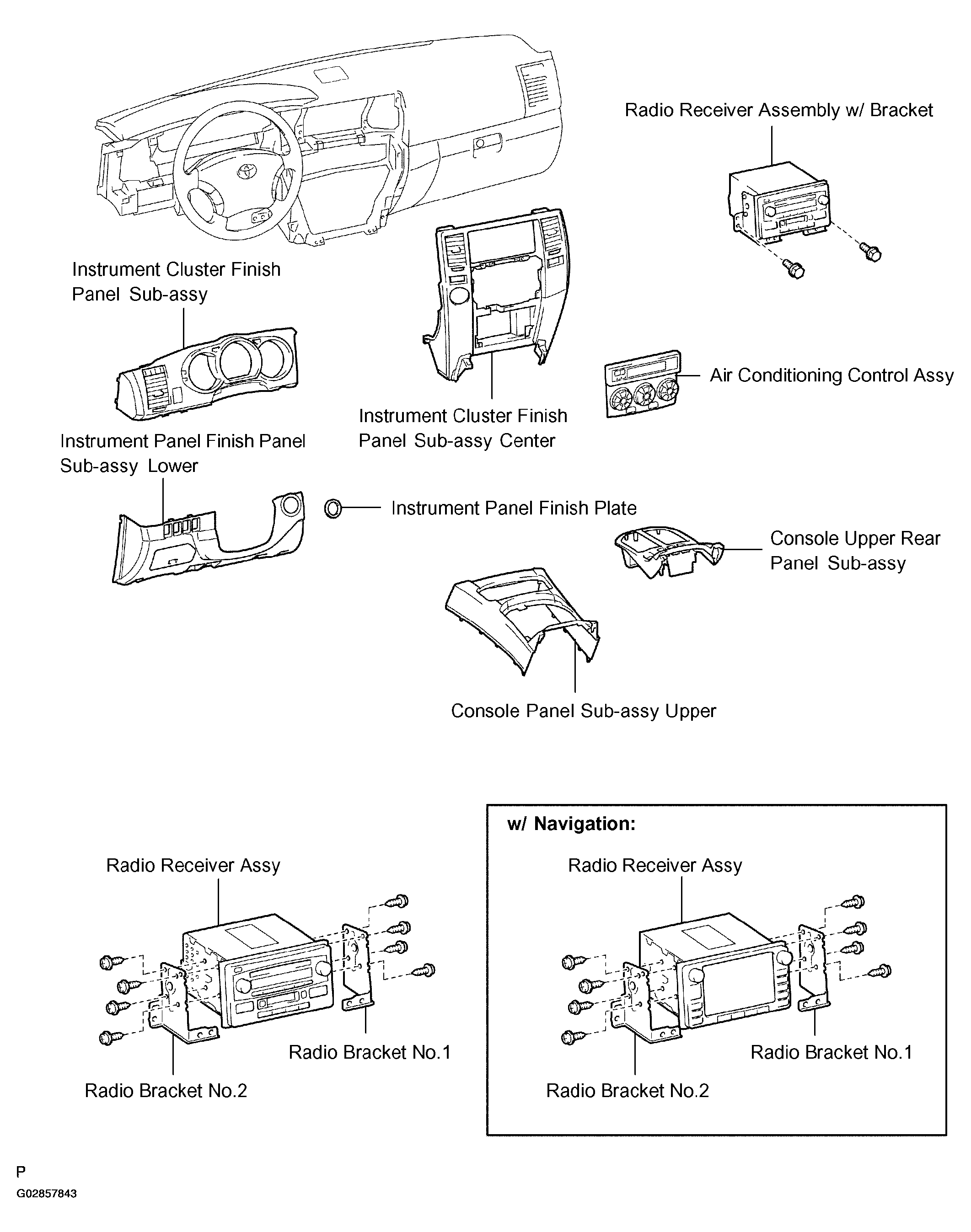

Fig 3: Identifying Components Of Audio And Visual System (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Component Of Audio And Visual System (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
