Circuit Protection Devices
WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|

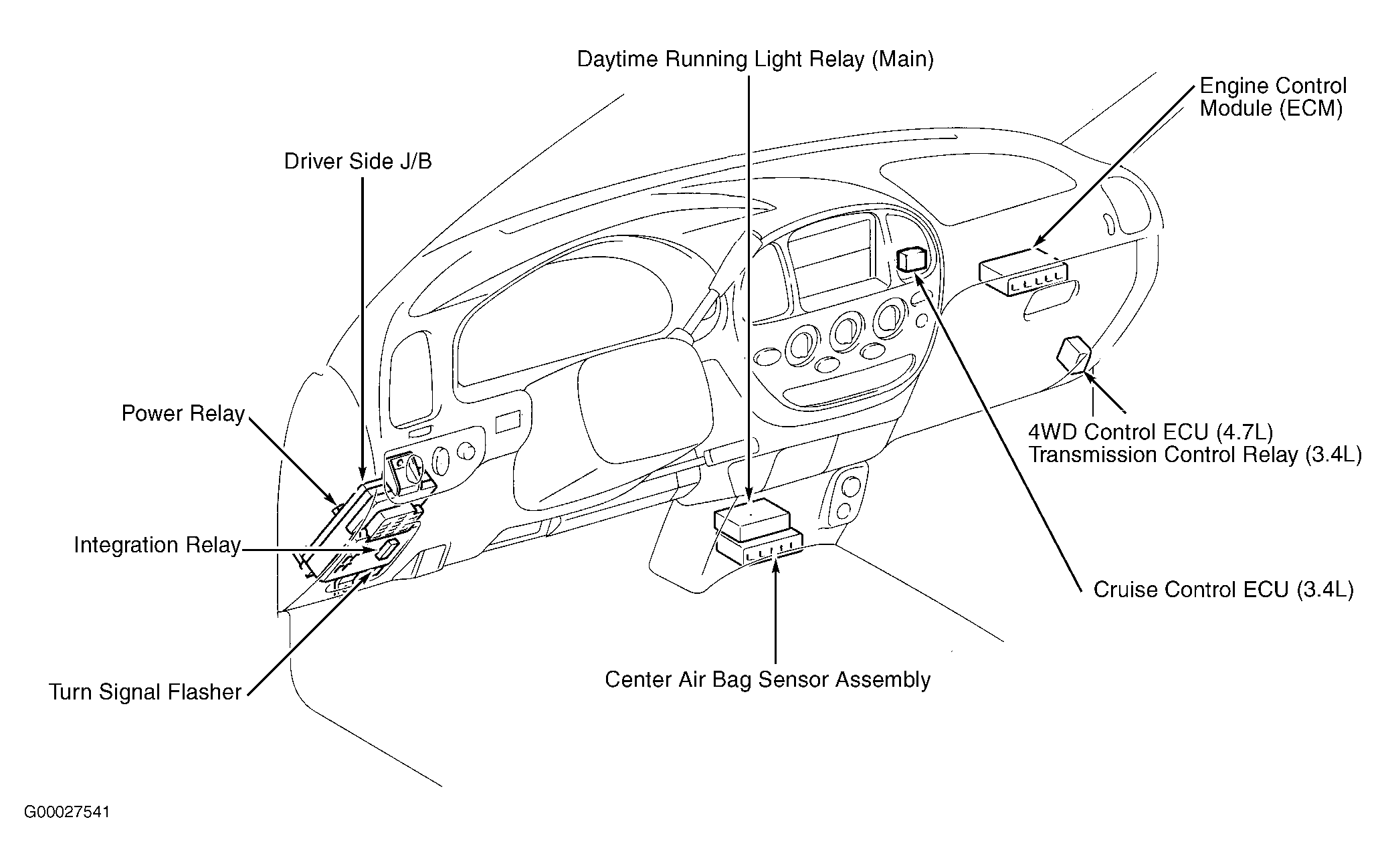

| Driver Side J/B | Behind lower left side of dash. See Figure. |
| Engine Room R/B | On left side of engine compartment. |
