Component Location Graphics

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (3.4L)

G00027536

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

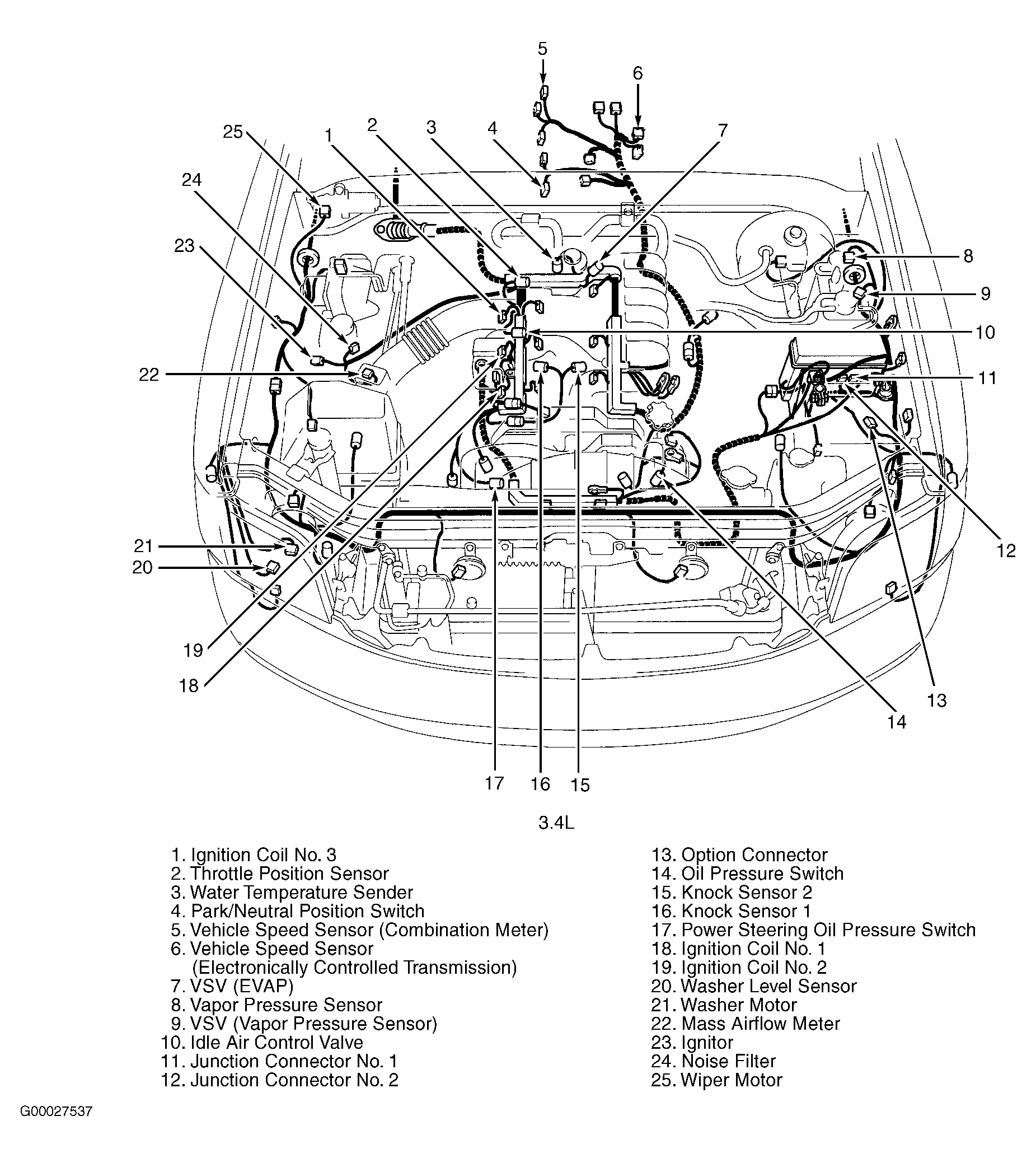

Fig 2: Engine Compartment (3.4L)

G00027537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment (4.7L)

G00027538

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

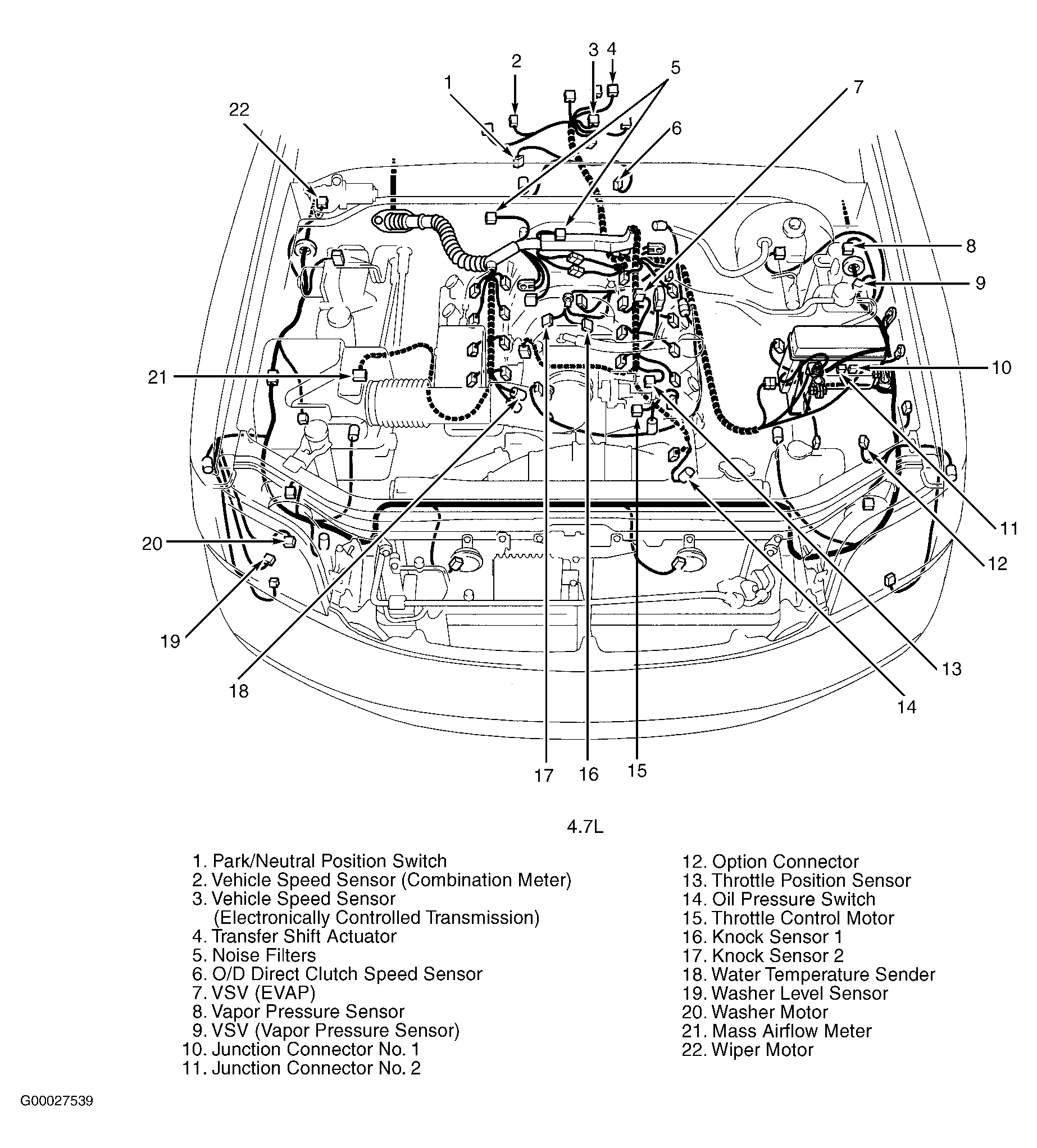

Fig 4: Engine Compartment (4.7L)

G00027539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

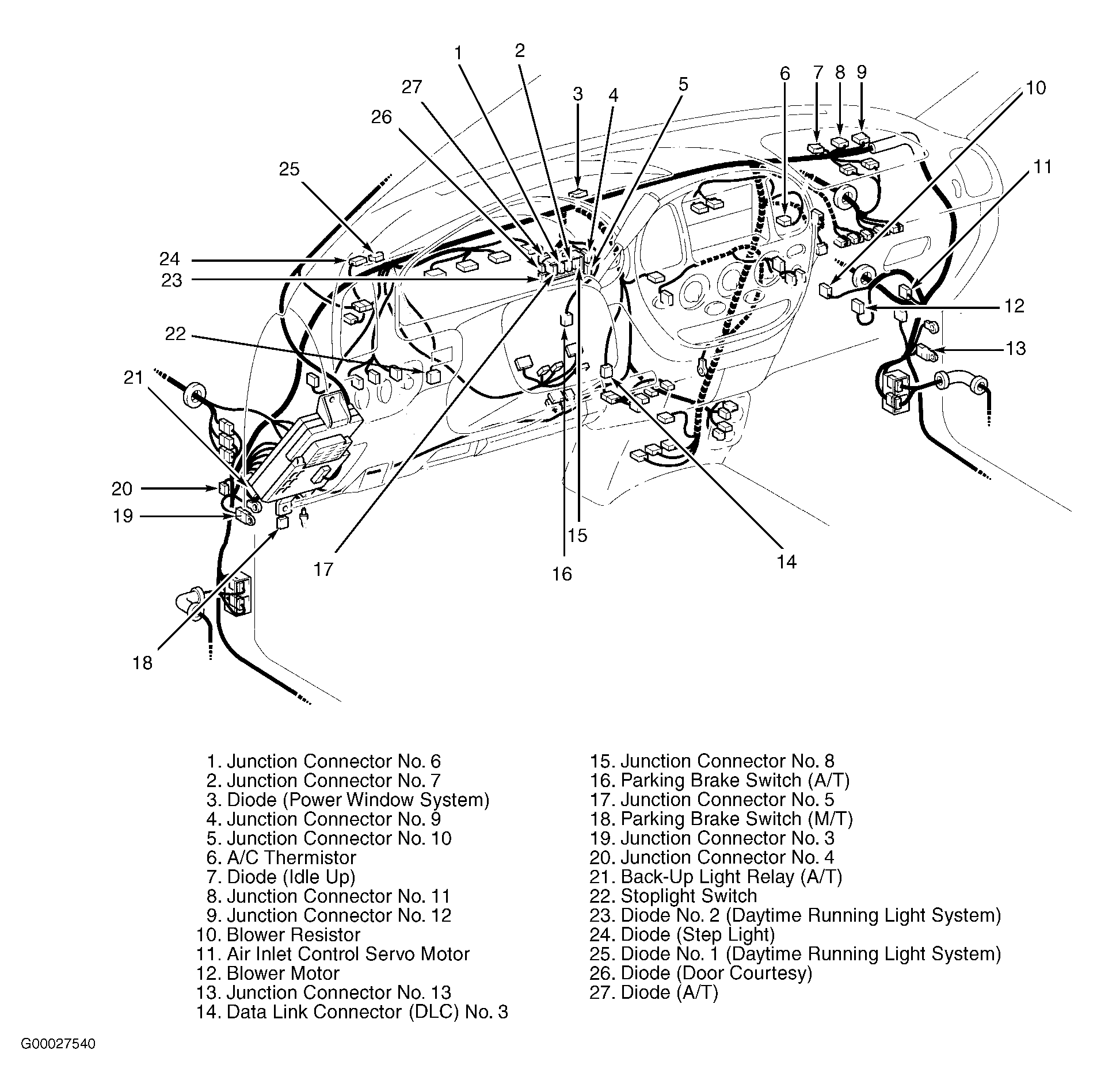

Fig 5: Dash Relays And Components (1 Of 2)

G00027540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
21.	Back-Up Light Relay (A/T)

Fig 6: Dash Relays And Components (2 Of 2)

G00027541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Integration Relay
Power Relay
Daytime Running Light Relay (Main)
4WD Control ECU (4.7L) Transmission Control Relay (3.4L)

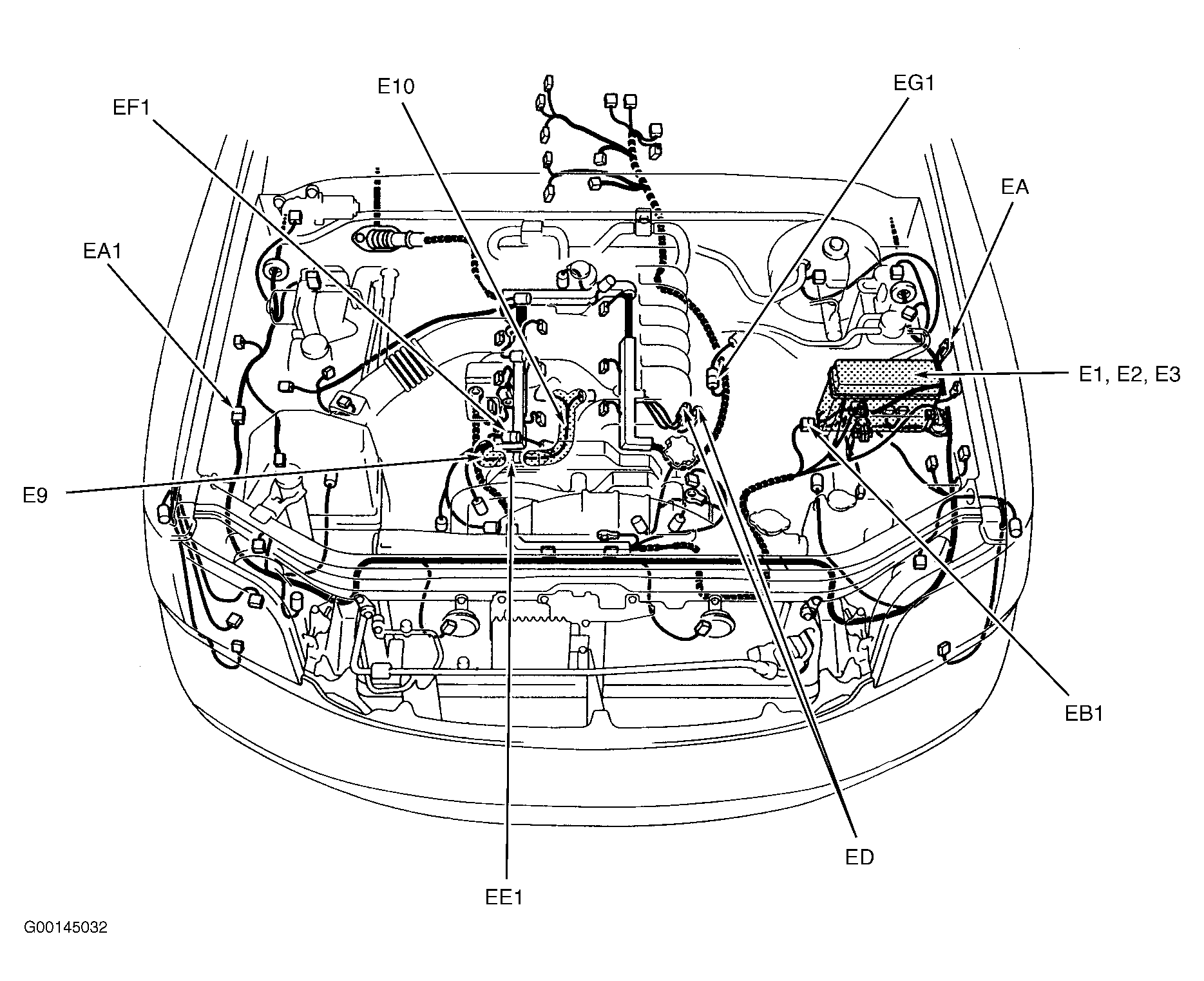

Fig 7: Engine Compartment (3.4L)

G00145032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

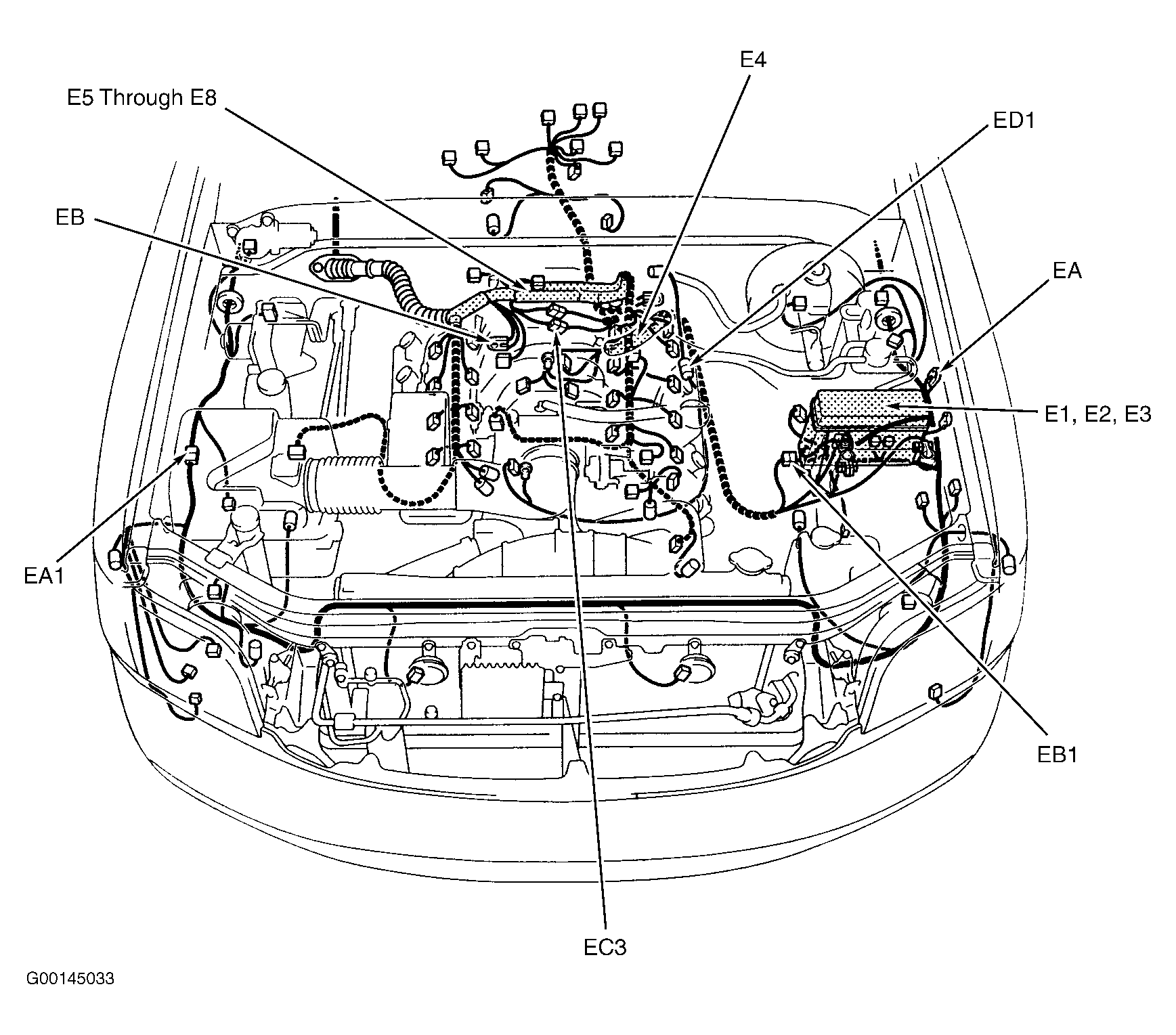

Fig 8: Engine Compartment (4.7L)

G00145033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

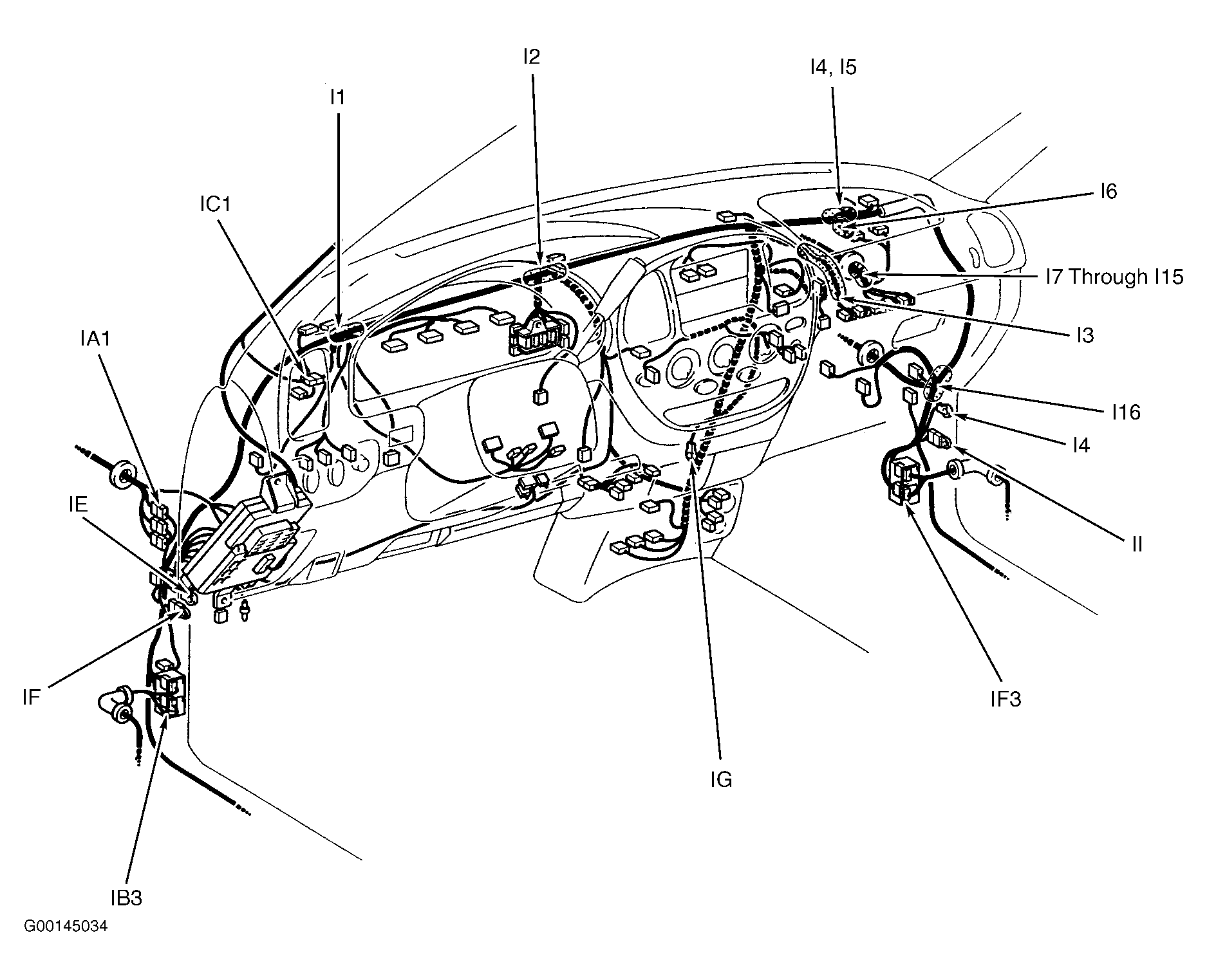

Fig 9: Dash

G00145034

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
