Control Units
WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

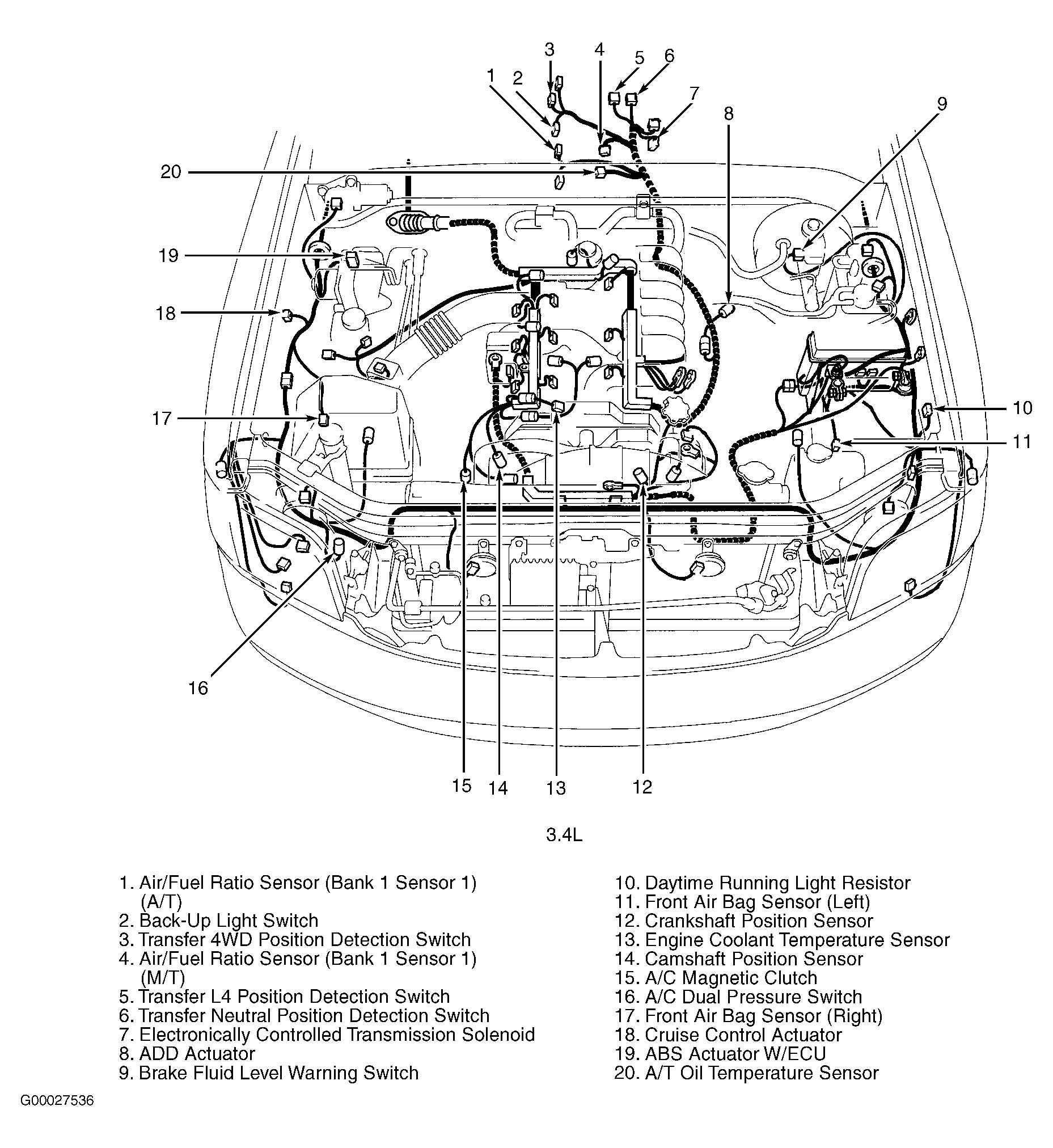

| ABS Actuator W/ ECU (3.4L) | In right rear corner of engine compartment. See Figure. |

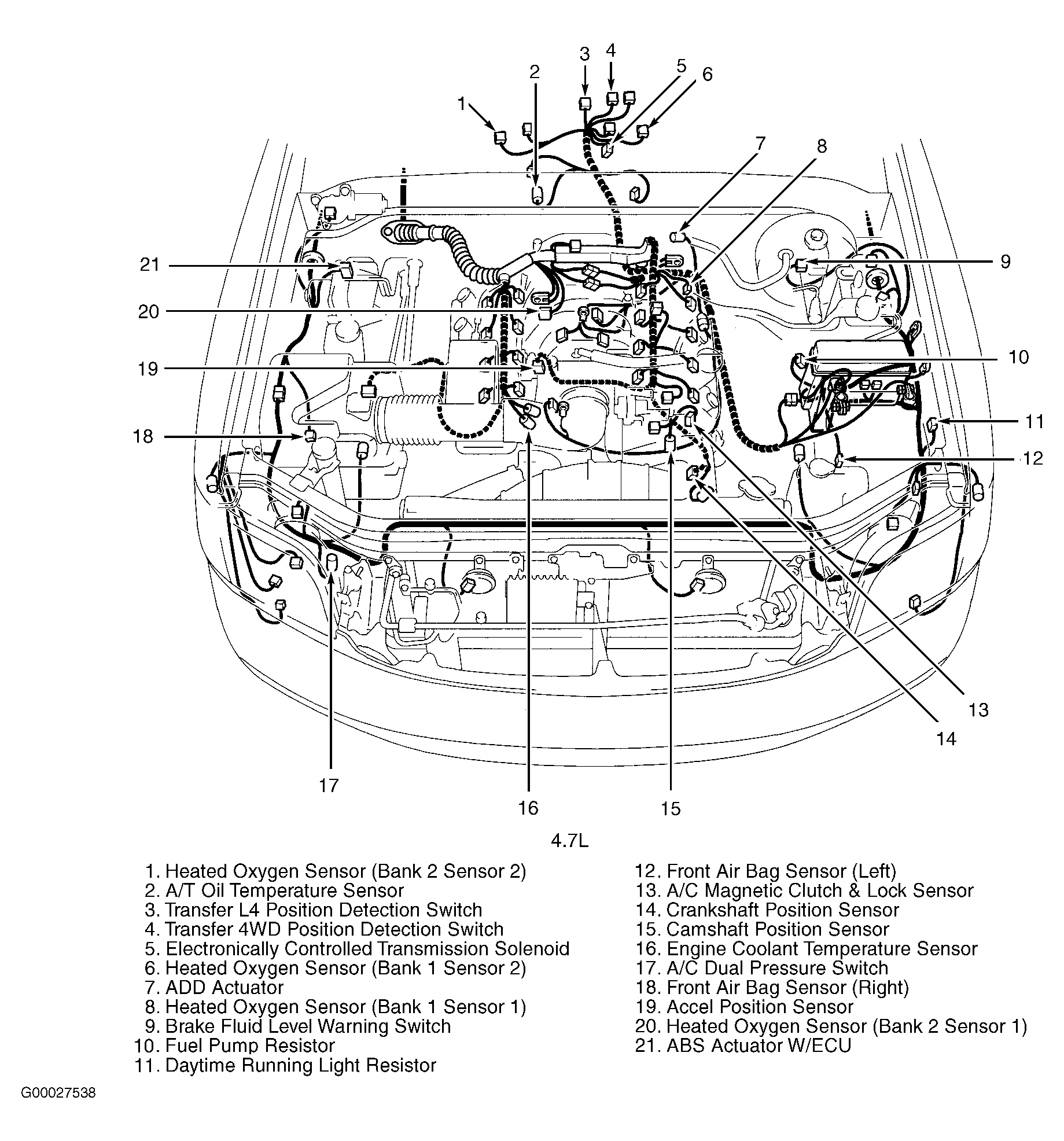

| ABS Actuator W/ ECU (4.7L) | In right rear corner of engine compartment. See Figure. |
| Center Air Bag Sensor Assembly | Behind lower center of dash, on transmission tunnel. See Figure. |
| Cruise Control ECU (3.4L) | Behind upper right center of dash. See Figure. |
| Engine Control Module (ECM) | Behind right side of dash, near "A" pillar. See Figure. |
| 4WD Control ECU (4.7L) | Behind lower right side of dash. See Figure. |
